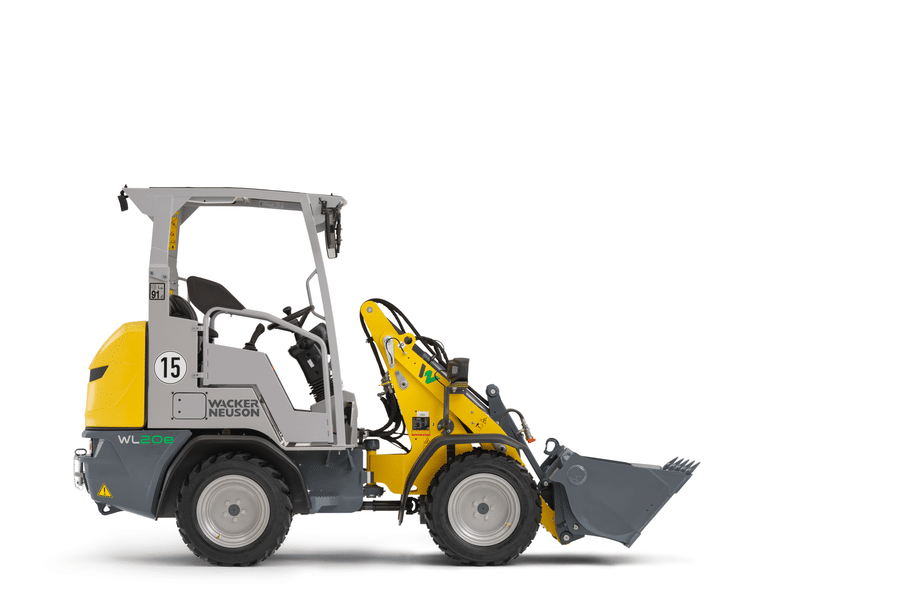

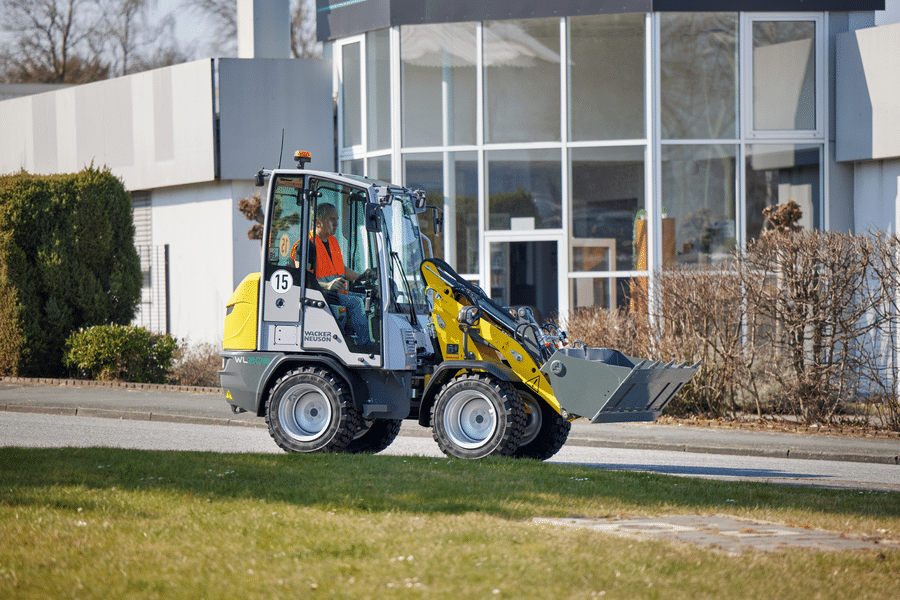

Wacker Neuson Wheel Loader WL20e
The WL20e is the first exclusively electric-powered wheel loader by Wacker Neuson. Its performance characteristics correspond to those of a conventional diesel-powered machine. The installed 48-volt lithium-ion battery is optionally available in three power levels, so that running and charging times can be optimally matched to the work requirements. The WL20e works fully emissions-free on site and with significantly lower noise pollution. For the end user, this means greater flexibility in application, environmental protection and significant savings on operating costs.
Media and Downloads
Features
Innovative technology, proven in the field
Powerful lithium-ion battery
Easy charging options
Comfortable cab
EPS folding overhead guard (Easy Protection System)
Low operating costs
Performance when and where it's needed
High-quality powder coating
Two powerful lifting cylinders
Compact dimensions for optimal maneuverability
Additional Information
| A | Total length | 3,697 mm | |
| B | Total length without bucket | 3,061 mm | |
| C | Bucket pivot point (to center of axle) | 509 mm | |
| D | Wheel base | 1,468 mm | |
| E | Rear overhang | 971 mm | |
| F | Height with operator’s canopy (fixed) | 2,259 mm | |
| F | Height with fold-down operator’s canopy (EPS) | 2,336 mm | |
| F | Height with fold-down operator’s canopy (EPS), folded down | 1,939 mm | |
| F | Height with cab | 2,301 mm | |
| H | Seat height | 1,292 mm | |
| J | Total working height | 3,248 mm | |
| K | Bucket pivot point (max. lift height) | 2,710 mm | |
| L | Load-over height | 2,436 mm | |
| M | Dumping height | 2,017 mm | |
| N | Reach (at M) | 296 mm | |
| O | Digging depth | 83 mm | |
| P | Total width | 1,052 mm | |
| Q | Track width | 804 mm | |
| S | Ground clearance | 219 mm | |
| T | Maximum radius | 2,645 mm | |
| U | Radius on the outer edge | 2,379 mm | |
| V | Inner radius | 1,205 mm | |
| W | Articulation angle | 45 ° | |
| X | Rollback angle at max. lift height | 50 ° | |
| Y | Dumping angle | 40 ° | |
| Z | Rollback angle on ground | 49 ° | |
| – | 27×10.5-15 Deestone D304 ET0 |
