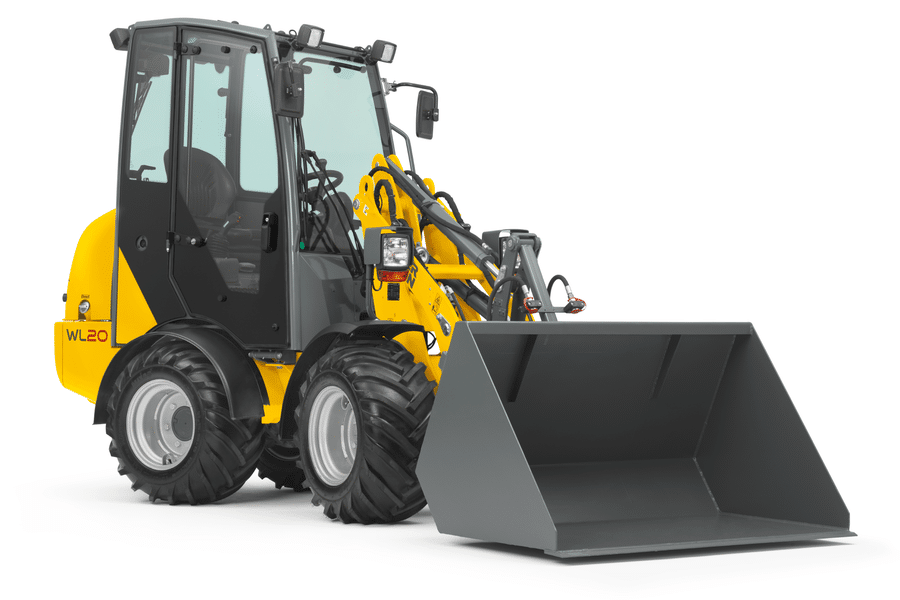

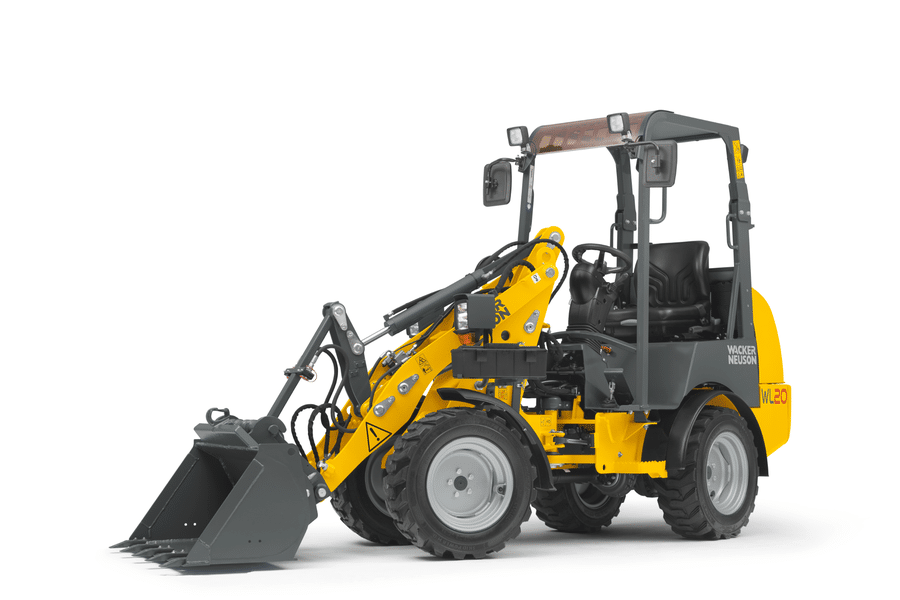

Wacker Neuson Wheel Loader WL20
The Wacker Neuson WL20 wheel loader can be used with great versatility – even in the narrowest passageway. And not only that: even in confined spaces, the wheel loader delivers first-class work results, impressive down the line. Beside high levels of working comfort and outstanding safety standards, the WL20 wheel loader offers exceptional maneuverability, off-road capability and speed, saving space in application.
Media and Downloads
Features
Travel speed: 12.4 mph
Operating weight: 2,000 kg
Bucket capacity: 6.71 ft3
Tank capacity: 20 l
Operating pressure: 3,262.5 lb/h
Flow rate: 31 l/min
Additional Information
| A | Total length | 3,721 mm |
| B | Total length without bucket | 3,063 mm |
| C | Bucket pivot point (to center of axle) | 508 mm |
| D | Wheel base | 1,468 mm |
| E | Rear overhang | 975 mm |
| F | Height with operator’s canopy (fixed) | 2,189 mm |
| F | Height with fold-down operator’s canopy (EPS) | 2,293 mm |
| F | Height with fold-down operator’s canopy (EPS), folded down | 1,880 mm |
| F | Height with lowerable operator’s canopy (EPS Plus) | 2,195 mm |
| F | Height with lowerable operator’s canopy (EPS Plus), lowered | 1,901 mm |
| F | Height with cab | 2,302 mm |
| H | Seat height | 1,225 mm |
| J | Total working height | 3,274 mm |
| K | Bucket pivot point (max. lift height) | 2,693 mm |
| L | Load-over height | 2,424 mm |
| M | Dumping height | 2,011 mm |
| N | Reach (at M) | 350 mm |
| O | Digging depth | 94 mm |
| P | Total width | 1,076 mm |
| Q | Track width | 810 mm |
| T | Maximum radius | 2,681 mm |
| U | Radius on the outer edge | 2,356 mm |
| V | Inner radius | 1,219 mm |
| W | Articulation angle | 45 ° |
| X | Rollback angle at max. lift height | 50 ° |
| Y | Dumping angle | 38 ° |
| Z | Rollback angle on ground | 48 ° |
