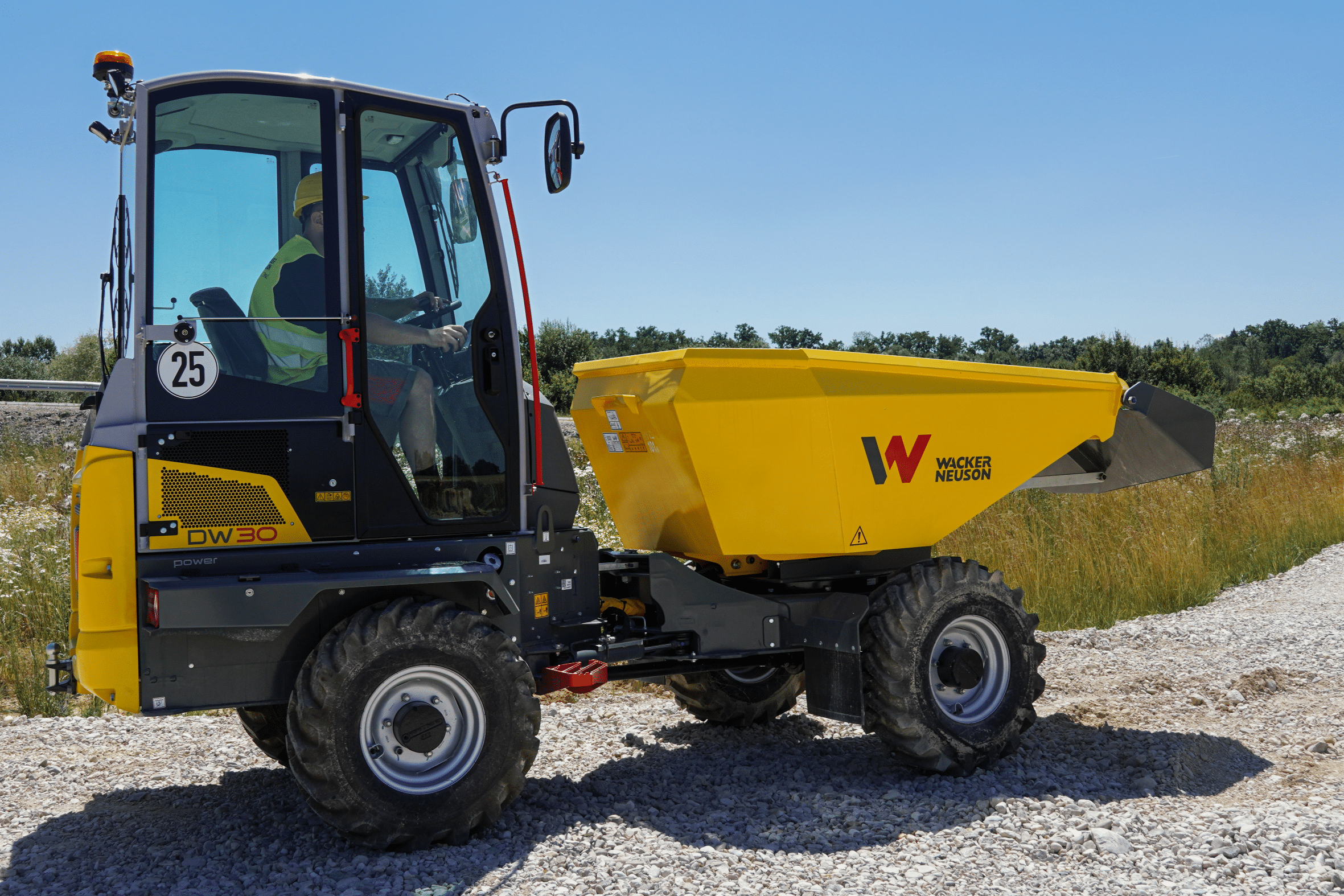

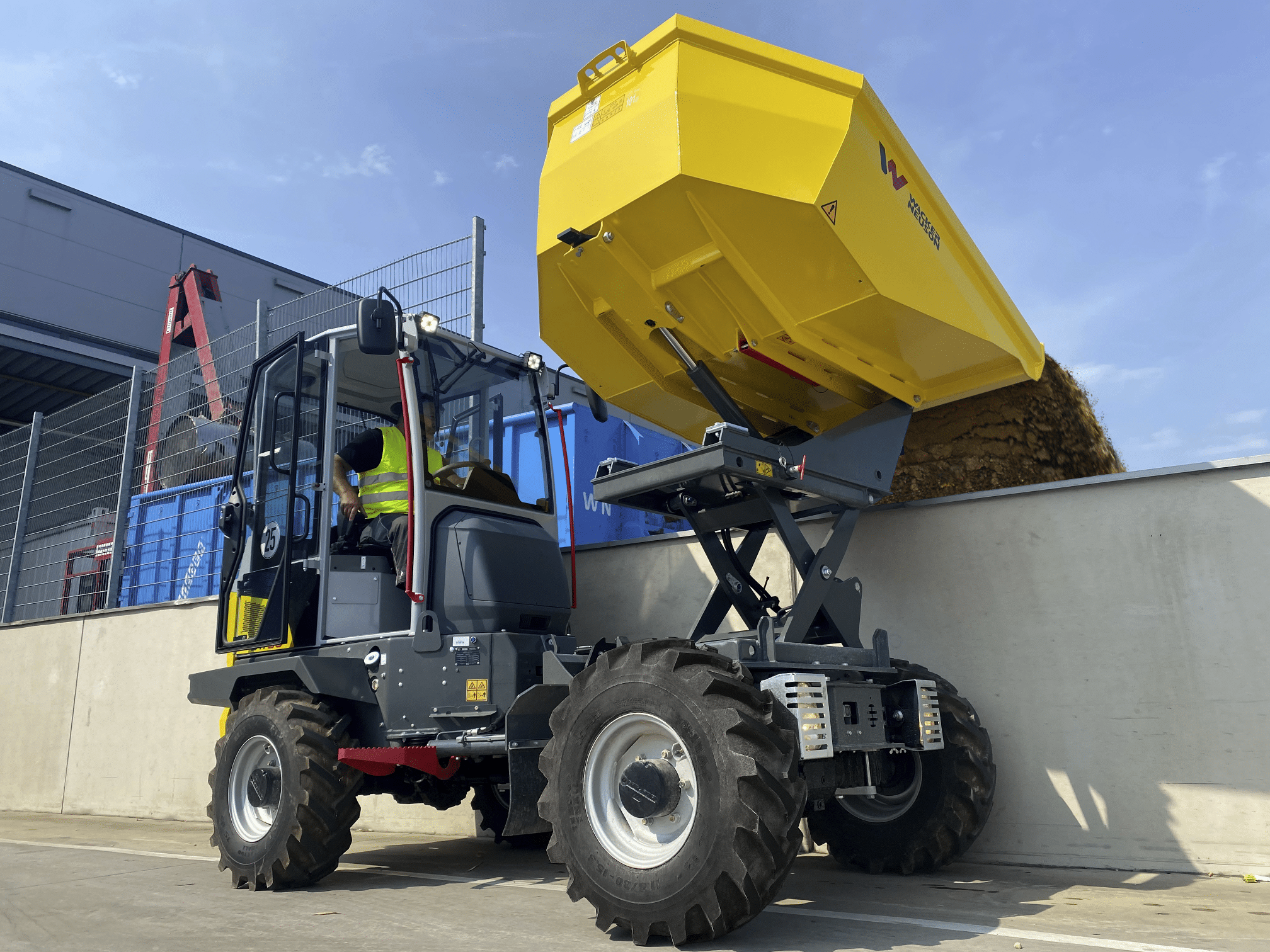

Wacker Neuson Wheel Dumper DW30

Wheel Dumper DW30: Safe operation, comfortable transportation.

The DW30 provides the ideal harmonization of high safety standards and extensive equipment for many application options. Whether with a cabin or roll bar, with concrete skip or swivel tip skip: it is individually adaptable ex works, making it a real all-rounder for any construction site. It simultaneously provides a 3-ton payload at low dimensions, which means it can be efficiently applied, even in area that are more difficult to access. For the precise placement of materials in concreting works, the optional concrete skip is equipped with a pouring pan. The DW30 provides a very high level of safety equipment both as standard and across all available versions.

Media and Downloads

Features

Payload: 3,000 kg
Width: 1,730 mm
Weight: 2,048-2,506 kg
Engine: Yanmar
Engine Output: 25.6 hp
Travel Speed: 12.4 mp/h
Gradeability: 62%
Length: 3,906 mm
Width: 1,730 mm
Payload: 3,000 kg

Additional Information

Skip monitoring

  • Skip monitoring takes over the control of the skip position before driving off and thus prevents consequential damage or accidents.
  • Real-time checking of the skip position informs the operator if locking is incomplete and reduces travel speed to 13 km/h to avoid accidents.
  • This minimizes the risk of damage or accidents to the machine and the surroundings.

Inclination monitoring

  • If the machine is tilted in an unsafe standing position or becomes unstable, the inclination monitoring intervenes and warns the operator.
  • An optical and an acoustic signal display both the speed limitation with the skip tilted in an unsafe position as well as an unstable machine position. This should make it clear to the operator that he is exposed to an increased risk of accident if he does not pay attention.

Seat belt monitoring with start release

  • The seat belt monitoring system signals visually and acoustically if an attempt is made to start the machine when the operator is not wearing a seat belt. The additional start release prevents start-up in this case.
  • The safety during operation is increased once again and improper starting is thus prevented.

Hydrostatic 4-wheel drive

  • Just hop on and go: with the hydrostatic drive system, the operator can concentrate on his work without frequent gear shifting.
  • A continuously constant tractive force from 0 to the maximum speed and a hydrostatic brake provide for a comfortable driving experience.

Concrete skip

  • The optional concrete skip is specially designed for processing concrete, e.g. in road construction. With a special concrete chute and swivel skip, quick and time-saving 180° placement is possible.
  • The concrete skip is optimized in its shape for liquid concrete (water mass).
  • The concrete trough has also been optimized in its shape for liquid concrete (water measure).
