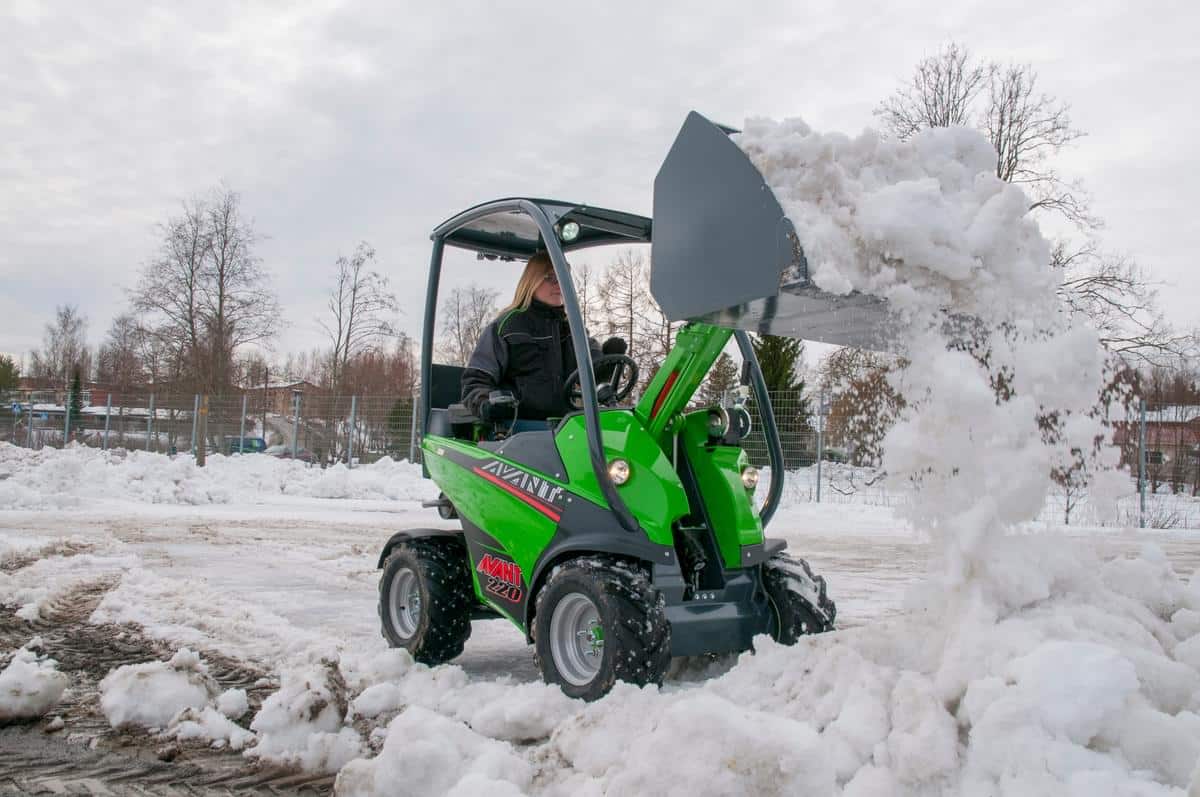

Avant 220 Loader
“200 series” Super compact multi-functional loader.
Avant 200 series is an amazingly powerful and versatile compact loader considering its small size. The basic ideology with the articulated design and hydraulic 4×4 transmission is the same as in bigger Avant’s.
Easy access to driver’s seat, ample space for operator, logical and easy-to-use controls and excellent visibility to the working area guarantee efficient operation.
The Avant quick attach system for attachments and hydraulic multi-connector are standard features as well.
The 200 series is especially strong in driving attachments with its max 42 l/min hydraulics flow. The wide Avant attachment range allows working all year round – be it earthmoving, lawn mowing, digging, load handling, snow removal, etc. 200 series is much more than a ride-on lawn mower, compact tractor or a quad bike.
Media and Downloads
Features
Additional Information
ENGINE MAKE AND TYPE | Kohler ECV730 EFI (Electronic Fuel Injection) Stage V |
FUNCTION | 4-stroke |
FUEL | gasoline |
ENGINE OUTPUT (ECE R120) | 18,6 kW (25 hp) |
MAX. DRIVE SPEED | 10 km/h |
PULLING FORCE | 640 daN |
DRIVE HYDRAULICS | Direct hydrostatic 4 wheel drive with 4 hydraulic motors |
AUXILIARY HYDRAULICS OIL FLOW MAX. | |
• FRONT OUTLET (STANDARD) | 42 l/min |
• REAR OUTLET (OPTION) | 7 l/min |
TIPPING LOAD *) | 350 kg |
SEAT BELT | Standard |
WHEELS | 20 x 8.00-10 Grass or TR |
LIFTING HEIGHT | 1400 mm |
WEIGHT | 700 kg |
HEIGHT | 1880 mm |
WIDTH | 995/1025 mm |
LENGHT | 1910 mm |
