UNIC URW-506C Spider Crane – RT – NA – Diesel or Electric – RCU
Description
The UNIC 506 mini crane is capable of lifting three tonnes at 3.4m, or up to four tonnes with an optional 5 fall hook block, the UNIC 506 mini crane offers an optimal combination of working flexibility and lifting power.

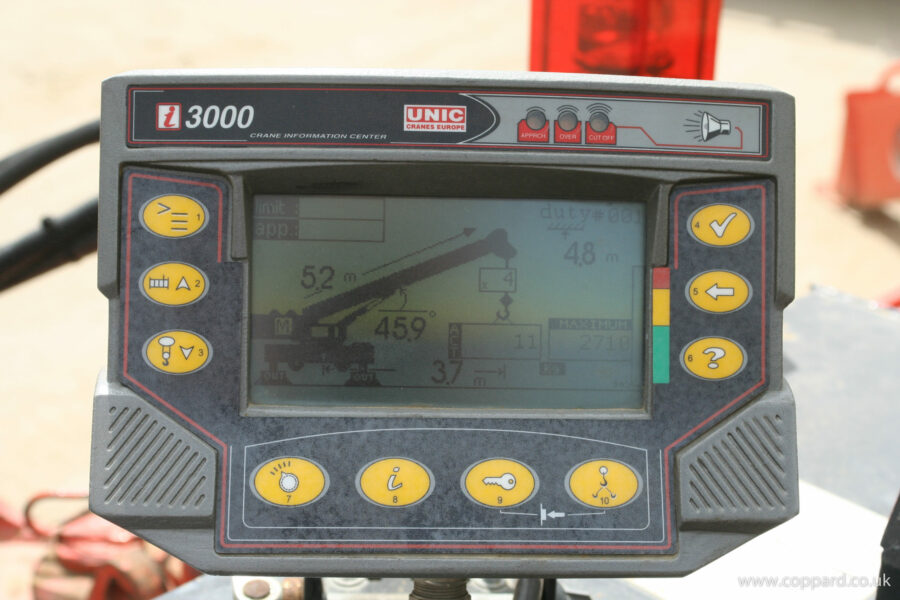

As with all models carrying a safe load indictor, the 506’s working area limitation device allows the operator to pre-define the working area. On approaching these limits, an audible alarm is given before operation stops.
Safety is a design priority with all UNIC mini spider cranes.
In addition to automatic boom speed reduction approaching overload, other safety devices include: auto-stop and continuous alarm on overload, anti two-block system, auto hook stow system and full safe load indicator.
Features include: high speed boom extension, control of outrigger extension from the operator’s seat and maintenance-free rubber crawlers. UNIC’s unique hexagonal boom greatly reduces boom sway, resulting in increased accuracy
- Capacity 3.0t x 3.4m
- Total width 1.4m
- Max working radius 15.52m
- Max boom length 15.71m
- Diesel powered and optional mains electric
- Zero length increase with electric option
- Operator control of outrigger extension
- Radio remote control as standard
- Working area limitation
- Slew limitation (optional)
- Eco Intelligent throttle activation for economy and ecology
| Height (mm) |
2035
|
| Capacity (t) |
3
|
| Max Working Height (m) |
15.71
|
| Weight (kg) |
4990
|
| Reach (m) |
15.50
|
| Max Load (kg) |
3000
|
| Width (mm) |
1400
|
The URW-094 is the smallest spider crane in the mini crane range. At only 595mm wide and weighing 1000kg, it is the world's smallest and lightest mini crawler crane, ideal for manoeuvring into the most confined working areas. Once in position, the URW-094 is capable of lifting heavy loads of almost a tonne with its 5.49m long boom allowing a maximum hook height of 5.6m. The URW-094 delivers unparalleled heavy lifting capacity for such a compact mini crane.
Price per day
POA
Price per week
POA
More Information
With a 6 tonne capacity at 3m and a hook height of 19.5m, the URW-706 is the highest capacity crane in the UNIC range. The machine is the behemoth of the mini crane world and yet at 1600mm wide is still narrow enough to gain access through a standard double doorway. For added lifting flexibility, the 706 also features an optional 3.1m long stowable fly jib, together with an optional searcher hook.
Price per day
POA
Price per week
POA
More Information
The Valla 90E is one of the largest mini pick and carry cranes with a 9,000 Kg lifting capacity. Being battery powered it can be used in environments where the use of liquid fuels is prohibited. It has a width of 1735 mm and a lift height of more than 7 m. This type of crane is particularly suited to glass lifting, steel works, stone and concrete products.
Price per day
POA
Price per week
POA
More Information
