Price Per Day £250.00
Price Per Week £400.00
Price Per Month -
Enquire

Hydraulica Glass Lifter – Dual Circuit

At A Glance

Capacity
1 000
Rotation degree
270, 360
Tilt degree
±90
See full specification

Description

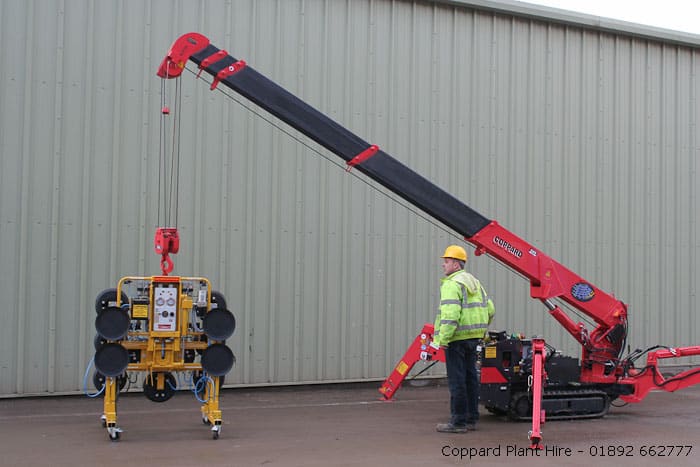

The Hydraulica vacuum glass lifter is highly versatile dual circuit glass lifter with 10 pads as standard lifting 750kg. There are 2 extendable arms with 2 pads on each that can be fitted to further stabilise the load and will increase the lifting capacity up to 1000kg.

The Hydraulica vacuum glass lifter is supplied with a wheeled stand so it is quick and easy to move into position as and when required.

The Hydraulica vacuum glass lifter is fitted powered tilting so positioning has never been easier, this is controlled via a cable remote control system.

  • Suitable for lifting gastight materials with a smooth surface for example: glass, plastic boards, ceramic plates, sheet metals, coated boards.
  • Dual – independent vacuum circuits with two vacuum reserve tanks and two non-return valves.
  • Vacuum gauge for each circuit.
  • Manual 270° lockable rotation.
  • Powered hydraulic tilting from vertical to horizontal.
  • 4 on-board maintenance-free vacuum pumps.
  • 12v battery with integral charger or 110v/240v mains and battery energy gauge.
  • Audio-visual low vacuum alert.
  • Cable remote control as standard.
  • Individual pads can be isolated to accommodate irregular shapes.
  • Wheeled Stand.

Works well with...

Additional Information

Capacity (kg)

1000

Rotation degree (°)

270, 360

Tilt degree (°)

±90

Woods Glass Lifter - MRTA6 - Dual Circuit - Quadra Tilt

The powerful and versatile MRTA6 is the first vacuum lifter with 'Quadra-Tilt' - a unique four bar tilt mechanism that gives mechanical assistance to the user. One of it's many features is that when a load is tilted to either upright or the flat position, the load is maintained automatically without the use of latches. Some of the MRTA6 other features include extension arms, removable pads together with 360 degree manual rotation, allowing the MRTA6 to accommodate a wide variety of load shapes and sizes.
Capacity
500
Rotation degree
360
Tilt degree
±90
Price per day £200.00
Price per week £300.00
More Information

Woods Glass Lifter - MRT4 - Dual Circuit + Storage Box

The MRT4 dual circuit vacuum lifter is specially designed for versatility and safety. One of it's main features is that it offers 360 degree rotation with 90 degree tilt, from any rotation position. With the inclusion of extension arms and removable pads as standard, the MRT4 can be configured in to different frame positions to cover most load positions on site.
Capacity
320
Rotation degree
360
Tilt degree
±90
Price per day £180.00
Price per week £280.00
More Information

Libro 800 Overhang Beam with 8 Pad Dual Circuit Glass Lifter

The Libro 800 Glass Lifter counterbalance beam is fitted with a rechargeable battery to power the 24 counterweight rack and pinion saddle and can be attached to both mobile cranes or tower cranes. Its detachable vacuum lifter and optional lifting arm make it ideal for a variety of separate below the hook lifting operations. This counterbalance beam is controlled by cable remote control and the counterweight saddle can be moved along the beam to balance the load being lifted. The Libro 800 Glass Lifter is the perfect option for projects where materials are to be installed below an overhang of up to 2000mm and can lift at full capacity at each working length.
Capacity
800
Rotation degree
-
Tilt degree
-
Price per day £350.00
Price per week £750.00
More Information
