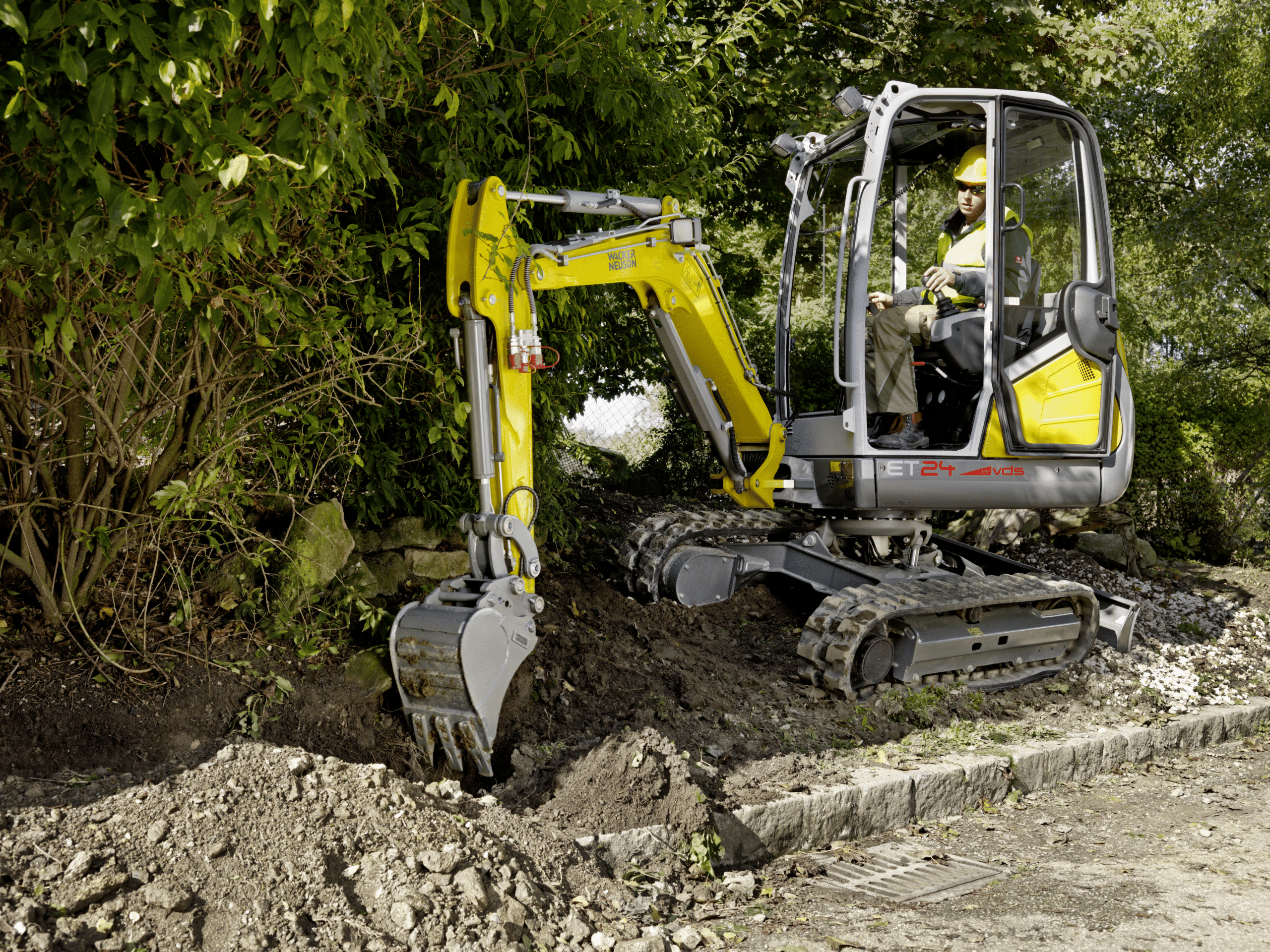

Wacker Neuson ET24 Excavator

Tracked Conventional Excavator ET24:

The ET24 combines the advantages of the lighter weight classes with the power rating of the 2.5-metric ton class. Due to this, it has more lift capacity at a low weight and compact dimensions. This makes it strong and flexible in transport as well as when changing positions. The high excavating and tractive power increases the machine’s productivity, saving time simultaneously. The powerful drive system, together with the intelligent cooling system, allow efficient working cycles, even at high ambient temperatures. Thanks to the generously arranged cab design, the operator has enough freedom of movement for head and legs. The ergonomic seat, individually adjustable, also makes fatigue-free working possible. A variety of options is available for the ET24. The excavator can thus be configured completely according to the customer’s requirements.

Media and Downloads

Features

Weight: 2057 - 2401 kg
Digging Depth: 2602 mm
Engine: Yanmar
Engine Output: 18.5 hp
Oil Flow: 78 l/min
Width: 1400 mm
Travel speed; 2.5 mph
Height: 2,392 mm
Length: 4,022 mm
Inclined position max: 30 °

Additional Information

Comfortable, fully glazed cab

  • The large, fully glazed and tiltable cabin with roof window offers the operator an optimal 360° visibility of his work area. This gives the operator a good view of his working area, colleagues and any dangers. Meanwhile, available despite this.
  • It can be easily disassembled for service and repair work. All hydraulic functions of the excavator meanwhile remain available despite this.

Powerful drive system

  • Thanks to the high performance of the drive system, the maximum power of the excavator is available at every point of operation. This brings up to 30% higher power for an even better performance.

VDS Vertical Digging System

  • The vertical digging system compensates for slopes of up to 15 degrees, making it possible to vertically excavate on a slope. This is not only ergonomic for the operator, but it also saves time and also means less excavated material.
  • Up to 25 percent material and time savings when excavating and filling. Safe working and higher stability in sloping spaces.
  • The same swing power over 360 degrees allows fatigue-free work with the seat position remaining the same.

Hydraulically pilot-controlled travel pedals

  • The hydraulically pilot-controlled travel pedals provide comfortable and precise control without mechanical wear. Driving with foot control leaves the hands free for other functions. This saves time and increases operating comfort.

Compact dimensions

  • High level of safety during transportation, cost and time savings. The excavator scores points with a low entry height and reduced external dimensions due to the intelligent component arrangement, providing higher stability thanks to the low center of gravity.
  • Whether during transportation or in tight spaces: thanks to its compact design, the excavator can easily be taken to your next job site. And on the construction site, the machine can maneuver anywhere easily and quickly, even in confined spaces – for high efficiency in every application.

Innovative front windshield system

  • The windshields can be adjusted to any condition on the construction site. Closed, they are water- and windproof. The upper front window can be pushed under the cabin roof. The lower pane serves as splash protection. The lower windshield slides behind the upper window, making it ideal for talking with colleagues. If necessary, both windows are pushed below the cabin roof, where they are stored safely.
  • The two-part front window allows for optimal ventilation in the cabin in any weather. In addition, it makes it easier to communicate with the operator. A separate removal and storage of the window is a thing of the past.
  • Significantly lower risk of damage or loss; higher level of operating comfort
