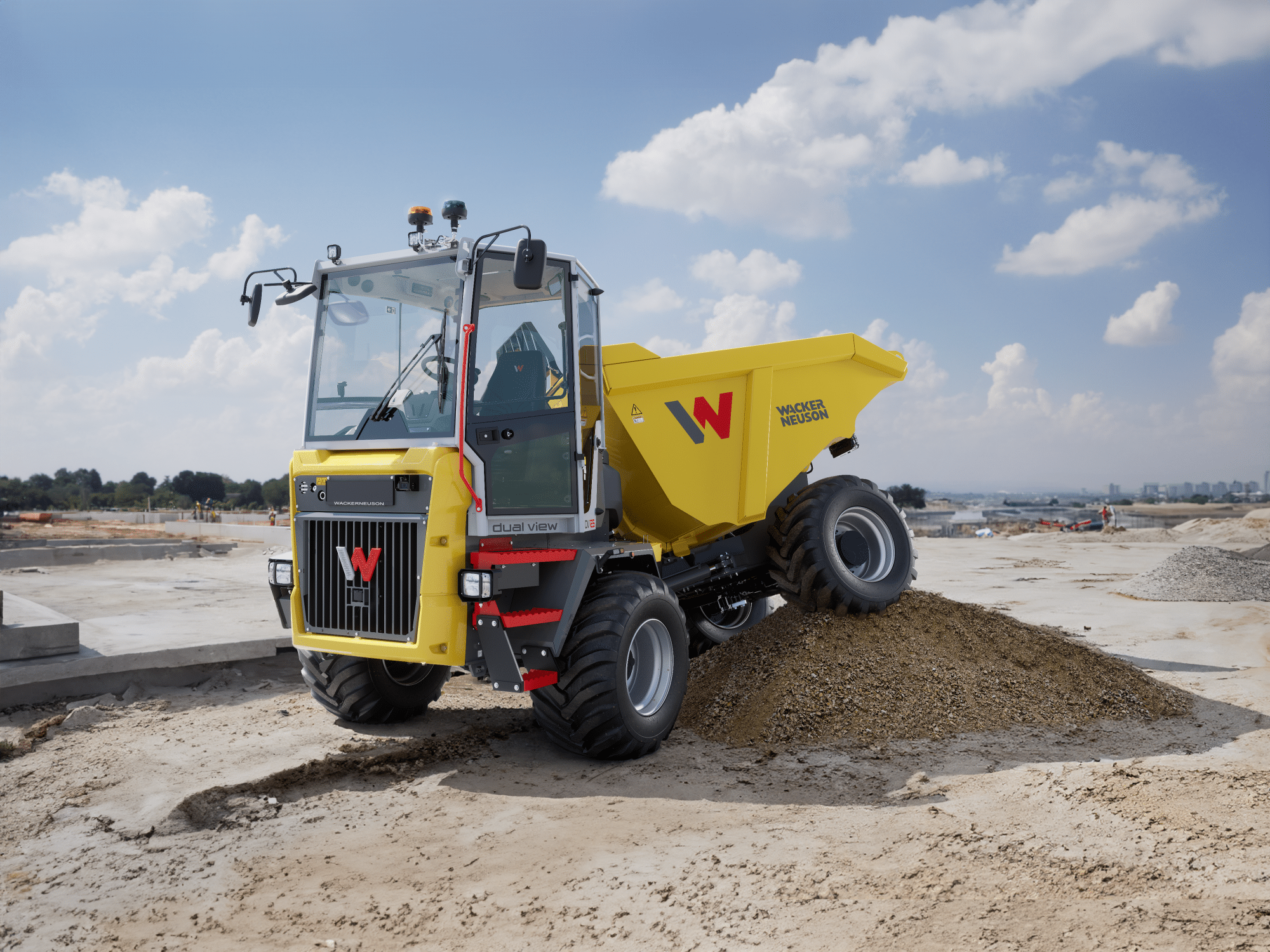

Wacker Neuson Dual View Dumper DV125

Dual View Dumper DV125: Seizing new dimensions

The first 12.5-ton dumper is impacting the market with the reliable Dual View swivel seat concept and the high level of standard safety equipment. With the high payload capacity of 12.5 tons, the DV125 has the ability to transport more material like a truck, but maintains the advantages of a dumper. The articulated pendulum joint and hydrostatic all-wheel drive ensures it retains its tractive force while traveling across rough terrain. All these benefits are supported by the machine’s built-in high safety standards, providing for an excellent operating experience.

Media and Downloads

Features

Payload: 12,500 kg
Width: 2,540 mm
Weight: 4,600 kg
Engine: Deutz
Engine Output: 135.9 hp
Travel Speed: 15.5 mp/h
Gradeability: 62%
Length: 5,342 mm
Operating weight (min.-max.): 6,335 - 6,585 kg
Payload: 12,500 kg

Additional Information

High payload for maximum material handling

  • With an impressive payload of 12.5 tons, it enables more material to be moved in less time while utilizing the flexibility and mobility of a dumper.
  • The high payload allows for more material to be moved in one trip, saving time and money.
  • A notable and visible increase in efficiency. The perfect compromise to combine the benefits of a dumper with the transport volume of a truck.

Dual View rotating seat concept

  • No time-consuming turning is required, which increases the maneuverability and efficiency.
  • Simply rotate the seat after loading and perform material transport with a perfect view to the front and material in the rear.
  • Increased productivity and safety on the construction site.

High safety standards

  • The DV125 fulfills the highest safety standards in the base model machine.
  • Tilt and skip monitoring, hill-hold function, safety glass, skip guards and much more are factory installed at no extra cost.
  • A variety of optional safety and comfort functions are also available, which can be ordered individually to configure each and every machine precisely to the requirements and needs of the application.

Compact dimensions and maximum maneuverability

  • Despite the high payload of 12.5 tons, the DV125 is extremely compact. With an overall length of just 4.6 m {181.1 inches} and a tight turning radius, it can be used in the most confined construction sites.
  • The machine is particularly well suited to road construction or transporting manufacturing materials. In combination with the proven rotating seat, the travel direction can be changed safely at any time.

Sturdy heavy-load axle

  • Increased safety through a specially designed heavy-load axle.
  • Consistent stability and reinforced frame for safe application in demanding work applications.
  • Sturdy construction and safety you can rely on.
