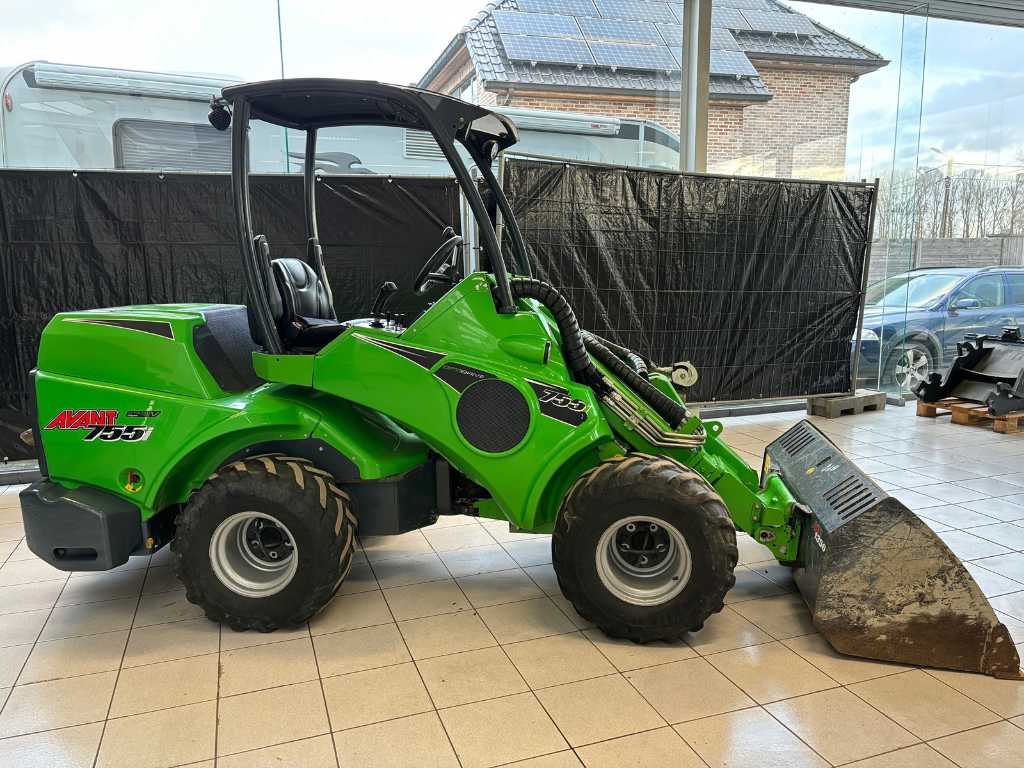

Avant 755i Loader

“700 series” Outstanding handling capacity.
Avant 700 series offers strong and real multi-use loaders for jobs where high lift capacity and/or drive speed is needed, yet at the same time the machine shall be as compact as possible. The 700 series is the perfect tool for street cleaning and other property maintenance tasks on narrow streets and yards in the cities, lifting and handling bales, etc. on farms, handling paving stones, moving materials on construction sites, and in many other applications. Easy transportation with a car trailer and a high drive speed enable quick transfers between work sites.

High flow auxiliary hydraulics runs all Avant attachments which further increases the versatility of the machine.

A wide range of options increases operator comfort as well. 700 series can be fitted with all cab options, also with A/C, which ensures the perfect conditions for a full day’s work.

Media and Downloads

Features

Lift Capacity: 1400kg
Lift Height: 3.1m
Engine Power: 57hp Diesel
Width: 1290m
Oil Flow: 80 l/min
Weight: 1970kg
Speed: 17 km/h
Height: 2060 mm
Engine: Kohler KDI 1903 TCR Stage V
Pulling Force Max: 1330 kp

Additional Information

LENGTH 3060 mm
WIDTH 1290 mm
HEIGHT 2060 mm
WEIGHT 1970 kg
STANDARD WHEELS 320/60-12HD TR
TRANSMISSION, DRIVE hydrostatic Avant OptidriveTM
PULLING FORCE MAX. 1330 kp
DRIVE SPEED MAX.  17 km/h
AUX. HYDRAULICS OIL FLOW / PRESSURE 80 l/min 225 bar
TURNING RADIUS INSIDE/OUTSIDE 1240 / 2780 mm
LIFTING HEIGHT TO PIVOT POINT 3080 mm
MAX. LIFTING CAPACITY (HYDR.) 2100 kg
MAX. TIPPING LOAD *) 1400 kg
MAX. BREAKOUT FORCE / 50 CM 1700 kg
ENGINE MAKE AND TYPE Kohler KDI 1903 TCR Stage V
ENGINE OUTPUT (ECE R120) 42 kW (57 hp)
MAXIMUM TORQUE 220 Nm @ 1500 rpm
FUEL Diesel
