UNIC URW-094C Spider Crane – RT – NA – Petrol – LPG
Description

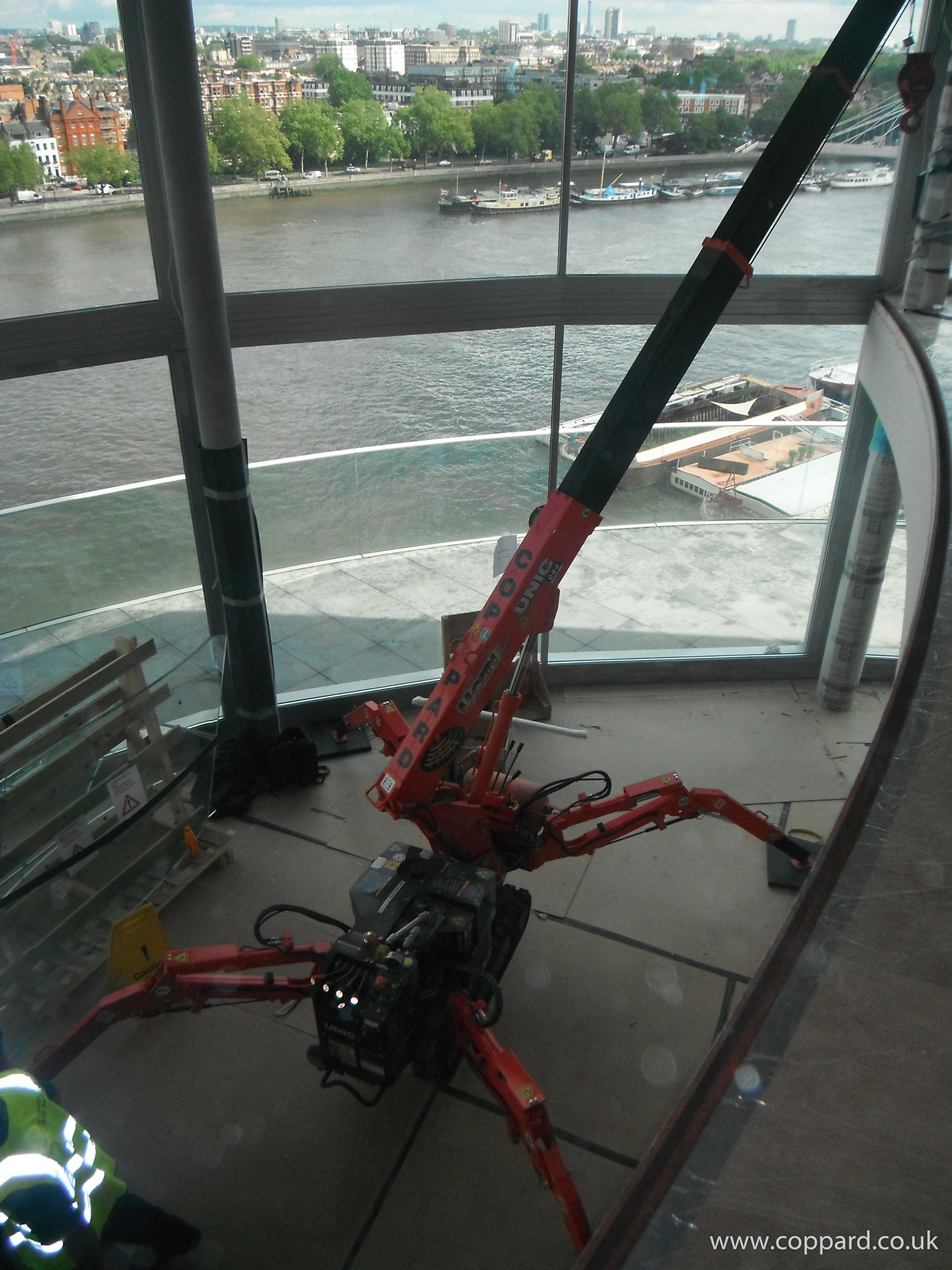

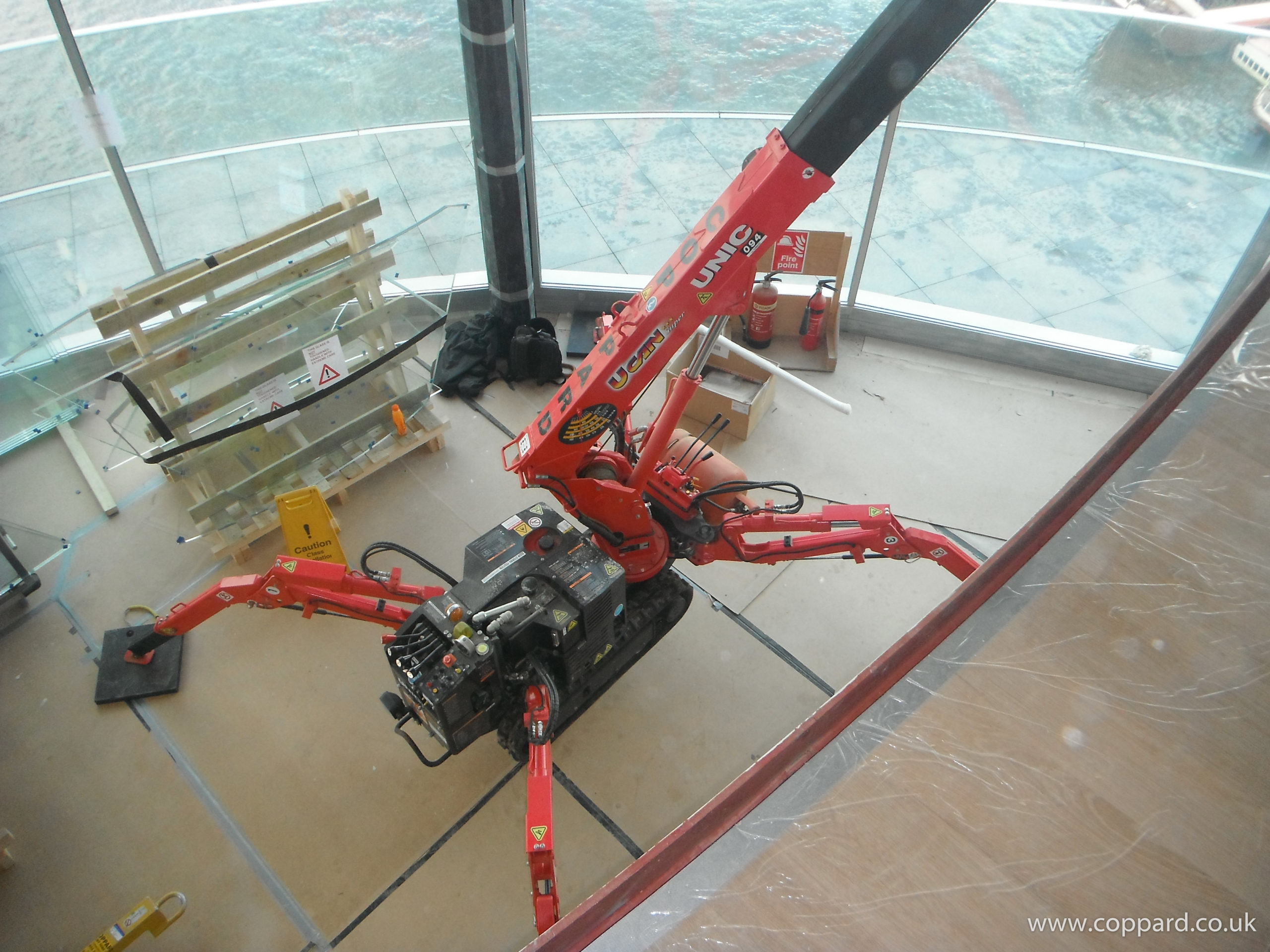

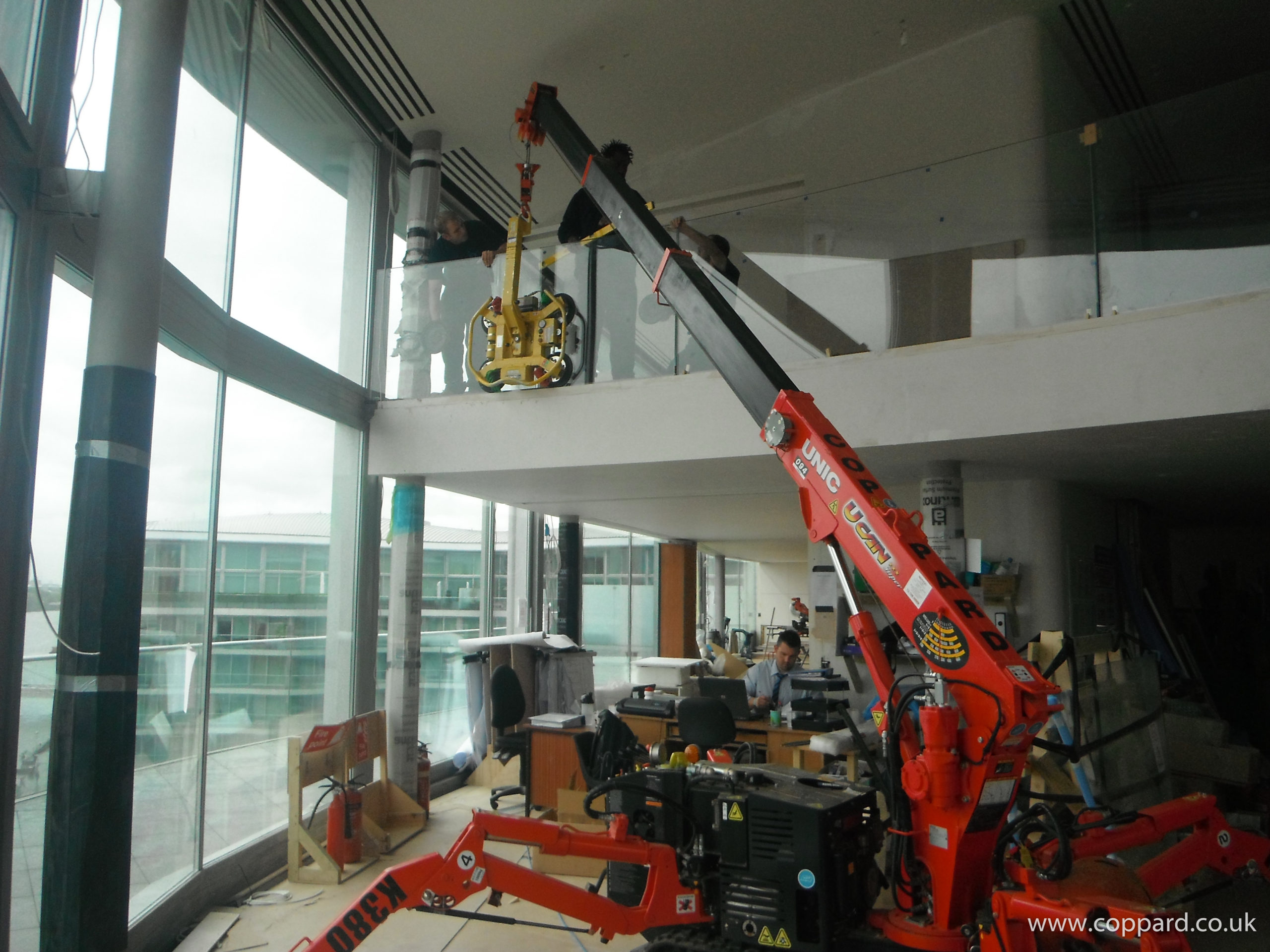

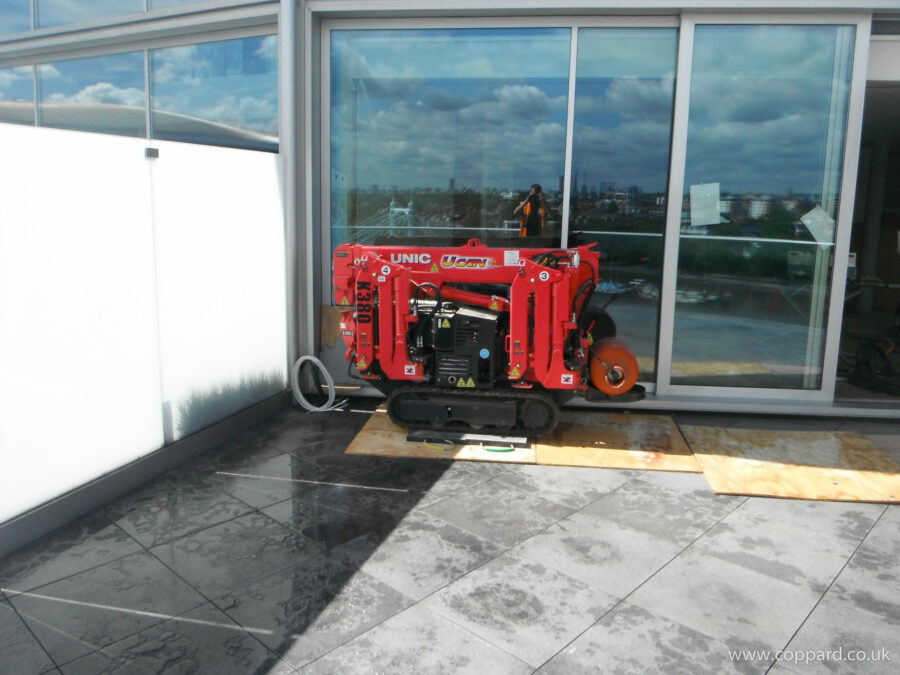

The URW-094 is the smallest spider crane in the mini crane range. At only 595mm wide and weighing 1000kg, it is the world’s smallest and lightest mini crawler crane, ideal for manoeuvring into the most confined working areas. Once in position, the URW-094 is capable of lifting heavy loads of almost a tonne with its 5.49m long boom allowing a maximum hook height of 5.6m. The URW-094 delivers unparalleled heavy lifting capacity for such a compact mini crane. This spider crane has been used for a number of different applications, from glass installation to subterranean maintenance.
- Capacity 0.995t x 1.5m
- Total width 0.595m
- Max working radius 5.17m
- Max boom length 5.49m
- Petrol powered or LPG dual fuel
- Multi-position configurable outriggers
- Intelligent voice warning system
- Radio remote control as standard
- Intelligent throttle activation for economy and ecology
| Height (mm) |
1380
|
| Capacity (t) |
0.995
|
| Max Working Height (m) |
5.60
|
| Weight (kg) |
1000
|
| Reach (m) |
5.60
|
| Max Load (kg) |
2900
|
| Width (mm) |
600
|
Capable of lifting three tonnes at 3.4m, or up to four tonnes with an optional 5 fall hook block, the UNIC 506 offers an optimal combination of working flexibility and lifting power. As with all models carrying a safe load indicator, the 506 s working area limitation device allows the operator to pre-define the working area. On approaching these limits, an audible alarm is given before operation stops.
