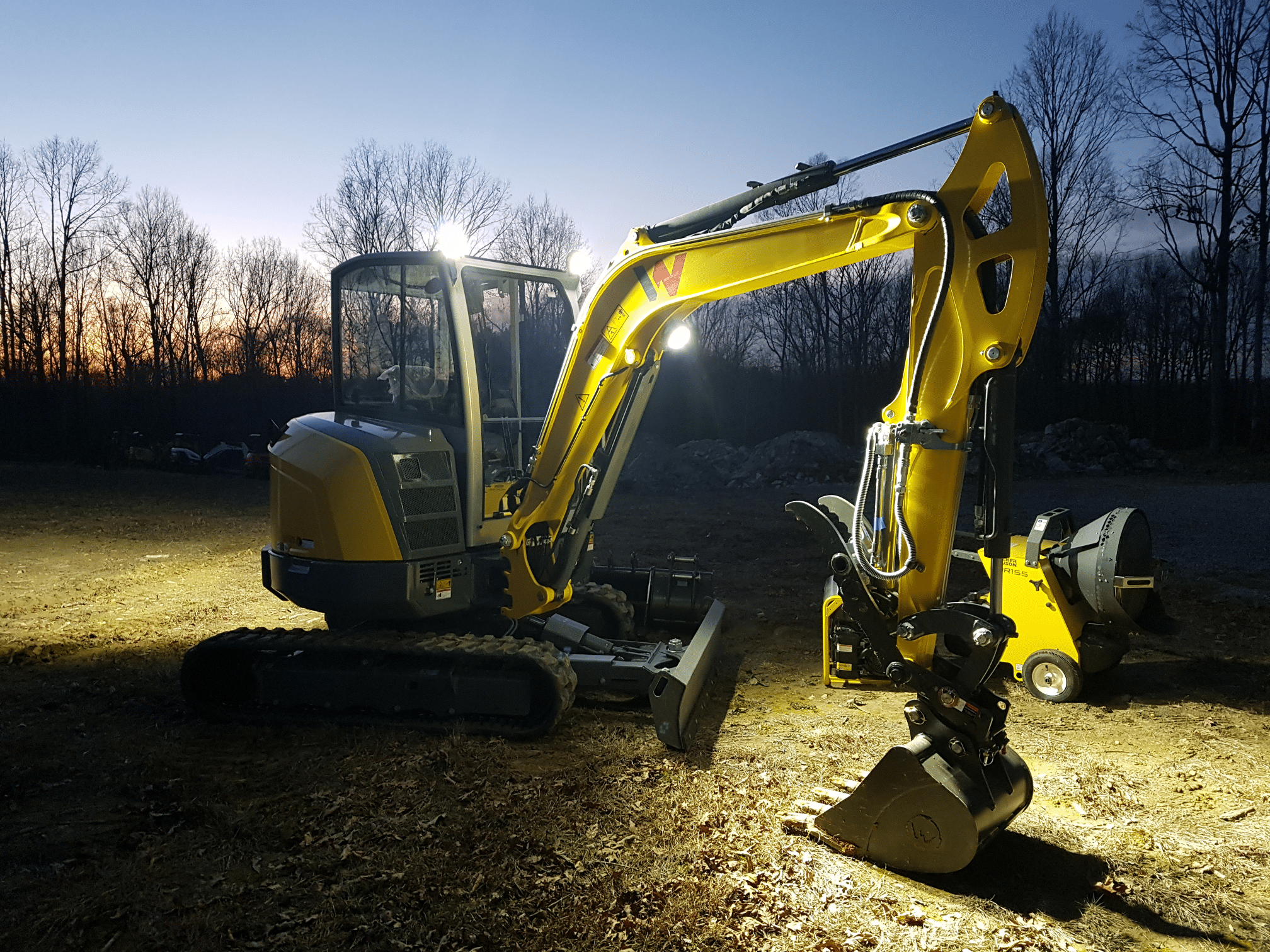

Wacker Neuson ET35 Excavator
Tracked Conventional Excavator ET35: Impressive productivity
The tracked excavator in the 3.5-metric ton class impresses with its performance and many well thought-out details. Along with the optimized engine-pump management for up to 15% faster working cycles, the excellent stability and the ergonomically designed cabin ensure efficient and fatigue-free work. Thanks to the numerous options available ex work, the ET35 can also be adapted individually to the customer’s requirements.
Media and Downloads
Features
Weight: 3365 - 4276 kg
Digging Depth: 3.49 m
Engine: Yanmar
Engine Output: 24.4 hp
Oil Flow: 120 l/min
Width: 1630 mm
Travel speed: 2.9 mph
Length: 5,271 mm
Height: 2,711 mm
Displacement: 1,642 cm3
Additional Information
VDS Vertical Digging System
- The vertical digging system compensates for slopes of up to 15 degrees, making it possible to vertically excavate on a slope. This is not only ergonomic for the operator, but it also saves time and also means less excavated material.
- Up to 25 percent material and time savings when excavating and filling. Safe working and higher stability in sloping spaces.
- The same swing power over 360 degrees allows fatigue-free work with the seat position remaining the same.
Optimized drive concept
- The well thought-out drive concept with optimized engine-pump management allows quick and precise control of the excavator. This makes up to 15 percent faster work cycles possible. The available engine versions are low in consumption and require no exhaust after-treatment.
Comfortable, fully glazed cab
- The large, fully glazed and tiltable cabin with roof window offers the operator an optimal 360° visibility of his work area. This gives the operator a good view of his working area, colleagues and any dangers. Meanwhile, available despite this.
- It can be easily disassembled for service and repair work. All hydraulic functions of the excavator meanwhile remain available despite this.
