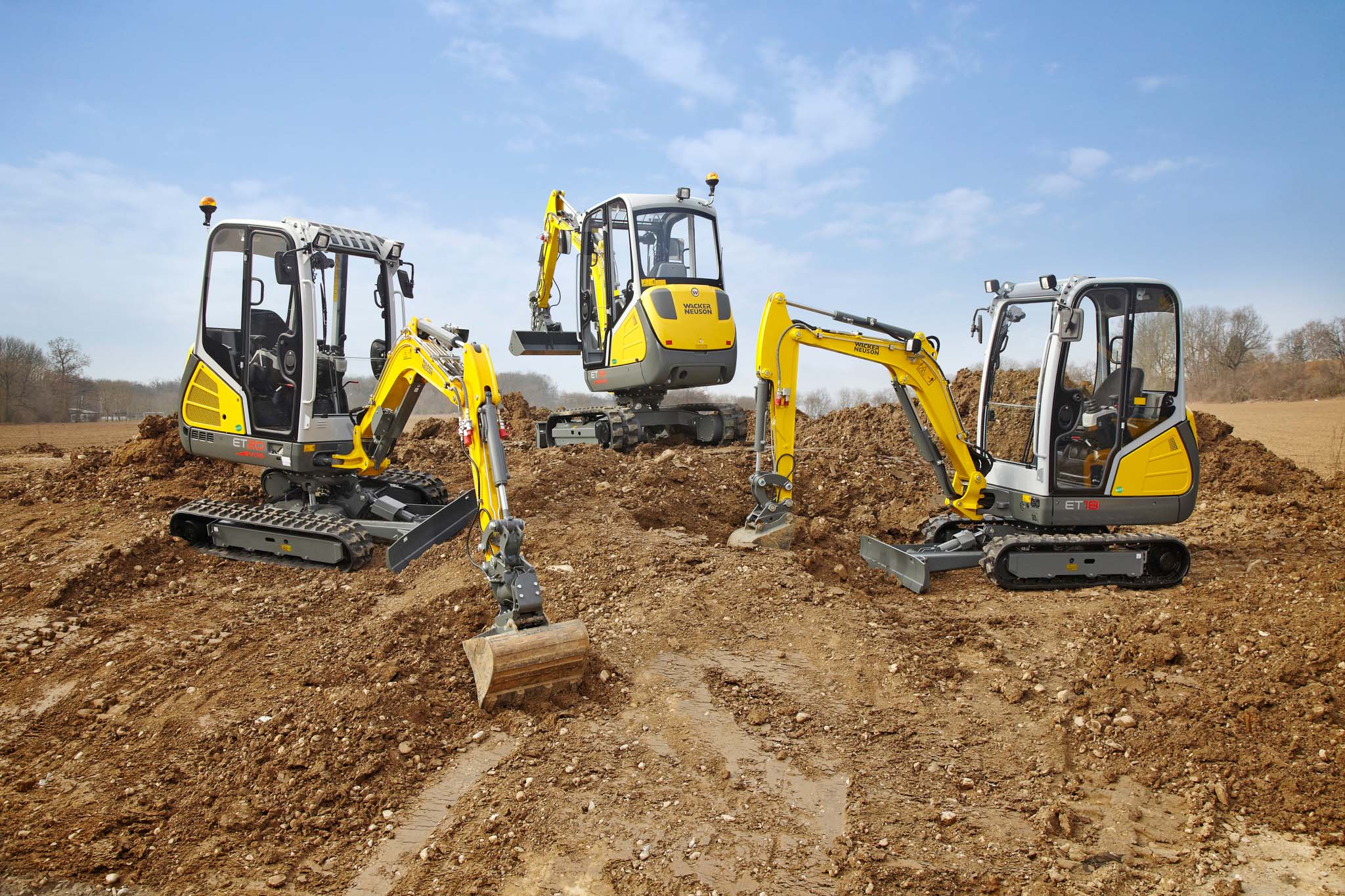

Wacker Neuson ET20 Excavator
Tracked Conventional Excavator ET20: Stability meets specially developed boom
The 2-tonne, ET20 excavator, offers excellent performance and comfort in a compact package. The ET is a productive and versatile digging machine with a maximum digging depth of 2683 mm and a high breakout force of 18.8 kN. The Tier 4 Final engine delivers 17.2 net hp at 2,200 RPM for powerful digging, fast cycle times and quiet operation. The ET 20 is comfortable in operation with a large operating station, excellent visibility, and a unique double-door cab design.
- A telescopic undercarriage can be extended from 990 mm to 1300 mm for more exceptional lifting power and stability.
- Comfortable operator station with unique double-door cab allows the operator to enter or exit the machine from either side and provides for excellent visibility.
- Large engine cover and easy removal of side covers provide easy access and serviceability.
- Pattern control changeover conveniently located inside the operator station.
- Elongated tracks feature four rollers for increased stability, smoother ride and lower ground pressure.
Media and Downloads
Features
Height: 2,385 mm
Length: 4,049 mm
Engine: Yanmar
Engine Output: 18.5 hp
Oil Flow: 73 l/min
Width: 990-1300 mm
Travel speed: 2.5 mph
Operating weight (min.-max.): 2,005 - 2,526 kg
Digging depth (max.): 2,68 m
Width: 990 mm
Additional Information
Operating data |
|
| Shipping weight min. | 1,862 kg |
| Operating weight | 2,005 – 2,324 kg |
| Biting force max. | 12.5 kN |
| Breakout force max. max., nach ISO 6015 | 18.8 kN |
| Digging depth max. | 2,683 mm |
| Dumping height | 2713 – 2836 mm |
| Digging radius max. | 4,317 mm |
| L x W x H min. | 4049 x 990 x 2295 mm |
Engine / Motor |
|
| Engine / Motor manufacturer | Yanmar |
| Engine / Motor type | 3TNV80F |
| Engine / Motor | Water-cooled 3-cylinder diesel engine |
| Displacement | 1,266 cm³ |
| RPM / speed | 2,200 rpm |
| Engine performance acc. to ISO | 12.8 kW |
| Battery Voltage | 44 Ah |
| Fuel tank capacity | 24 l |
Hydraulic system |
|
| Duty pump | Double variable pump with 2 gear pumps |
| Flow rate max. | 73 l/min |
| Operating pressure for working and traction hydraulics | 200 bar |
| Operating pressure Slewing gear | 150 bar |
| RPM / speed Superstructure | 10 rpm |
| Hydraulic oil tank | 19 l |
Undercarriage |
|
| Travel speed max. | 4.1 km/h |
| Chain width | 250 mm |
| Ground clearance | 170 mm |
Dozer Blade |
|
| Width | 990 mm |
| Height | 220 mm |
| Stroke – Above ground | 220 mm |
| Stroke – Below ground | 300 mm |
Sound level |
|
| Sound level (LwA) acc. to 2000/14/EC | 93 dB(A) |
| Cabin – specified sound pressure level LpA acc. to ISO 6394 | 75.8 dB(A) |
