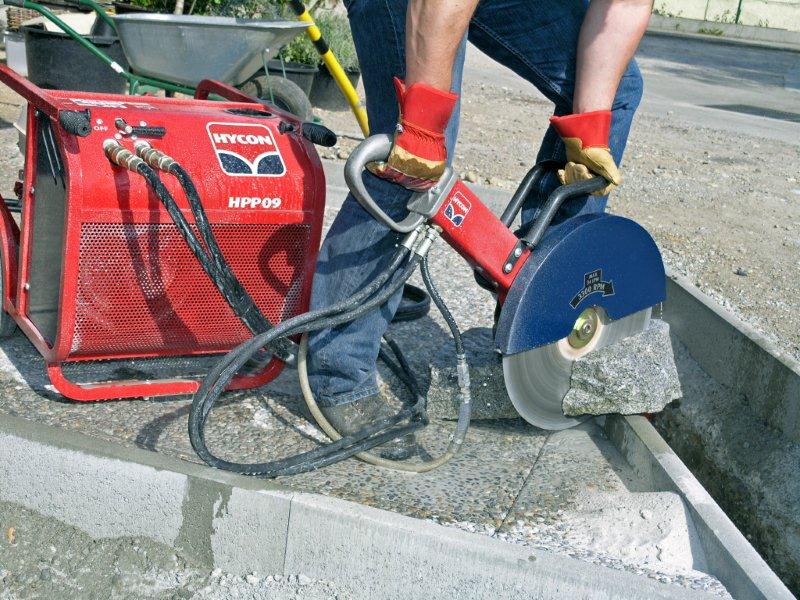

Hycon HPP09 Powerpack
HYCON HPP09 is the most sold powerpack. It is used primarily for rental, contractors, municipalities, supply companies (power-water-gas-heat-sewage-telecom) etc.Who mostly use 20 l.p.m. tools like breakers, core drills, saws, submersible pumps etc.
It is very compact with small dimensions and low weight. Therefore it can be transported in any car, van etc.
The investment in this powerpack and a breaker is usually less than half the price of a 4m³ compressor and breaker, and the performance is the same. Integrated oil alert on the engine oil level. HPP09 comes standard with the HYCON POR system (Power on Request) = automatic regulation of power.
Media and Downloads
Features
Honda 9 HP petrol engine
Weight 68 kg
Power on request
Compact unit
Oil flow [LPM]: 20
Working pressure [bar]: 120
Max pressure [bar]: 150
Starter: Recoll
Engine: Honda GX270QX7 (9 hp), gasoline
Sound power level LWa [dB]: 100
Additional Information
| Oil flow | 20 l.p.m at 3300 r.p.m. |
| Working pressure nominal | 120 bar |
| Pressure reliel valve | Set at 150 bar |
| Pump | Gear pump |
| Oil temperature | Max. 70° C |
| Max. pressure | 150 bar |
| Hydraulic oil tank capacity | Min. 5 litres/max. 7 litres |
| Engine | Honda 9 HP 4-stroke petrol with oil alert system, Engine oil 1.1 litres |
| Petrol tank capacity | 6 litres |
| Hydraulic system compl. | Max. 8 litres |
| Flow | POR (automatic) |
| Starter | Recoil |
| Weight without hydraulic oil | 68 kg |
| Noise level 1 m LPA dB | 88 dB |
| Noise level LWA dB | 100 dB |
| Dimensions (LxWxH) | 680 x 560 x 593 mm |
