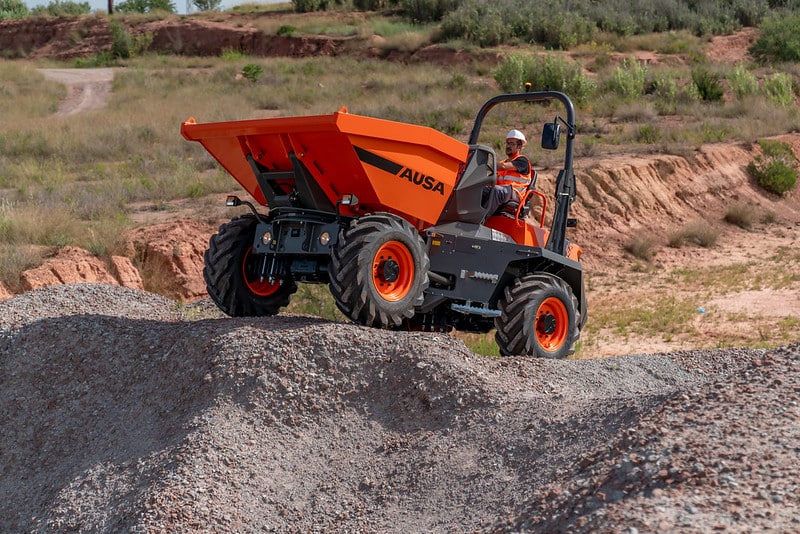

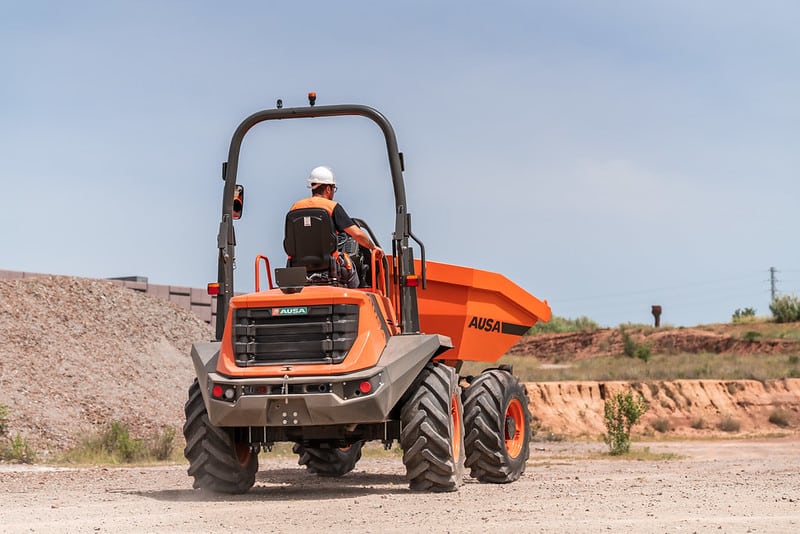

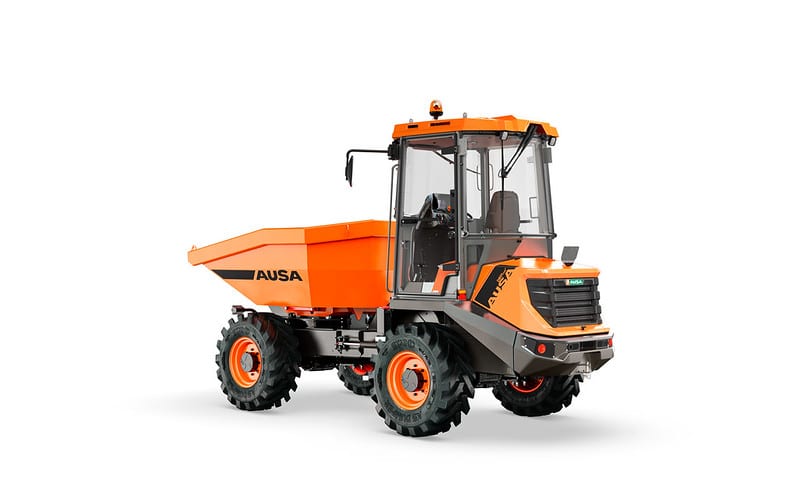

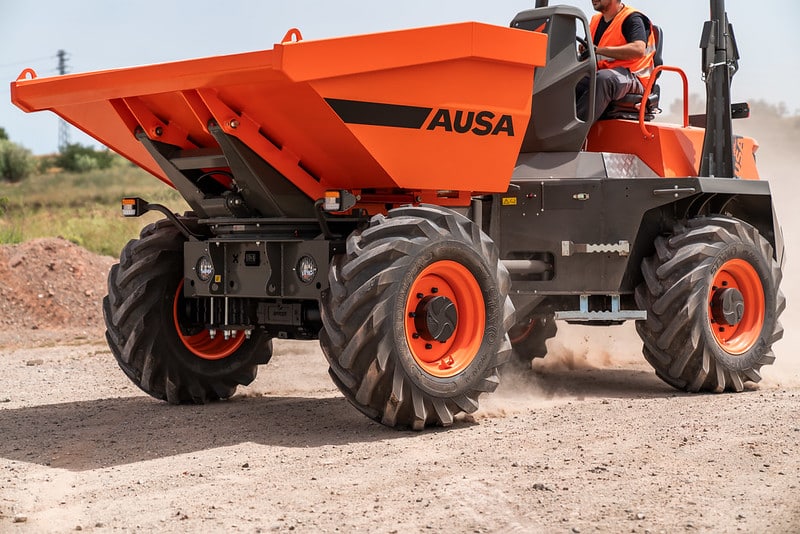

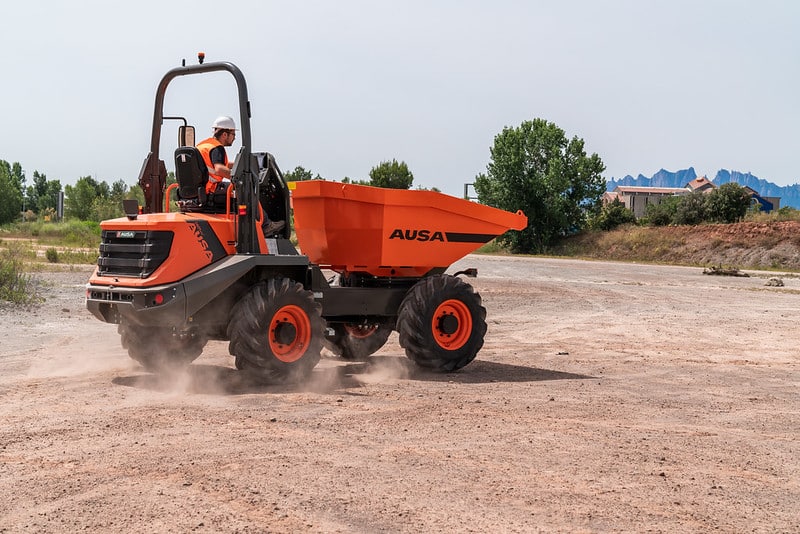

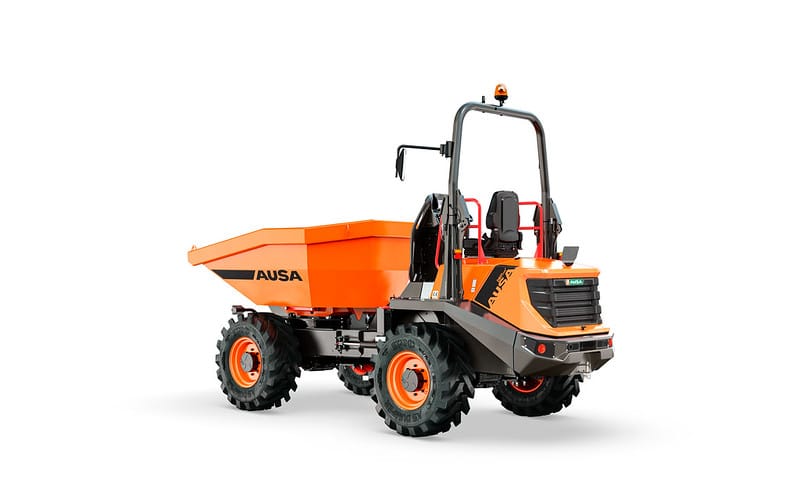

D601APG+

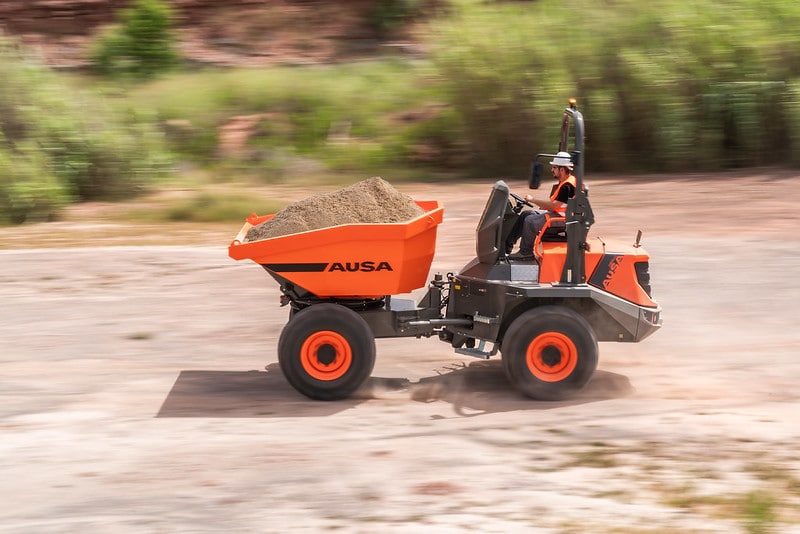

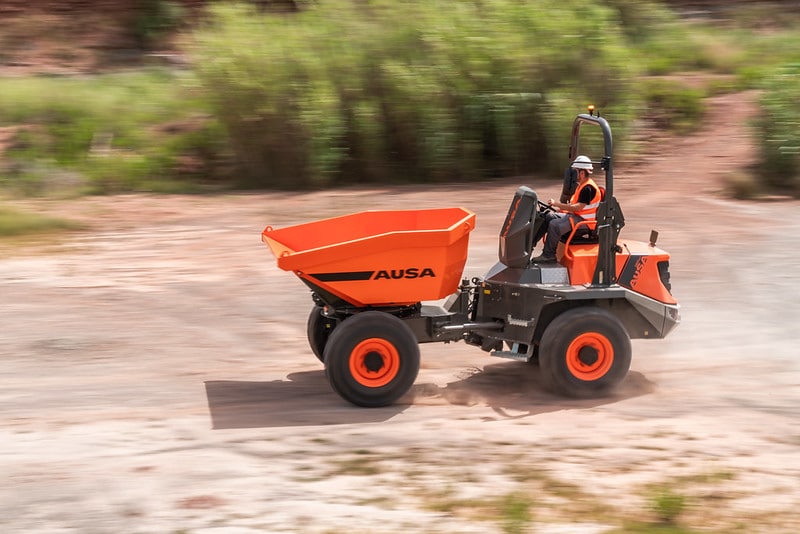

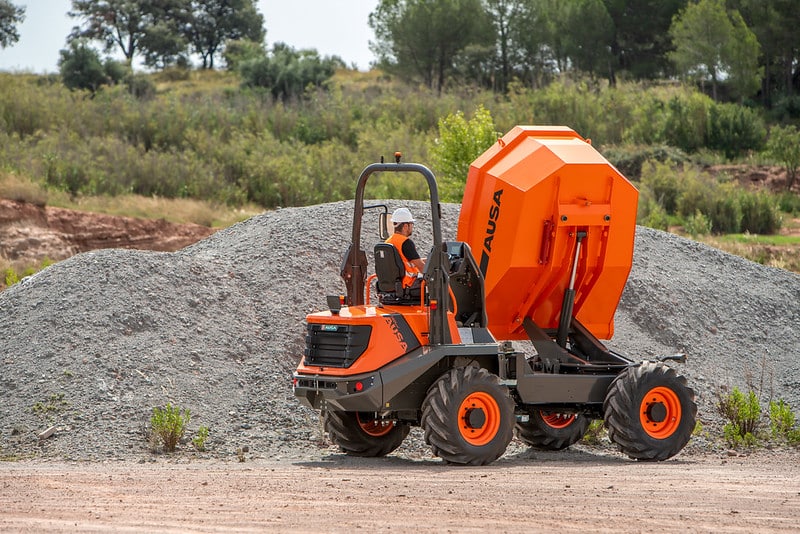

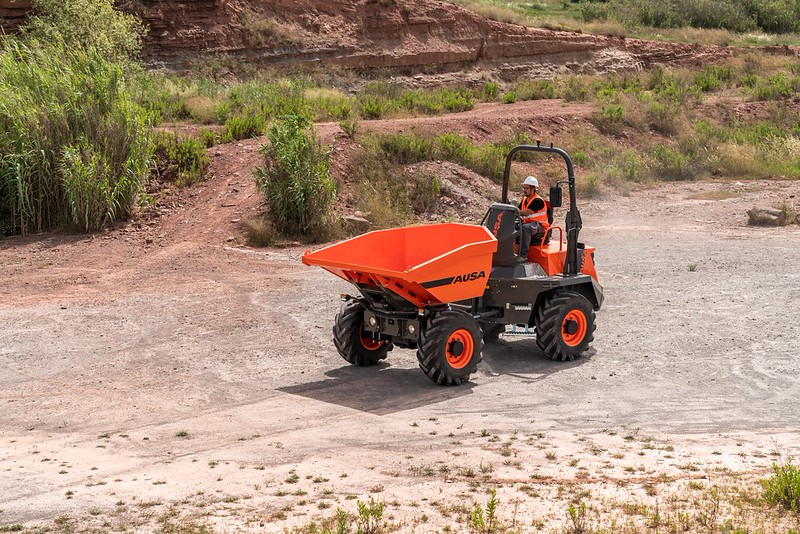

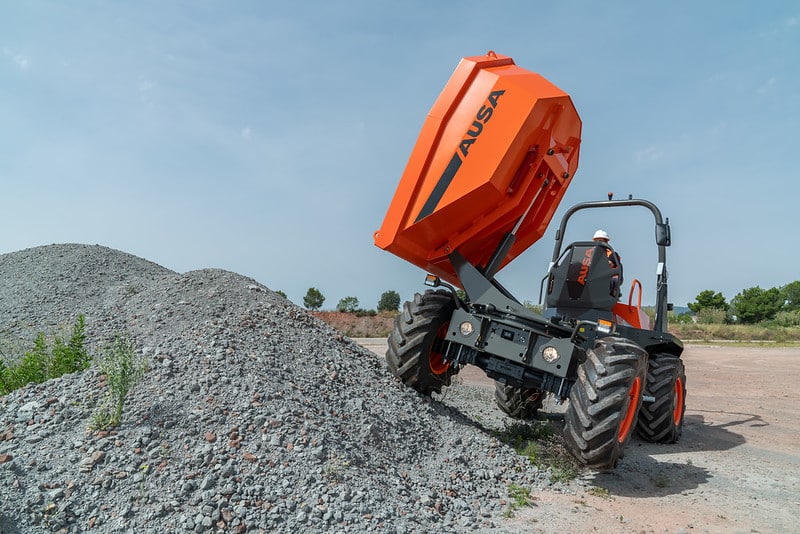

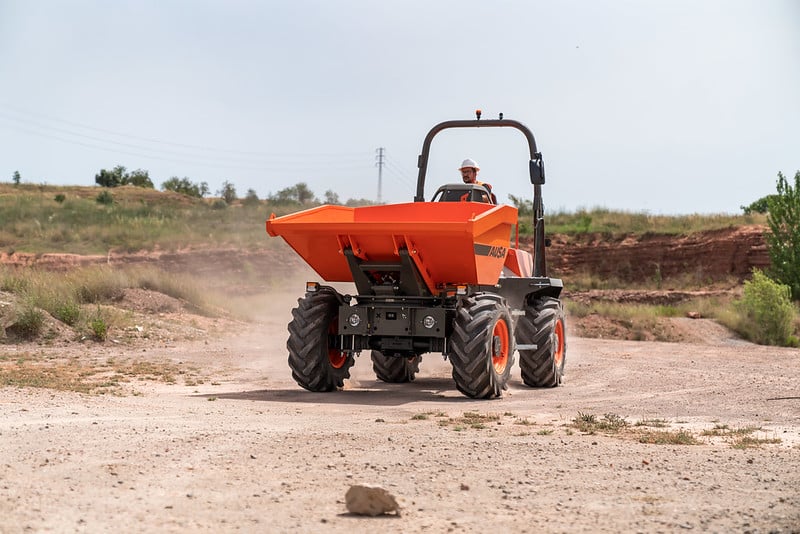

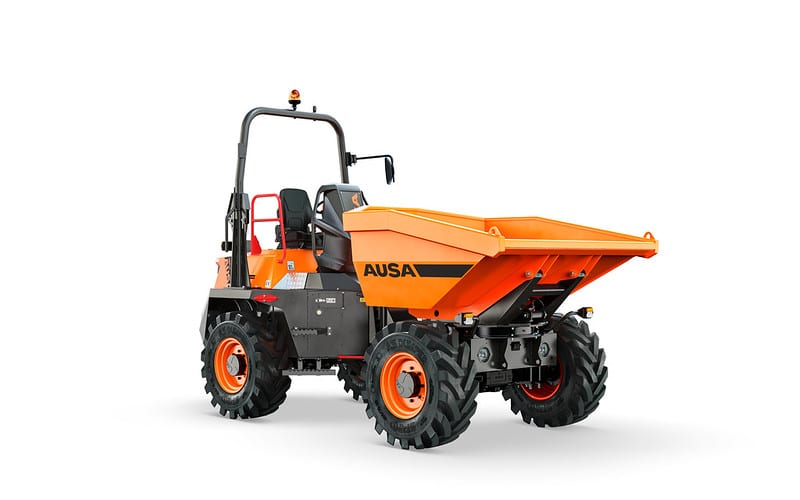

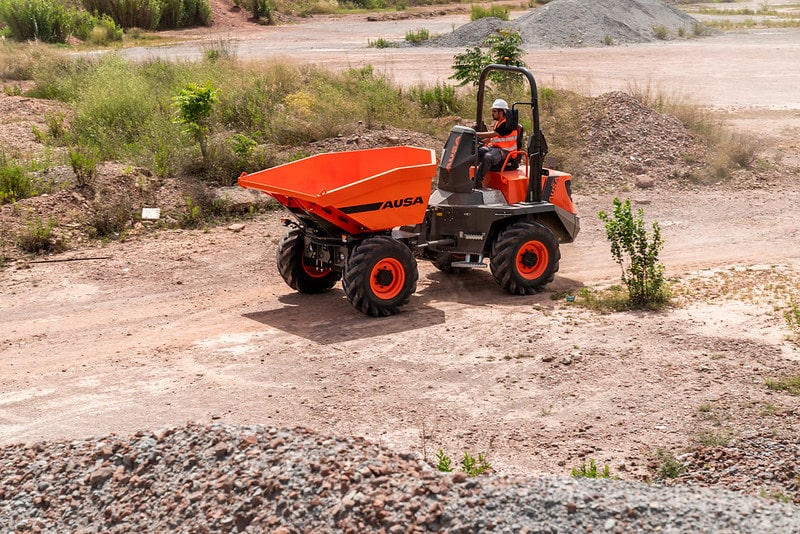

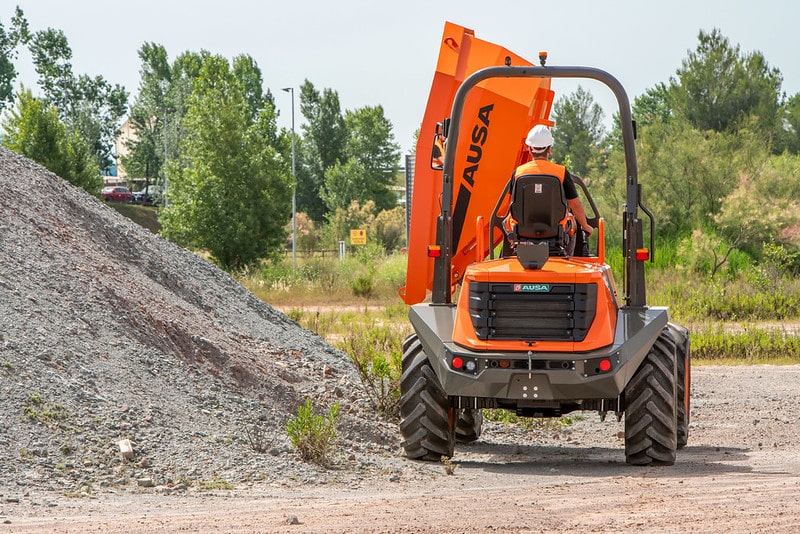

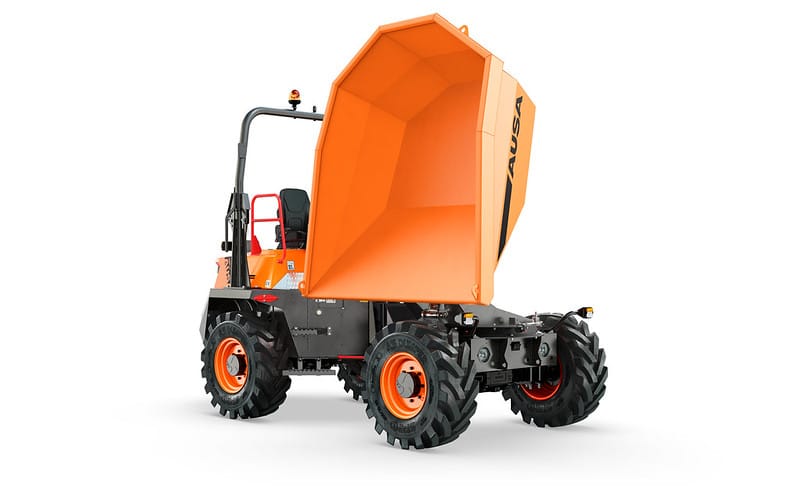

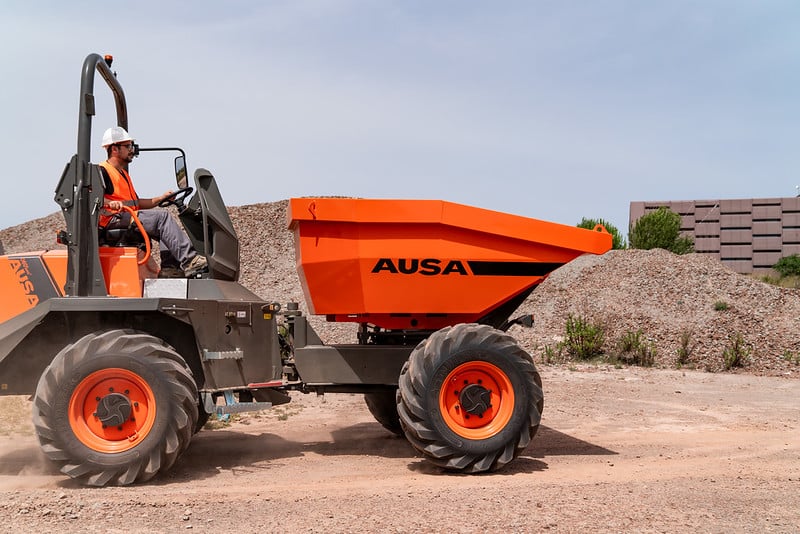

The D601APG+ dumper has a 180-degree swivel skip and 6-tonne payload. Its transmission is equipped with a converter to quickly deliver power and speed.

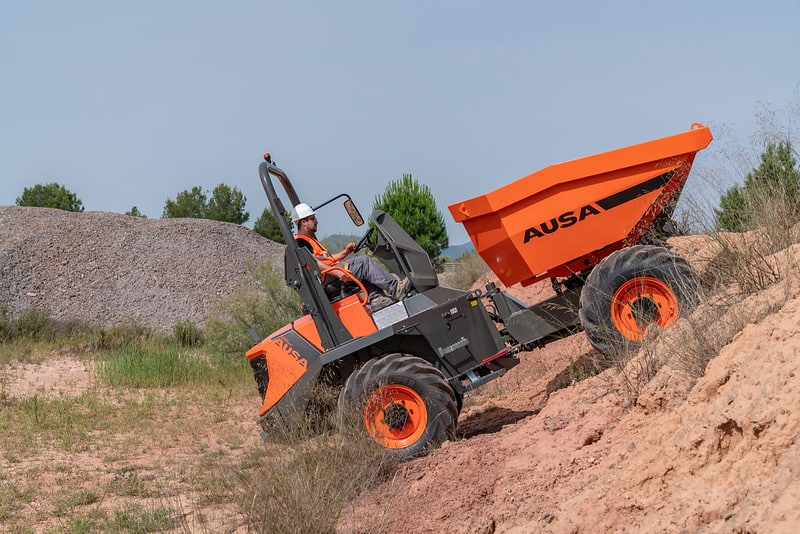

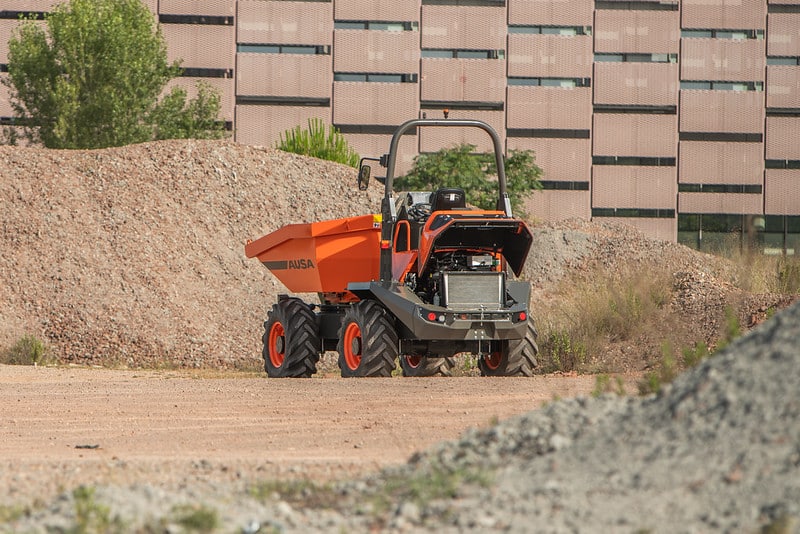

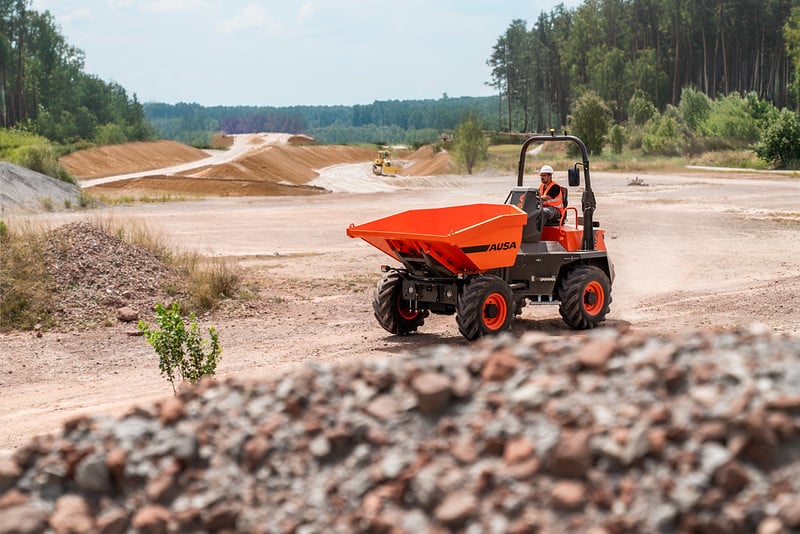

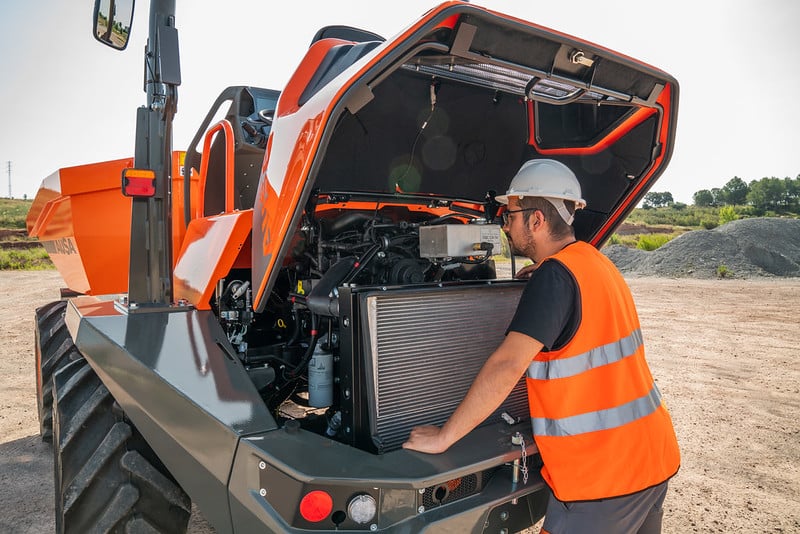

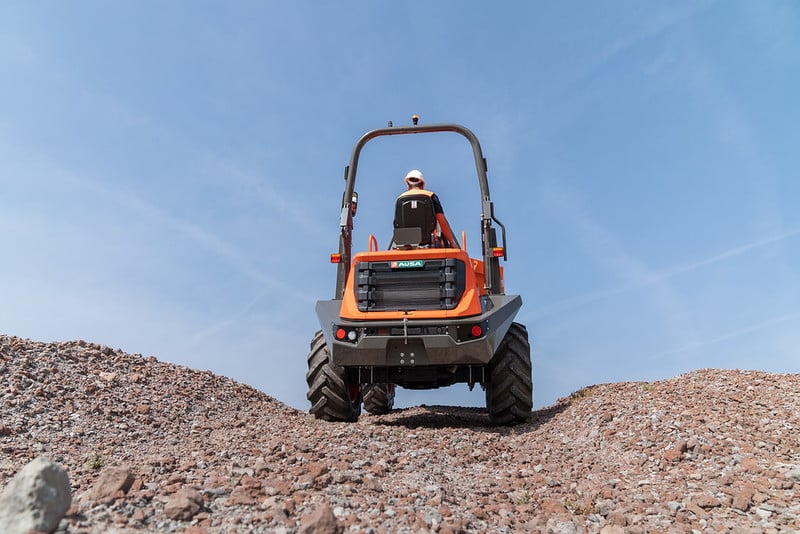

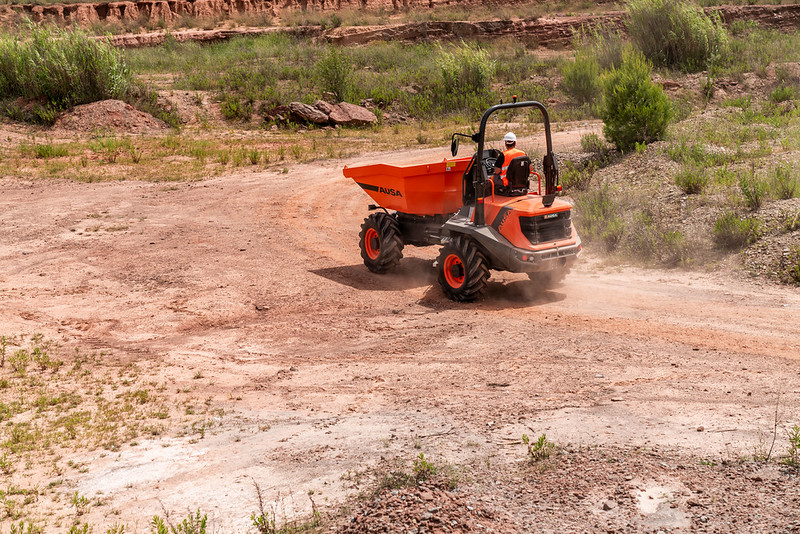

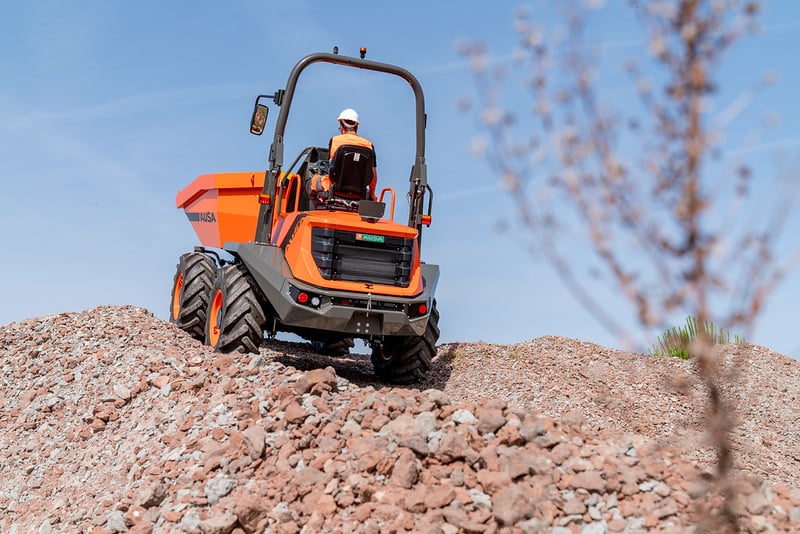

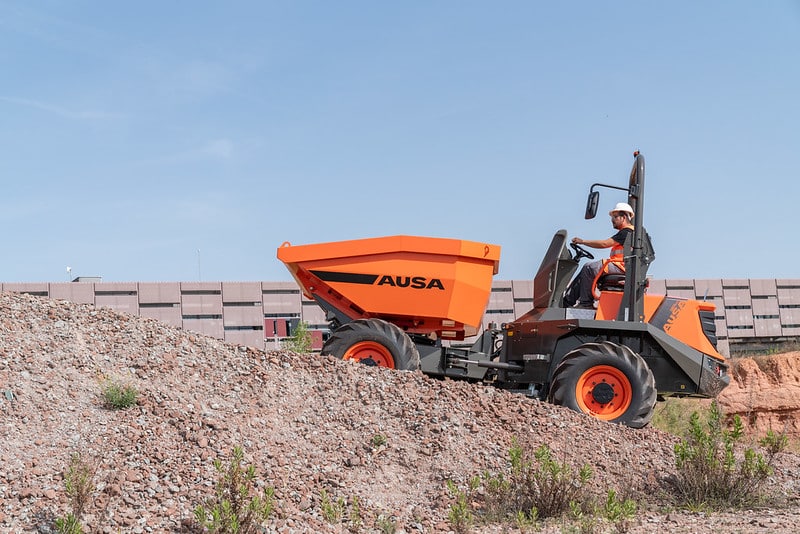

Thanks to its strong all-terrain capability, it can negotiate any surface effortlessly. The D601APG+ dumper is very easy to maintain, as the large bonnet provides easy access to any engine or maintenance part.
This dumper is equipped with numerous safety features that allow the operator to perform earthmoving work easily while minimizing risks.
All-terrain
ECO Mode
Comfort
Design
Onboard diagnostics
Easy to maintain
More Images & Videos
Technical Information
General
| Unloading system | Swivel tip |
| Load capacity | 6000 kg |
| Chassis | Articulated |
| Water skip capacity | 1665 l |
| Level skip capacity | 2455 l |
| Heaped skip capacity | 3154 l |
| Empty weight | 4345 kg |
| Transmission | Power shuttle |
| Reversibility | Non-reversible |
Engine
| Brand | Deutz |
| Model | TD3.6 L4 |
| Power | 55.4 kW |
| Torque | 340@1500 |
| No. of cylinders | 4 |
| Emissions | Stage V – EPA Tier 4f |
| Noise level (LwA) | 101 dB(A) |
Driving
| Max. speed | 25 km/h |
| Maximum gradient | 45 % |
| External turning radius | 5900 mm |
| Traction | 4×4 |
| Tyres | 405/70-20 |
Hydraulic system
| Hydraulic circuit | Two gears pump |
| Flow rate | 46 l/min |
| Working pressure | 180 bar |
Tank capacity
| Fuel | 69 l |
| Hydraulic system | 30 l |
Brakes
| Service | Hydraulic, sealed, multi-disc |
| Parking | Negative |
Equipment
Driving Position
Rear folding ROPS protective structure
Safety
Seat belt with fasten sensor, Seat with operator’s presence sensor, LED rotating beacon, Acoustic warning for reverse gear, Emergency stop, Anti-vandal security system, Negative brake, Full visibility camera on the skip side
Lighting & Driving
Rear-view mirror
Comfort

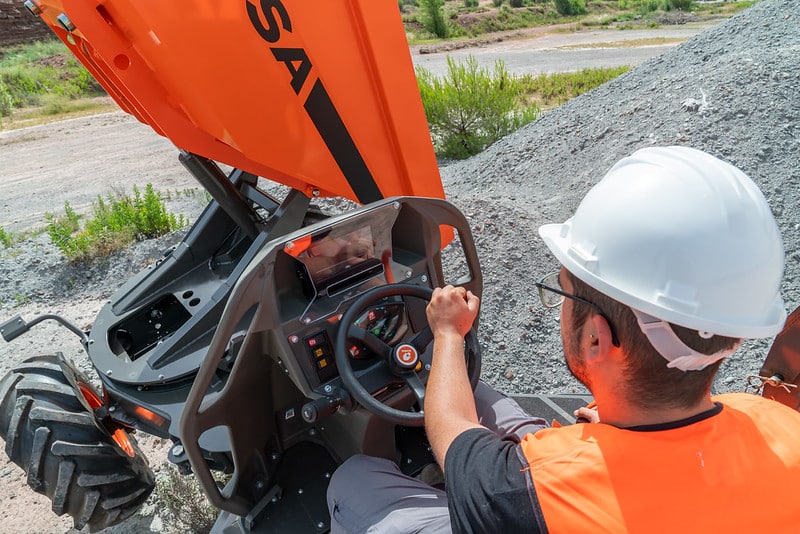

All-in-one joystick, Extra comfort seat, fully adjustable
Advanced equipment
Digital display, Hydrostatic transmission with electronic control, Limited-slip differential on both axles
