Snow plow
Avant snow plow is a versatile attachment for snow removal. It consists of two independently hydraulically adjustable blades. The angle of the blades is adjusted with a switch from the driver’s seat. Both blades have a spring release mechanism in the lower part of the blade to prevent any sudden stop should the blade hit an obstacle. The floating mechanism on the mounting bracket guarantees that the blade follows the ground as well as possible.
The new V1800 and V2400 snow plows feature:
Vertical floating system (better than previous quadrangular floating system)
Well curved blade – moves snow efficiently to the side
Support legs with skid shoes as standard
Curved flat cutting edge with standard 305 mm hole distance; made of high tensile, abrasion resistant wear steel
Versatile snow removal tool for professional use

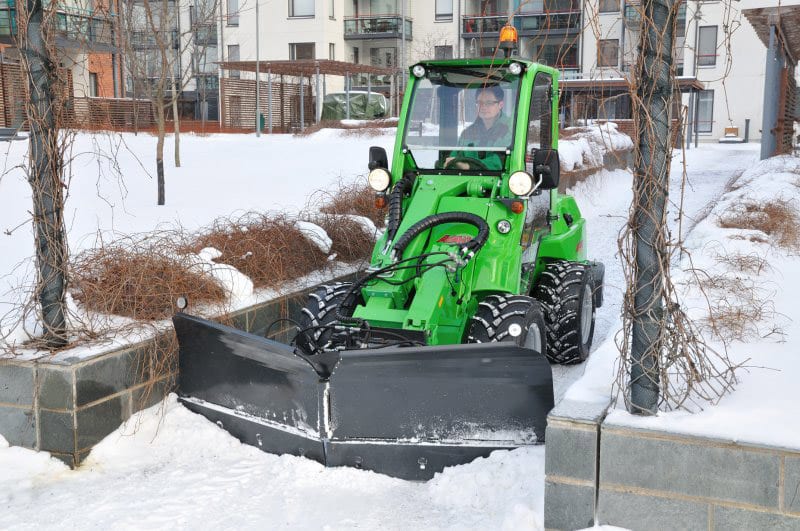

Two independently controllable blades: can be adjusted in straight, V or Y position
Advanced floating system allows working on uneven surfaces as well
More Images & Videos
Technical Information
| Model | V1800 | V2400 |
| Blade width | 1510–1840 mm | 2020–2450 mm |
| Total width (with curved-end flat edge/ scraper blade) | 1570–1900 mm | 2080–2510 mm |
| Blade turning angle | ±35 deg | ±35 deg |
| Weight | 330 kg | 390 kg |
| Blade height | 770 mm | 770 mm |
| Product no | A36795 | A36796 |
Options
| Ice scraper edges | snow plow V1800 | A36817 |
| Ice scraper edges | snow plow V2400 | A36818 |
| Rubber edges | snow plow V1800 | A37173 |
| Rubber edges | snow plow V2400 | A37171 |
Requires attachment control switch pack on the loader.
Compatible Models
- Very compatible
- Compatible
- Incompatible
220 - 1800 model225 - 1800 model225LPG - 1800 model313S - 1800 model320S - 1800 model
420 & 423 - 1800 model
520 - 1800 model523 - 1800 model525LPG - 1800 model528 - 1800 model530 - 1800 modelR20 - 1800 modelR28 - 1800 modelR35 - 1800 model630 - 1800 model635 - 1800 model640 - 1800 model735 - 1800 model745 - 1800 model750 - 1800 model755i - 1800 model760i - 1800 model850 - 1800 model860i - 1800 modele513 - 1800 modele527 - 1800 model220 - 2400 model225- 2400 model225LPG- 2400 model313S- 2400 model320S- 2400 model420 & 423- 2400 model520- 2400 model523- 2400 model525LPG- 2400 model528- 2400 model530- 2400 modelR20- 2400 modelR28- 2400 modelR35- 2400 model630- 2400 model635- 2400 model640- 2400 model735- 2400 model745- 2400 model750- 2400 model755i- 2400 model760i- 2400 model850- 2400 model860i- 2400 modele513- 2400 modele527- 2400 model
