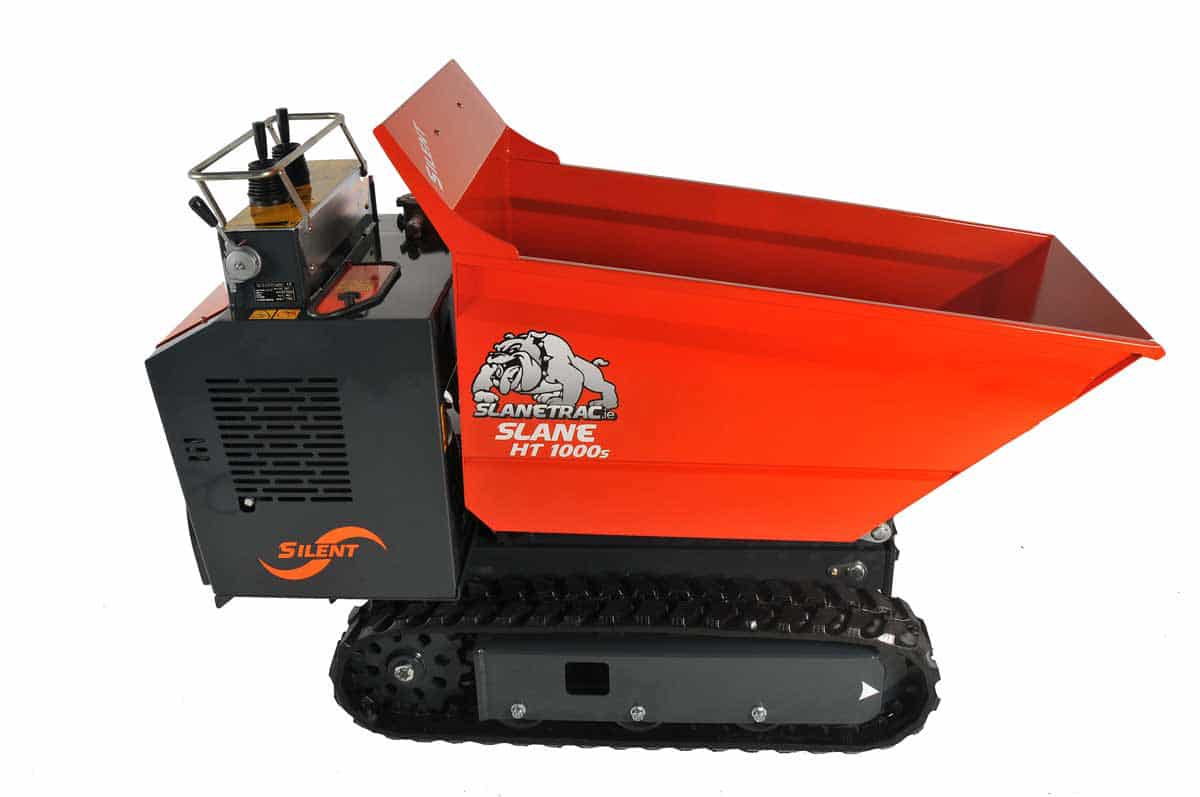

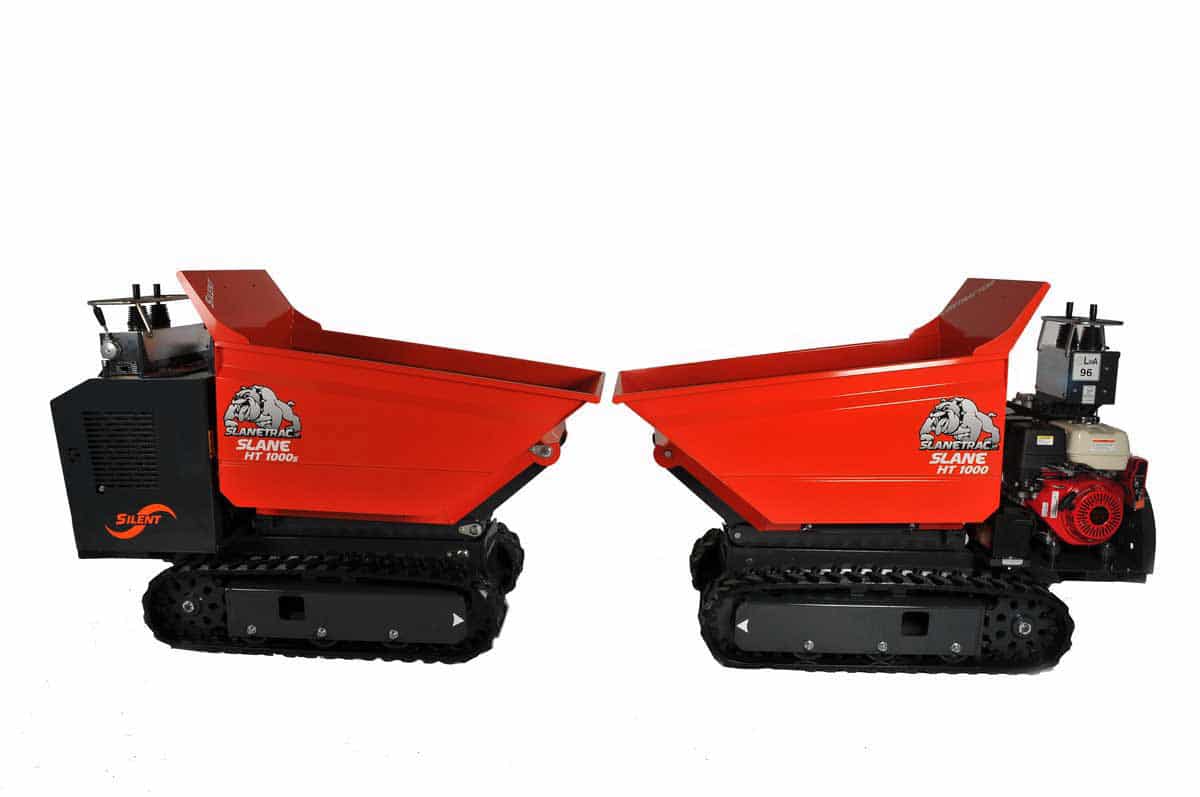

The Slanetrac HT 1000 Diesel Track Dumper is hydraulically driven and comes with braked drive motors.

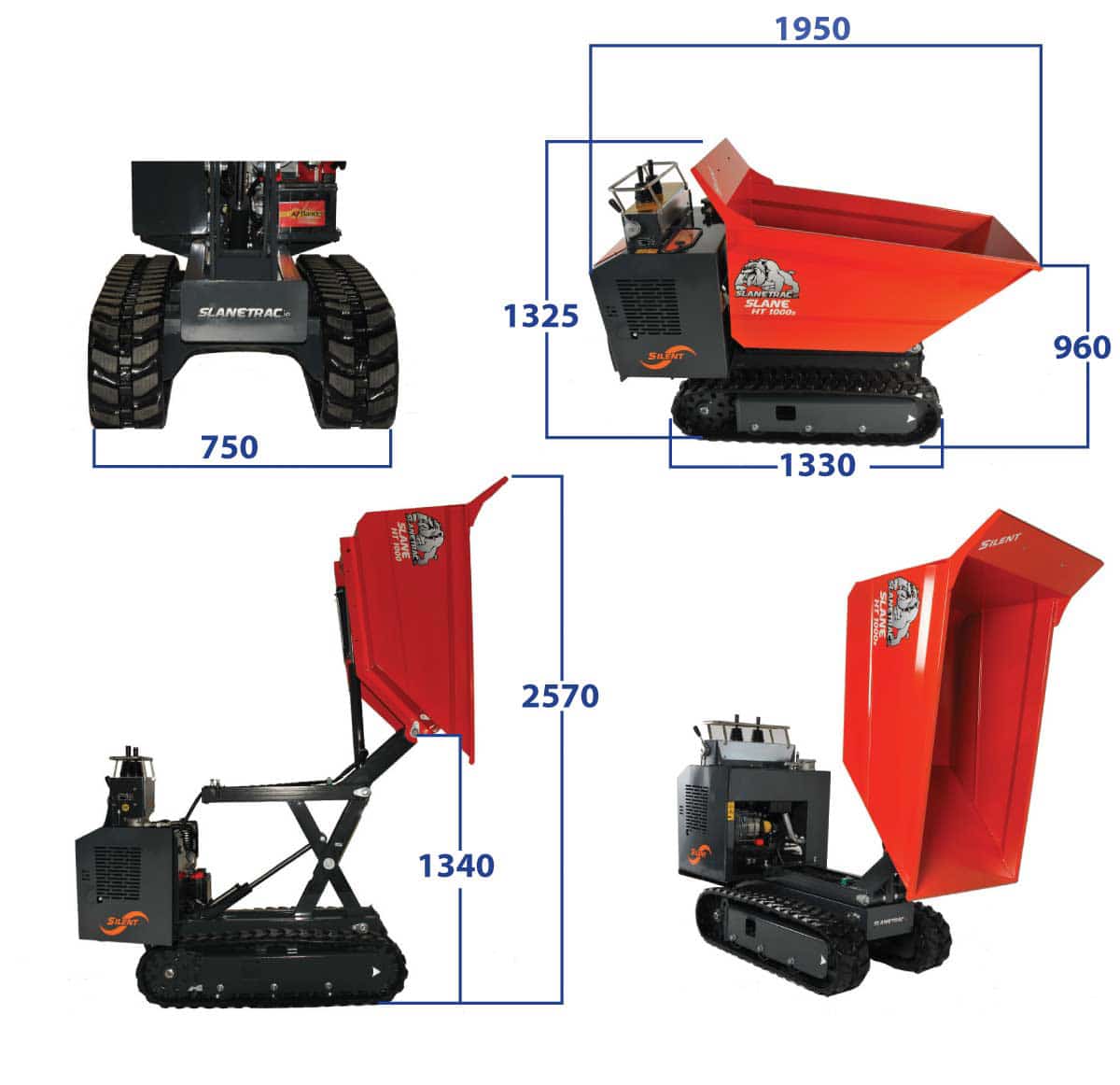

This compact Track Dumper has a maximum width of 750mm and a length of 1900mm.It can turn on its own length offering greater accessibility and manoeuvrability in urban areas or areas where the larger plant cannot gain access.

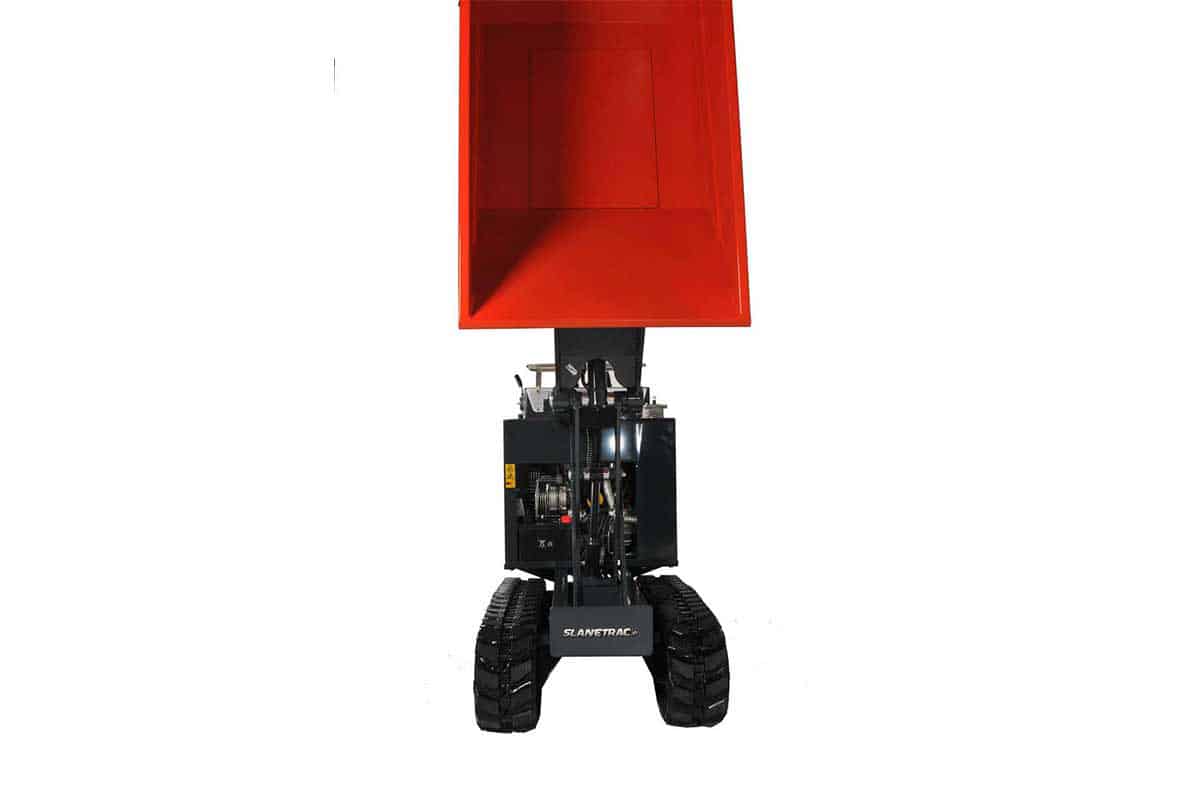

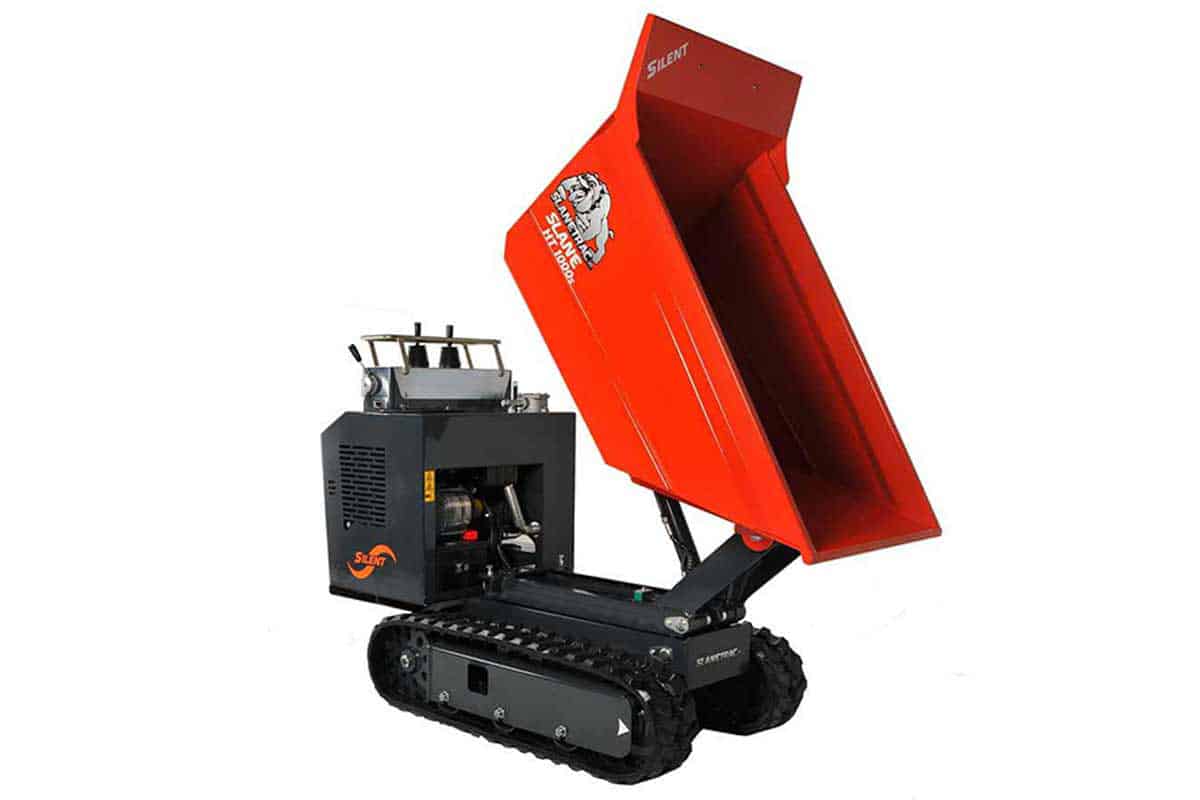

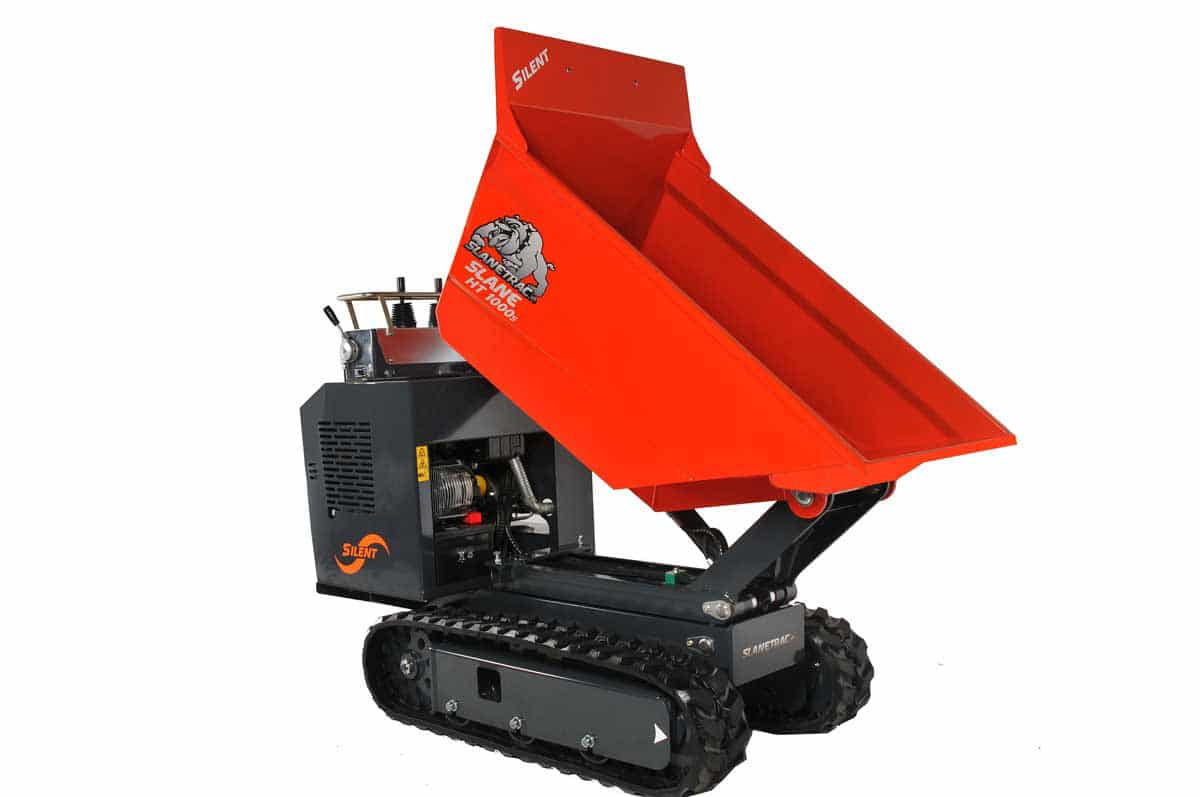

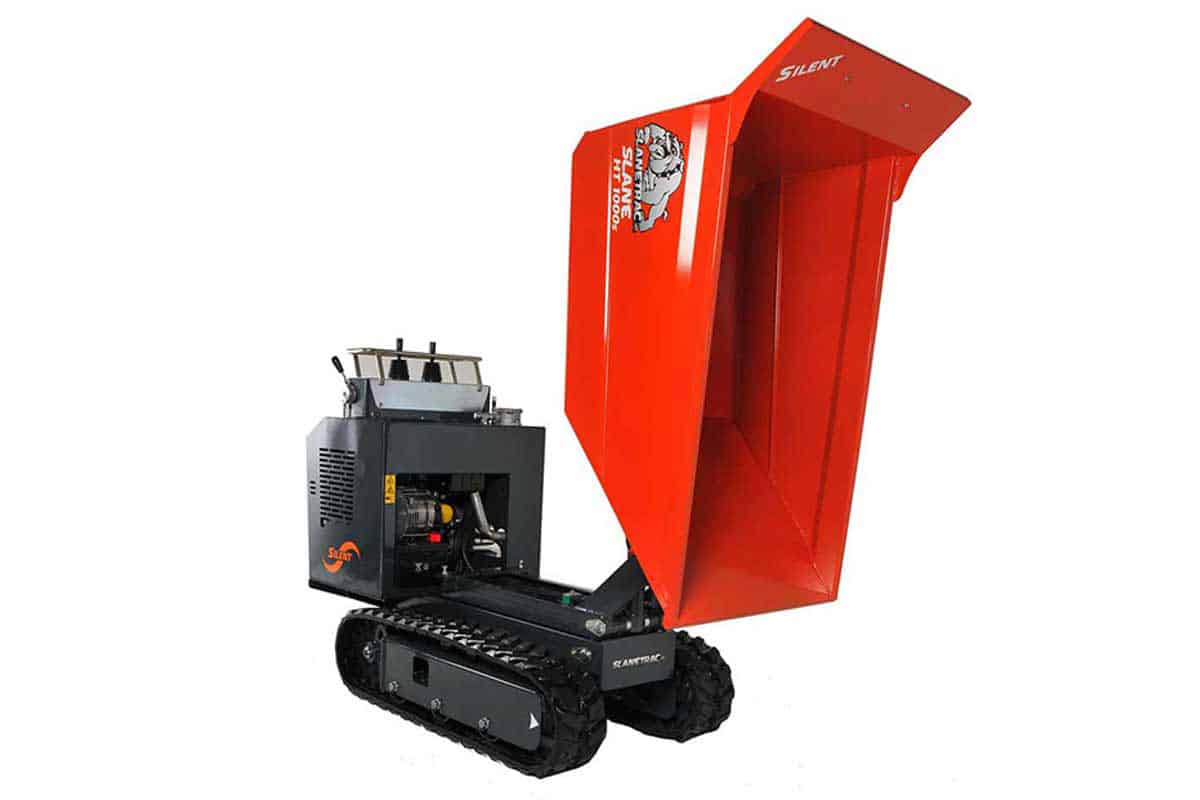

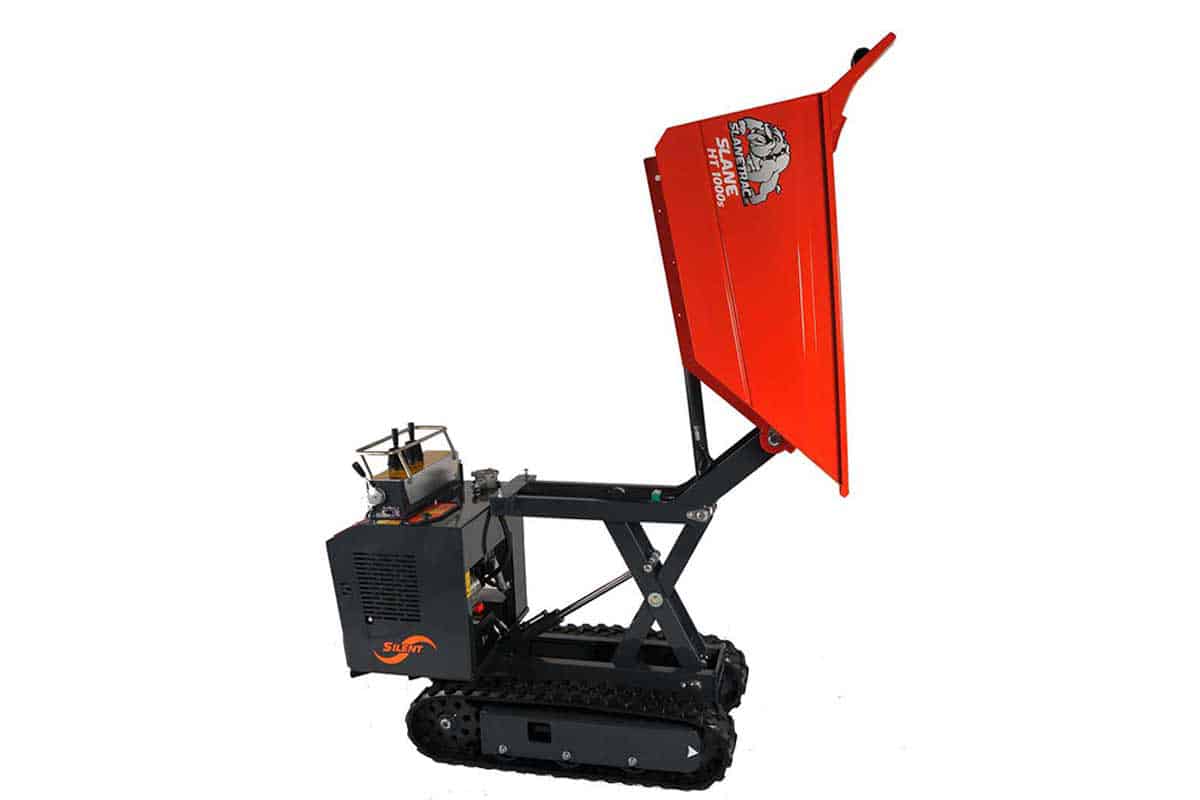

Complete with hi tipping capacity; the Slanetrac HT1000 Diesel Track Dumper offers a tipping height of 1300mm, and easily tips into skips.
With a very low ground pressure and rubber tracks, the Slanetrac HT1000 offers minimum ground damage, while excellent gradability and stability ensure safe operating of the dumper.

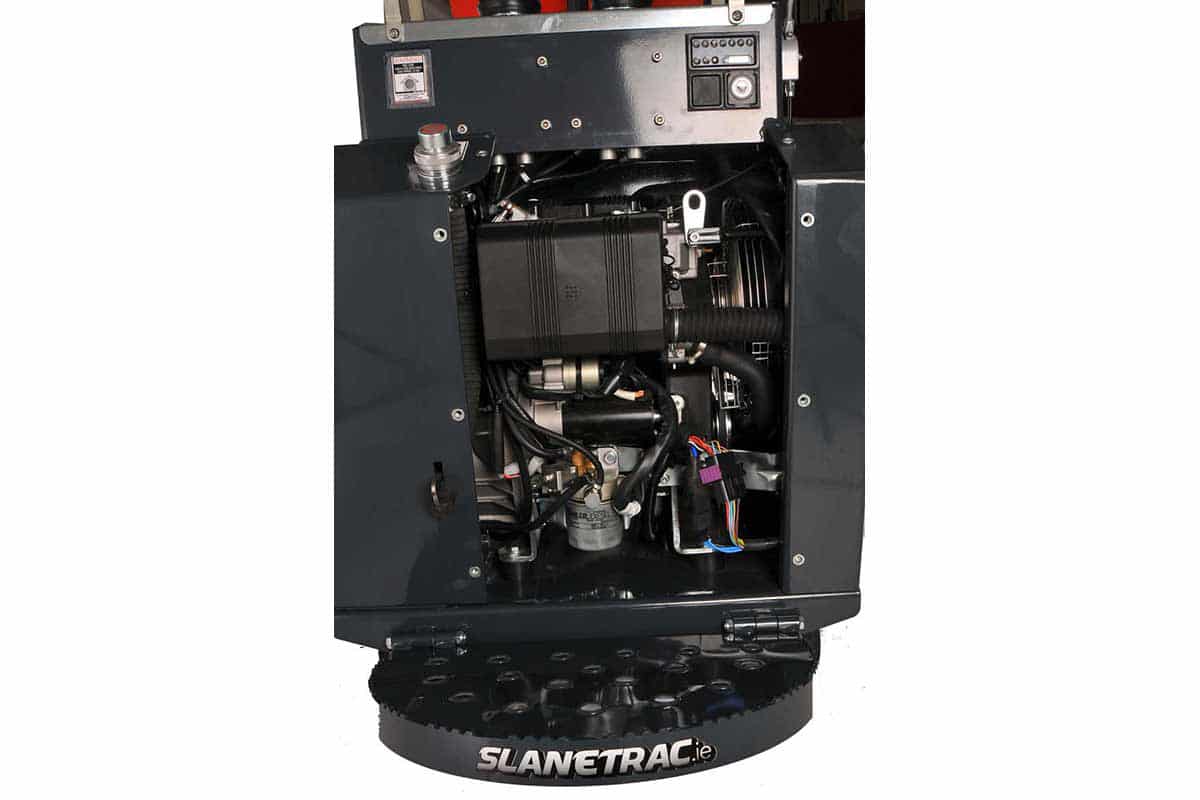

Powered by a 19 H.P 2 cylinder Lombardini 25 LD 425-2 electric start engine; this robustly built Track Dumper has a load capacity of 1 ton. Complete with hi tipping capacity the Slanetrac HT1000 offers a tipping height of 1300mm and easily tips into skips. With a very low ground pressure and rubber tracks the Slanetrac HT1000 offers minimum ground damage while excellent gradability and stability ensure safe operating of the dumper.
Media and Downloads
Features
Additional Information
| Engine: | Kohler KDW702 |
| Power: | 16.5hp (12.3kw) |
| Engine: | 2 Cylinder Water Cooled Engine |
| Starting: | Electric |
| Drive Type: | Hydraulic Drive |
| Environmental: | Low on Emissions & Low on Noise |
| Speed: | 4.5 km/h |
| Gradability: | Gradability: 36% – 50% |
| Operating Pressure: | 2440 psi (170 bar) |
| Max Pump Flow: | 36 ltr/min |
| Fuel Tank: | 6.0 Ltr |
| Hydraulic Oil Tank: | 30 Ltr |
| Load Capacity: | 1 ton |
| Unladen Weight: | 770kg |
| Contact Pressure: | 0.30kg/cm² |
| Laden Weight: | 1770kg |

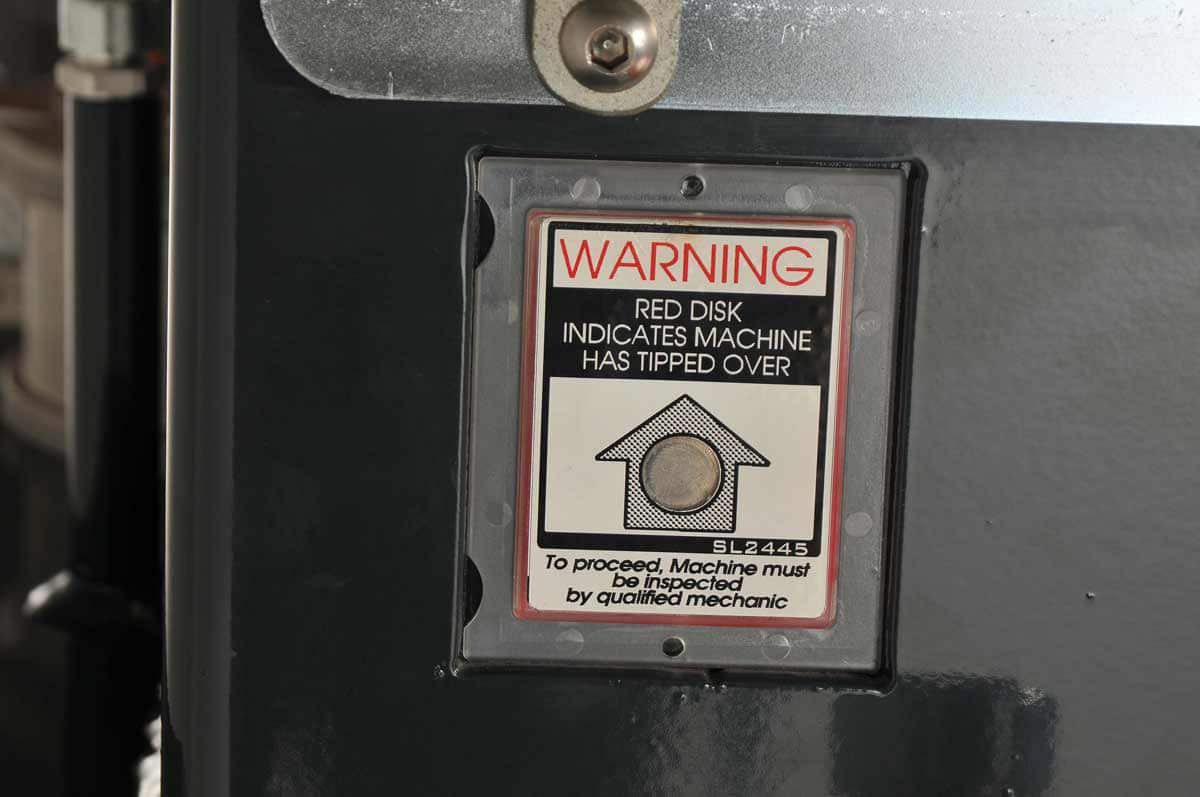

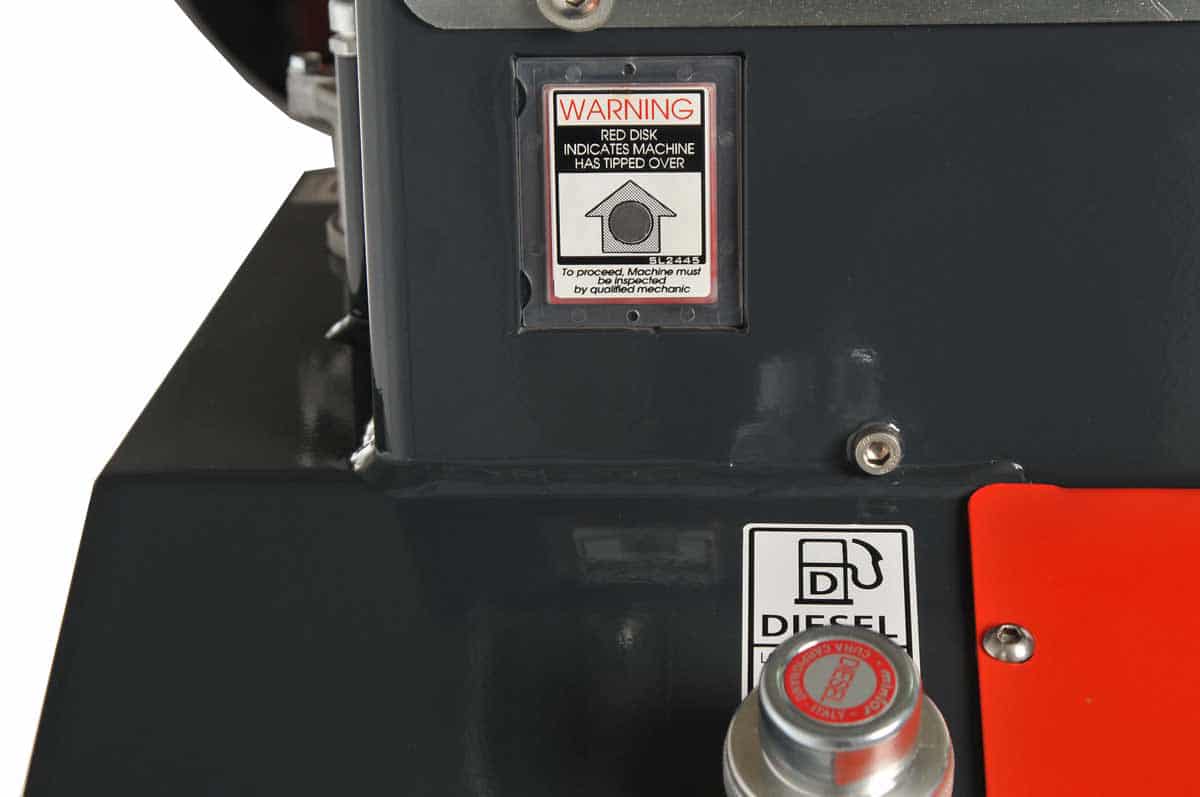

| Engine Security | Automatic Engine Roll Over Cut Out |
