S30 Hydraulic side arm

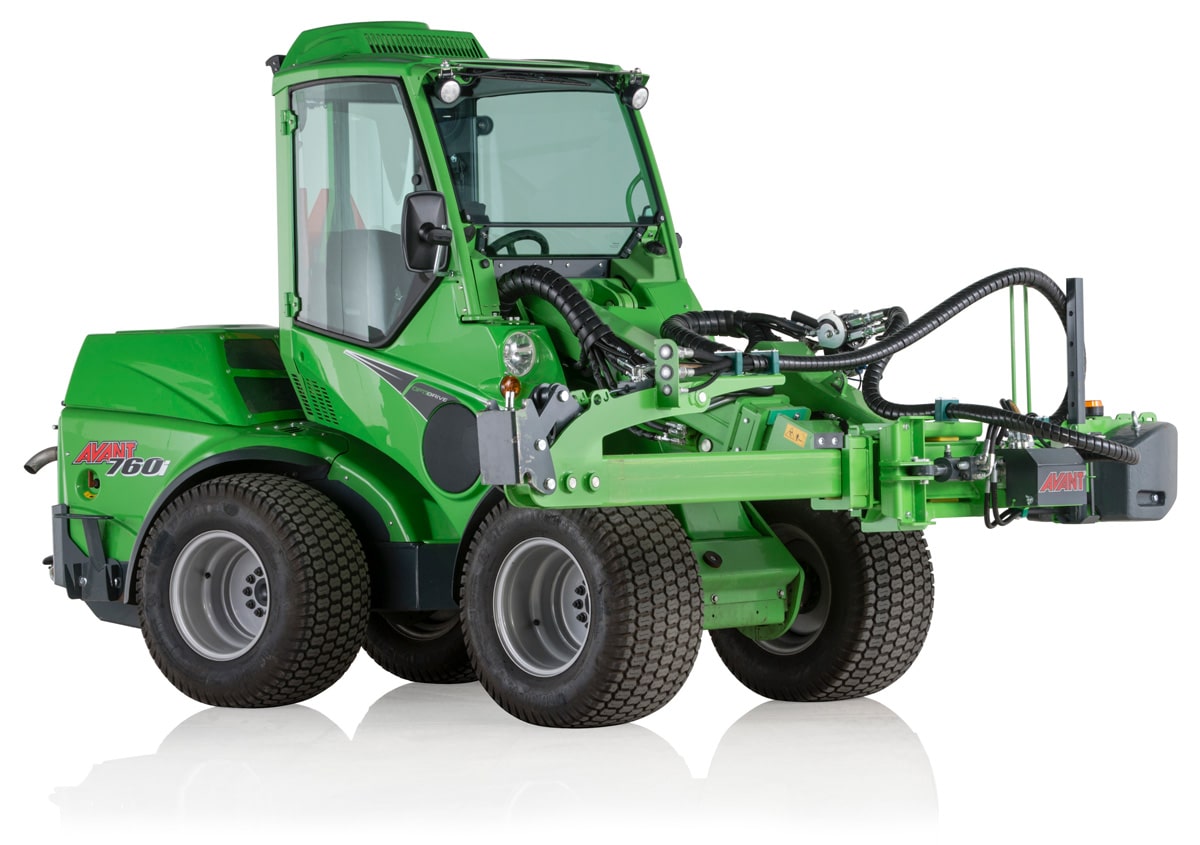

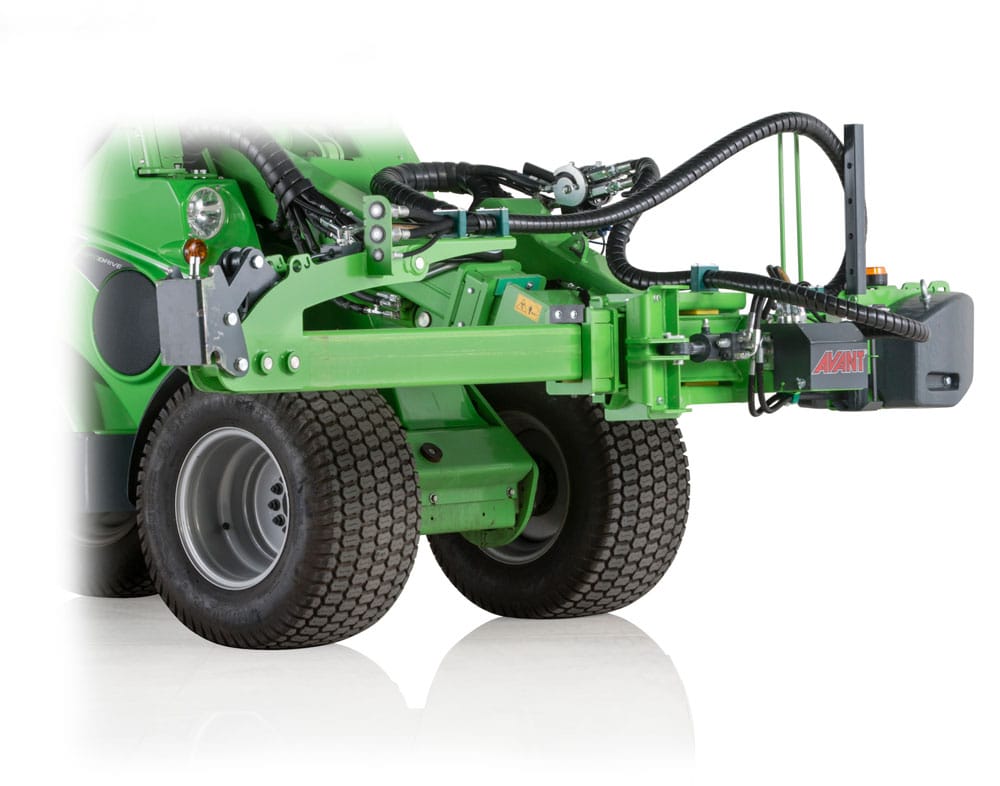

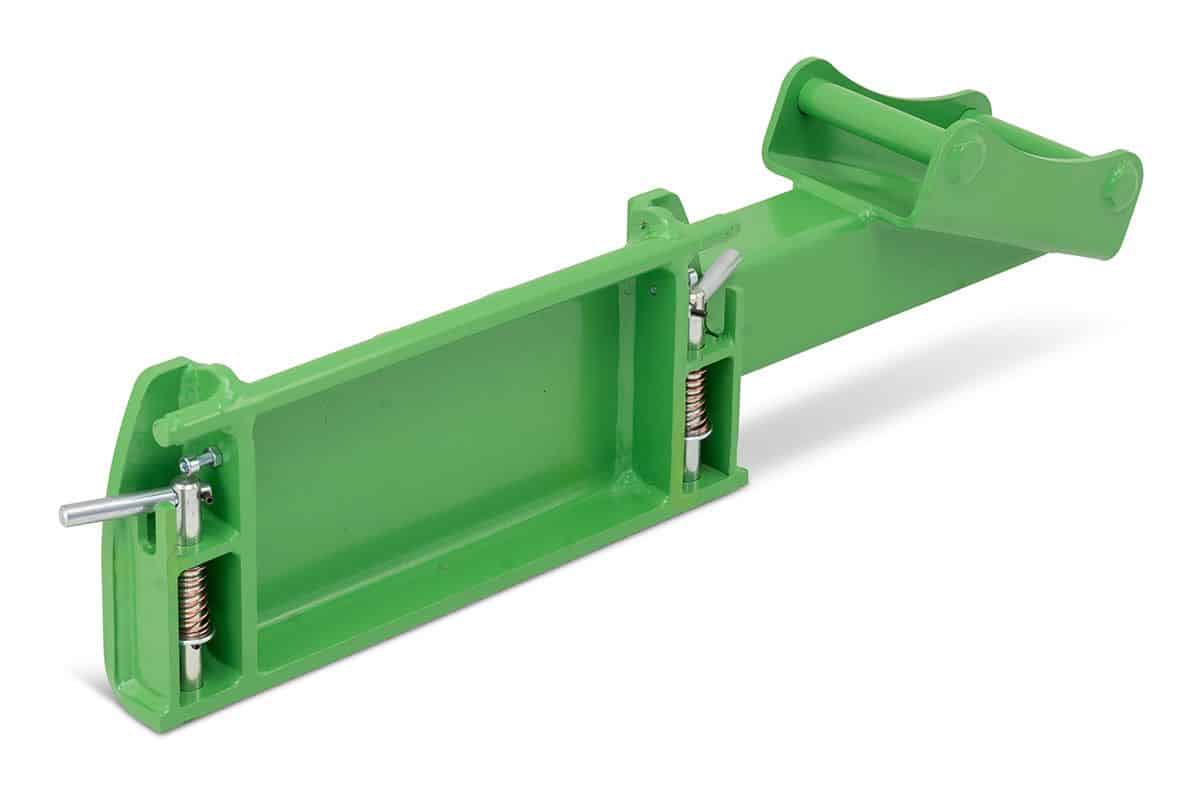

The hydraulic side arm with S30 quick-attach system can be equipped with attachments with the corresponding S30 quick attach bracket. The side arm is equipped with a straight telescopic arm and a tilting jib arm. The telescopic arm extends max. 1,0 m hydraulically to the side, and the jib arm movement is max. 45ยฐ down and 90ยฐ up from the horizontal position.

The side arm is equipped with a hydraulic release mechanism, and the hydraulic release pressure can be adjusted and measured. The attachment which is mounted on the side arm will give in backward when it hits an obstacle. The side arm will come back to normal position as soon as the attachment is tilted downwards. Avant 180 kg side weight kit A49063ย is available as an option. It is necessary with heavier attachments like the A37505 S30 flail mower 1200 mm.

Hydraulic hoses of the attachment are connected to the side arm with flat face quick couplers.
Telescope and jib arm movement speeds are adjustable.

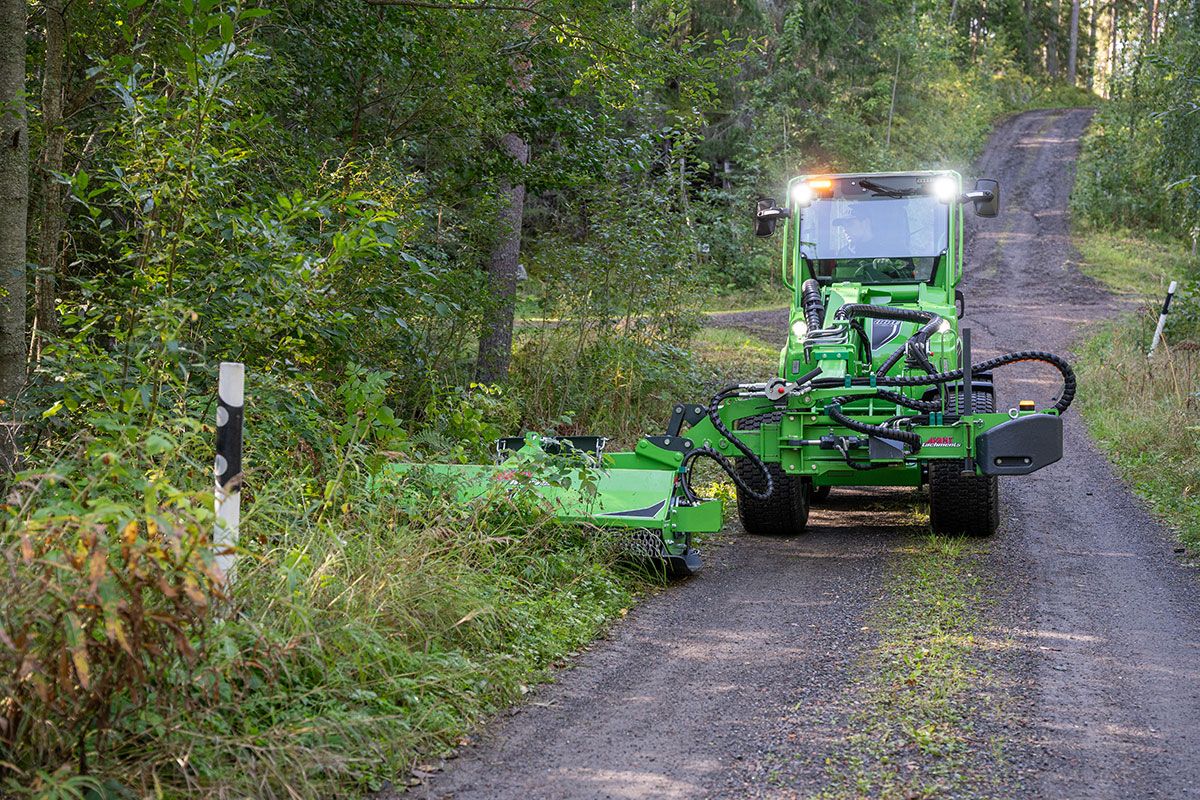

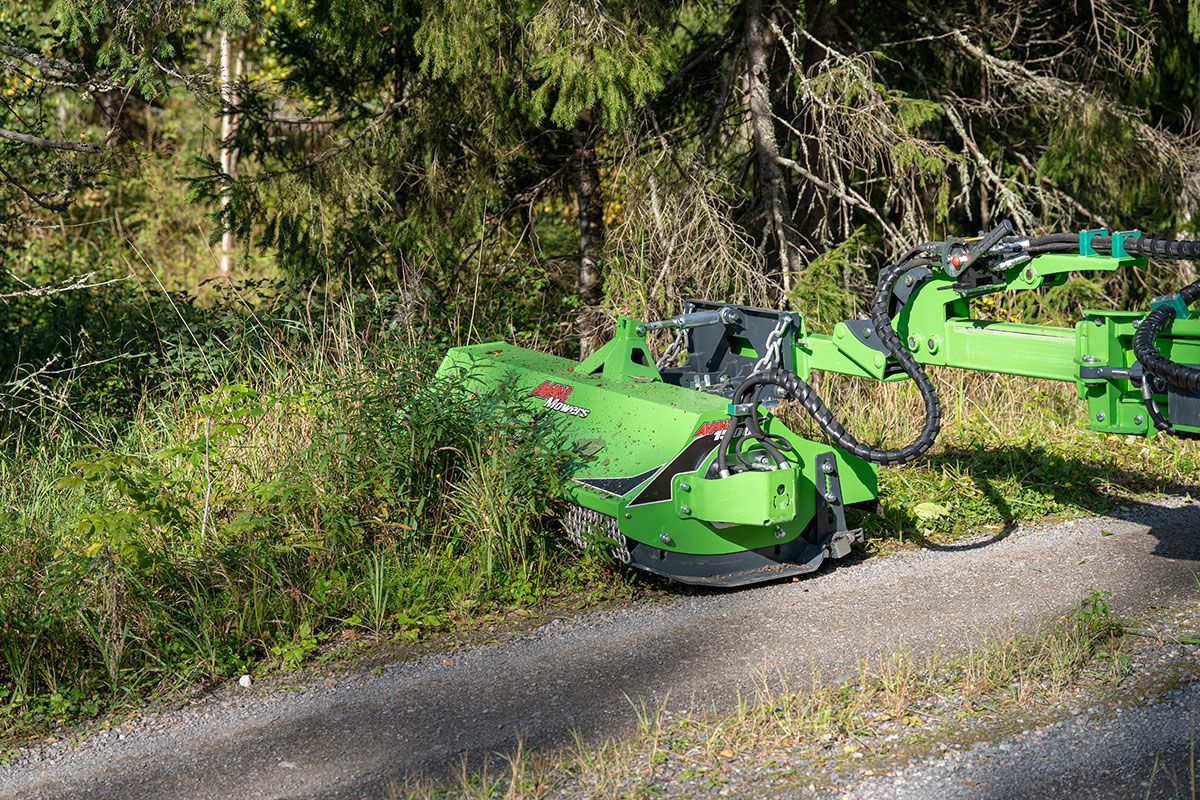

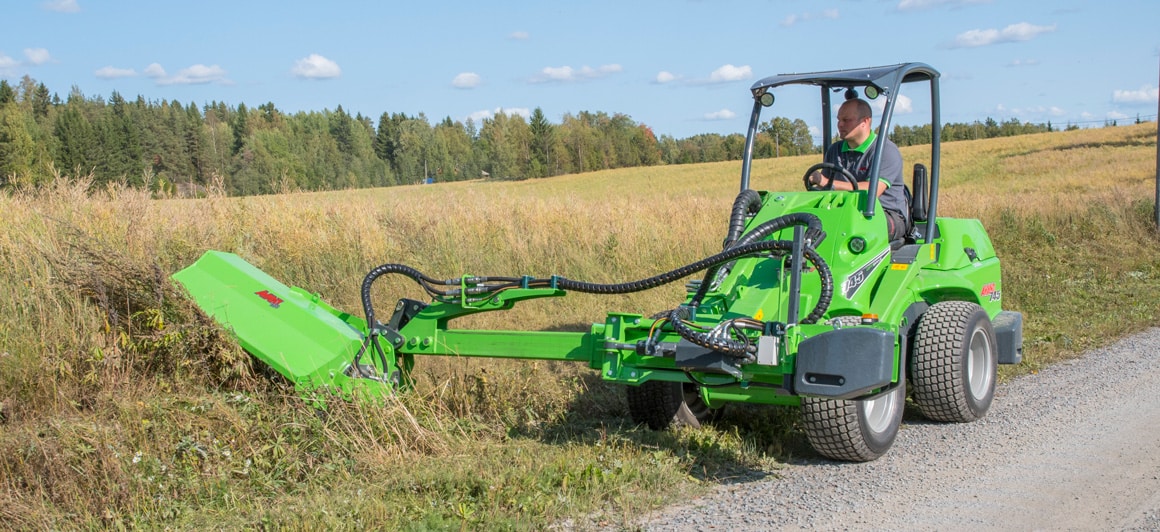

The jib arm floats hydraulically upwards, but not downwards. When working, the attachment which is mounted on the arm (flail mower for example) remains in the position where it raised by an obstacle.
Multi connector for connecting the S30 attachmentโ€™s hydraulic hoses available as an option (S30 attachment must also be equipped with the corresponding multi connector)

More Images & Videos

Technical Information

Max attachment weight 500 kg
Telescoping to the side max. 1000 mm
Max width 1870-2580 mm
Jib arm movement 135ยฐ (45ยฐ down and 90ยฐ up from horizontal position)
Weight 250 kg
Product no. A424552

Options

Multi connector A441730

Compatible Models

incompatible icon220
incompatible icon225
incompatible icon225Lpg
incompatible icon313S
incompatible icon320S
incompatible icon420 & 423
incompatible icon520
incompatible icon523
incompatible icon525LPG
very-compatible icon528
very-compatible icon530
very-compatible iconR20
very-compatible iconR28
very-compatible iconR35
very-compatible icon630
very-compatible icon635
very-compatible icon640
very-compatible icon735
very-compatible icon745
very-compatible icon750
very-compatible icon755i
very-compatible icon760i
very-compatible icon850
very-compatible icon860i
very-compatible icone513
very-compatible icone527
