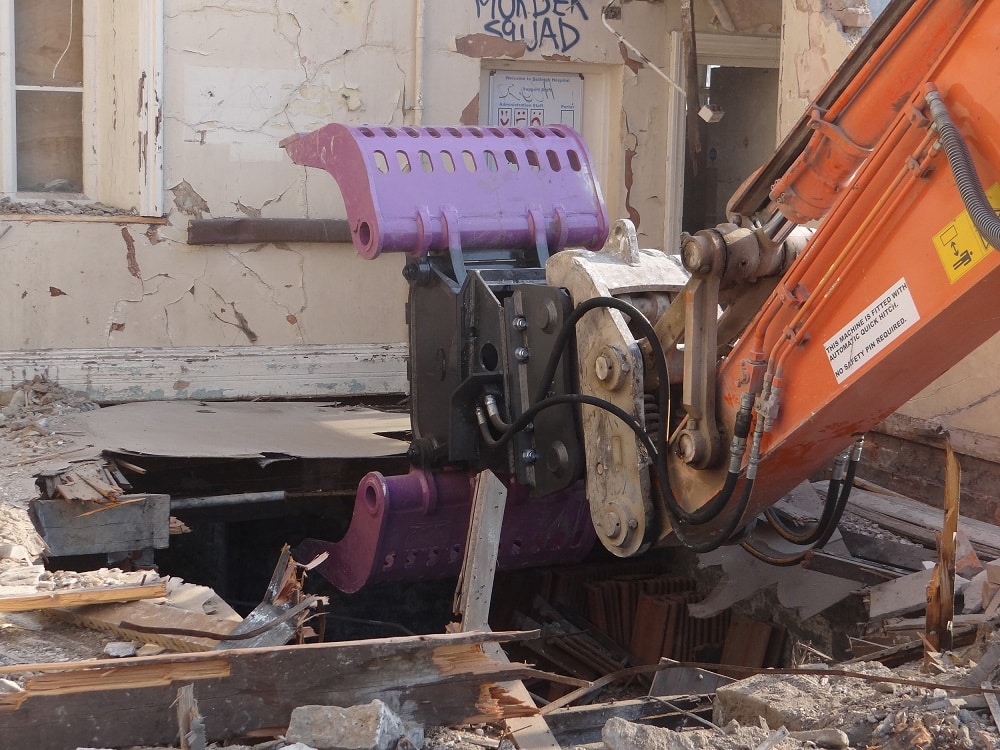

Heavy Duty Selector Grabs
PRODEM Heavy Duty Selector Grabs are designed for selective demolition, sorting and loading of recyclable materials. We provide high quality manufacturing and quick delivery times for grabs and parts.
- Low weight, short height
- One piece perforated shell skins manufactured from HARDOX – increased strength, lighter and more durable
- Standard, reversible and changeable wear blades
- Motionless cylinders prevent hose wear
- Cylinders with end damping
- Long hinge arms to the cylinder for a greater closing power
- Turning joints sealed with heavy duty turning joint seals
- The grease nipples are easy to reach, direct into pin bushes
Media and Downloads
Features
Low weight, short height
Standard, reversible and changeable wear blades
Motionless cylinders prevent hose wear
Cylinders with end damping
Long hinge arms to the cylinder for a greater closing power
Turning joints sealed with heavy duty turning joint seals
The grease nipples are easy to reach, direct into pin bushes
The PSG603-D upwards have 2 rotate motors which gives increased rotate power
One piece perforated shell skins manufactured from HARDOX – increased strength, lighter and more durable
Additional Information
| Model | Working Weight (kg) | Pressure – Open/Close (bar) |
Oil Flow – Open/Close (lpm) | Min Pressure – Rotation (bar) | Max Pressure – Rotation (bar) | Oil Flow – Rotation – L/Min (mm) | Width W (mm) |
Max Opening S (mm) | Height H (mm) |
Capacity (l) |
Closing Force (kn) | Excavator Weight Class (t) |
| PSG75-D | 75 | 300 | 15 | 150 | 170 | 5 | 300 | 600 | 600 | 30 | 6 | 0.7-1.2 |
| PSG100-D | 90 | 300 | 20 | 170 | 210 | 5 | 350 | 770 | 610 | 40 | 0.7 | 1-2 |
| PSG150-D | 140 | 300 | 25 | 150 | 170 | 10 | 450 | 750 | 700 | 70 | 15 | 1.2-3 |
| PSG200-D | 240 | 300 | 35 | 150 | 170 | 10 | 500 | 1160 | 850 | 100 | 20 | 2.5-5 |
| PSG400-D | 350 | 300 | 40 | 150 | 170 | 12 | 600 | 1400 | 950 | 150 | 23 | 4-8 |
| PSG450-D | 400 | 300 | 50 | 150 | 170 | 12 | 700 | 1500 | 1000 | 200 | 24 | 5-9 |
| PSG452-D | 450 | 320 | 70 | 190 | 210 | 15 | 700 | 1550 | 990 | 200 | 24 | 6-11 |
| PSG503-D | 600 | 350 | 90 | 190 | 210 | 15 | 600 | 1800 | 1150 | 300 | 30 | 7-12 |
| PSG603-D | 840 | 350 | 100 | 190 | 210 | 25 | 800 | 1800 | 1200 | 400 | 35 | 10-16 |
| PSG803-D | 1000 | 350 | 120 | 190 | 210 | 25 | 800 | 1950 | 1300 | 500 | 46 | 12-20 |
| PSG903-D | 1050 | 350 | 120 | 190 | 210 | 25 | 900 | 1950 | 1300 | 600 | 46 | 13-20 |
| PSG1003-D | 1100 | 350 | 120 | 190 | 210 | 25 | 1000 | 1950 | 1300 | 700 | 46 | 15-20 |
| PSG1100-D | 1400 | 350 | 150 | 190 | 210 | 35 | 900 | 2100 | 1500 | 750 | 55 | 16-24 |
| PSG1202-D | 1500 | 350 | 160 | 190 | 210 | 35 | 1000 | 2100 | 1500 | 800 | 68 | 17-28 |
| PSG1402-D | 1600 | 350 | 170 | 190 | 210 | 35 | 1200 | 2100 | 1500 | 850 | 68 | 20-28 |
| PSG1702-D | 1750 | 350 | 170 | 190 | 210 | 35 | 1200 | 2250 | 1430 | 900 | 80 | 23-30 |
| PSG1802-D | 1800 | 350 | 170 | 190 | 210 | 35 | 1200 | 2400 | 1425 | 950 | 80 | 24-35 |
| PSG1900-D | 2000 | 350 | 180 | 190 | 210 | 35 | 1200 | 2250 | 1650 | 900 | 80 | 25-38 |
| PSG2500-D | 2500 | 350 | 200 | 190 | 210 | 35 | 1200 | 2230 | 1700 | 1000 | 90 | 28-45 |
| PSG2700-D | 2700 | 350 | 200 | 190 | 210 | 35 | 1360 | 2230 | 1750 | 1100 | 90 | 30-50 |
| PSG3000-D | 3000 | 350 | 200 | 190 | 210 | 35 | 1500 | 2460 | 1800 | 1300 | 90 | 35-50 |
| PSG4000-D | 3910 | 350 | 250 | 190 | 210 | 40 | 1500 | 2850 | 1800 | 1500 | 110 | 40-65 |
| PSG5000-D | 5000 | 350 | 300 | 190 | 210 | 60 | 1500 | 3000 | 2000 | 1600 | 130 | 45-100 |
| PSG13000-D | 13000 | 350 | 350 | 220 | 250 | 100 | 1800 | 4400 | 3000 | 4600 | 180 | 100-200 |
