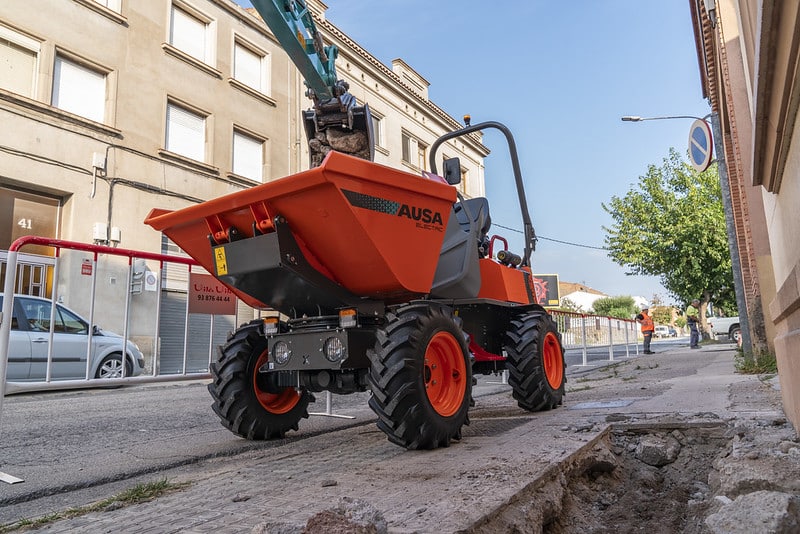

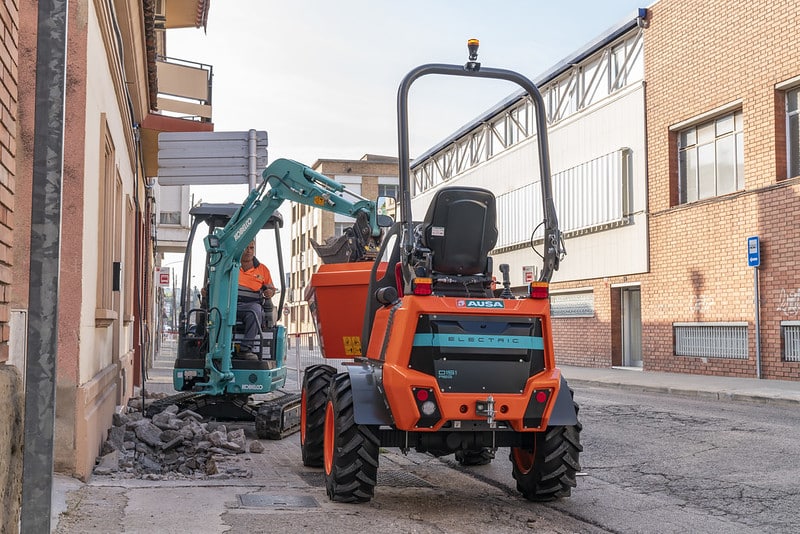

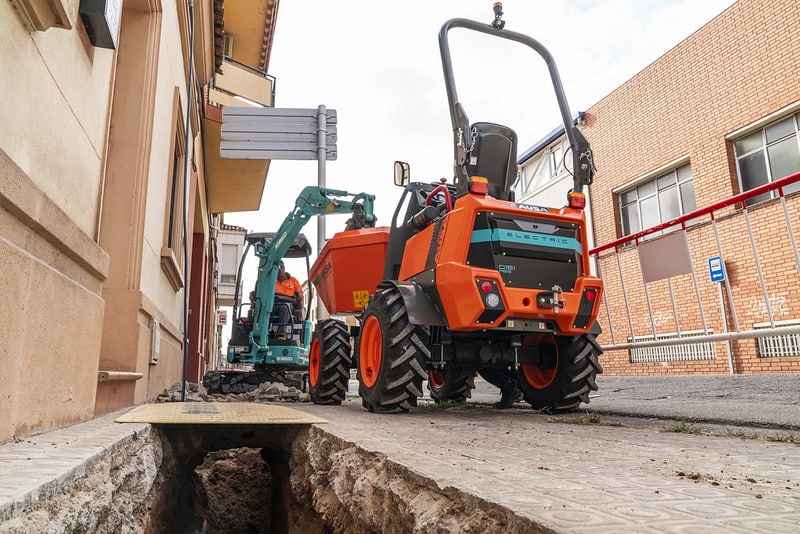

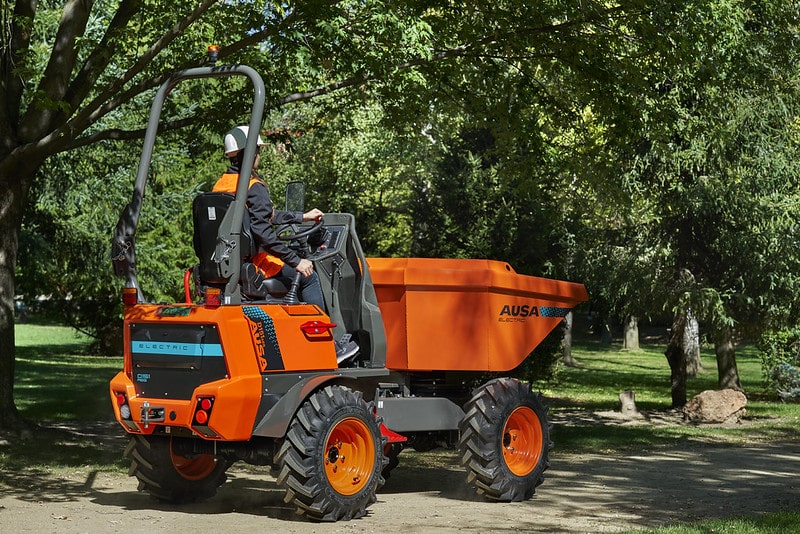

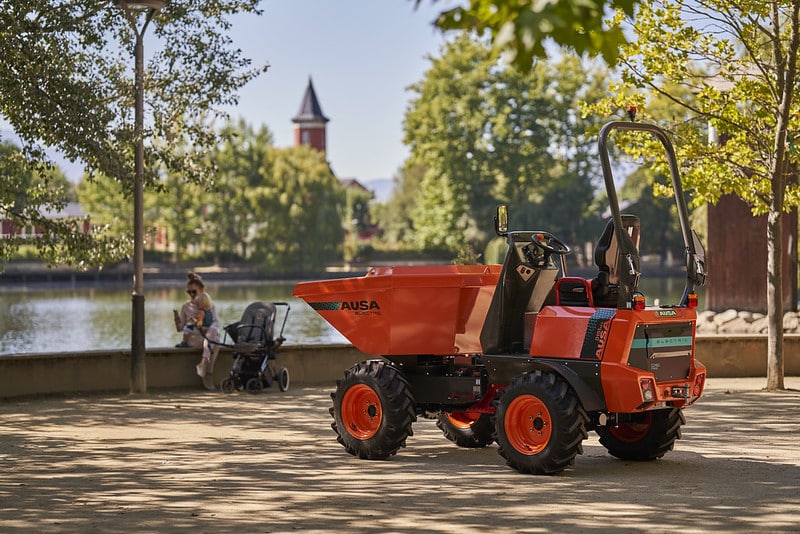

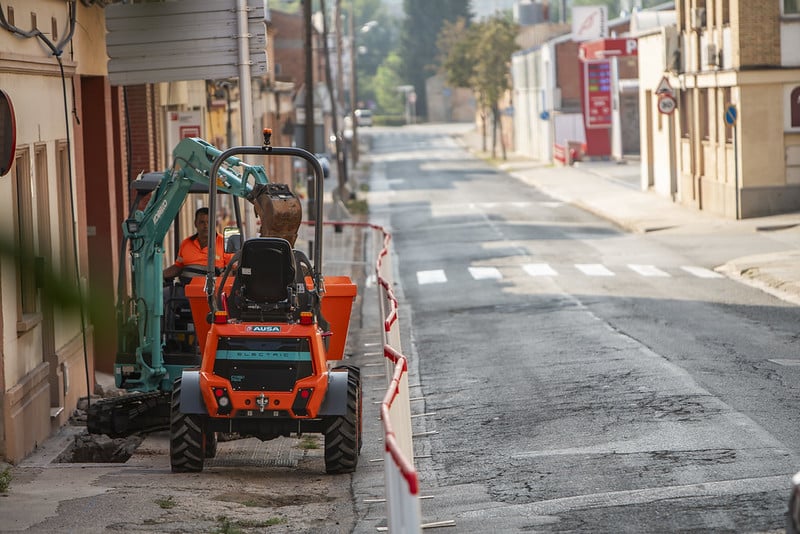

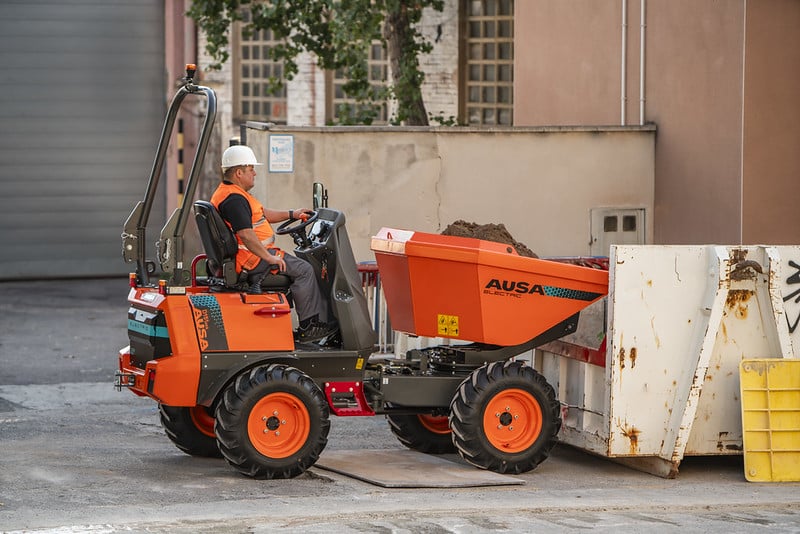

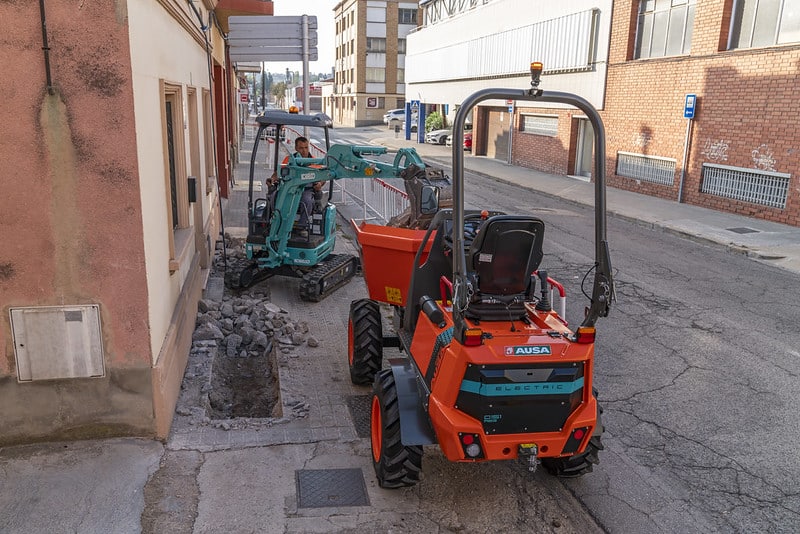

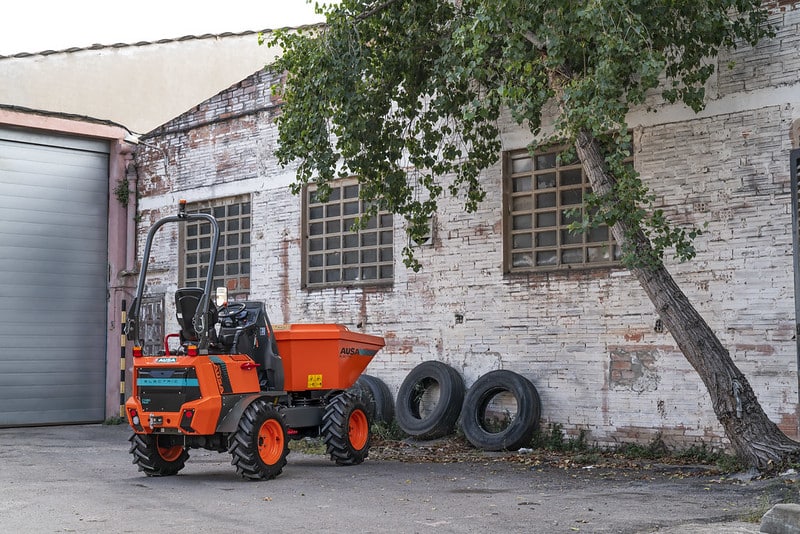

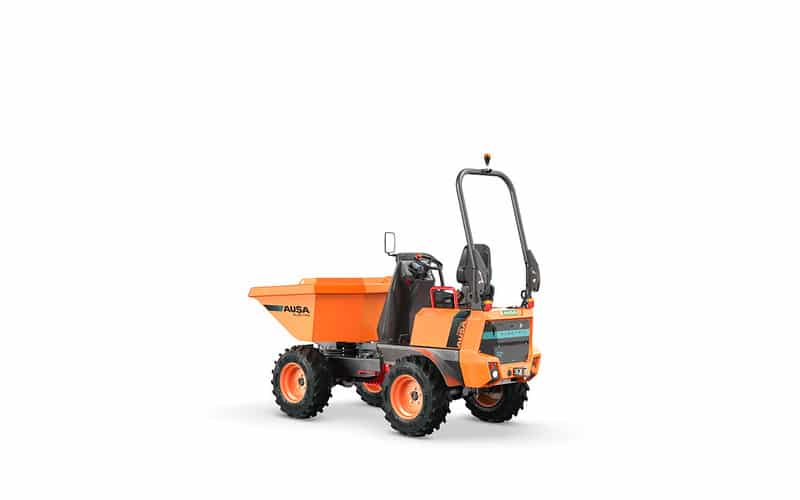

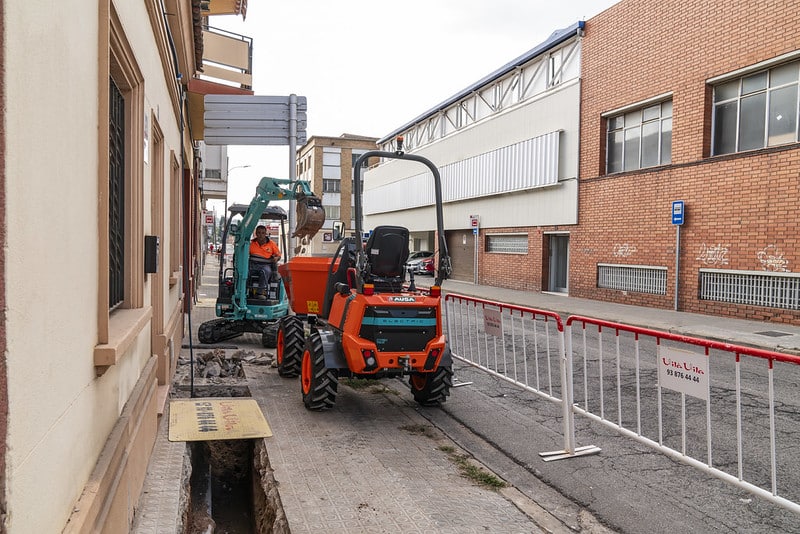

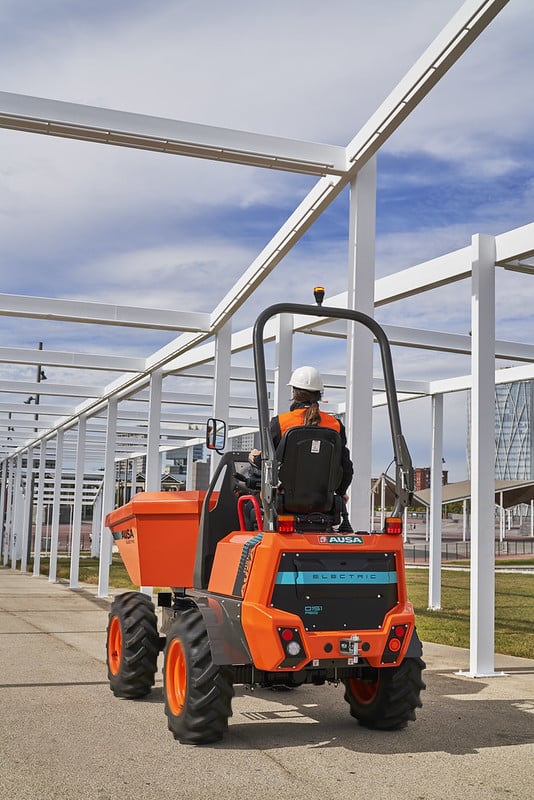

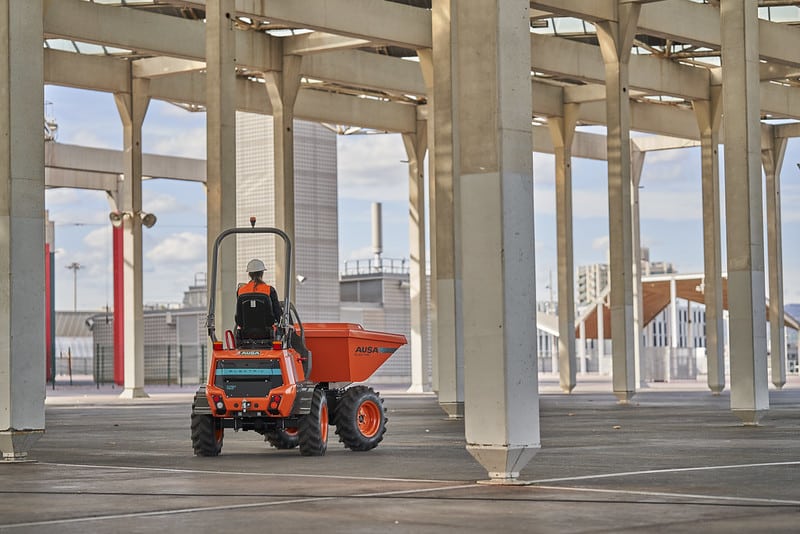

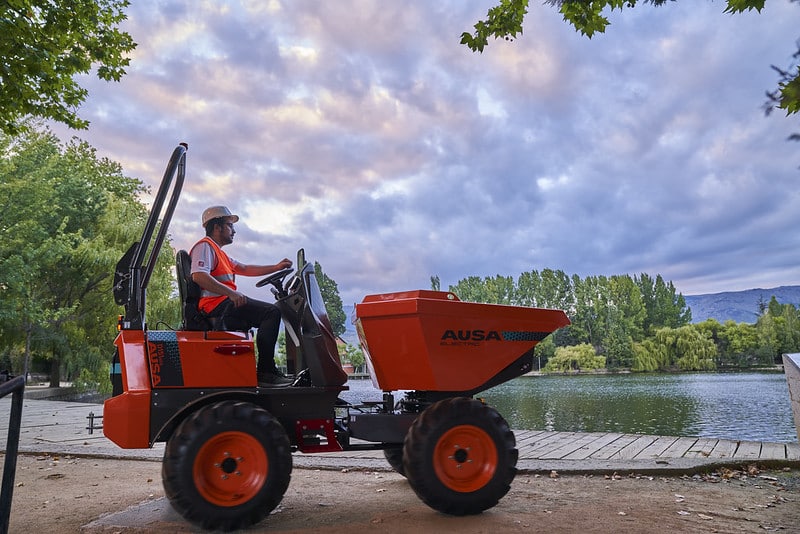

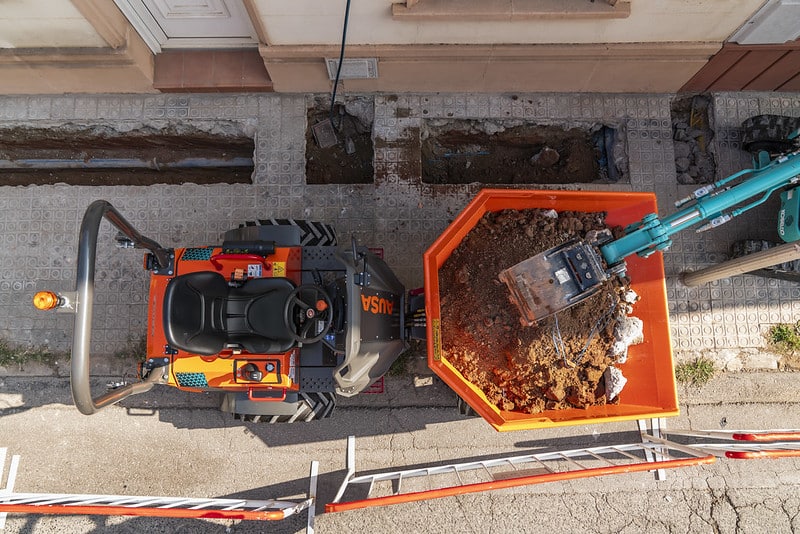

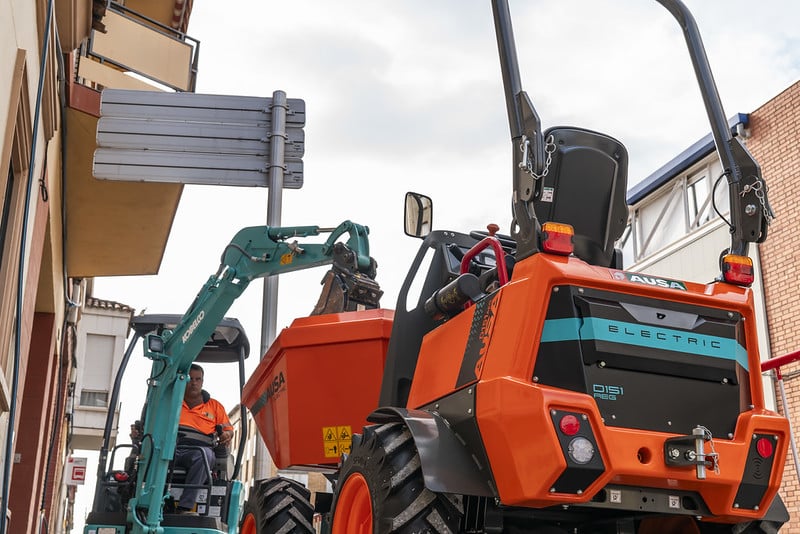

D151AEG
Electric power for the whole day. The D151AEG dumper was designed to offer capacity for a full working day without needing to be recharged.

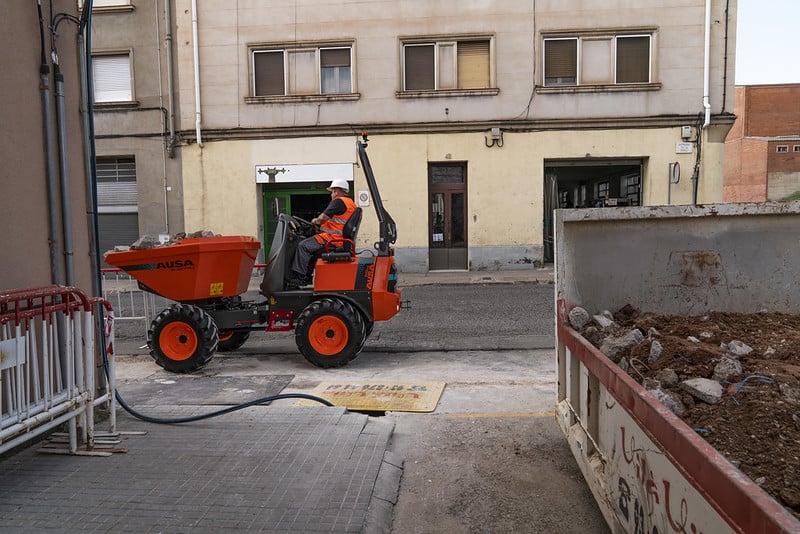

With the machine’s integrated charging cable, you can connect directly to the mains via a 110 V, 230 V or 415 V socket with a fast charger.

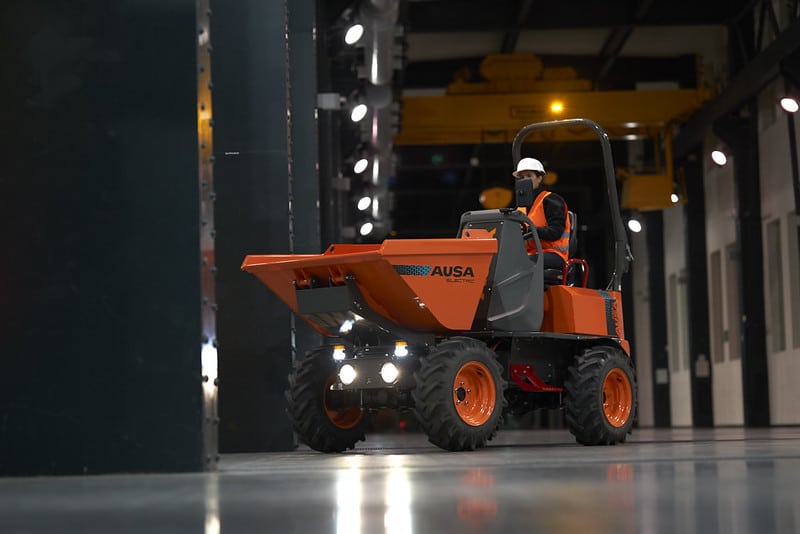

Thanks to its minimal noise emissions, it can be used in more applications than a traditional dumper, as well as in works to be carried out at night.
Also, the permanent 4WD gives it a lot of power, so it can tackle the most difficult terrain.
All-terrain
High performance
Cost-effectiveness
Day and night
Electric
Silent
More Images & Videos
Technical Information
General

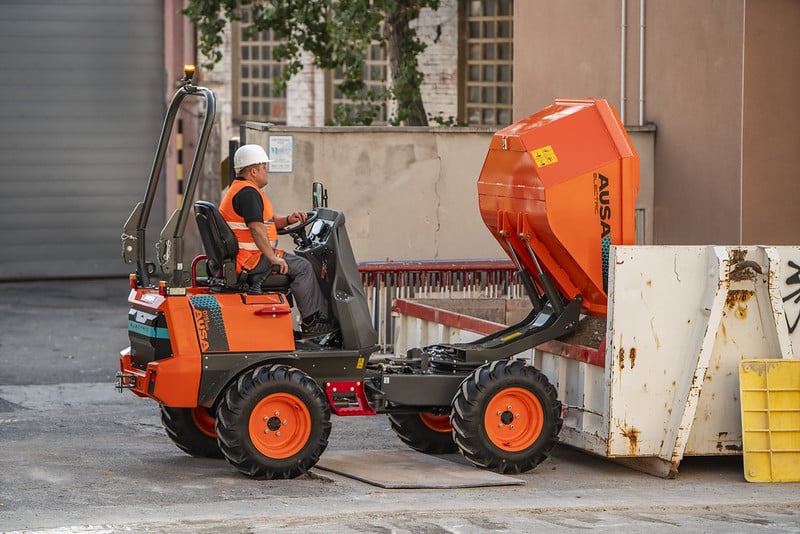

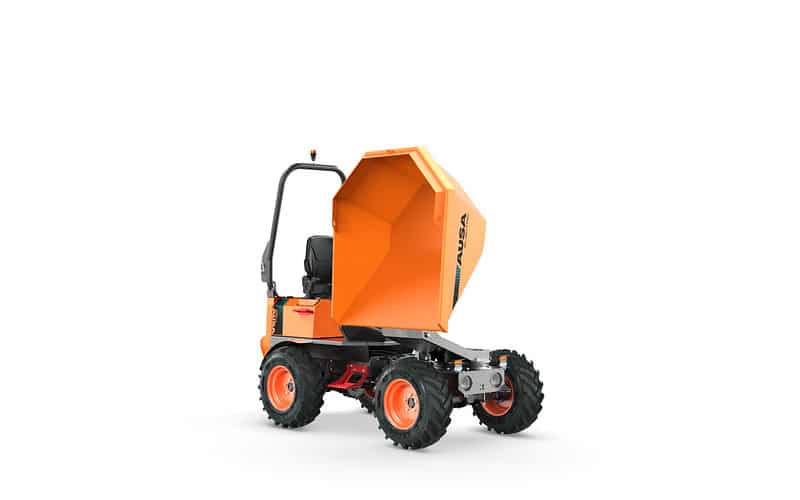

| Unloading system | Swivel tip |
| Load capacity | 1500 kg |
| Chassis | Articulated |
| Water skip capacity | 520 l |
| Level skip capacity | 626 l |
| Heaped skip capacity | 900 l |
| Empty weight | 1530 kg |
| Transmission | Electric |
| Reversibility | Non-reversible |
Battery
| Battery type | Lithium-Ion Battery (NCM) |
| Gross capacity | 9.3 kWh |
| System voltage | 48 V |
| Range
May vary according to weather conditions and use. For temperatures below 0ºC, it is recommended to include the Additional battery for longer range (+3.1 kWh)
|
One intense shift |
Charge
| Charger | Integrated |
| Charging time 20‑80%
May vary according to weather conditions and the type and power of the charging point
|
2 h (230 V) |
| Charging time 20‑80% (fast charger)
May vary according to weather conditions and the type and power of the charging point
|
1 h (400 V) |
| Charging cable plug type | 110 V (yellow); 230 V (blue); 400 V (red) |
Engine
| Peak power | 19.6 kW |
| Nominal power | 7.6 kW |
| Torque | 130 |
| Emissions | Zero emission |
| Noise level (LwA) | – |
Driving
| Max. speed | 14 km/h |
| Maximum gradient | 35 % |
| External turning radius | 3390 mm |
| Traction | 4×4 |
| Tyres | 10.0/75-15.3 |
Hydraulic system
| Hydraulic circuit | 12 cc gear pumps |
| Flow rate | 28 l/min |
| Working pressure | 180 bar |
Tank capacity
| Hydraulic system | 24.5 l |
Brakes
| Service | Hydraulic |
| Parking | Negative |
Equipment
Driving Position
Rear folding ROPS protective structure
Safety
Seat belt with fasten sensor, Seat with operator’s presence sensor, LED rotating beacon, White noise acoustic warning for reverse gear, Emergency stop, Anti-vandal security system, Hill Holder – hill-start assist, Negative brake
Lighting & Driving
Rear-view mirror
Comfort
Adjustable ergonomic seat, All-in-one joystick
Advanced equipment
Electric transmission, Digital display, Advanced support
Accessories
Metal engine cover
