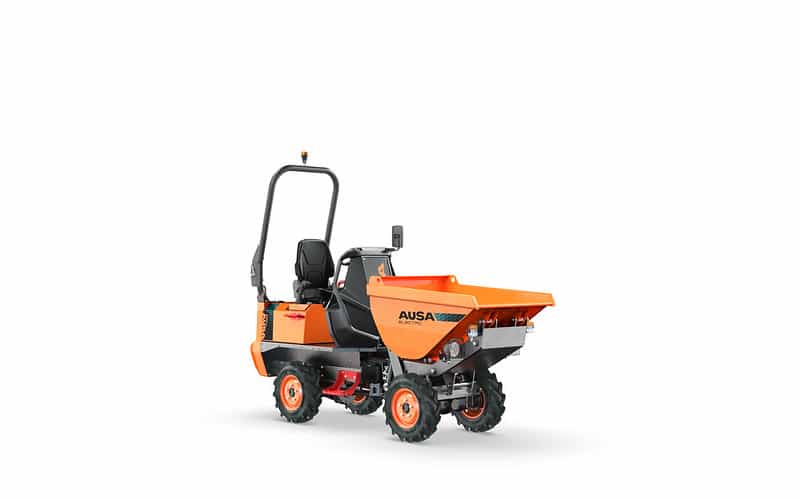

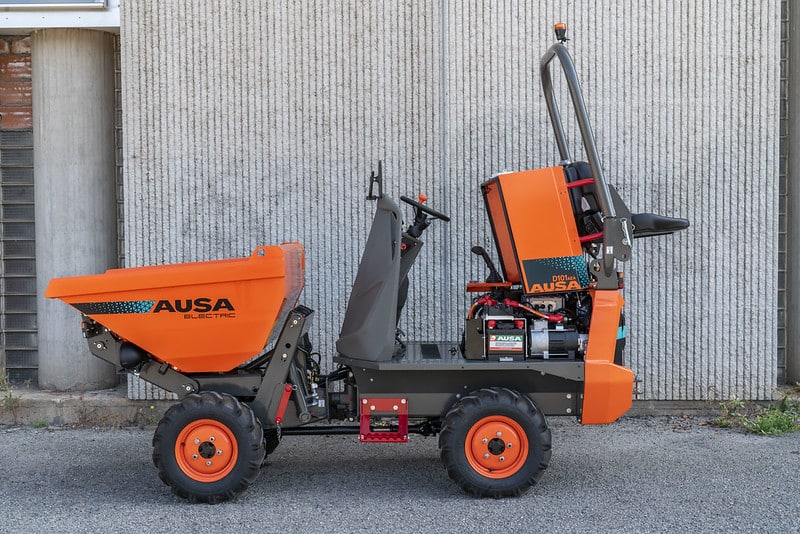

D101AEA Compact

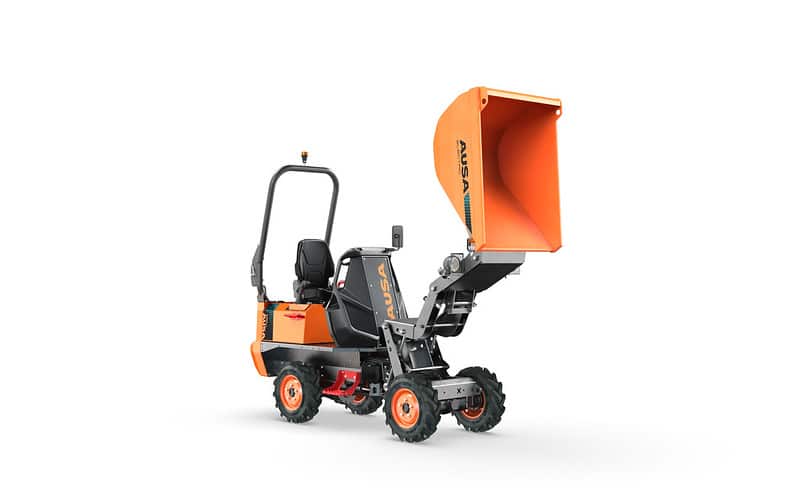

The D101AEA Compact is AUSA’s most compact electric dumper. It has a 1,000 kg (2,200 lb) payload and hi-tip skip, which is capable of lifting and tipping at a height of up to 1.6 meters (5.2 ft).

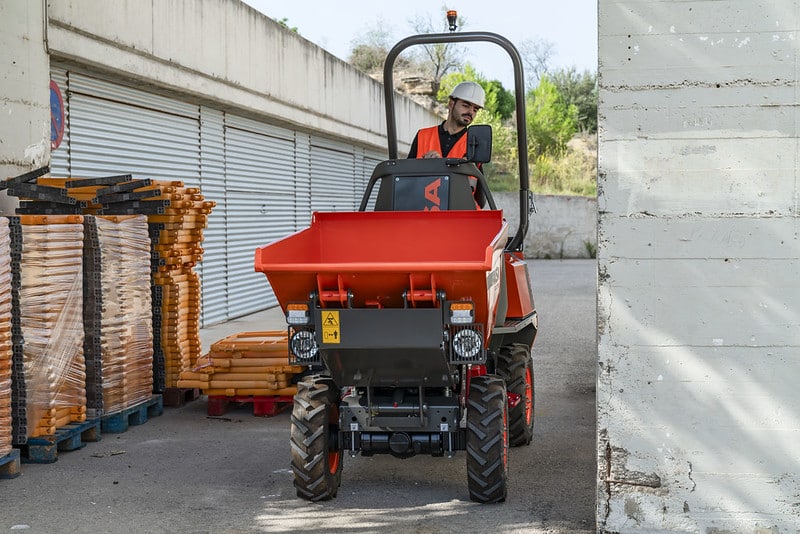

It is only 100 cm (39 in) wide, so it can pass through doors in buildings and homes, making it the perfect partner for handling indoor demolition debris.

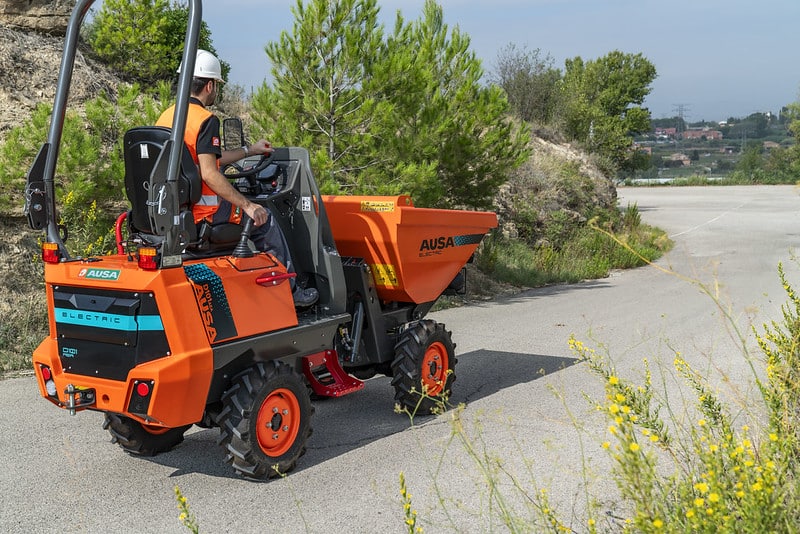

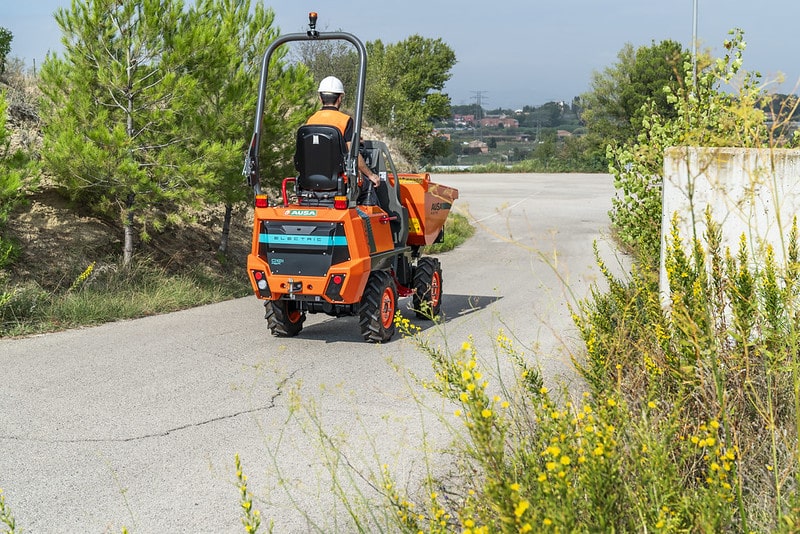

This all-terrain dumper is as powerful as similar vehicles with diesel engines. In addition, it has been designed with a working range of at least one intense shift.
More Images & Videos
Technical Information
General
| Unloading system | High tip |
| Load capacity | 1000 kg |
| Chassis | Articulated |
| Water skip capacity | 345 l |
| Level skip capacity | 395 l |
| Heaped skip capacity | 565 l |
| Empty weight | 1430 kg |
| Transmission | Electric |
| Reversibility | Non-reversible |
Battery
| Battery type | Lithium-Ion Battery (NCM) |
| Gross capacity | 9.3 kWh |
| System voltage | 48 V |
| Range
May vary according to weather conditions and use. For temperatures below 0ºC, it is recommended to include the Additional battery for longer range (+3.1 kWh)
|
One intense shift |

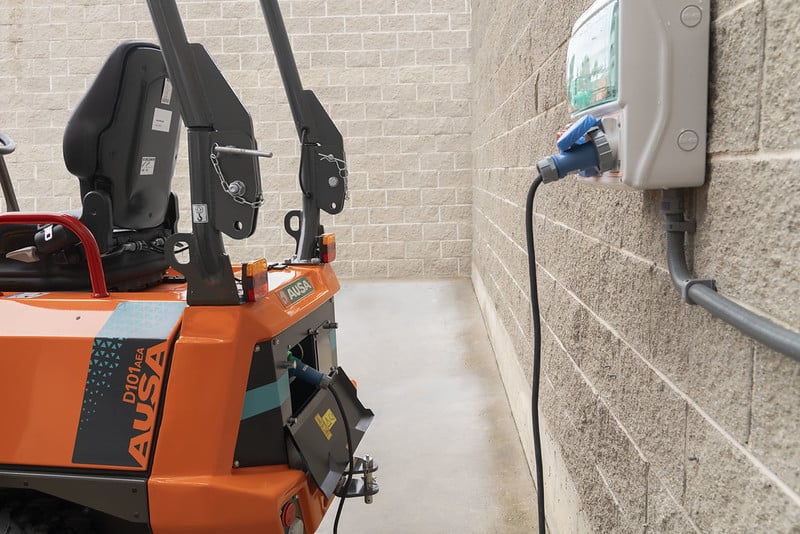

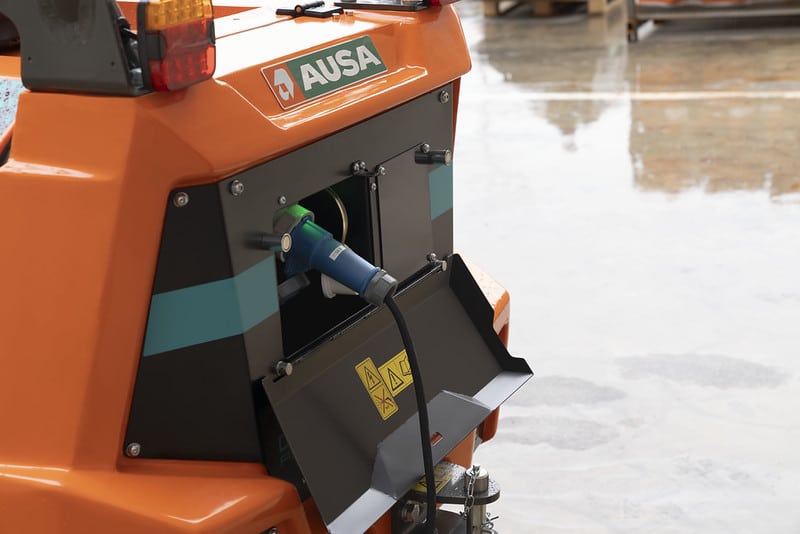

Charge
| Charger | Integrated |
| Charging time 20‑80%
May vary according to weather conditions and the type and power of the charging point
|
2 h (230 V) |
| Charging time 20‑80% (fast charger)
May vary according to weather conditions and the type and power of the charging point
|
1 h (400 V) |
| Charging cable plug type | 110 V (yellow); 230 V (blue); 400 V (red) |
Engine
| Peak power | 19.6 kW |
| Nominal power | 7.6 kW |
| Torque | 130 |
| Emissions | Zero emission |
| Noise level (LwA) | – |
Driving
| Max. speed | 14 km/h |
| Maximum gradient | 35 % |
| External turning radius | 3080 mm |
| Traction | 4×4 |
| Tyres | 6.5/80-12 |
Hydraulic system
| Hydraulic circuit | 12 cc gear pumps |
| Flow rate | 28 l/min |
| Working pressure | 180 bar |
Tank capacity
| Hydraulic system | 24.5 l |
Brakes
| Service | Hydraulic |
| Parking | Negative |
Equipment
Driving Position
Rear folding ROPS protective structure
Safety
Seat belt with fasten sensor, Seat with operator’s presence sensor, LED rotating beacon, White noise acoustic warning for reverse gear, Emergency stop, Anti-vandal security system, Hill Holder – hill-start assist, Negative brake
Lighting & Driving
Rear-view mirror
Comfort
Adjustable ergonomic seat, All-in-one joystick
Advanced equipment
Electric transmission, Digital display, Advanced support
Accessories
Metal engine cover
