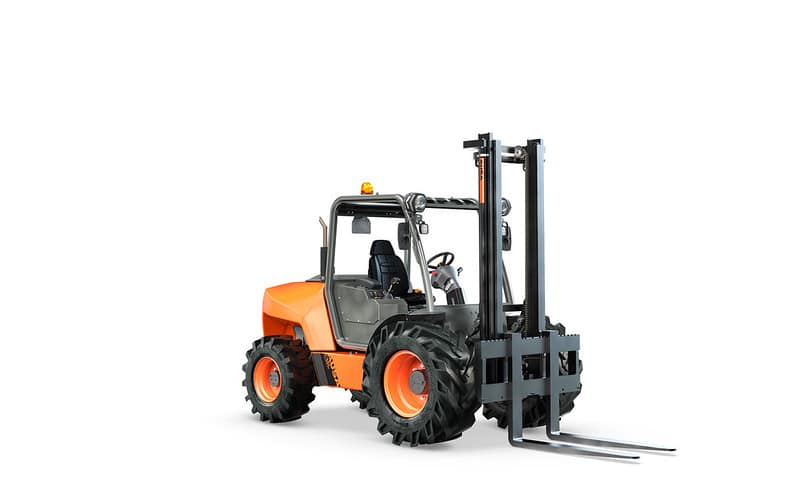

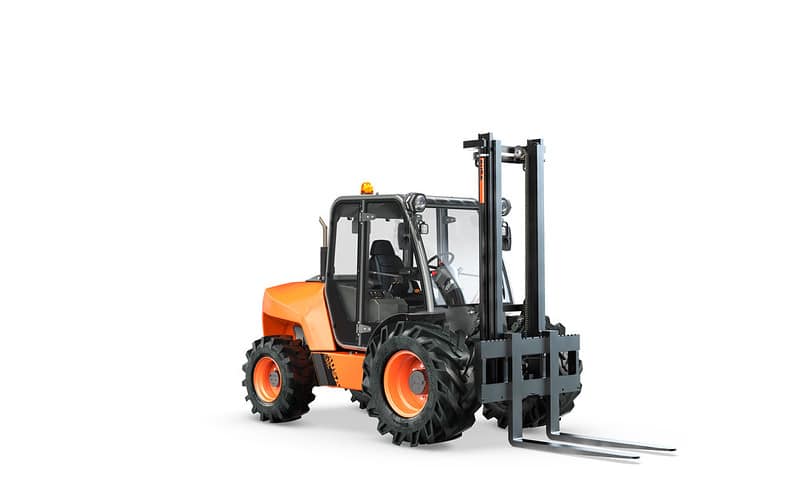

C351H

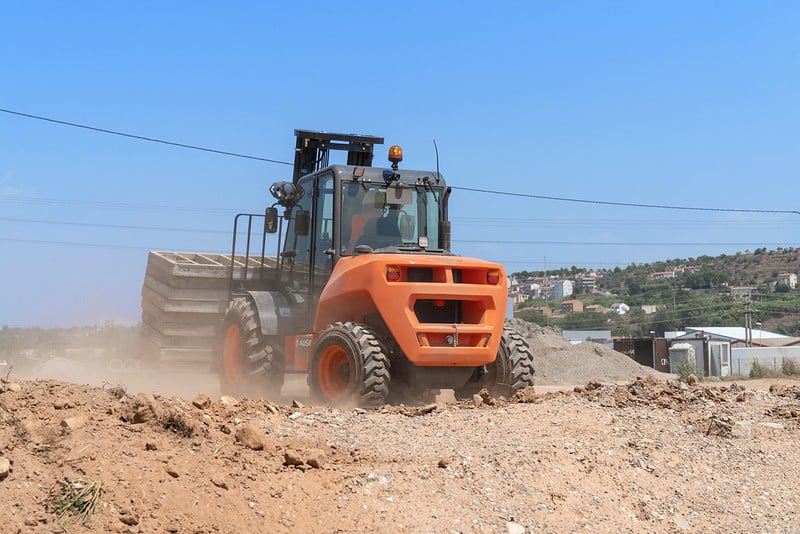

The all-terrain forklift with the most advanced, high-tech and safest design, with a 3,500 kg (7,000 lb) payload and comfortable hydrostatic transmission.

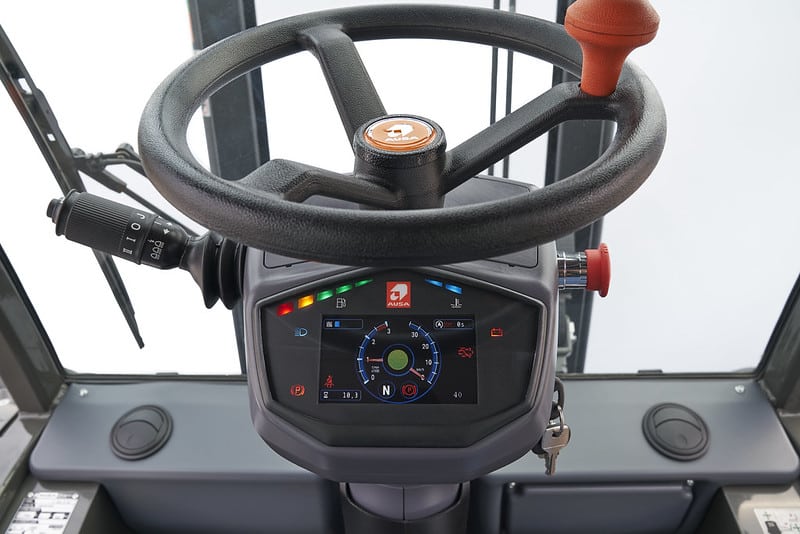

Access all of the information in real time from a digital screen next to the steering wheel: speed, temperature, alarms, sensors, etc. You can interact with it using the cab’s joystick and run self-diagnostics on the unit.
Make savings with EcoMode, the system that automatically controls the engine’s RPM, to offer the greatest power with the lowest consumption and the lowest emissions.

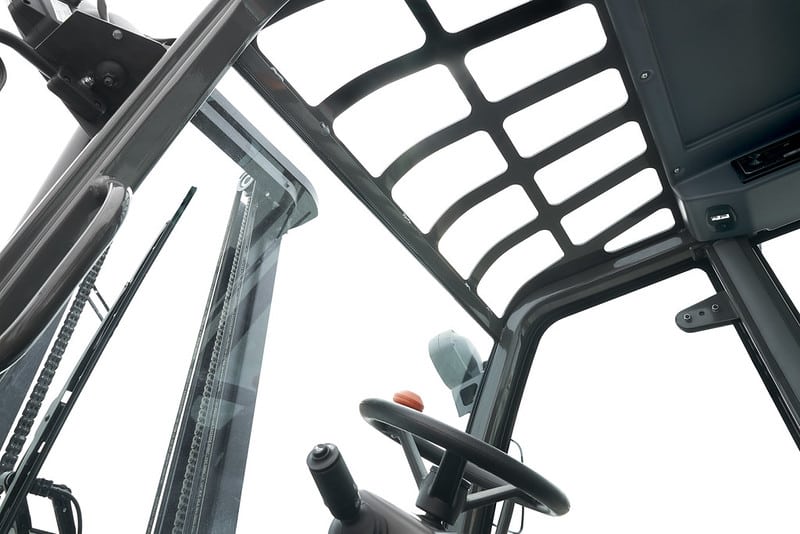

Experience 360º visibility from the driver’s cab, with a 30% increase in outside visibility compared to the previous model.

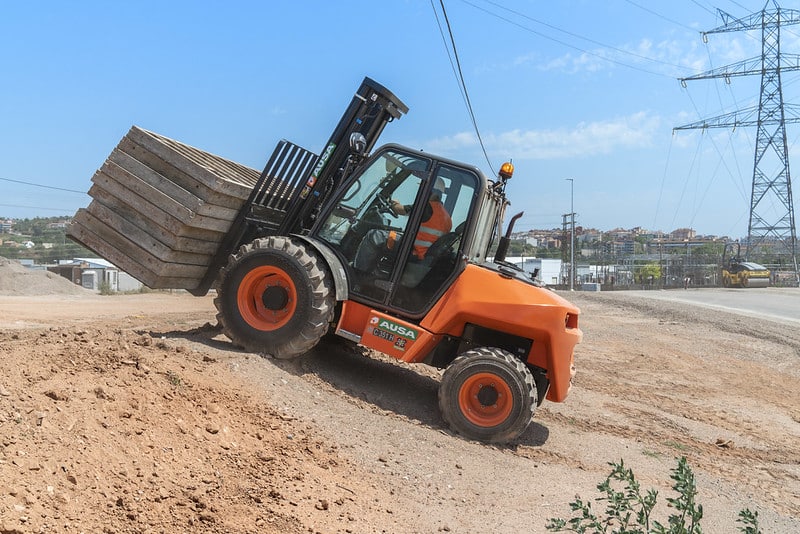

Additionally, with the Hill Holder system, the forklift remains fully stationary on any slope when you take your foot off the accelerator.
More Images & Videos
Technical Information
General
| Load capacity | 3500 kg |
| Load capacity to 500 mm (20 in) | 3500 kg |
| Load capacity to 600 mm (24 in) | – |
| Empty weight | 5430 kg |
| Transmission | Hydrostatic |
| Maximum lift | 5450 mm |
Engine
| Brand | Kubota |
| Model | V2403-CR E5B |
| Power | 31.2 kW |
| Torque | 159,8@1600 |
| No. of cylinders | 4 |
| Emissions | Stage V – EPA Tier 4f |
| Noise level (LwA) | 104 dB(A) |
Driving
| Max. speed | 20 km/h |
| Maximum gradient | 35 % |
| External turning radius | 4350 mm |
| Traction | 4×4 FullGrip |
| Tyres | 16/70-20 12-16,5 |
Hydraulic system
| Hydraulic circuit | Two gears pump |
| Flow rate | 50 l/min |
| Working pressure | 200 bar |
Tank capacity
| Fuel | 62 l |
| Hydraulic system | 51 l |
Brakes
| Service | Hydraulic, sealed, multi-disc |
| Parking | Negative, sealed, multi-disc |
Mast
| Fork carriage | FEM 3 |
| Carriage width | 1260 mm |
Equipment
Driving Position

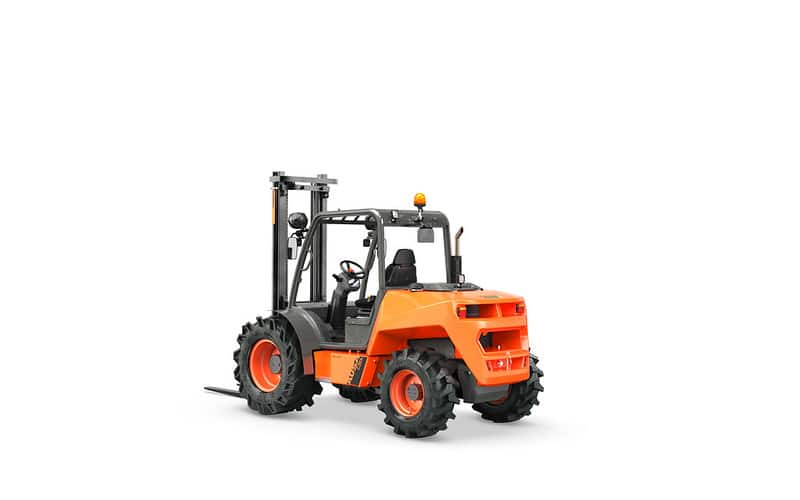

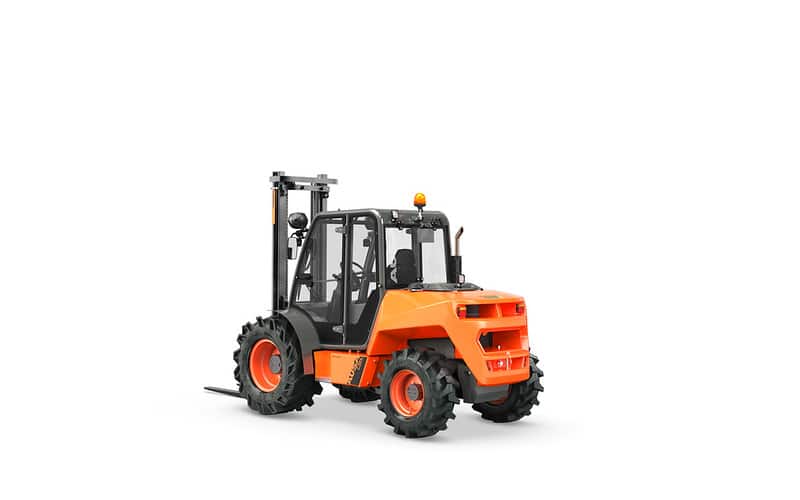

Open cab, Tilting cab with assisted lift
Masts
3.30 duplex mast
Safety
Seat belt with fasten sensor, Seat with operator’s presence sensor, LED rotating beacon, Acoustic warning for reverse gear, Emergency stop, Hill Holder – hill-start assist, Negative brake
Comfort

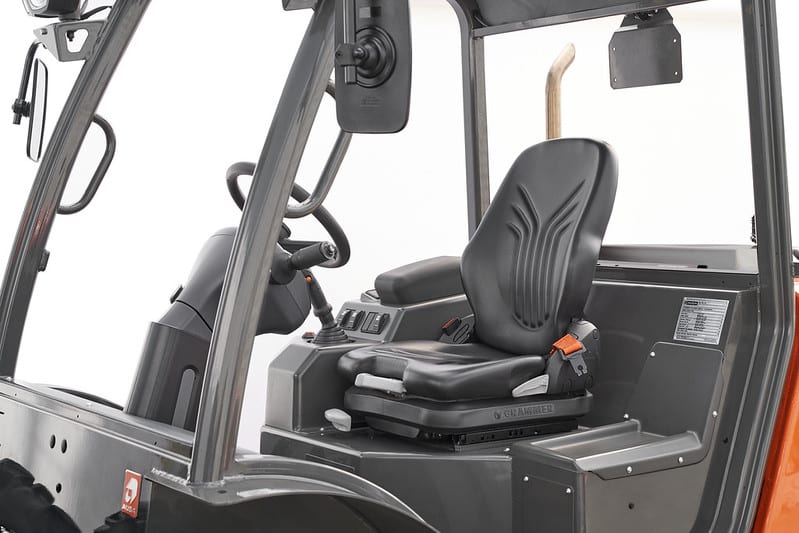

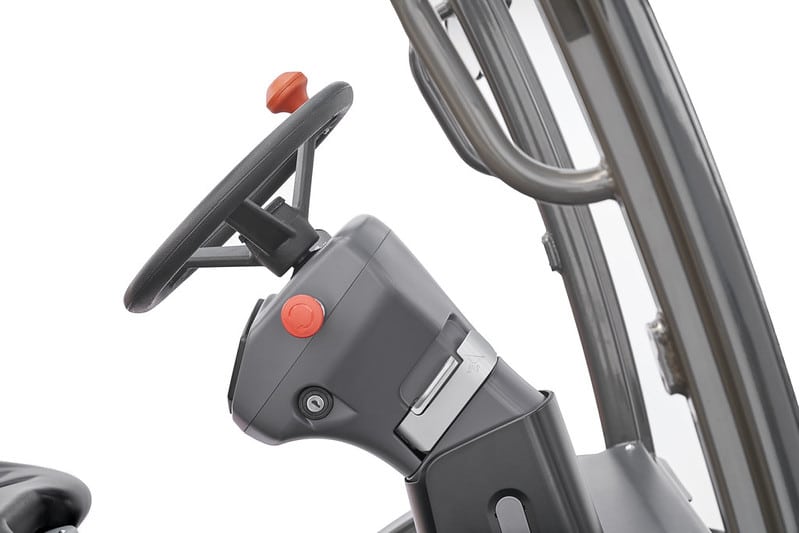

Adjustable ergonomic seat, All-in-one joystick, Armrest, Steering wheel with adjustable tilt and reach
Advanced equipment
ECO Mode system, Digital display, Hydrostatic transmission, Limited-slip differential on both axles, Second-generation FullGrip® (4WD), Inching pedal
Accessories
Water separator diesel filter
Forks
1,200 mm forks, 1,260 mm type FEM IIB fork carriage, Built-in side shifter
