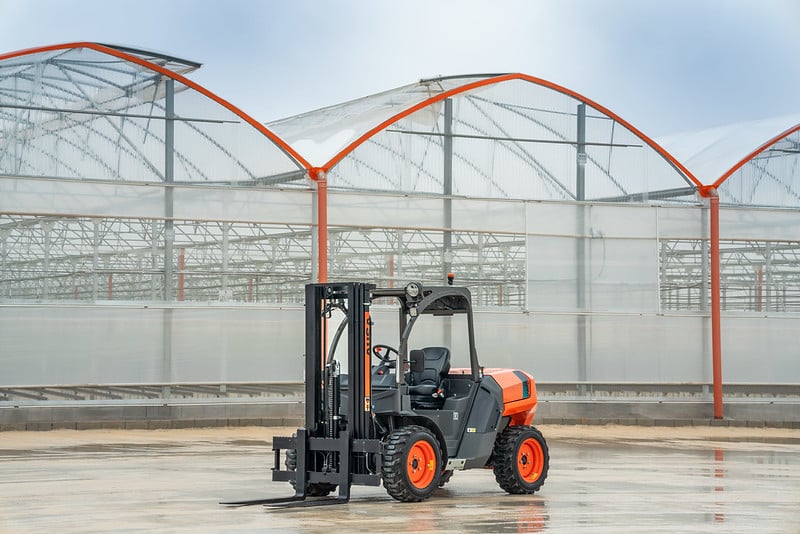

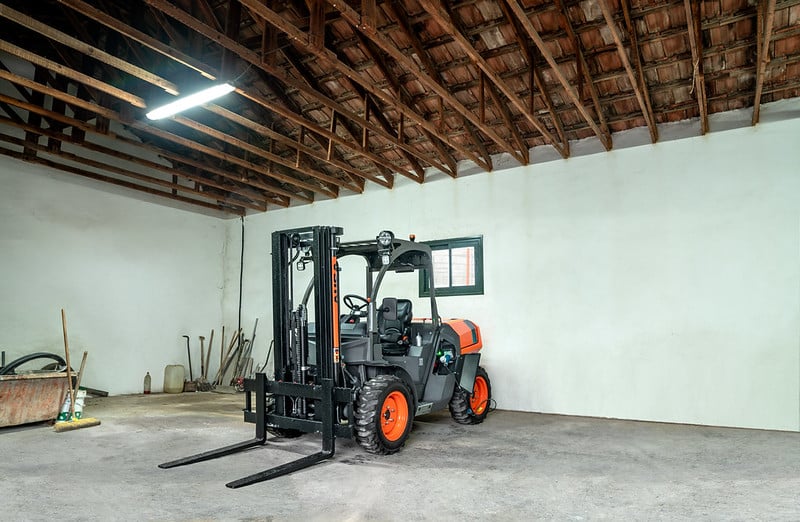

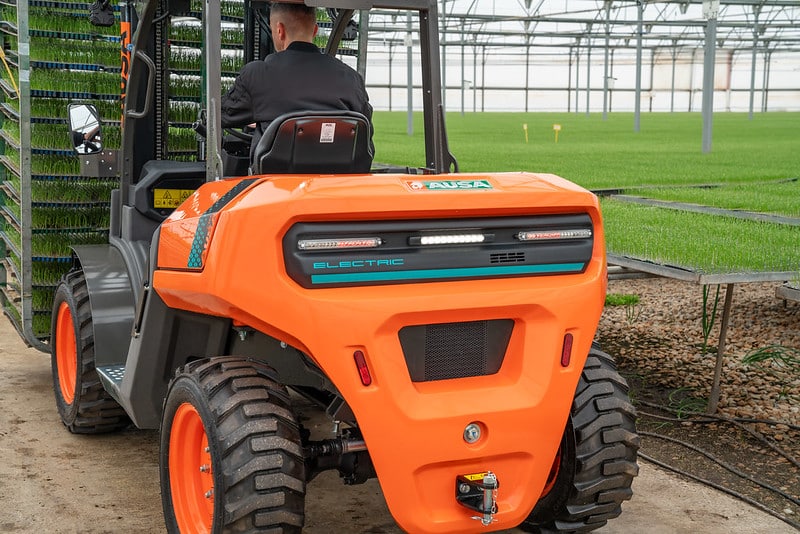

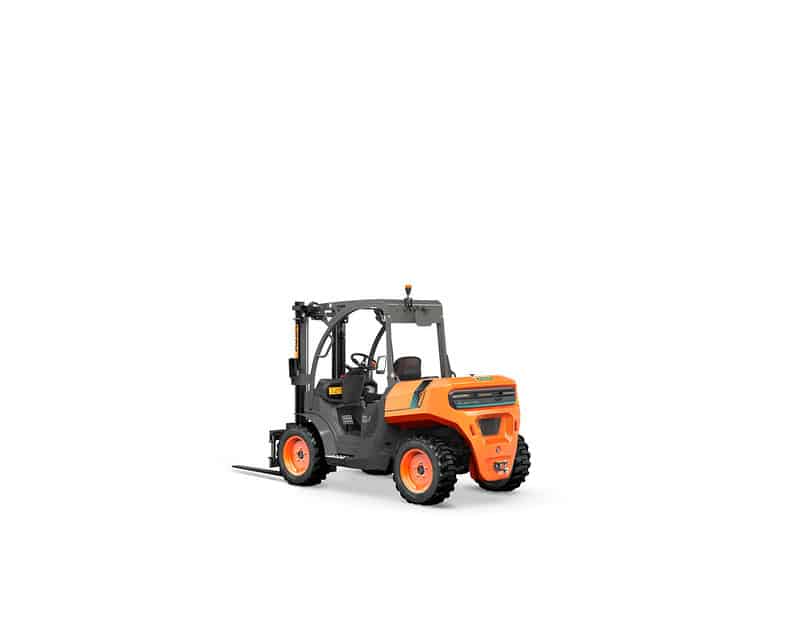

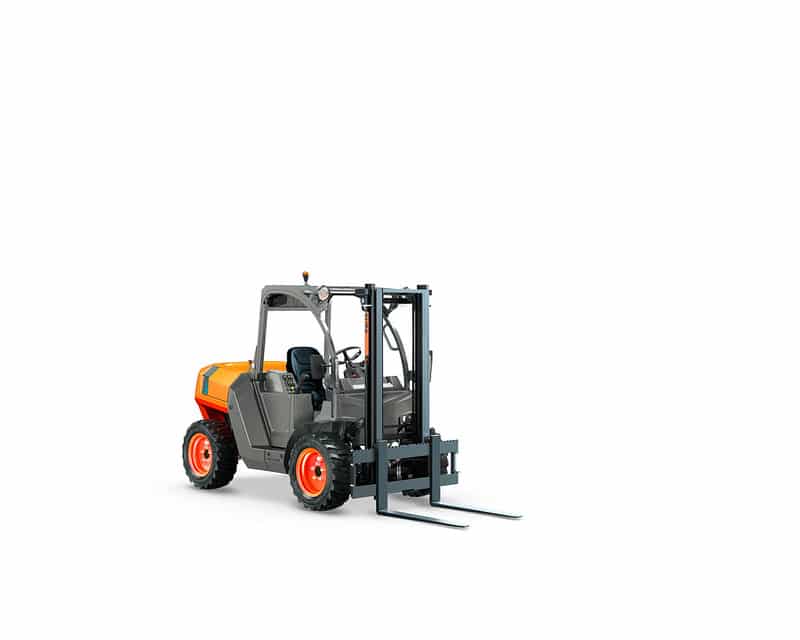

C151E

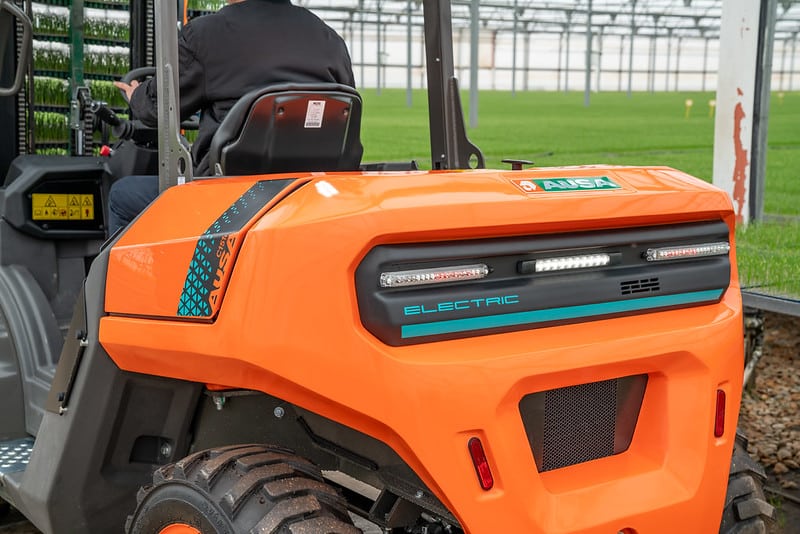

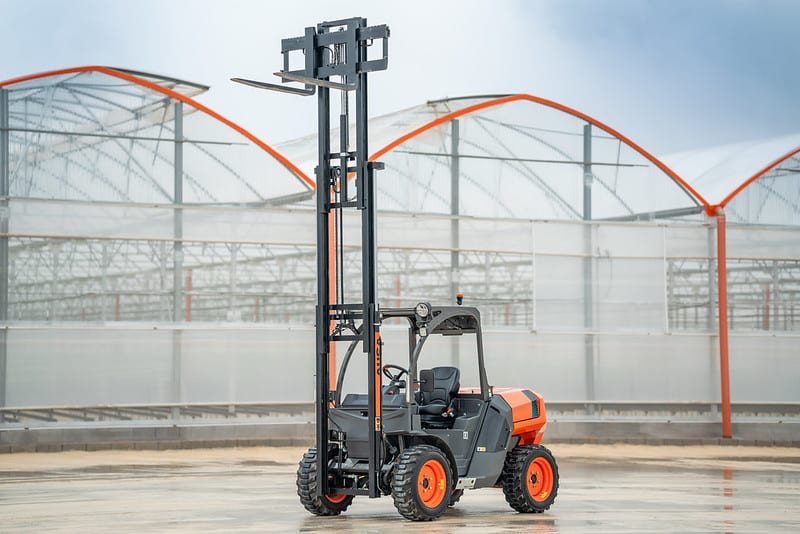

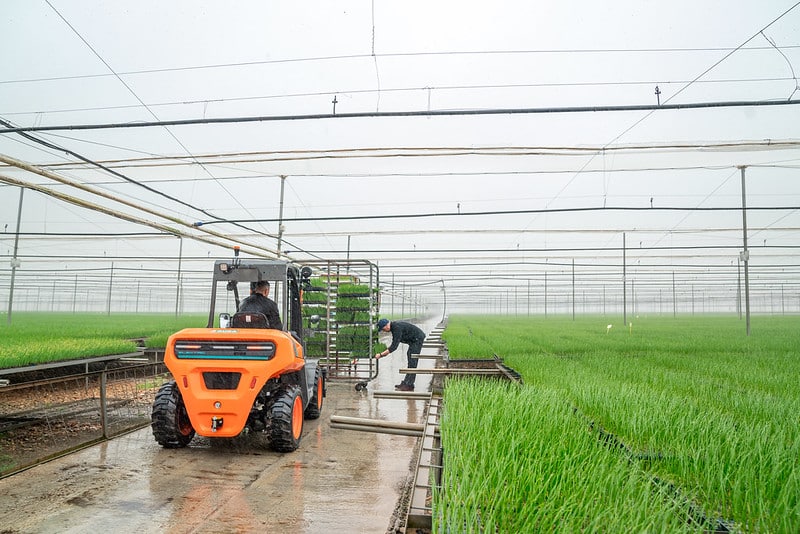

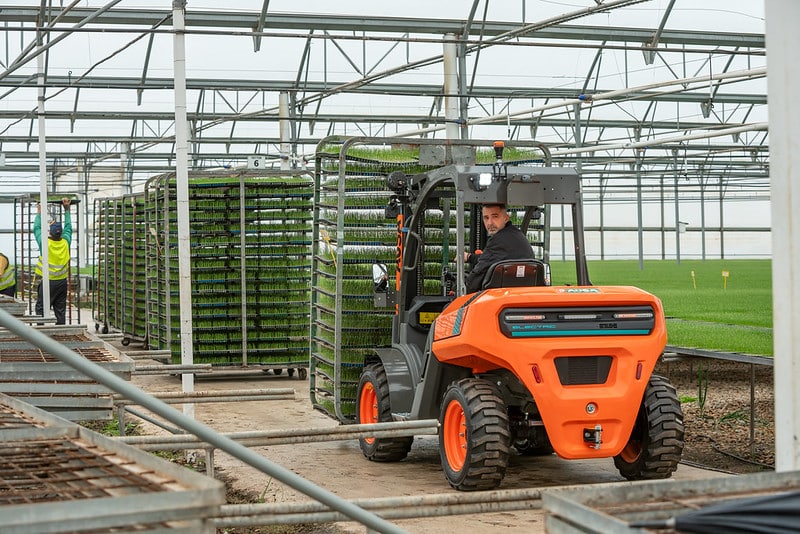

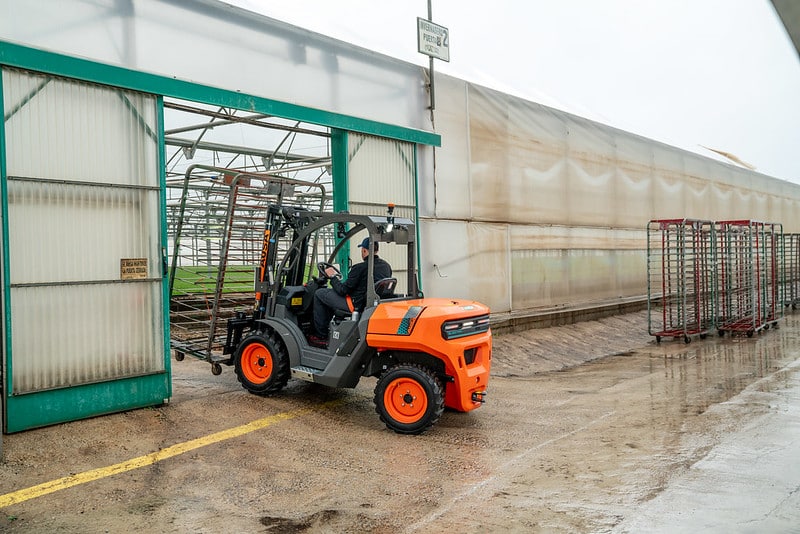

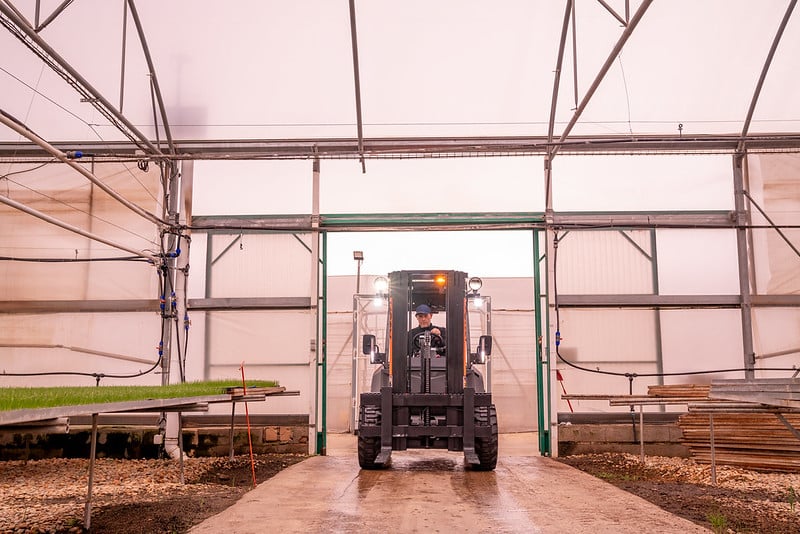

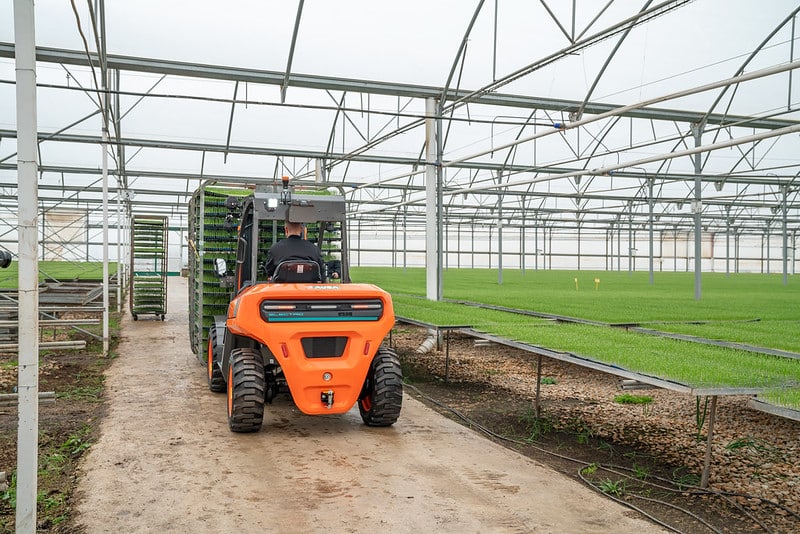

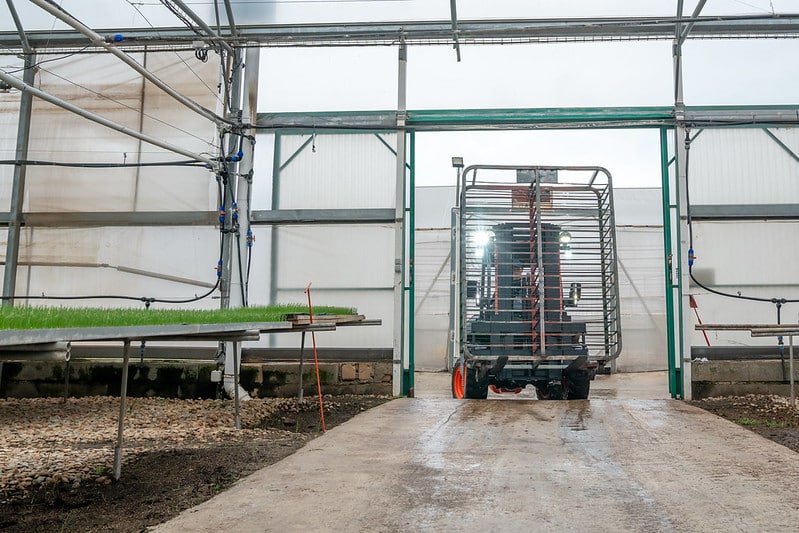

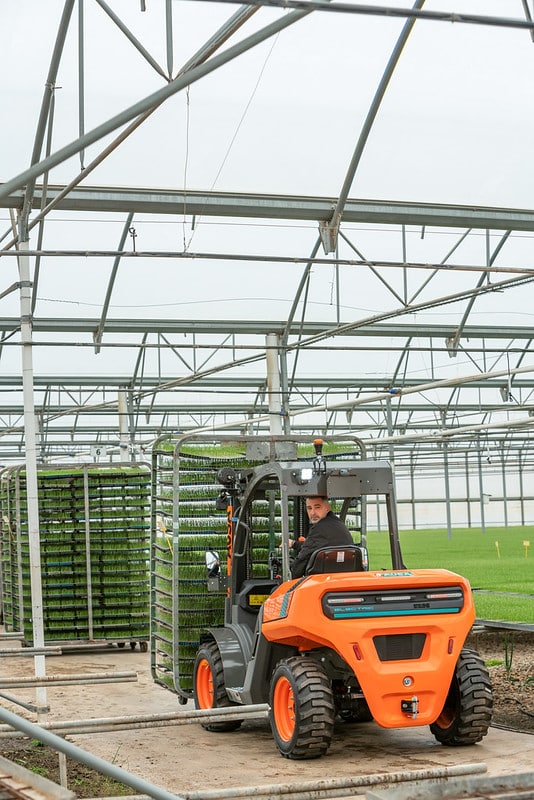

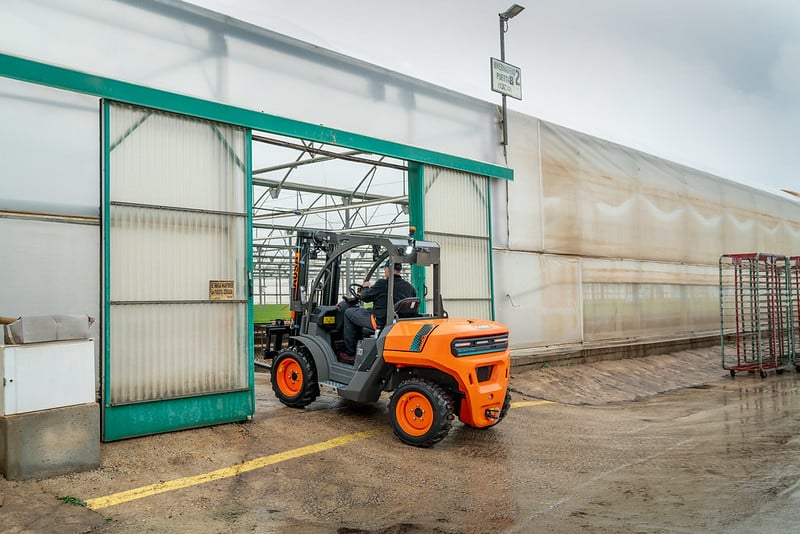

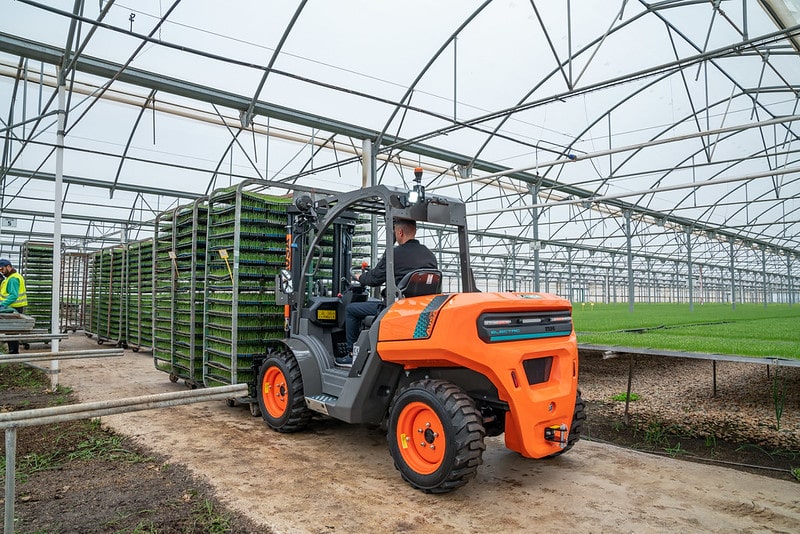

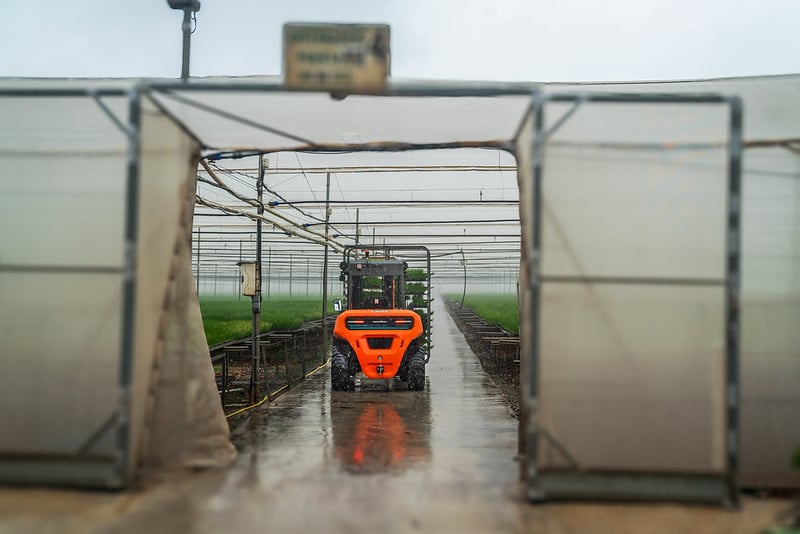

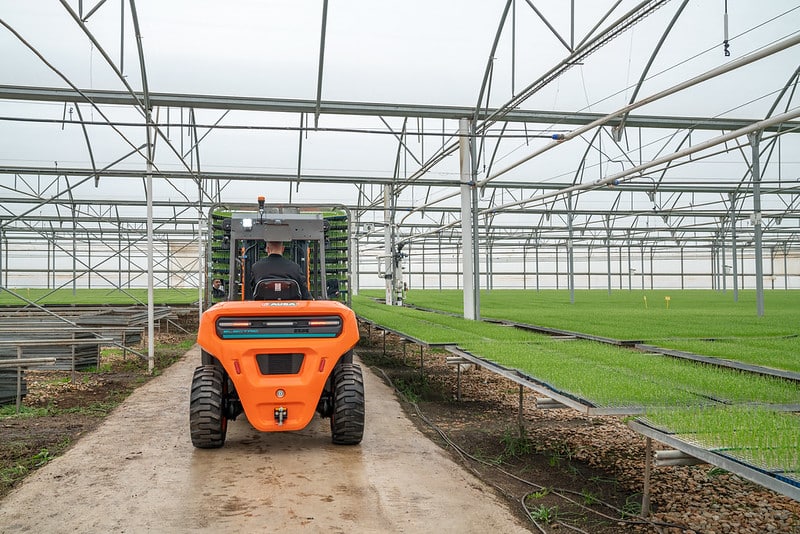

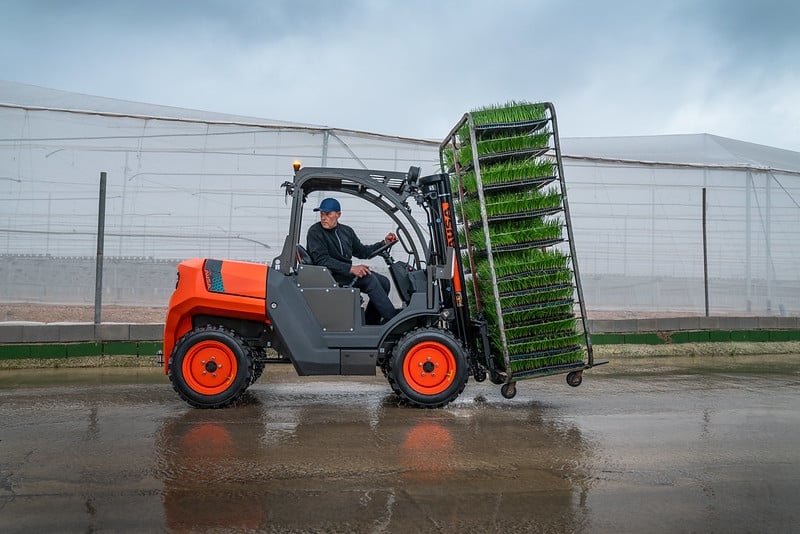

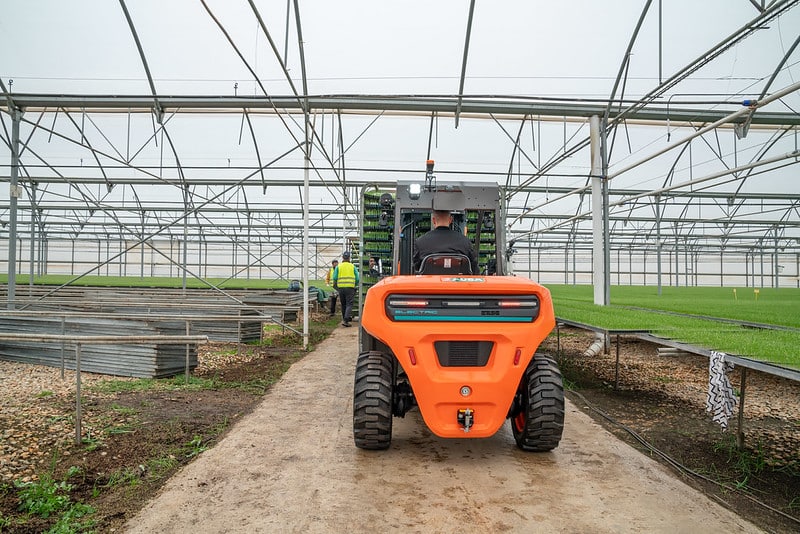

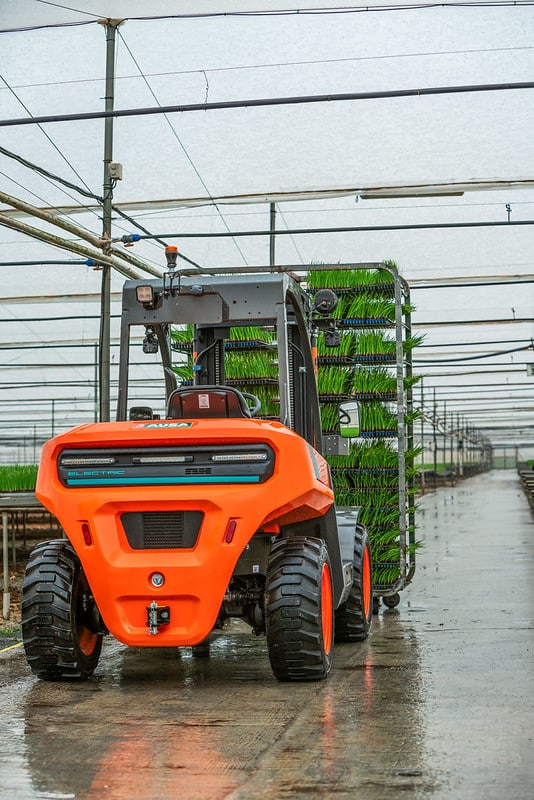

Zero-emission. Near-silent. With an electric power of 19.6 kW, its performance is electronically managed to provide smooth and optimal delivery, achieving off-road capabilities equivalent to combustion models. It is an ideal tool for working in emission-free spaces such as greenhouses, municipal night works, enclosed spaces, etc. It can be used in more applications than a traditional rough terrain forklift, offering greater performance as a result.
Electric
Silent
Environmentally friendly
All-terrain
Versatility
Day and night
More Images & Videos
Technical Information
General
| Load capacity | 1500 kg |
| Load capacity to 500 mm (20 in) | 1500 kg |
| Load capacity to 600 mm (24 in) | – |
| Empty weight | 2740 kg |
| Transmission | Electric |
| Maximum lift | 4000 mm |
Battery
| Battery type | Lithium-Ion Battery (NCM) |
| Gross capacity | 15.5 kWh |
| System voltage | 48 V |
| Range
May vary according to weather conditions and use. For temperatures below 0ºC, it is recommended to include the Additional battery for longer range (+3.1 kWh)
|
One intense shift |
Charge
| Charger | Integrated |
| Charging time 20‑80%
May vary according to weather conditions and the type and power of the charging point
|
3:15 h (230 V) |
| Charging time 20‑80% (fast charger)
May vary according to weather conditions and the type and power of the charging point
|
1 h (400 V) |
| Charging cable plug type | 110 V (yellow); 230 V (blue); 400 V (red) |
Engine
| Peak power | 19.6 kW |
| Nominal power | 7.6 kW |
| Torque | 130 |
| Emissions | Zero emission |
| Noise level (LwA) | – |
Driving
| Max. speed | 16 km/h |
| Maximum gradient | 33 % |
| External turning radius | 3380 mm |
| Traction | 4×4 FullGrip |
| Tyres | 27×10.50-15 |
Hydraulic system
| Hydraulic circuit | Two gears pump |
| Flow rate | 34 l/min |
| Working pressure | 215 bar |
Tank capacity
| Hydraulic system | 40 l |
Brakes
| Service | Hydraulic |
| Parking | Negative |
Mast
| Fork carriage | FEM 2B |
| Carriage width | 1260 mm |
Equipment
Driving Position
Open cab
Masts
2.66 m duplex mast
Safety
Seat belt with fasten sensor, Seat with operator’s presence sensor, LED rotating beacon, White noise acoustic warning for reverse gear, Hill Holder – hill-start assist, Negative brake
Lighting & Driving
Rear-view mirror, Fast reverse speed
Comfort
Adjustable ergonomic seat, All-in-one joystick, Armrest
Advanced equipment
Digital display, Second-generation FullGrip® (4WD)
Forks
1,000 mm forks, 1,260 mm type FEM IIB fork carriage, Built-in side shifter
