Zoom snow plow

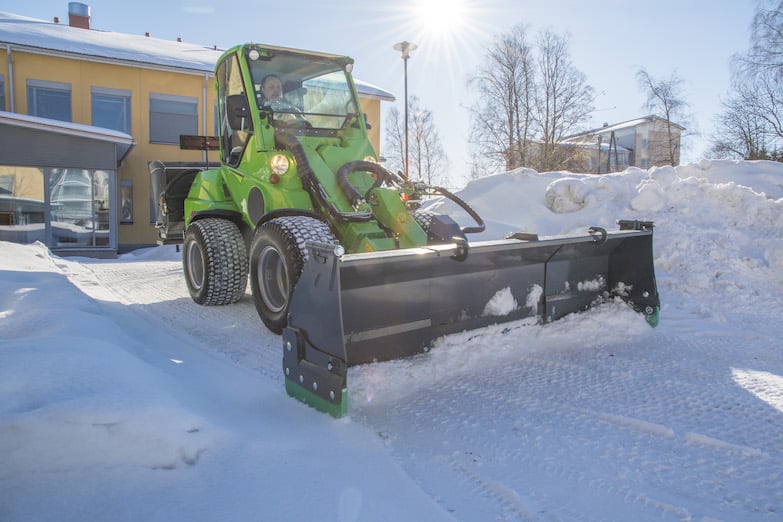

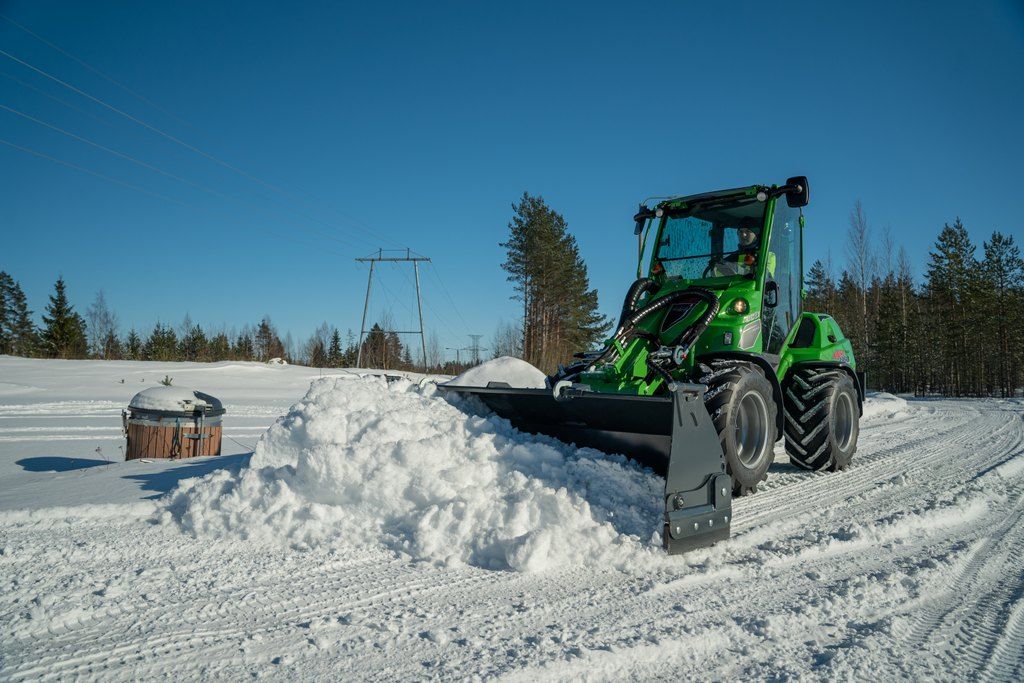

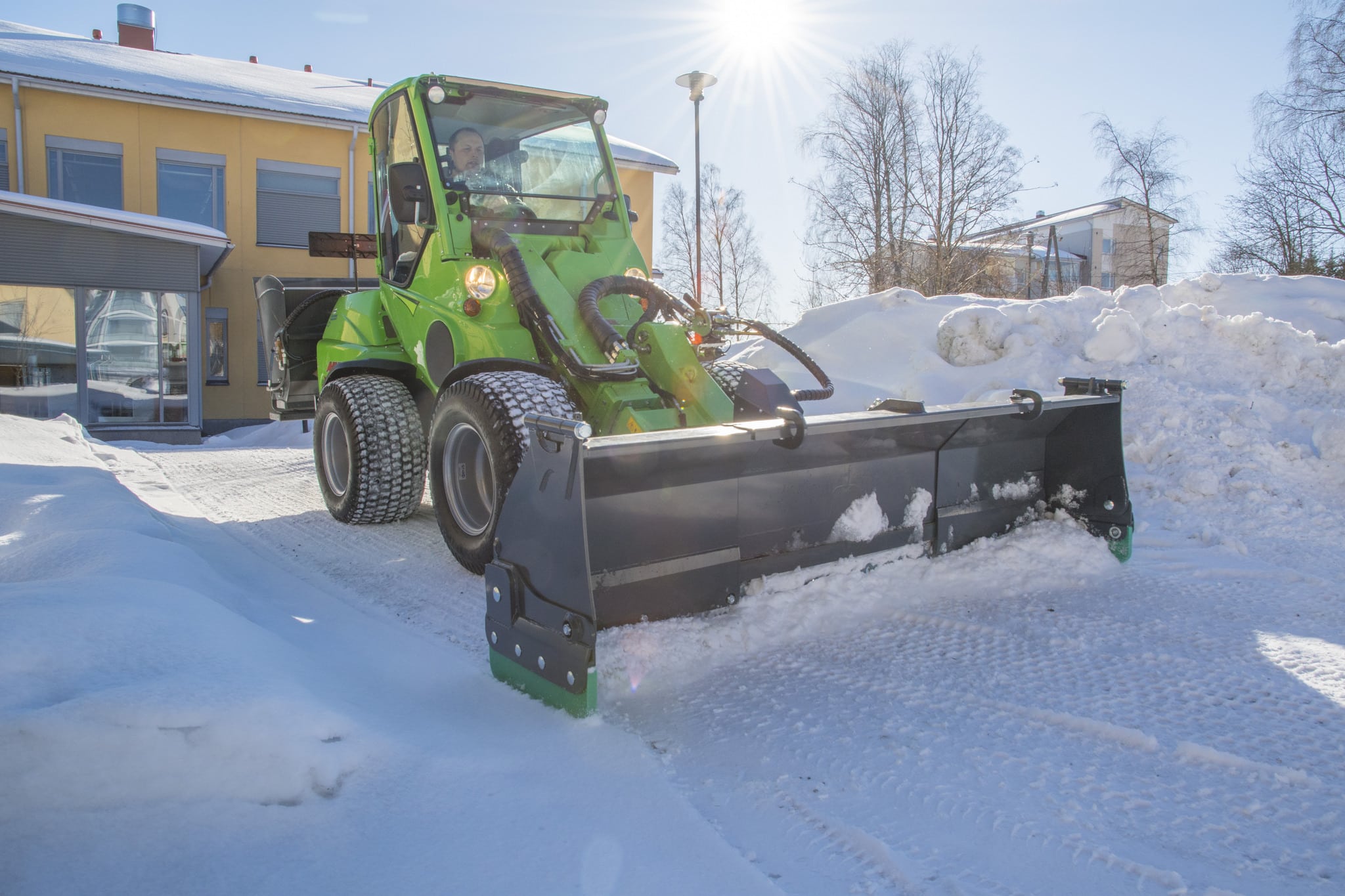

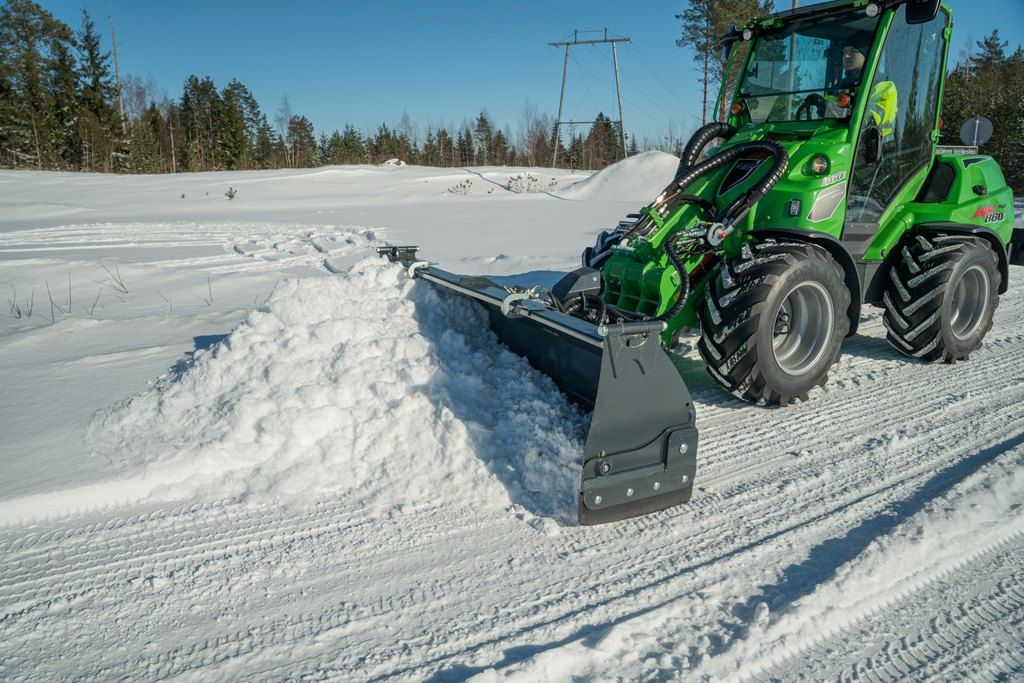

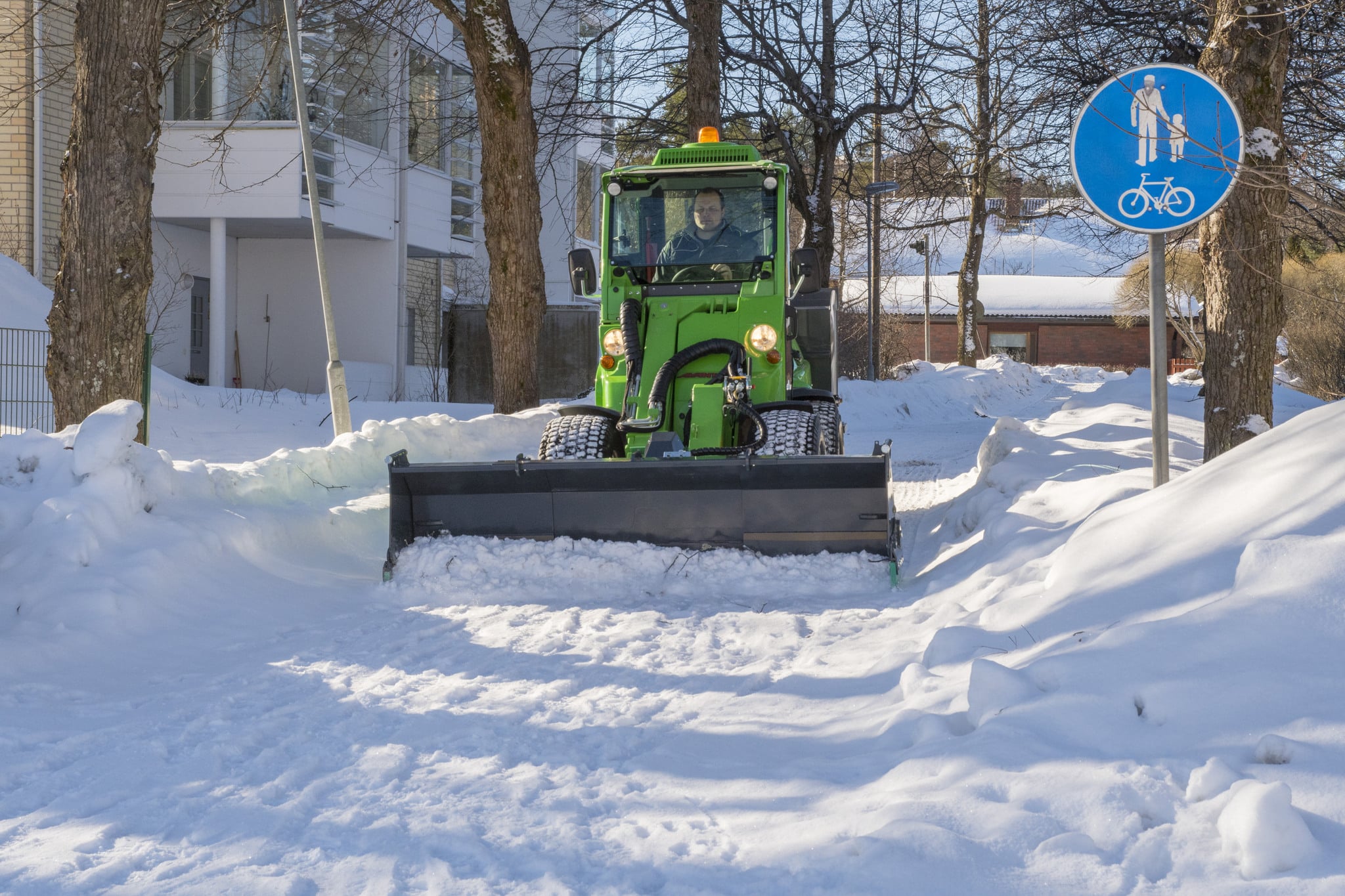

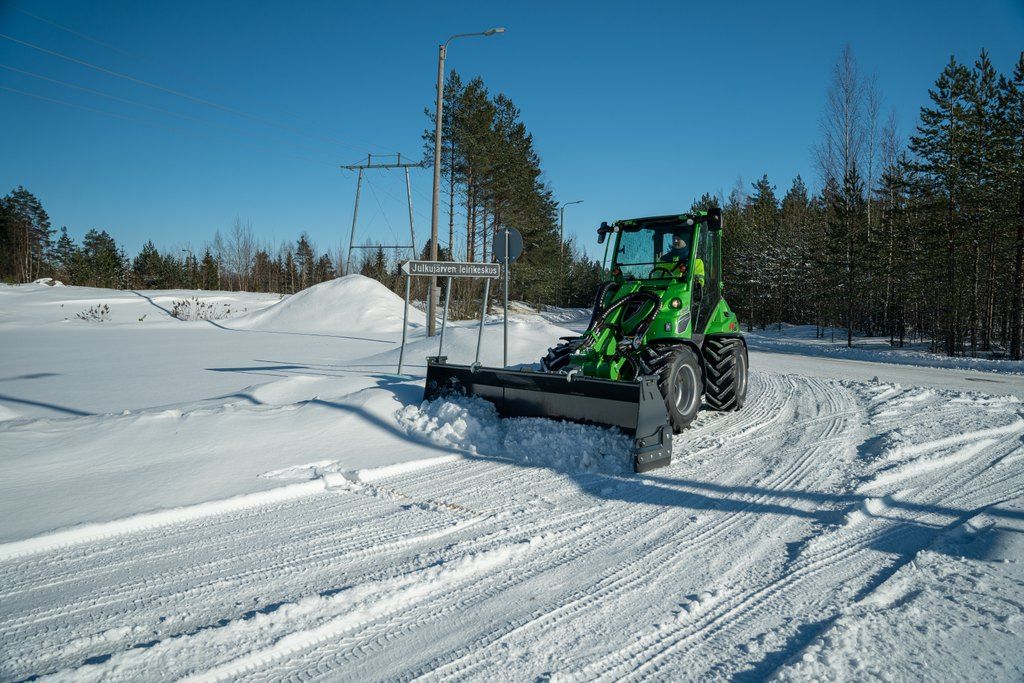

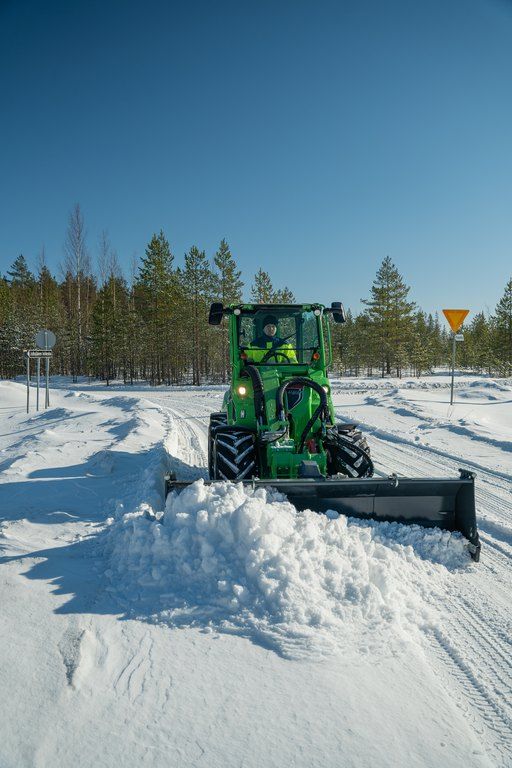

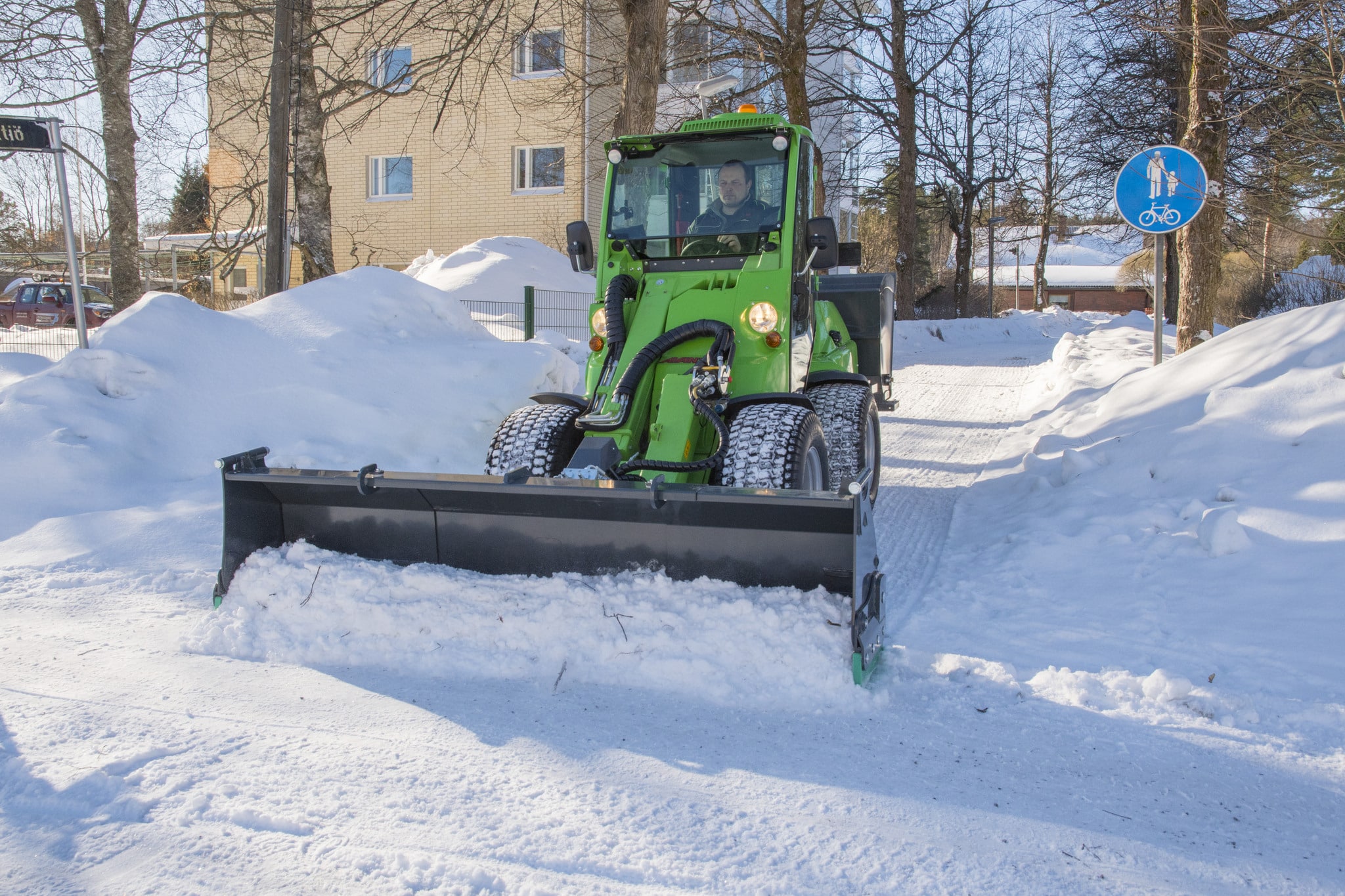

This new type of snow plow is equipped with a straight main blade and two wings which can be extended and retracted steplessly, powered by two hydraulic cylinders. This gives several different working widths and makes the snowplow very versatile. The plow is also equipped with hinged endplates which can be turned down on the ground. This allows fast and efficient snow collecting. When the endplates are turned up over the blade the plow works as a conventional dozer blade and moves snow quickly to the side โ€“ and is narrower as well. The endplates are spring loaded which means they follow the contours of the ground well.

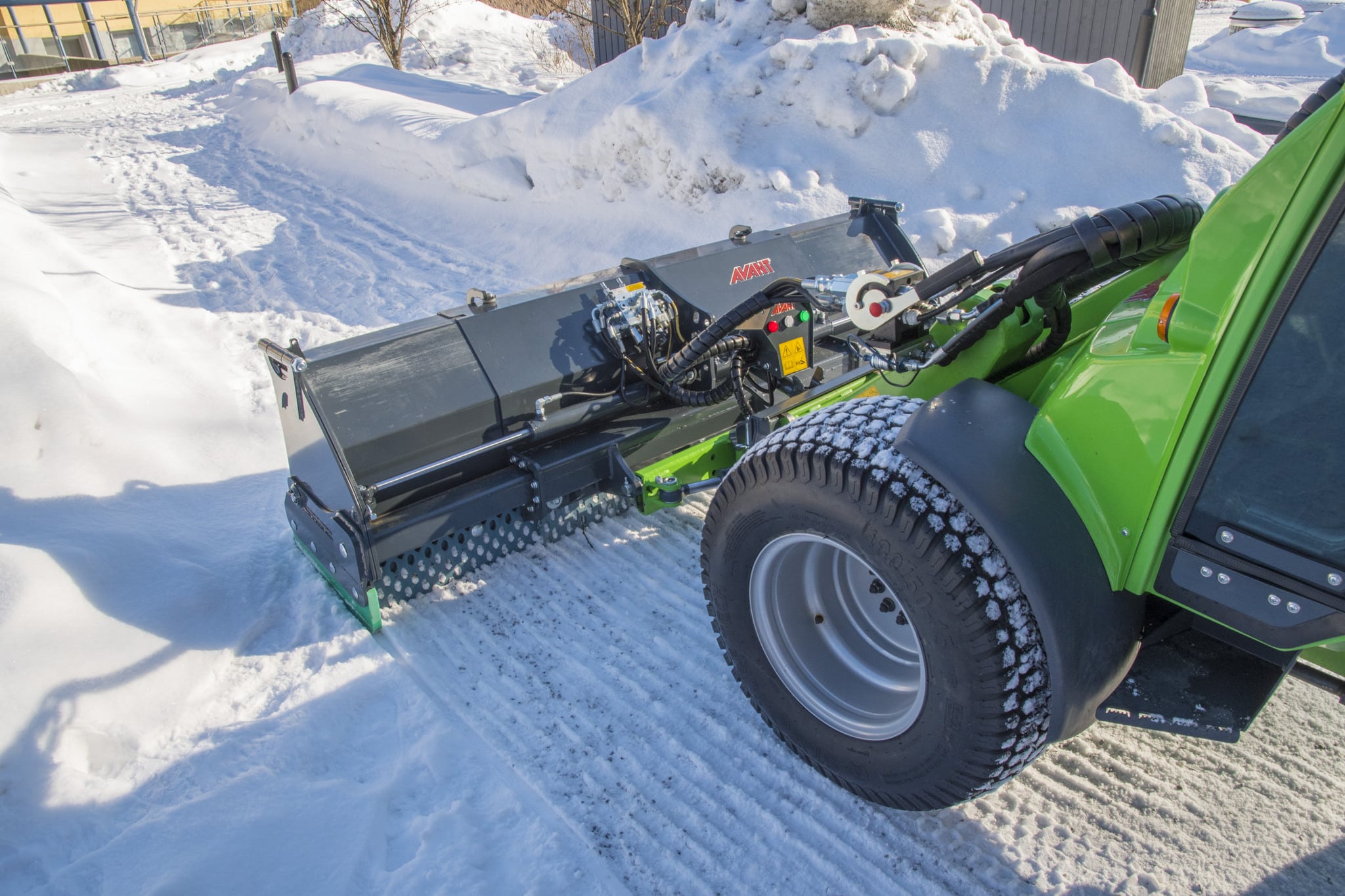

Zoom snow plow requires the optional Opticontrol on the loader. Extension and retraction of the wings and turning of the blade are operated with the switches of the switch pack. The wings can be extended one at a time or both at the same time. Indicator lights on the plow show which function is in use. Working width is steplessly adjustable between 1,35 โ€“ 2,35 m. The telescoping tubes of the side wings are equipped with maintenance-free wear pads. There is also a safety bolt for blade release at the top link, however, as the blade is vertical it doesnโ€™t get stuck easily but rather jumps over obstacles.

The mounting frame of the zoom snow plow is the same as on the 2000 and 2500 mm dozer blades. It allows a ยฑ10ยฐ vertical floating which can be locked if necessary. The plow is also equipped with ยฑ30ยฐ hydraulic blade turning. Ice cutting edge is standard equipment.

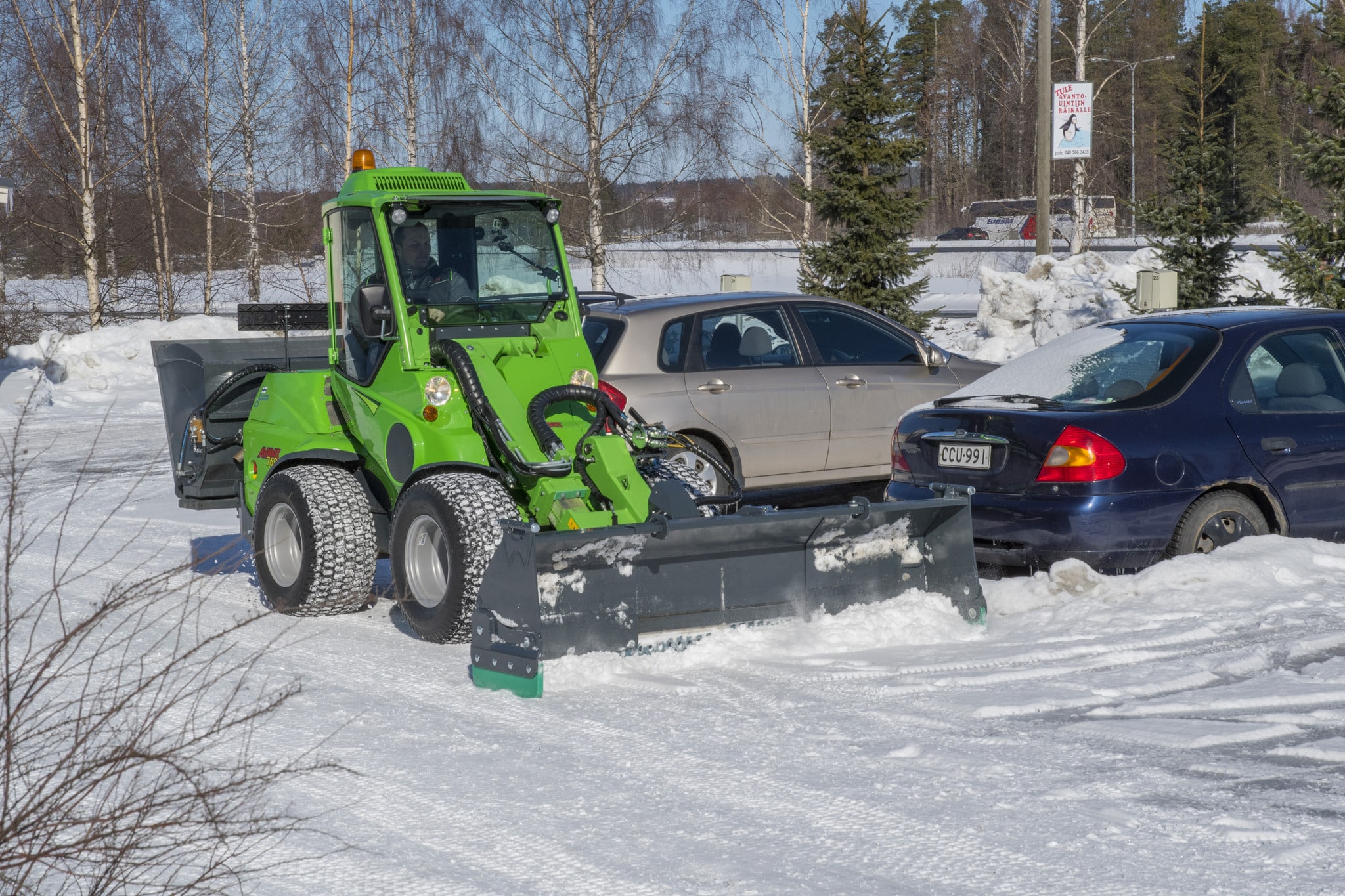

Hydraulically extendable dozer blade allows snow removal also in smaller yards, on parking lots, etc.
Equipped with two wings which can be extended and retracted independently or both at the same time
Steplessly adjustable working width between 1,35 โ€“ 2,35 m

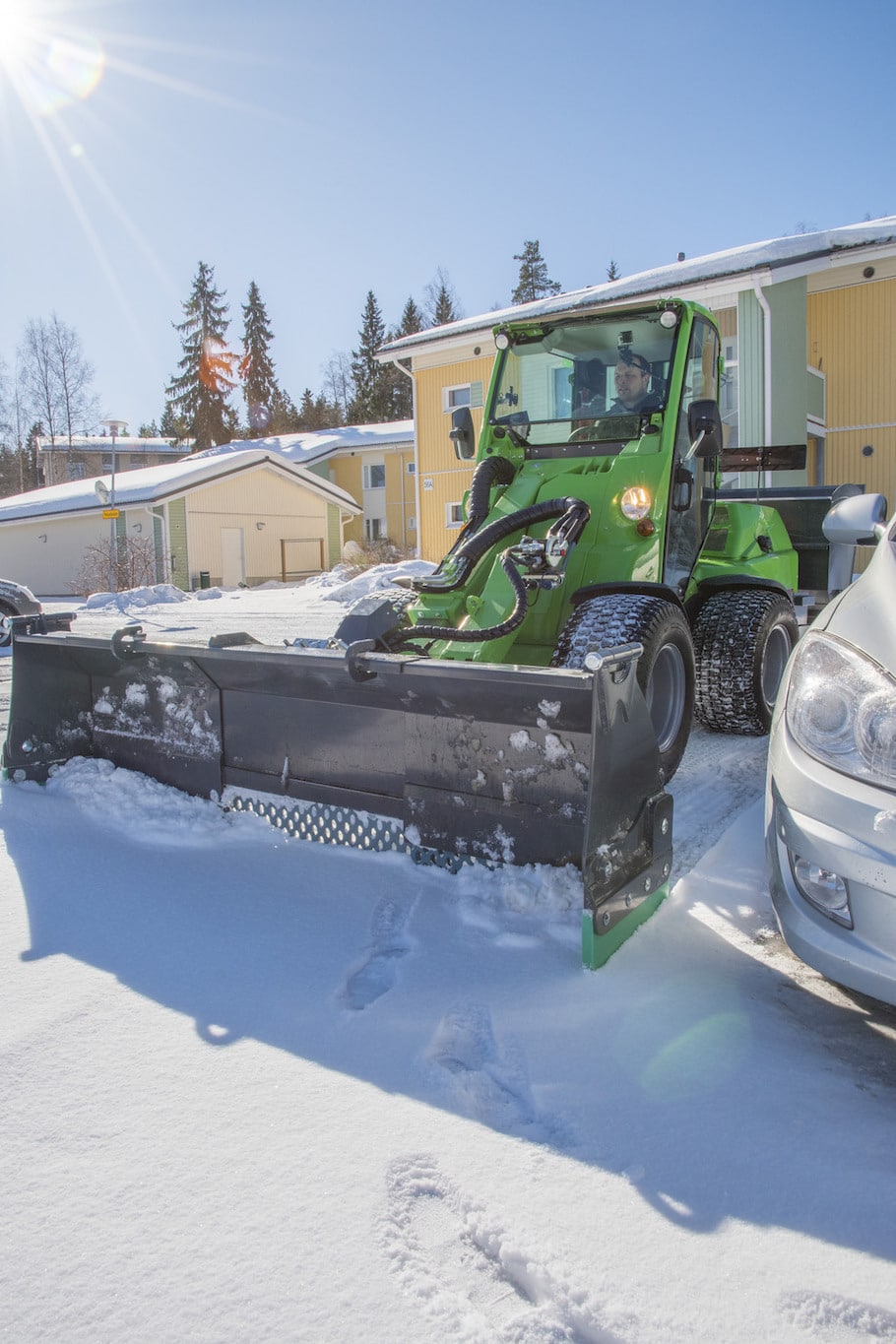

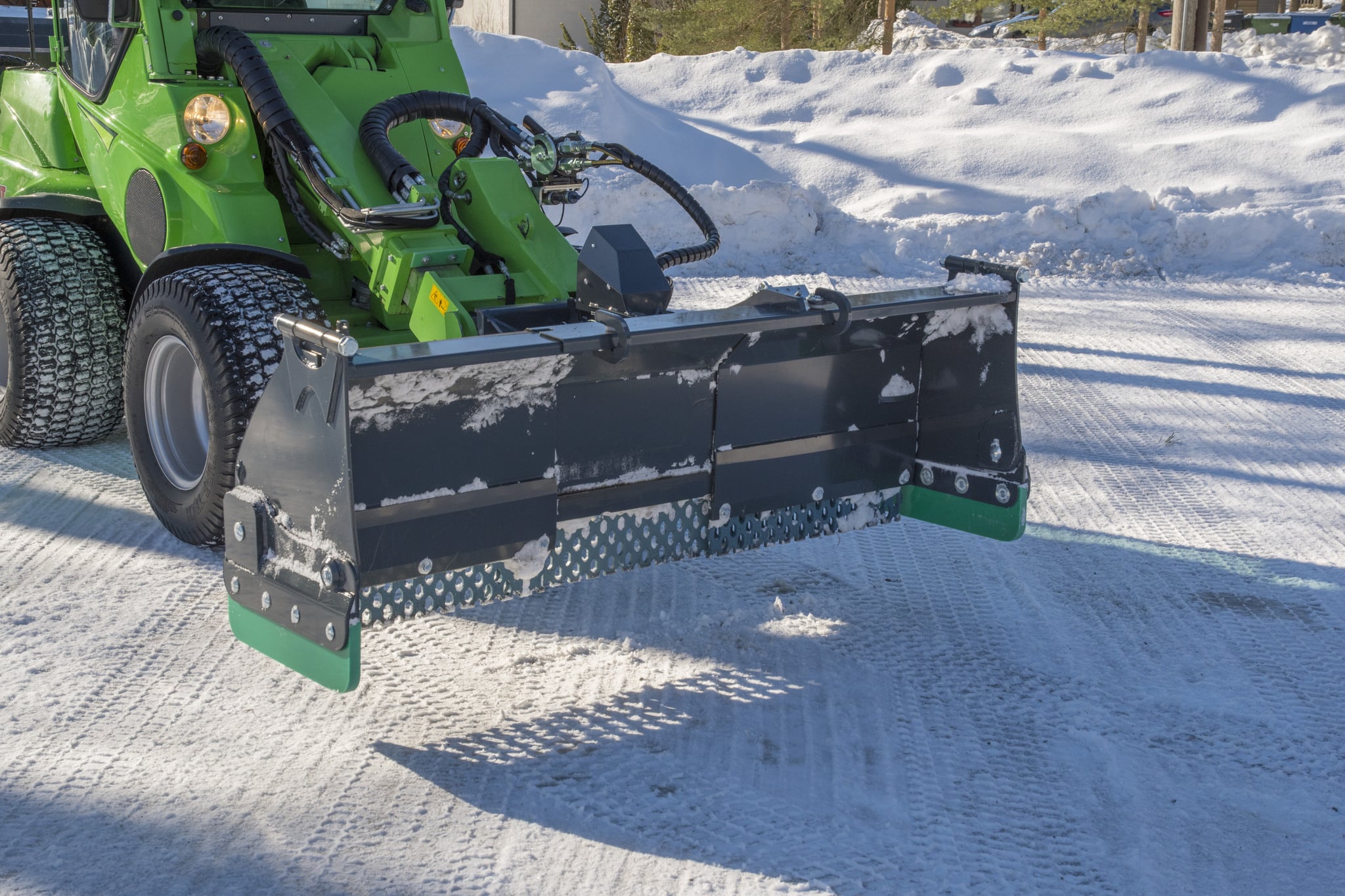

Hinged, foldable end plates for efficient snow collecting and moving
Hydraulic blade turning ยฑ 30ยฐ and vertical floating ยฑ 10ยฐ

More Images & Videos

Technical Information

Working width 1350-2350 mm
Max width 1460-2460 mm
Max length 993 mm
Blade turning angl ยฑ 30ยฐ
Vertical floating angle ยฑ 10ยฐ
Weight 535 kg
Product no. A425180

Options

Compatible Models

incompatible icon220
incompatible icon225
incompatible icon225LPG
incompatible icon313S
incompatible icon320S
incompatible icon420 & 423
incompatible icon520
incompatible icon523
incompatible icon525LPG
very-compatible icon528
very-compatible icon530
incompatible iconR20
very-compatible iconR28
very-compatible iconR35
very-compatible icon630
very-compatible icon635
very-compatible icon640
very-compatible icon735
very-compatible icon745
very-compatible icon750
very-compatible icon755i
very-compatible icon760i
very-compatible icon850
very-compatible icon860i
compatible icone513
compatible icone527
