Winch

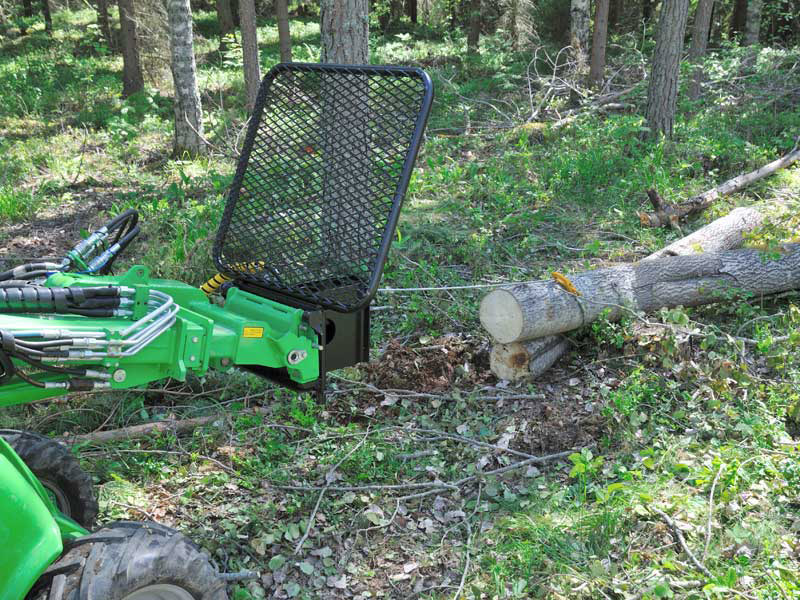

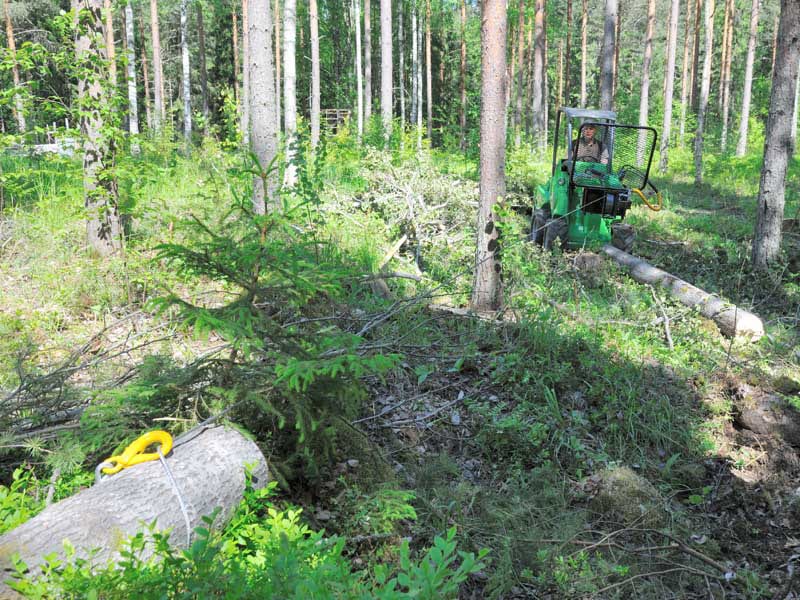

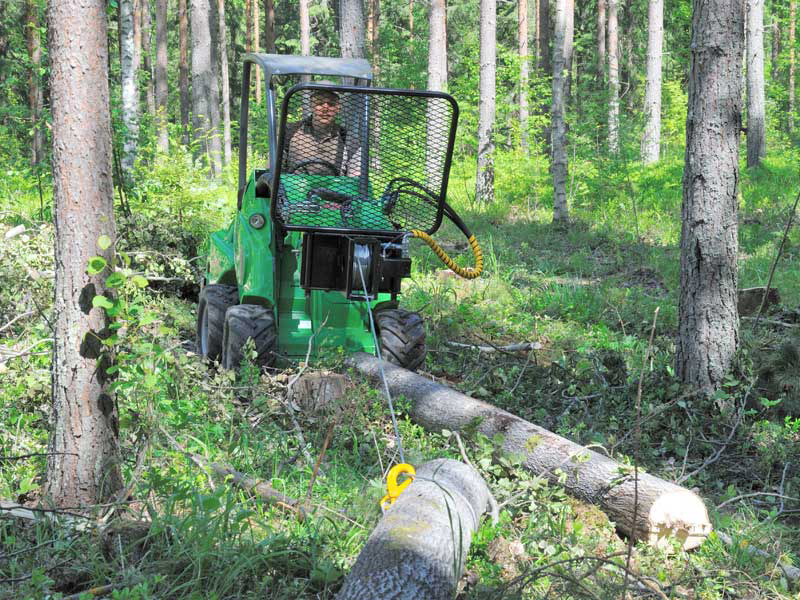

The Avant hydraulic winch enables towing of all kinds of objects (e.g. logs, poles, boats) from places where you cannot drive with the machine.

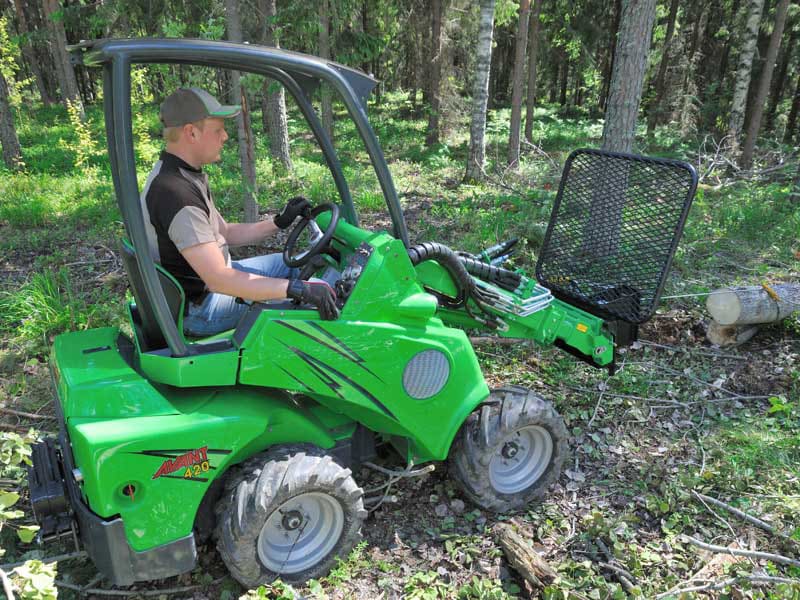

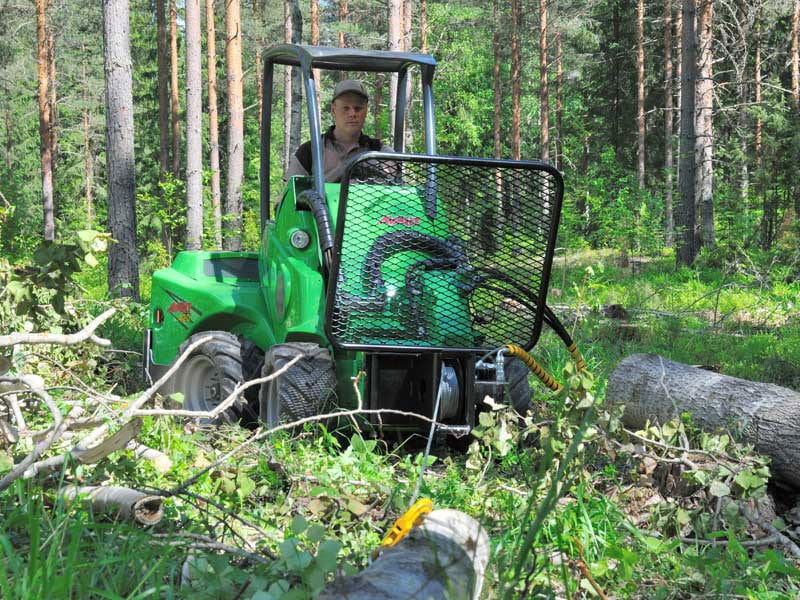

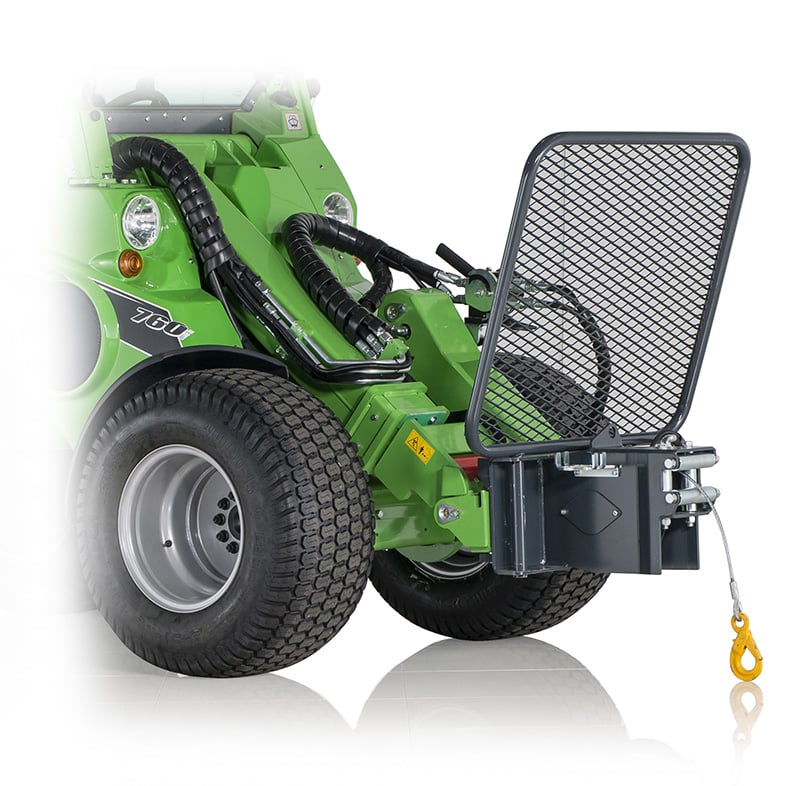

The winch is equipped with a safety net, 30 m of wire rope and a towing hitch. It is powered by a powerful hydraulic motor and mounts on Avant’s quick attach plate. Use of the winch is simple, one person can easily handle it. Auxiliary hydraulics control lever is switched to continuous flow (locking position) from the driver’s seat, which releases the wire drum so that the wire can be pulled out by hand. When the wire is attached to the desired object, the operator returns to the driver’s seat and turns the auxiliary hydraulics lever to the opposite direction and the winch begins to reel in the rope. The winch stops as soon as the auxiliary hydraulics control lever is released.
More Images & Videos
Technical Information
| Max. pulling force | 1000 kp |
| Max. reeling speed | 0,5 m/s @ 20 l/min (recommended oil flow) |
| Wire length | 30 m |
| Weight | 105 kg |
| Product no | A36960 |
Options
Compatible Models
- Very compatible
- Compatible
- Incompatible
220225225LPG313S320S420 & 423520523525LPG528530R20R28R35630635640735745750755i760i850860i
e513e527
