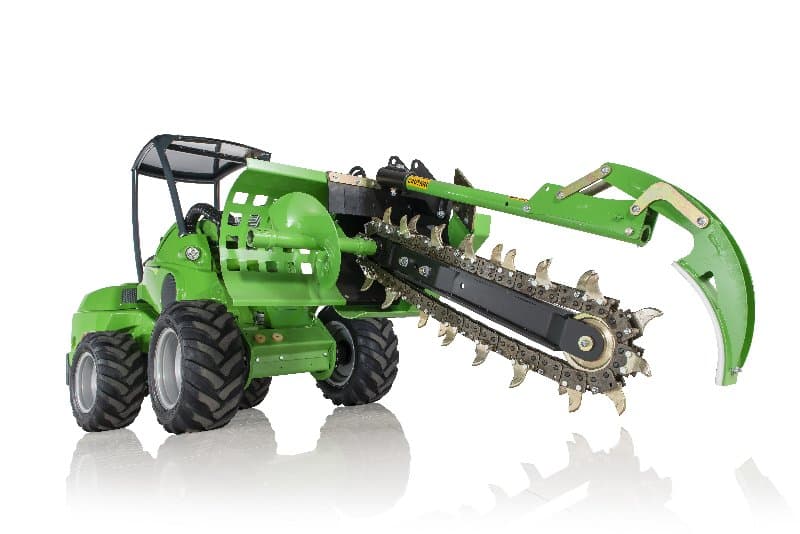

Trencher

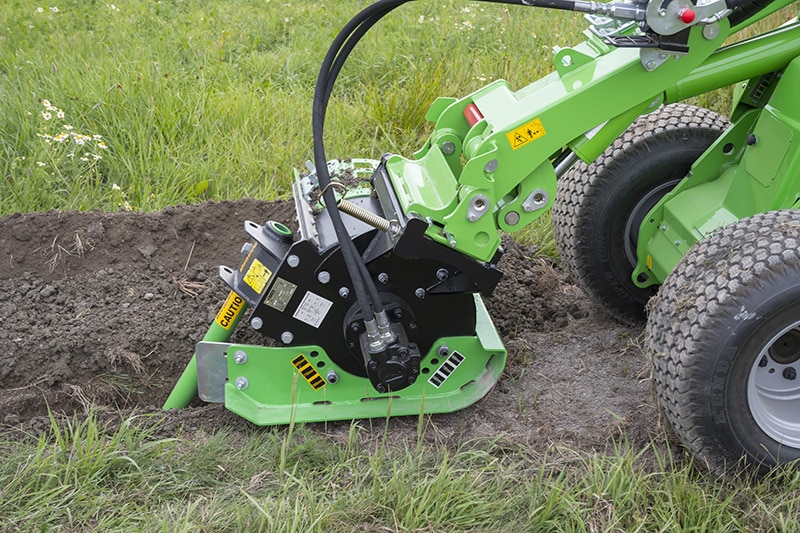

With Avant and trencher, you can easily dig narrow trenches without damaging the ground on the digging area. The trencher does a clean trench which can easily be filled with a bucket or aย dozer blade. Planetary drive with hydraulic motor guarantee powerful and trouble-free operation.
Digging depths are 900 and 1200 mm respectively, depending on the model. Digging width is either 100, 150 or 200 mm, depending onย the width of the trenching chain.

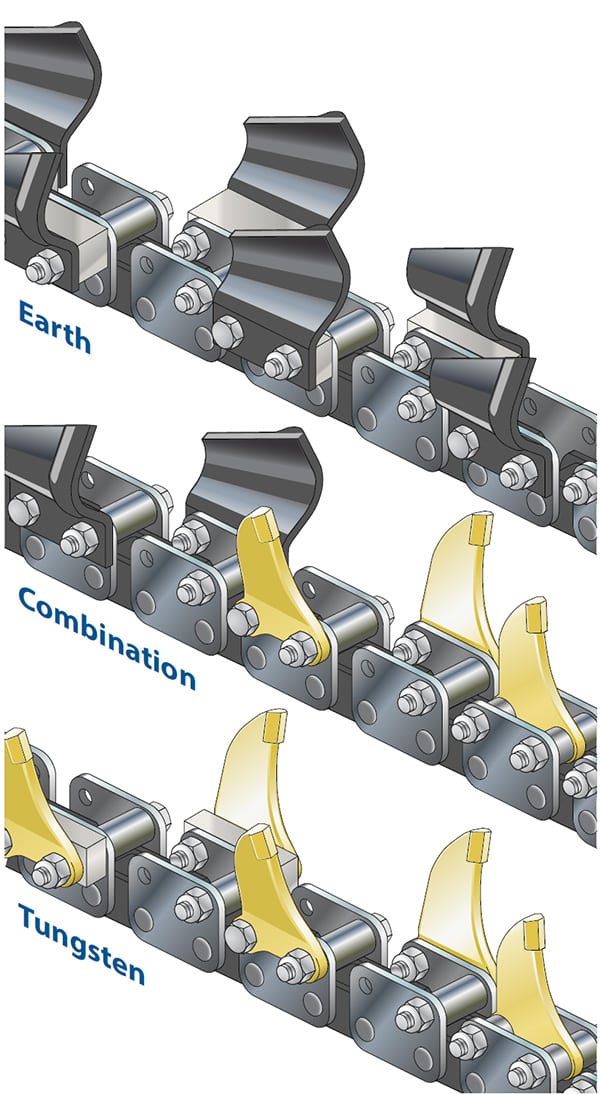

Trencher chains have tungsten reinforcements to ensure long-lastingย performance in all soil conditions.
Trencher is ideal for smaller cable or pipe laying
Digging speed with a trencher is 2-3 times quicker compared to a backhoe

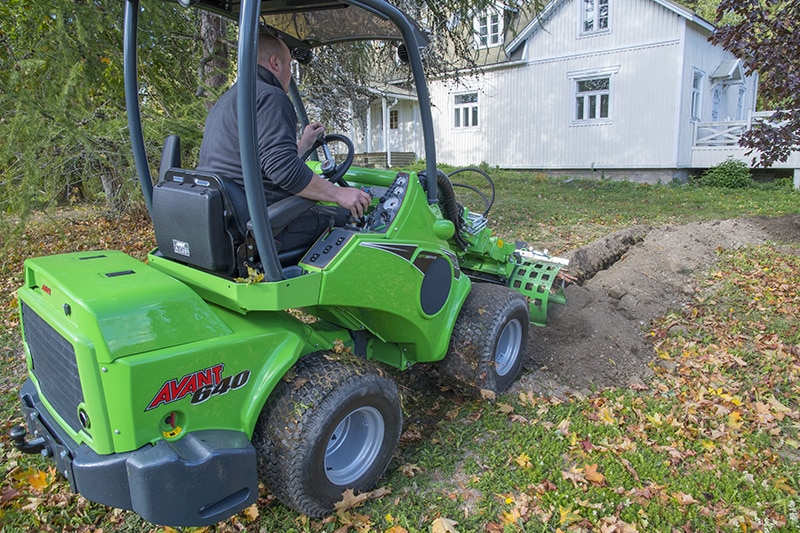

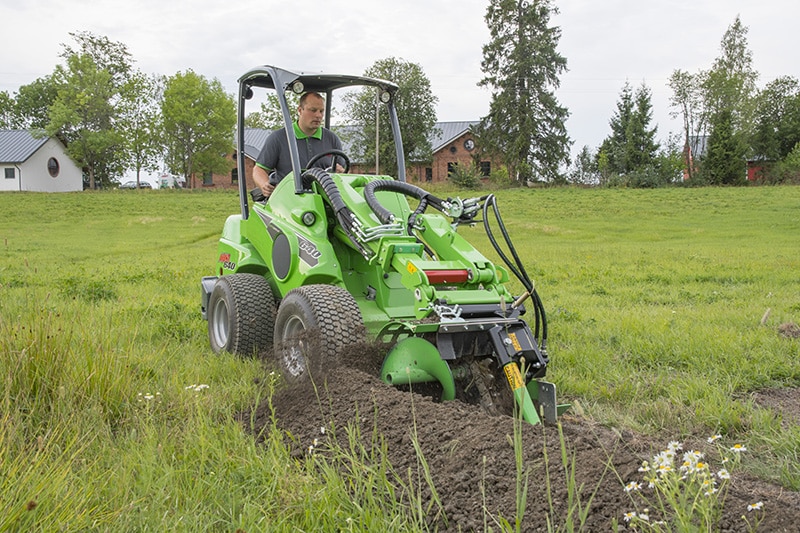

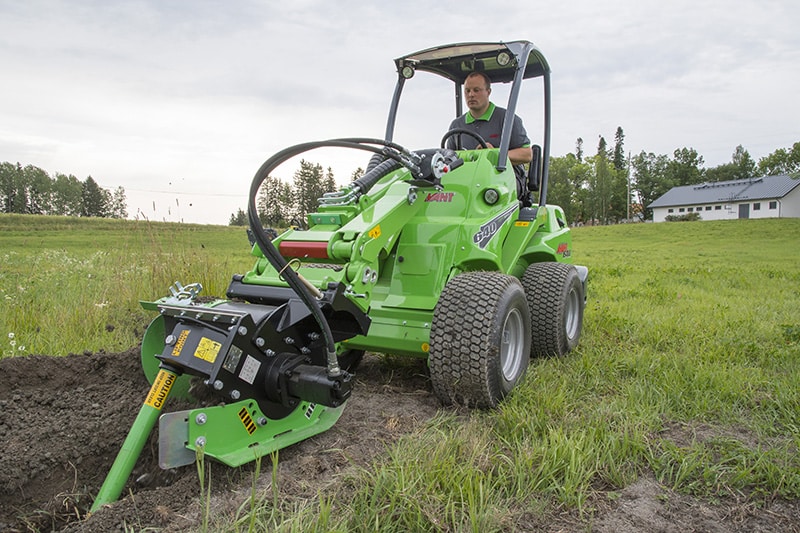

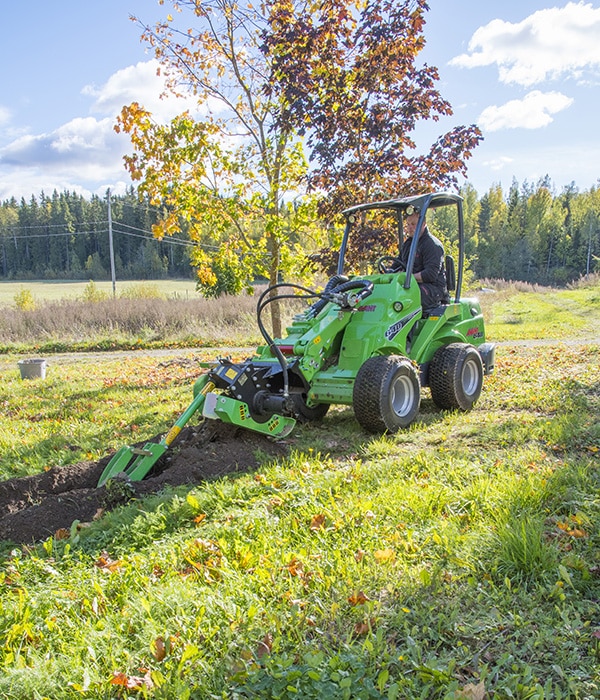

Combination of an articulated Avant and trencher leaves almost no marks of digging operations after the work is done. This makes it a perfect solution for gardens and other lawn areas.
The very fast and clean way to dig trenches for cables, drains, piping, etc.

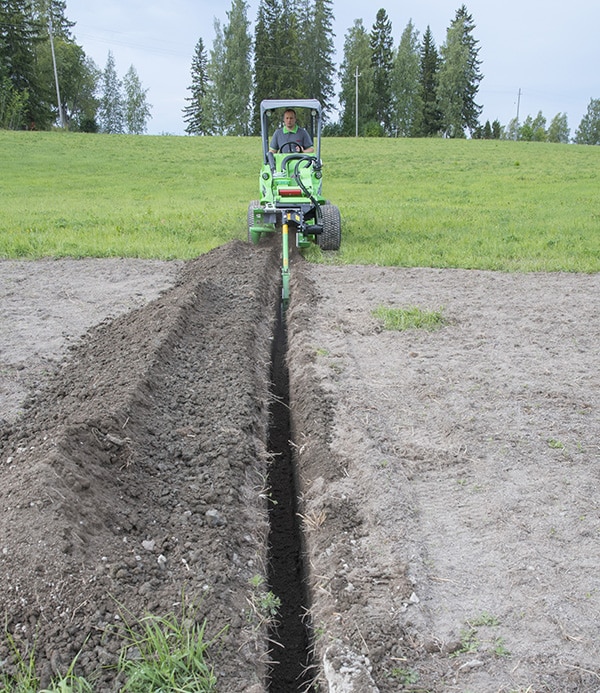

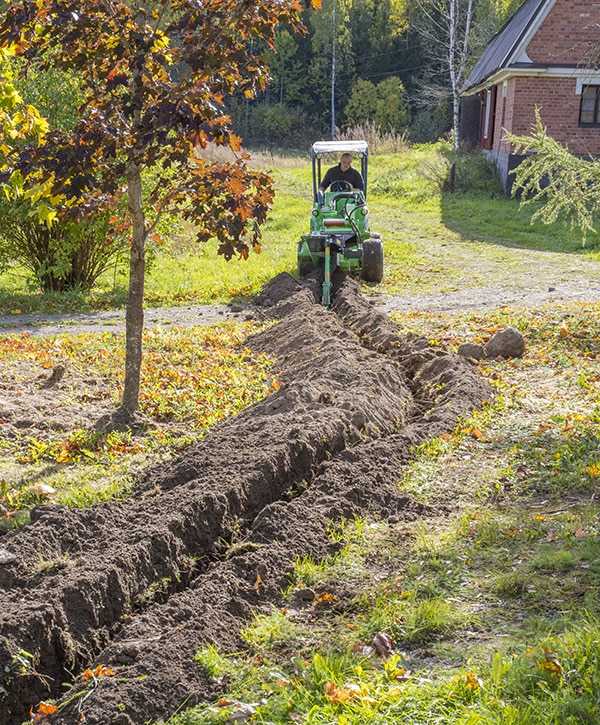

Digs only 100-200 mm wide trench and moves all ground to the right side of the trench
Minimal damage to the ground on trenching area
More Images & Videos
Technical Information
| Model | Digging width | Digging depth | Product no |
| Combi chain | 100 mm | 900 mm | A33555 |
| Combi chain | 150 mm | 900 mm | A33557 |
| Combi chain | 150 mm | 1200 mm | A35299 |
Other models (chain width & digging depth)ย also available, please consult your local Avantย distributor.
Options
| Model | Digging width | Digging depth | Product no |
| Earth chain | 100 mm | 600 mm | A37402 |
| Earth chain | 150 mm | 600 mm | A37403 |
| Earth chain | 200 mm | 600 mm | A34432 |
| Combi chain | 100 mm | 600 mm | A37392 |
| Combi chain | 150 mm | 600 mm | A37404 |
| Combi chain | 200 mm | 600 mm | A33559 |
| Earth chain | 100 mm | 900 mm | A34433 |
| Earth chain | 150 mm | 900 mm | A33556 |
| Earth chain | 200 mm | 900 mm | A33558 |
| Combi chain | 200 mm | 900 mm | A33817 |
| Tungsten chain | 150 mm | 900 mm | A33761 |
| Combi chain | 100 mm | 1200 mm | A34211 |
Compatible Models
- Very compatible
- Compatible
- Incompatible
220225225LPG313S
320S420 & 423520523525LPG528530R20
R28R35630635640735745750755i760i850860ie513e527
