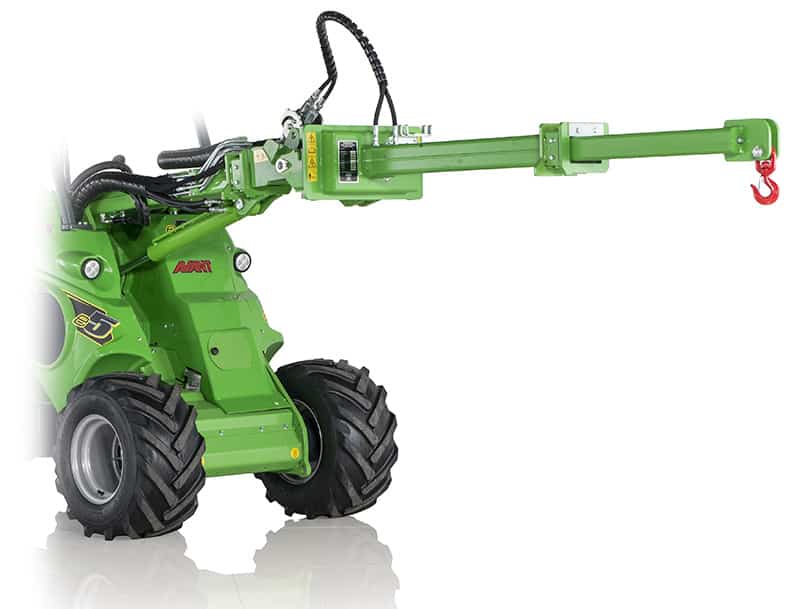

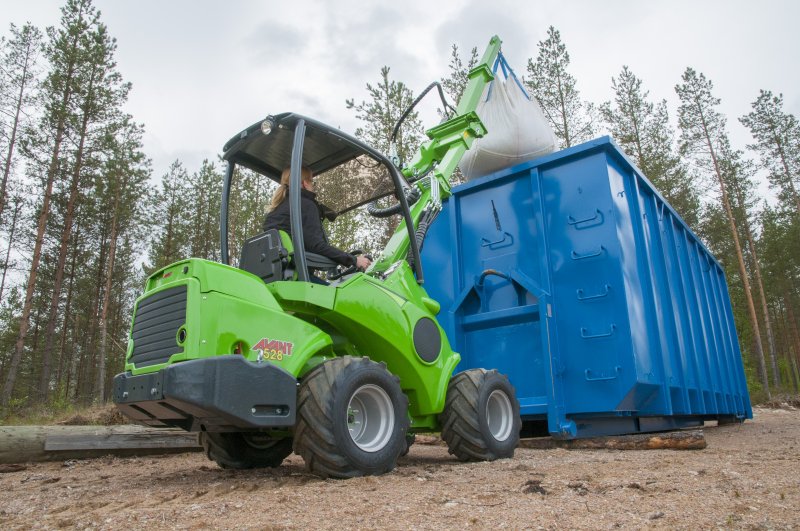

Telescoping jib boom

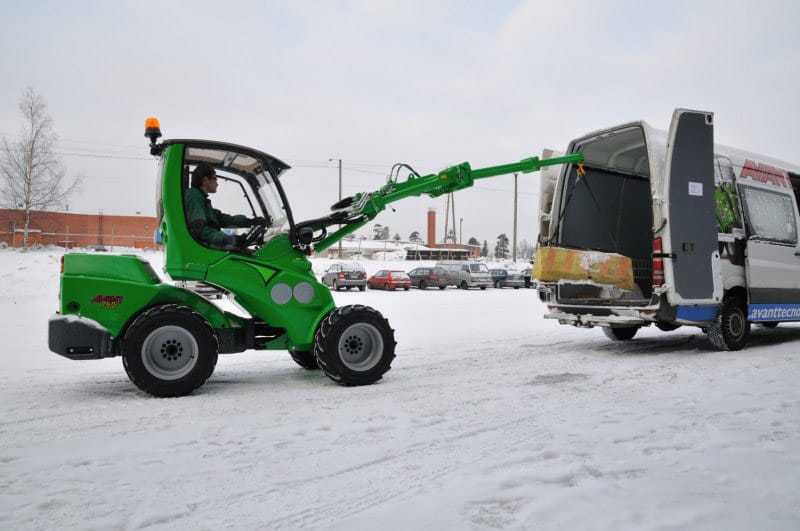

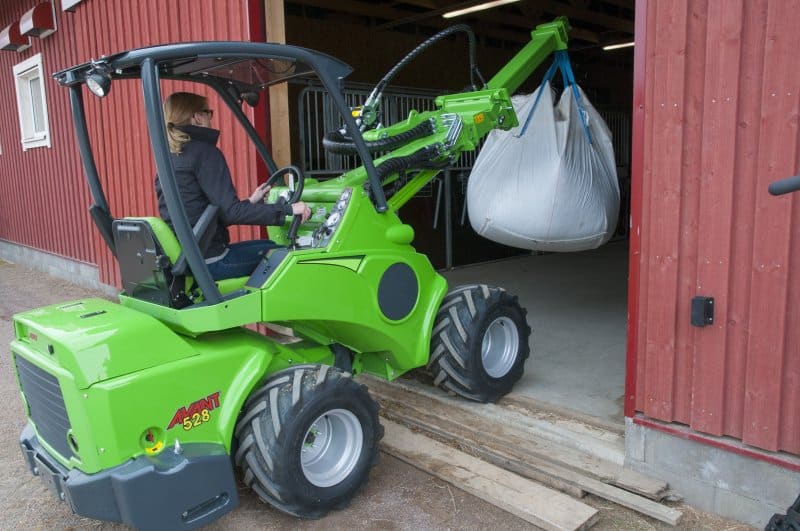

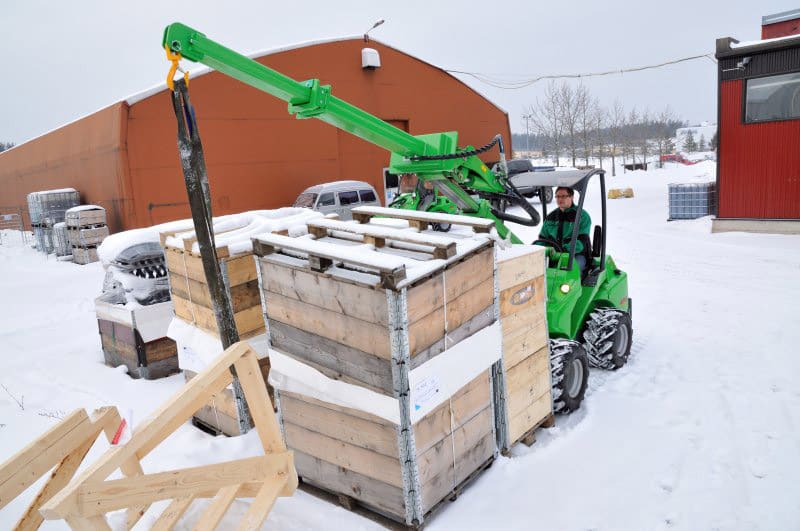

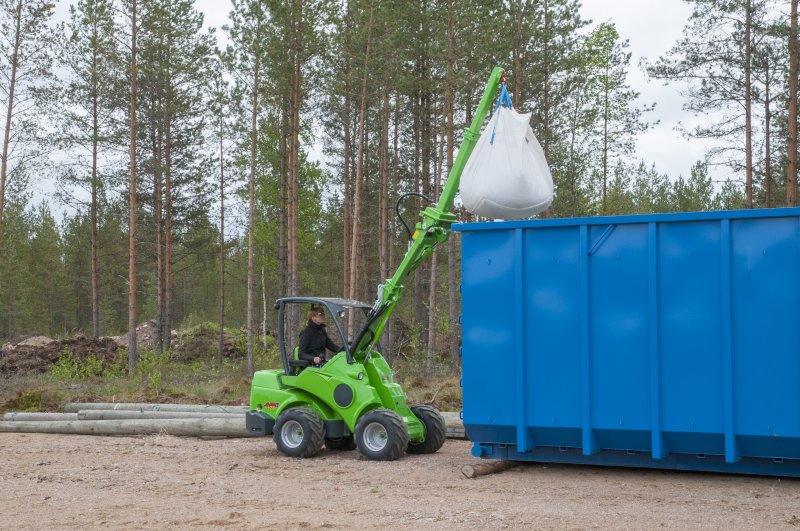

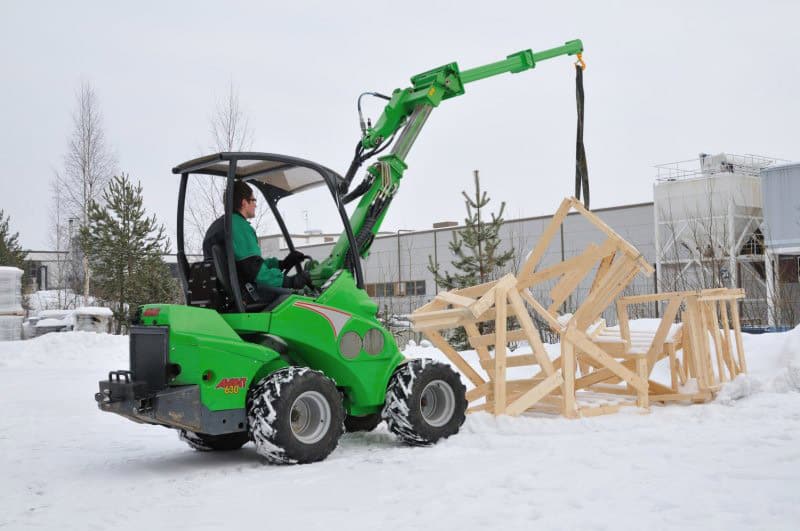

The hydraulically telescoping jib boom is a very efficient and versatileย tool in all lifting jobs on the work site. The steplessly extendingย and retracting boom allows lifting to places that would otherwiseย be very hard to reach. Compact design with telescoping cylinderย inside the boom makes work safe and easy.
The jib boom is equipped with a rotating lifting hook and durableย wear pads on the outer boom.
Excellent outreach, as much as 3,4 m from the front wheels
Max. lift height with 800 series as high as 5,22 m
Versatile lifting attachment for various load handling jobs
More Images & Videos
Technical Information
| Max. boom length | 1900 mm |
| Min. boom length | 1300 mm |
| Max. Lifting height* | 5,22 m |
| Max load Avant 800 ser* | 500kg |
| Max load Avant 700 ser* | 400 kg |
| Max load Avant 600 ser* | 300 kg |
| Max load Avant 500 ser* | 250 kg |
| Max. outreach* | 3,05 m |
| Weight | 110 kg |
| Product no | A21342 |
* Both the telescopic boom of the loader andย the jib boom extended to maximum outreach.
Options
Compatible Models
- Very compatible
- Compatible
- Incompatible
220225225LPG313S320S420 & 423
520523525LPG528530R20R28R35630635640735745750755i760i850860ie513e527
