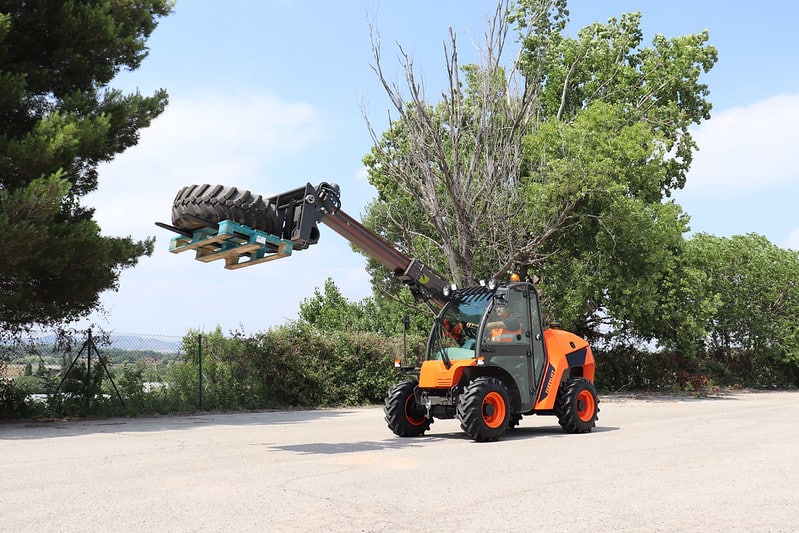

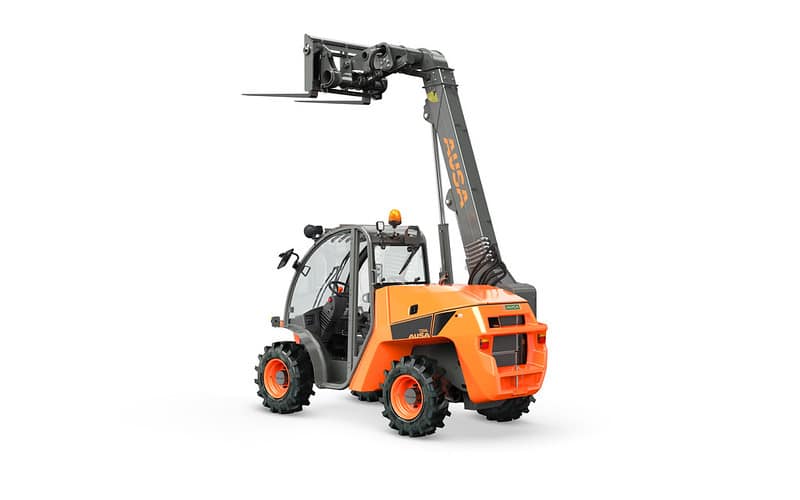

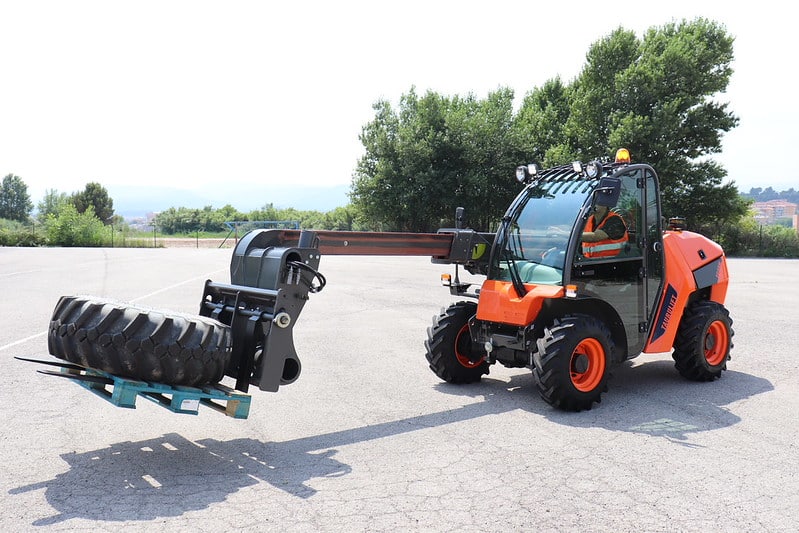

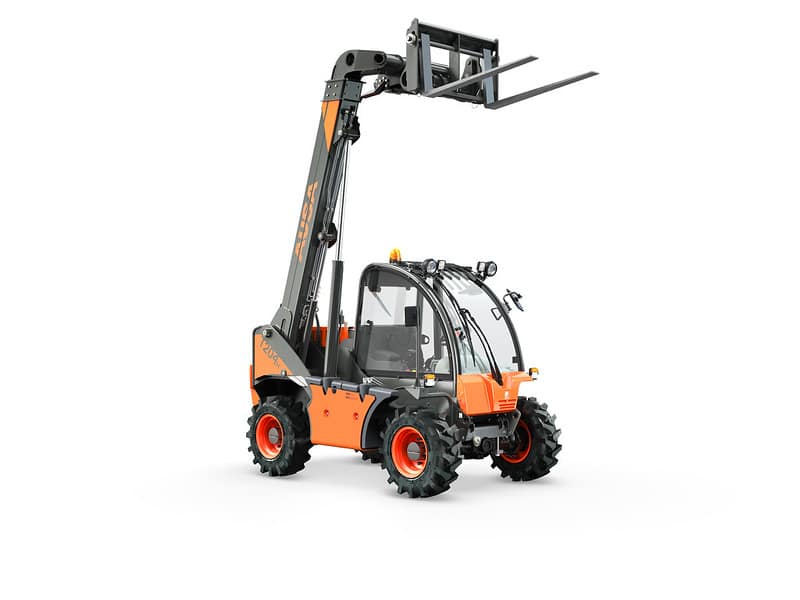

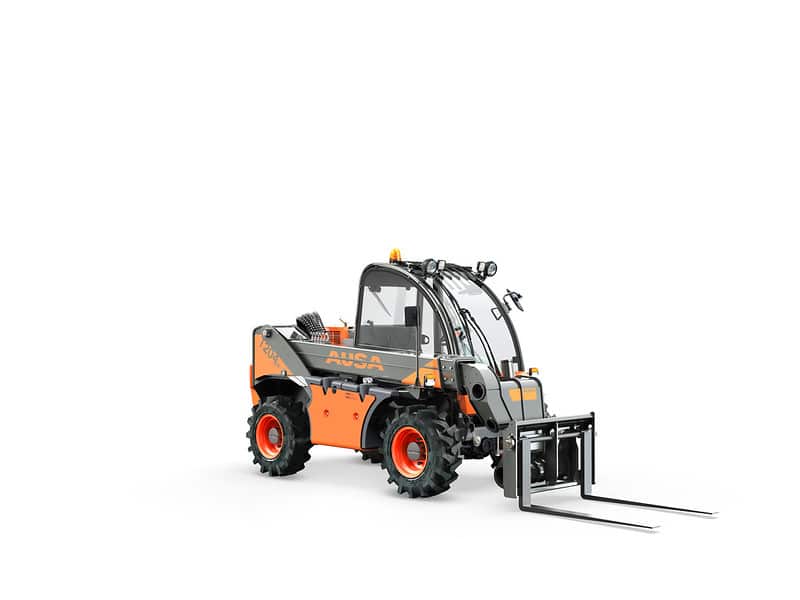

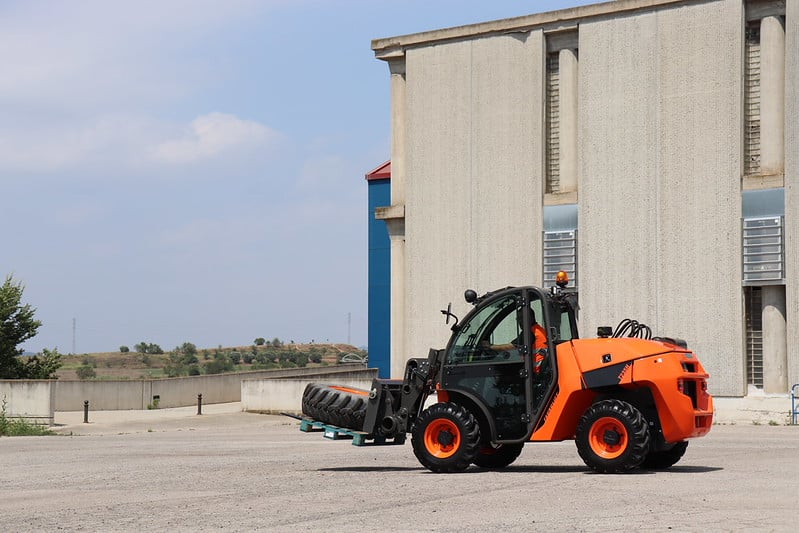

T204H
With a payload of 2000 kg (3,900 lb) and a height of 4.2 metres (13.8 feet), the T204H is the most compact and advanced telescopic handler of its class.
From the interior digital display, the operator will be able to control any part of the telehandler and interact with and access the diagnostics menu and all maintenance parameters easily, quickly and efficiently.
It is a highly versatile machine that can easily adapt to any terrain thanks to its 4x4x4 drive and the three steering modes: front-wheel, all-wheel and crab mode. A perfect combination that makes machine movements and approaches easier, especially on terrains with little room for maneuver. With its hydraulic functions and quick connect couplings for accessories and implements, you will be able to increase its possibilities and applications exponentially.
Thanks to the exceptionally designed cab that gives the operator a spacious and functional cab. The design of the cab and the placement of the boom give the operator a 360° view, making the work environment safe for all involved.
More Images & Videos
Technical Information
General
| Load capacity | 2000 kg |
| Load capacity at maximum height | 1000 kg |
| Empty weight | 4290 kg |
| Transmission | Hydrostatic |
| Maximum lift | 4200 mm |
| Maximum lift under maximum load | 3600 mm |
| Maximum reach | 2262 mm |
| Maximum load at maximum reach | 1000 kg |
Engine
| Brand | Kubota |
| Model | D1803-CR-T-E5B |
| Power | 32.8 kW |
| Torque | 150,5@1500 |
| No. of cylinders | 3 |
| Emissions | Stage V – EPA Tier 4f |
| Noise level (LwA) | 104 dB(A) |
Driving
| Max. speed | 20 km/h |
| Maximum gradient | 42 % |
| External turning radius | 3042 mm |
| Steering modes | Two-wheel front steer, four-wheel and crab |
| Traction | 4x4x4 |
| Tyres | 10/75-15.3 |
Hydraulic system
| Flow rate | 51.8 l/min |
| Working pressure | 240 bar |
Tank capacity
| Fuel | 65 l |
| Hydraulic system | 70 l |
Brakes
| Service | Hydraulic, disc |
| Parking | Mechanical |
Equipment
Driving Position
Semi-closed cab with front, rear and upper windscreens, Tilting cab with assisted lift
Safety
Seat belt with fasten sensor, Seat with operator’s presence sensor, LED rotating beacon, Acoustic warning for reverse gear, Emergency stop, Overload locking system with 60-second deactivation push-button, Load level indicator
Lighting & Driving
Rear-view mirrors, Right-side panoramic rear-view mirror, Front working lights
Comfort
Adjustable ergonomic seat, All-in-one joystick
Advanced equipment
Digital display, Hydrostatic transmission, Limited-slip differential on the front axle, Front-wheel, four-wheel and crab steering modes, Inching pedal
Accessories
Water separator diesel filter, 4th auxiliary hydraulic line
Implements
Two-hand control for locking and unlocking attachments
Forks
1,050 mm fork carriage, 1,200 mm forks
Couplers
AUSA mechanical coupler
