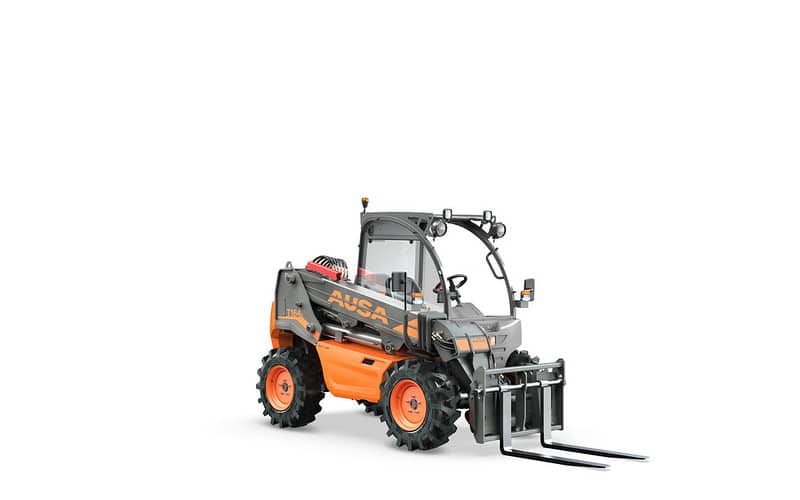

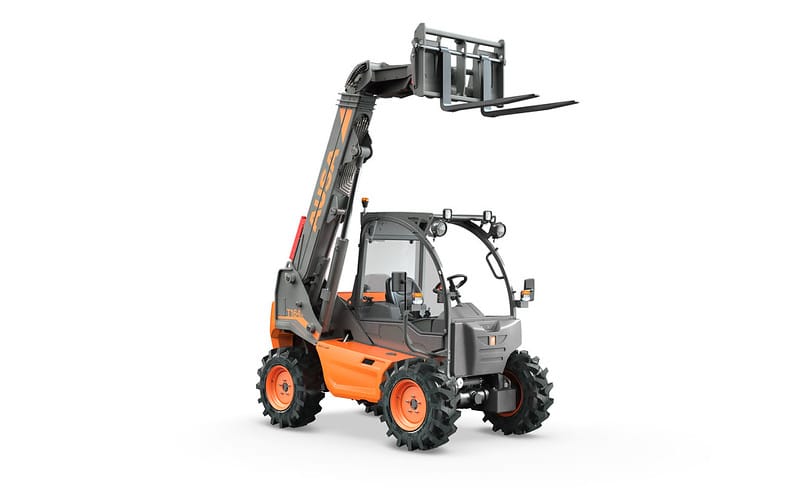

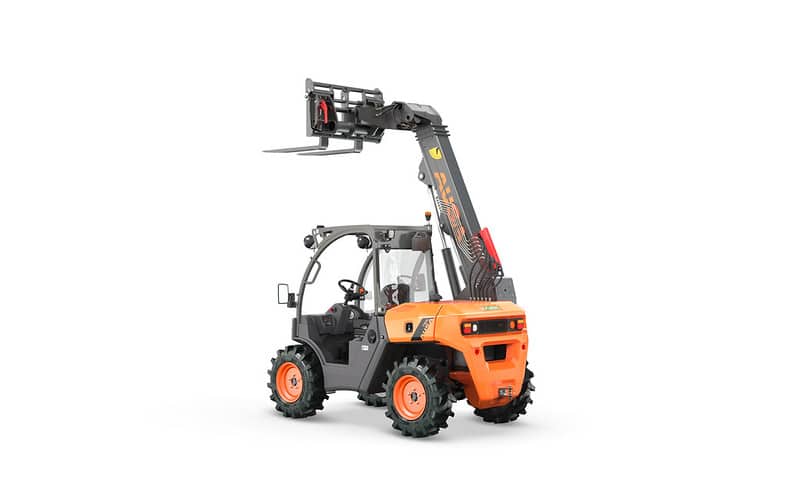

T164H
The T164H is capable of lifting a payload of up to 1,600 kg (3,530 lb) and has a maximum lift of 4 metres (13 ft). Thanks to its compact dimensions, the direction of its rear wheels and its excellent manoeuvrability, it is the telescopic handler with the best turning radius of its category, including forks. Its excellent off-road capability also means that it offers a grade-ability of 40%. In short, the T164H is the telescopic handler with the best quality-price ratio on the market.

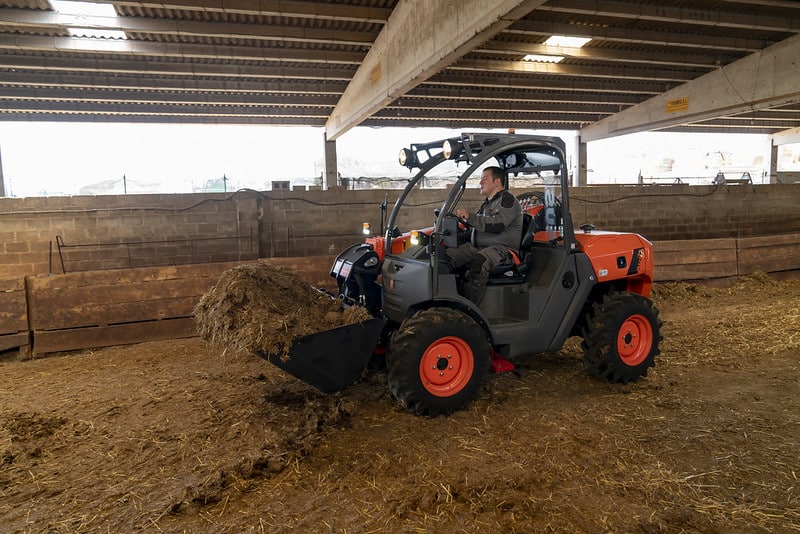

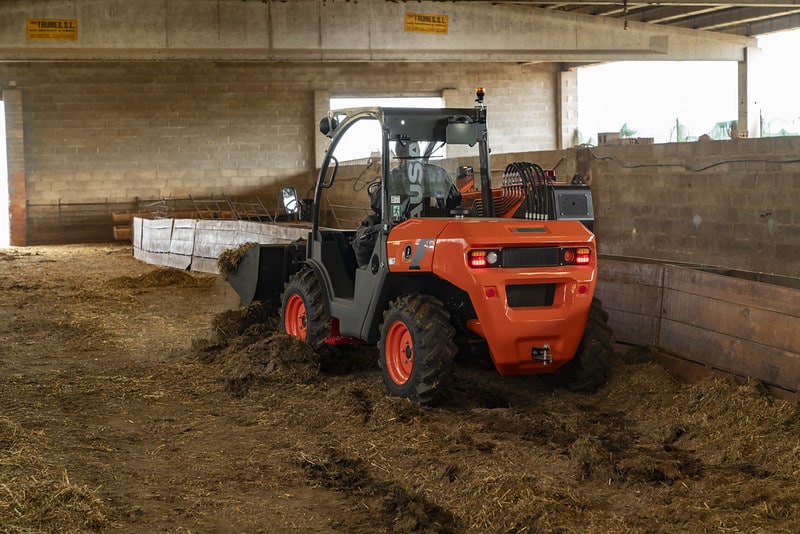

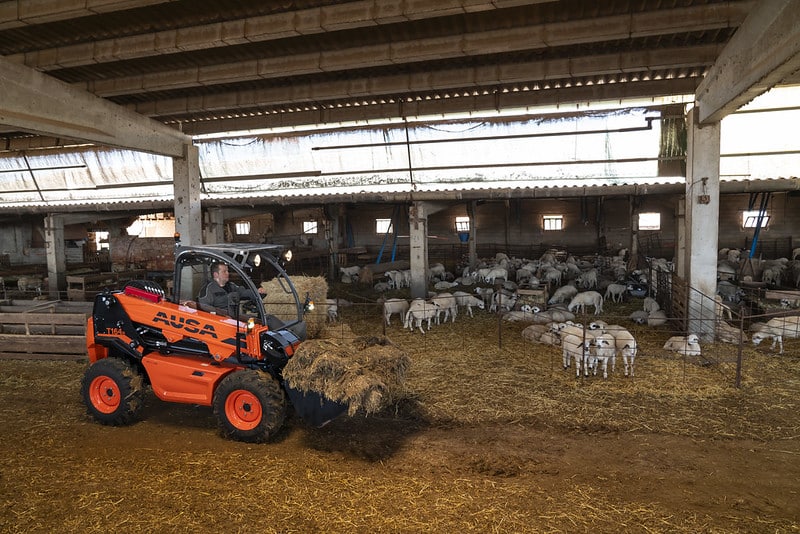

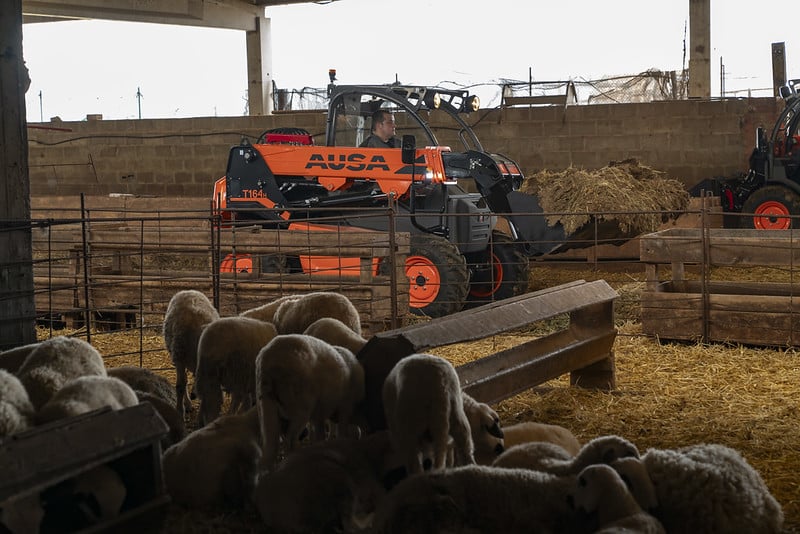

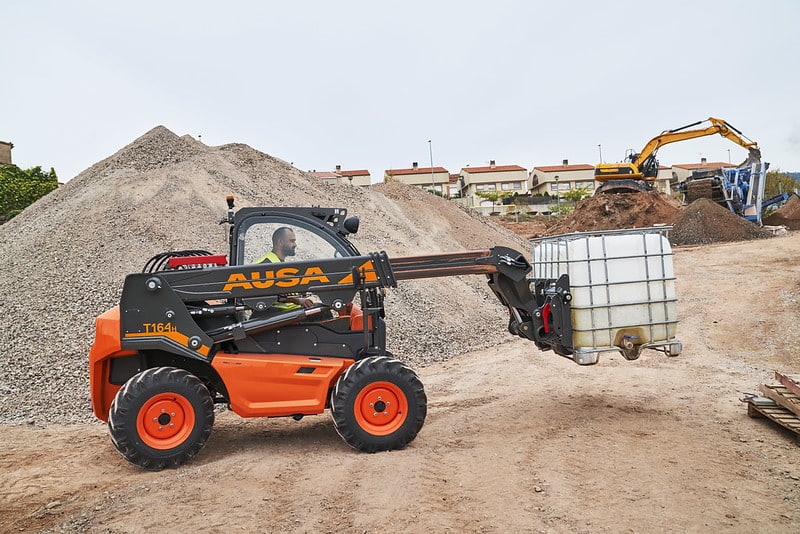

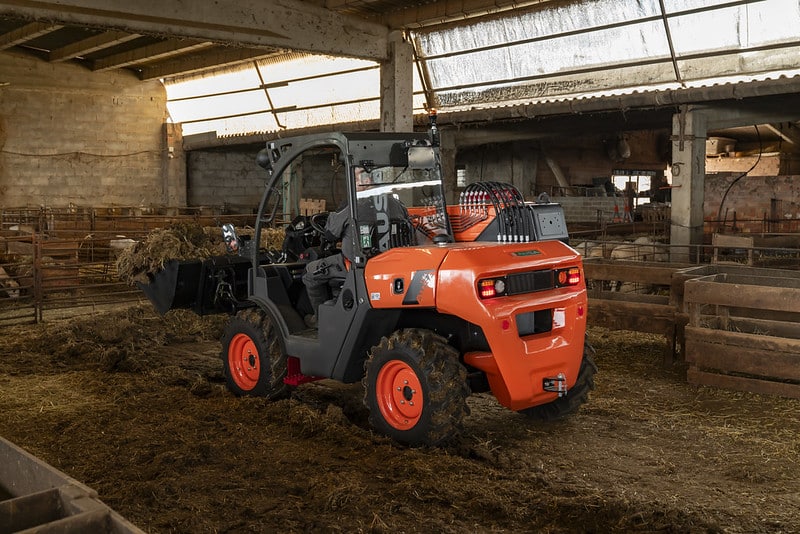

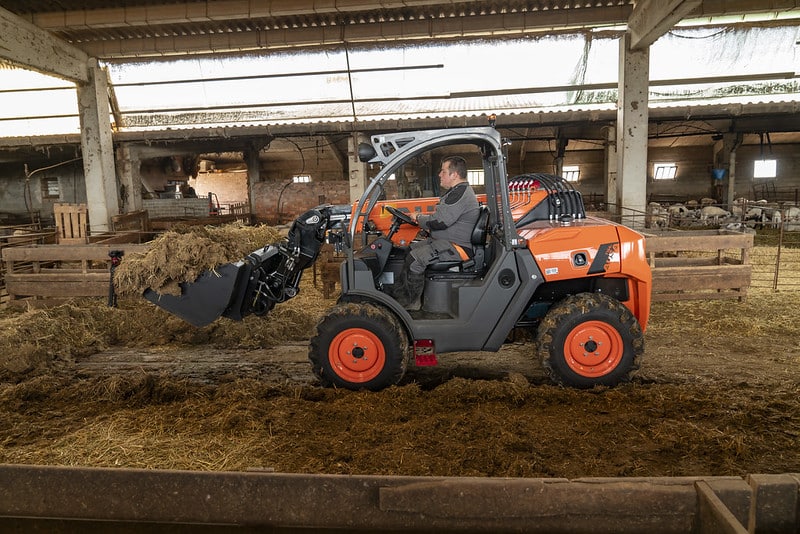

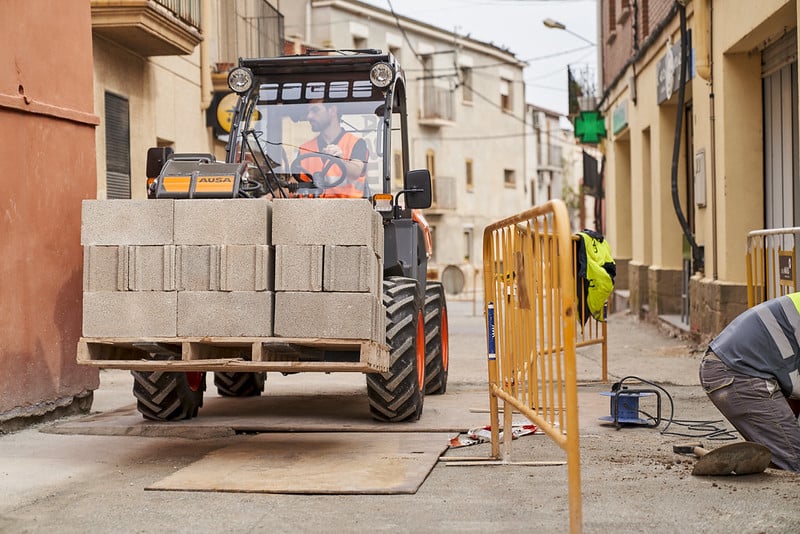

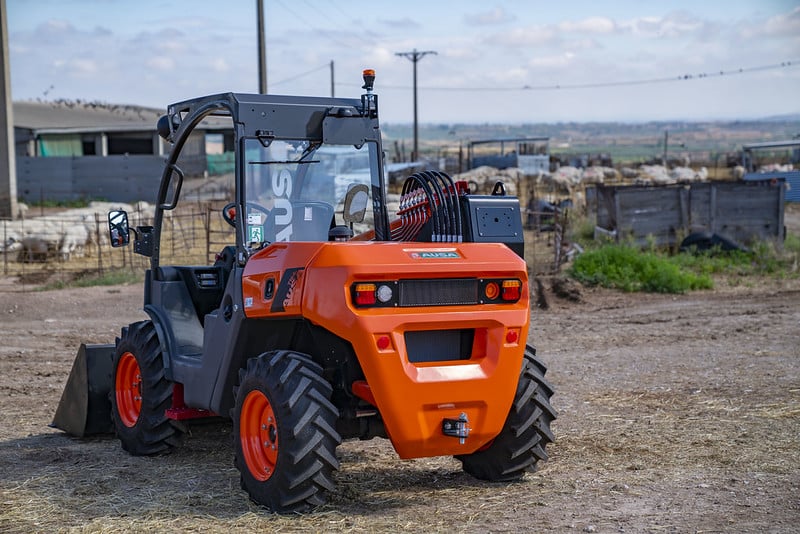

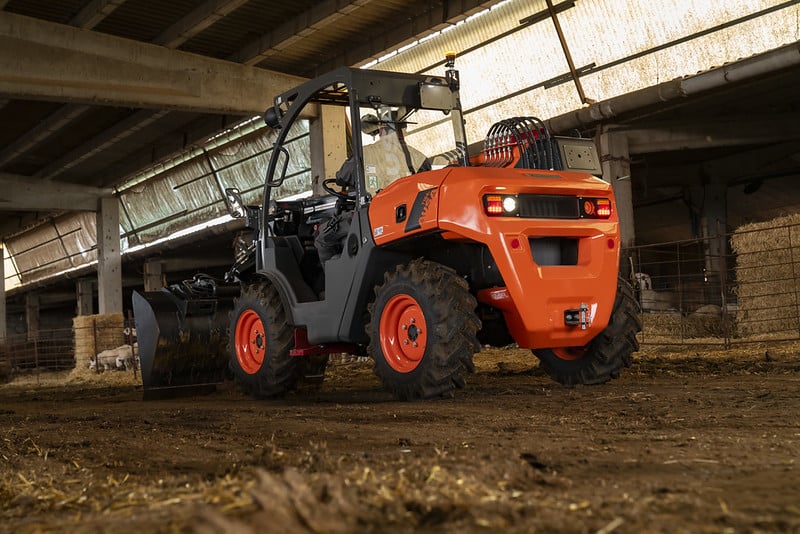

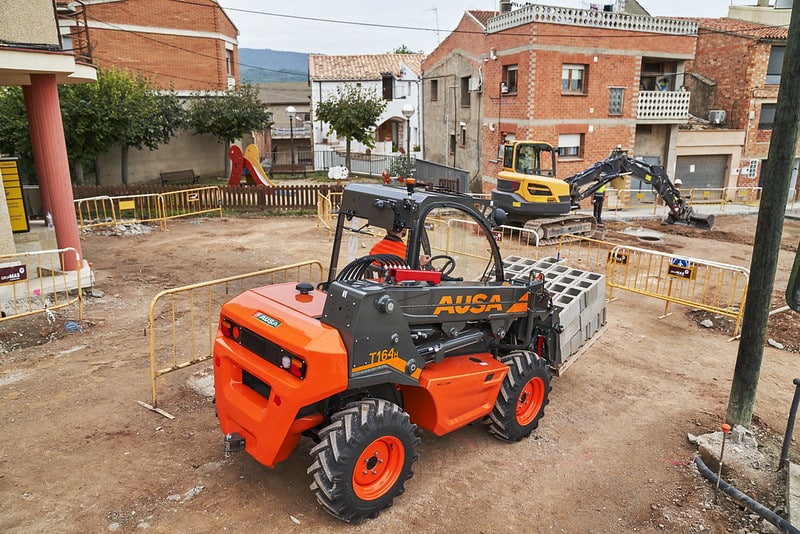

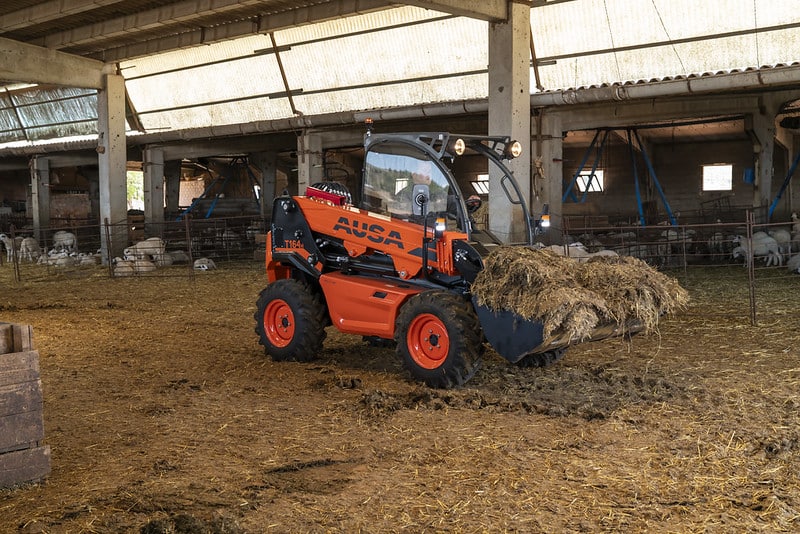

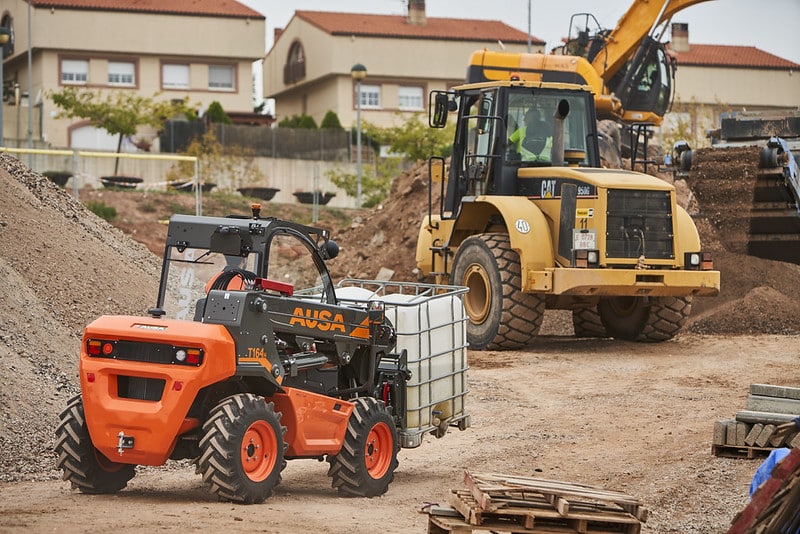

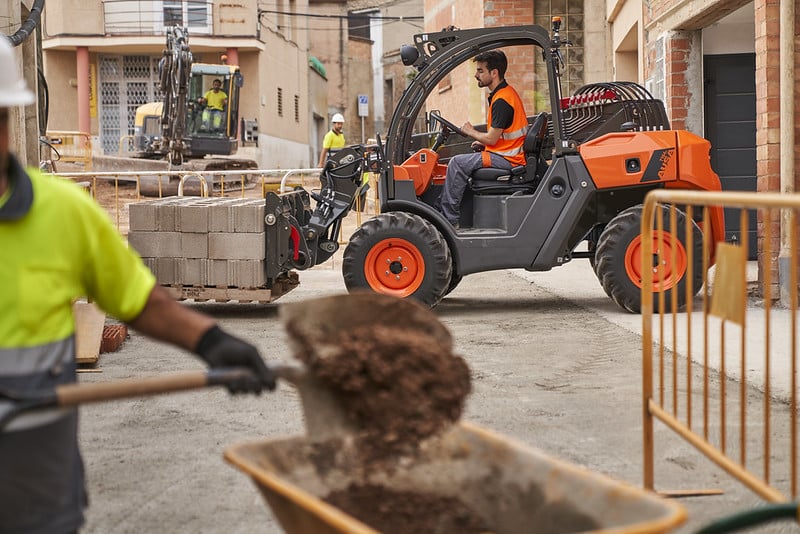

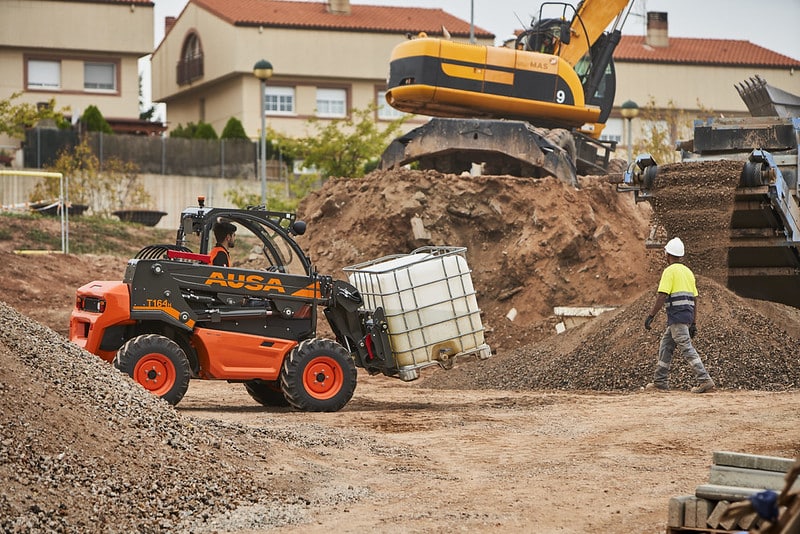

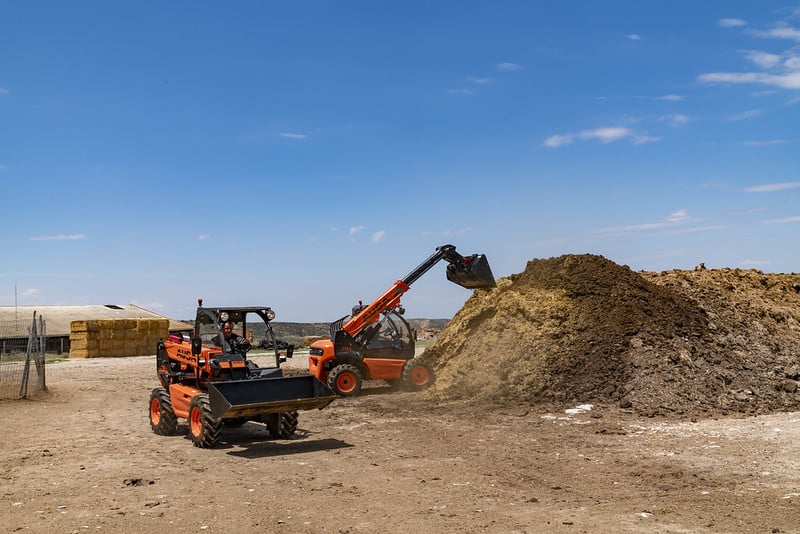

Ideal for working in small spaces, above all in the building sector and in agricultural tasks or landscaping.
More Images & Videos
Technical Information
General
| Load capacity | 1600 kg |
| Load capacity at maximum height | 1600 kg |
| Empty weight | 3370 kg |
| Transmission | Hydrostatic |
| Maximum lift | 4000 mm |
| Maximum lift under maximum load | 3400 mm |
| Maximum reach | 1740 mm |
| Maximum load at maximum reach | 600 kg |
Engine
| Brand | Kubota |
| Model | V1505-E4B |
| Power | 18.5 kW |
| Torque | 92,6@1700 |
| No. of cylinders | 4 |
| Emissions | Stage V – EPA Tier 4 |
| Noise level (LwA) | 101 dB(A) |
Driving
| Max. speed | 20 km/h |
| Maximum gradient | 40 % |
| External turning radius | 3440 mm |
| Steering modes | Two-wheel rear steer |
| Traction | 4X4 FullGrip ® |
| Tyres | 10/75-15.3 |
Hydraulic system
| Flow rate | 29 l/min |
| Working pressure | 210 bar |
Tank capacity
| Fuel | 55 l |
| Hydraulic system | 35 l |
Brakes
| Service | Hydrostatic, retention |
| Parking | Negative |
Equipment
Driving Position
Open ROPS/FOPS cab
Safety
Seat belt with fasten sensor, Seat with operator’s presence sensor, LED rotating beacon, Acoustic warning for reverse gear, Emergency stop, Negative brake, Overload locking system with 60-second deactivation push-button, Load level indicator
Lighting & Driving
Rear-view mirrors
Comfort
Adjustable ergonomic seat, All-in-one joystick
Advanced equipment
Hydrostatic transmission, Second-generation FullGrip® (4WD)
Accessories
Waterproof document holder, 4th auxiliary hydraulic line
Implements
Two-hand control for locking and unlocking attachments
Forks
1,000 mm forks, 1,050 mm fork carriage
Couplers
Universal mechanical coupler
