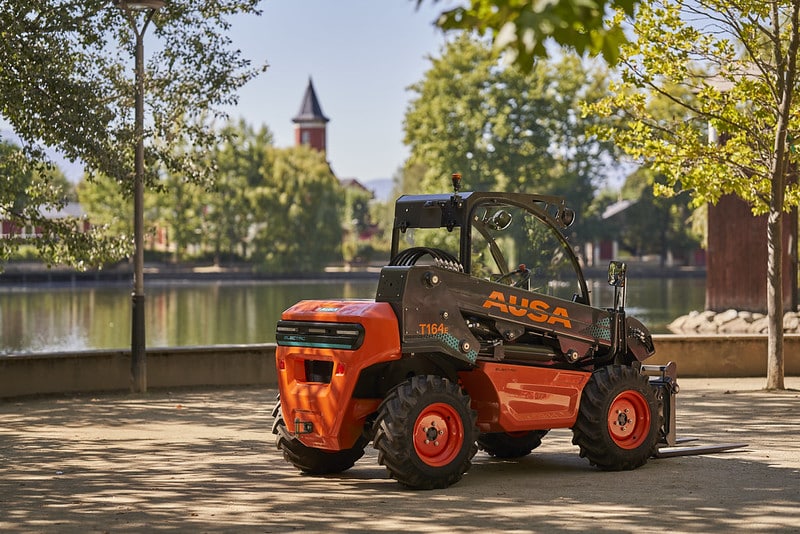

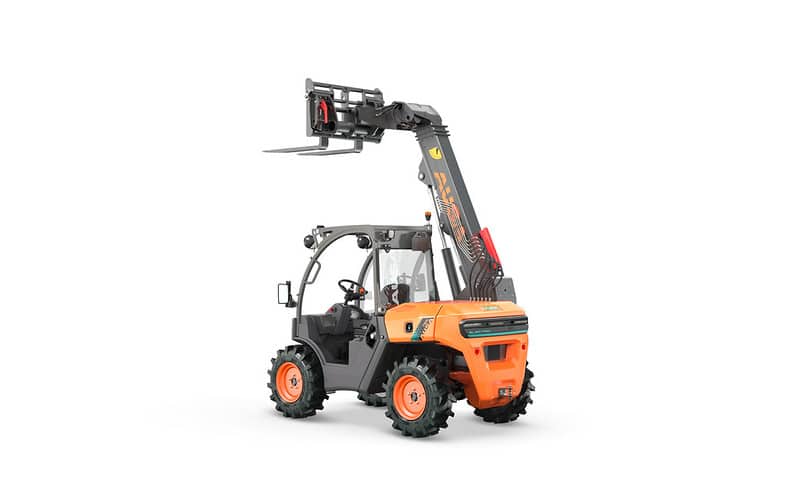

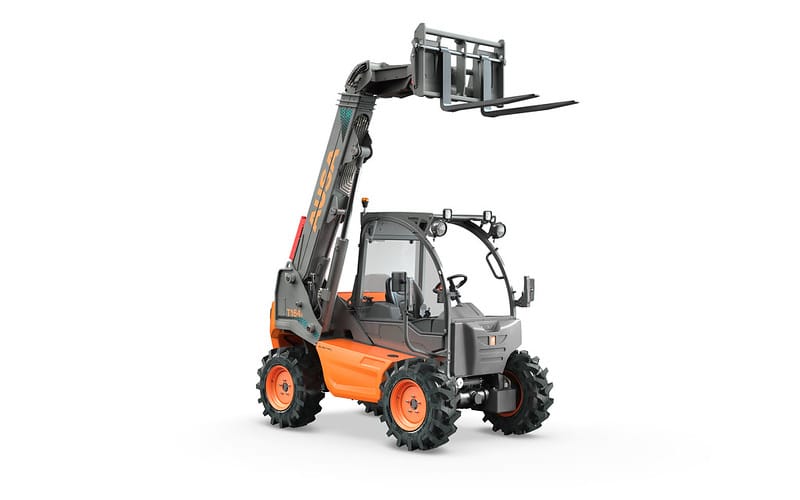

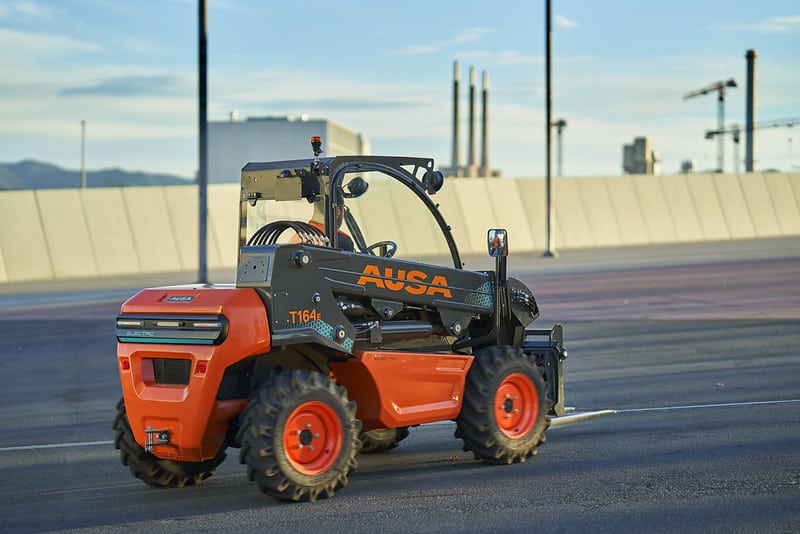

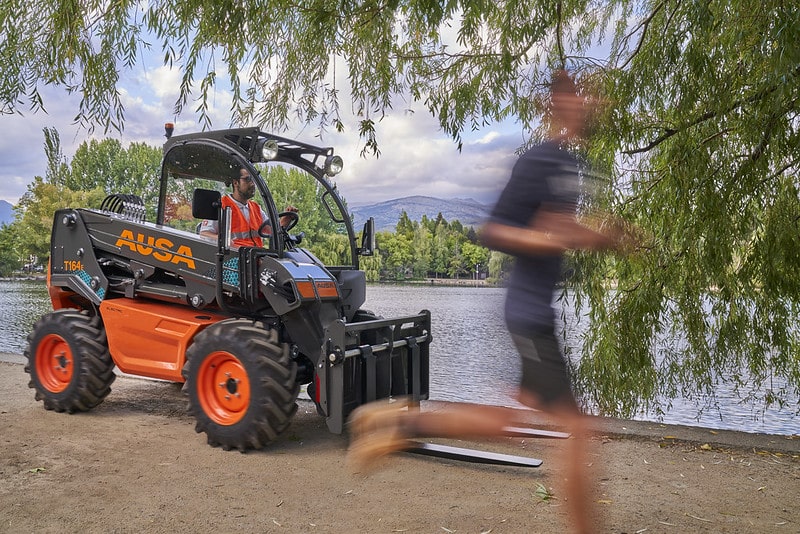

T164E

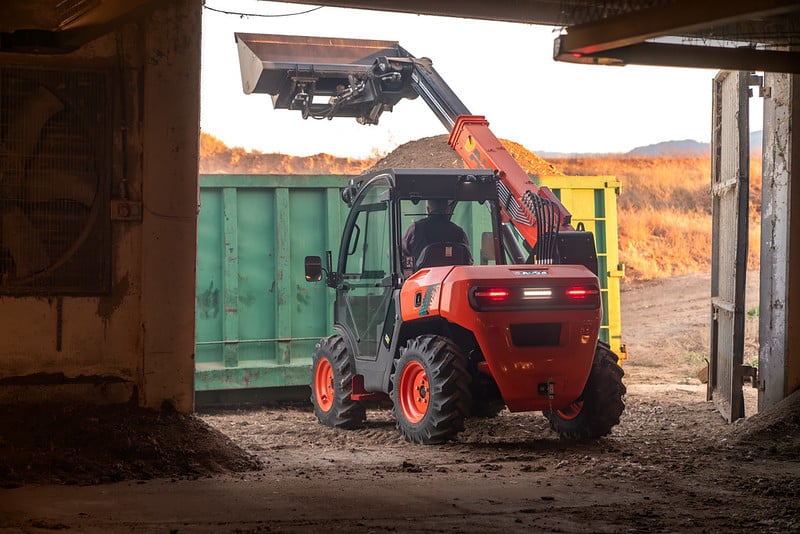

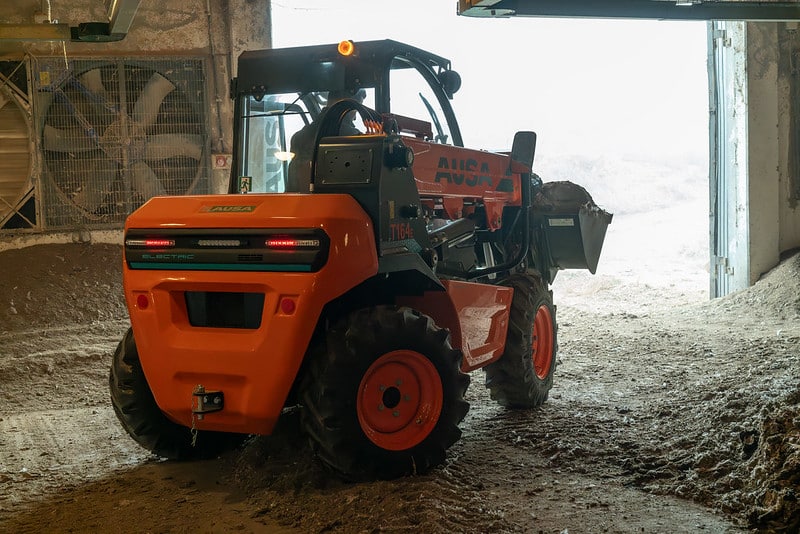

Electric, powerful, all-terrain. The T164E electric telehandler is the perfect vehicle for material lifting tasks with no CO2 emissions. It has been designed with sufficient capacity for a complete day of work without needing to be recharged.

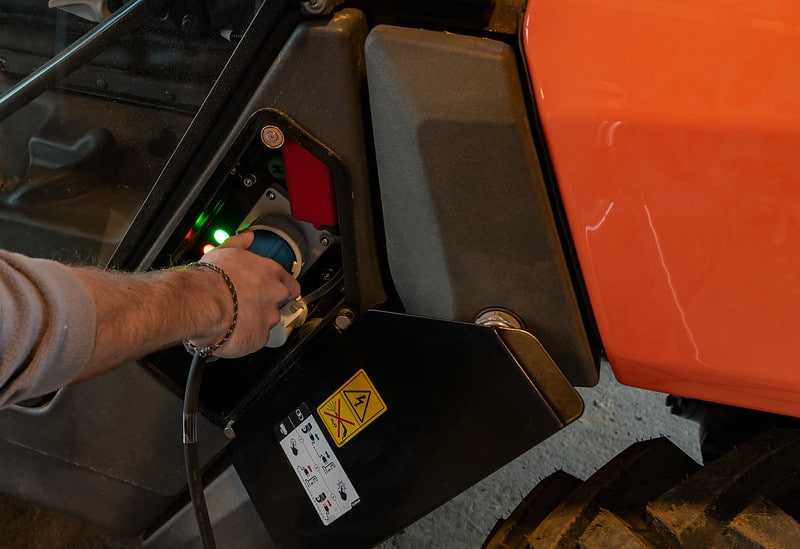

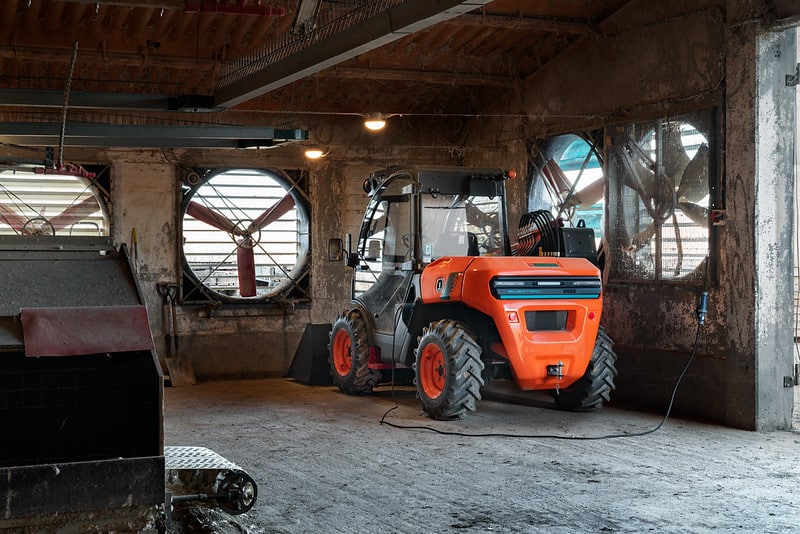

With the integrated charging cable, it can be connected directly to an electrical network through three charging options: 110V, 230V or 415V with a fast charger.

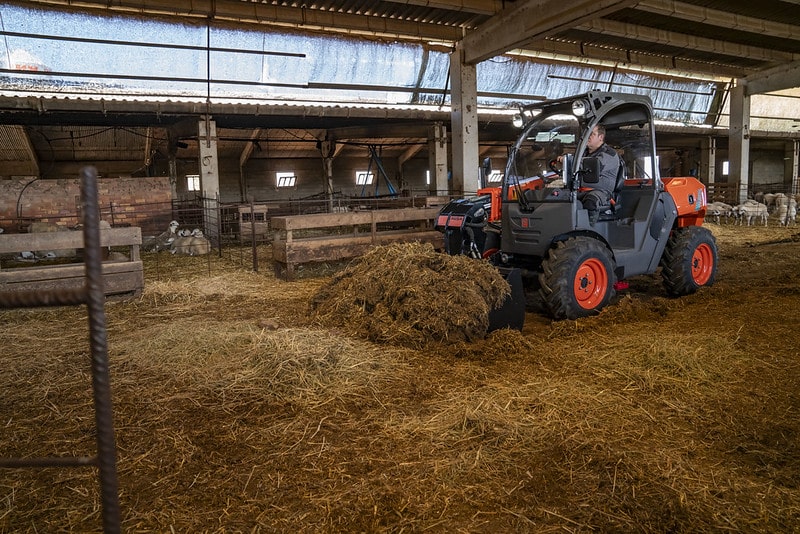

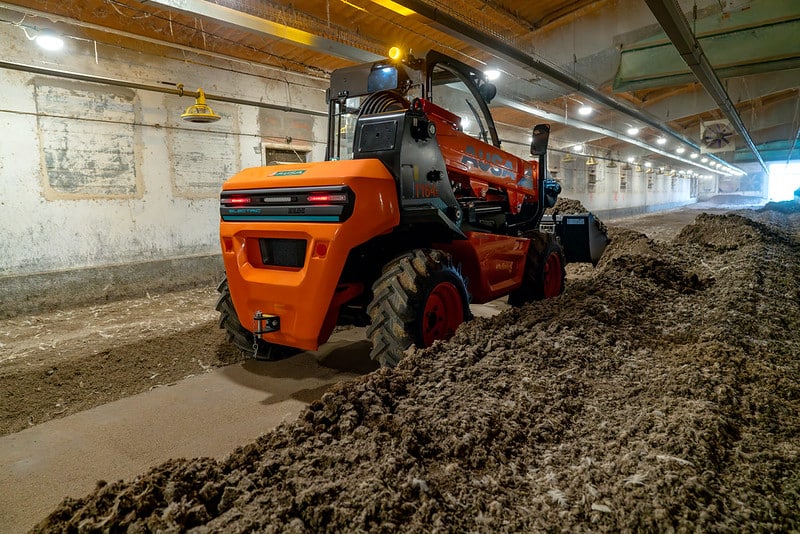

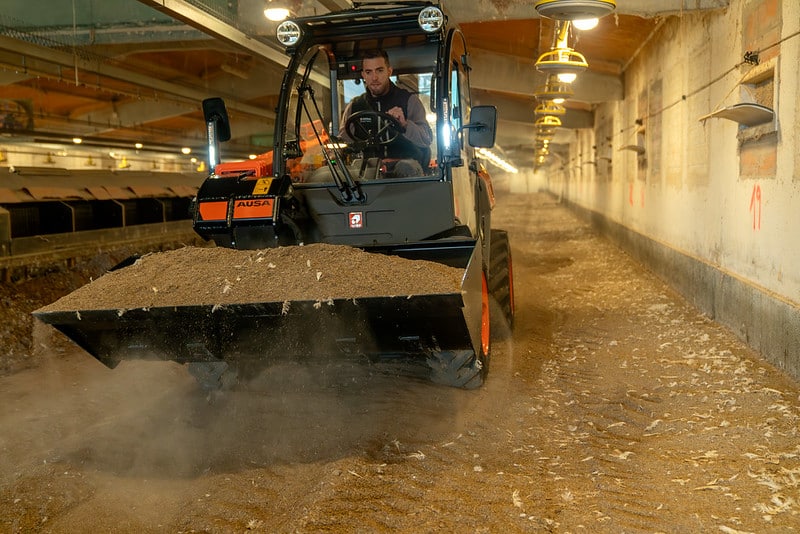

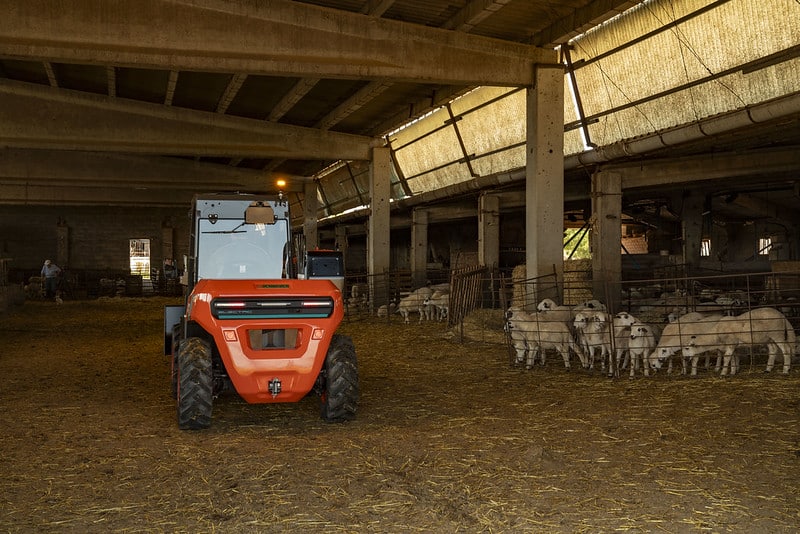

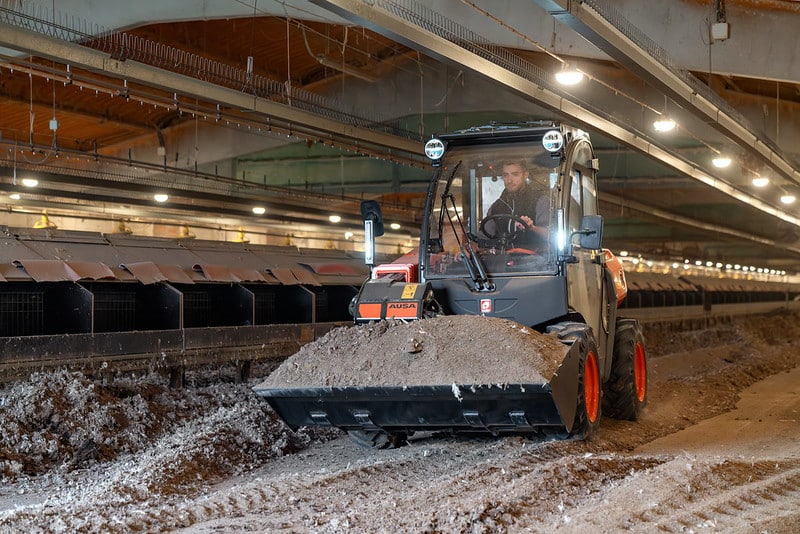

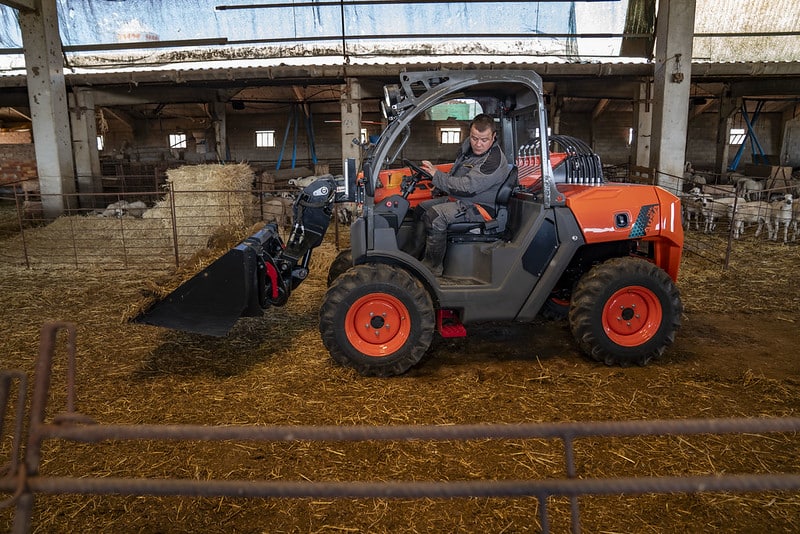

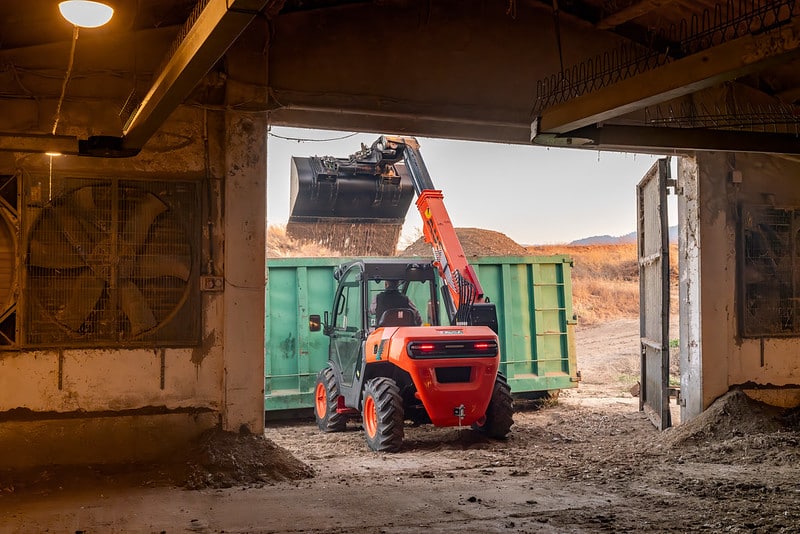

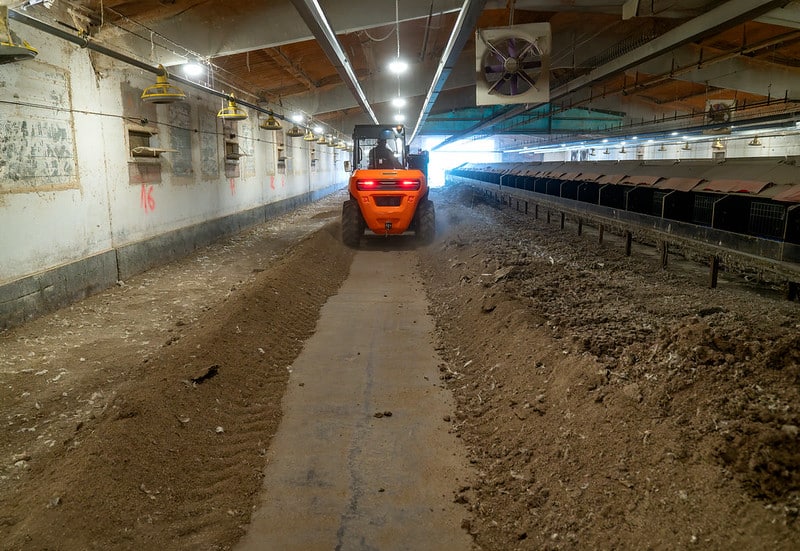

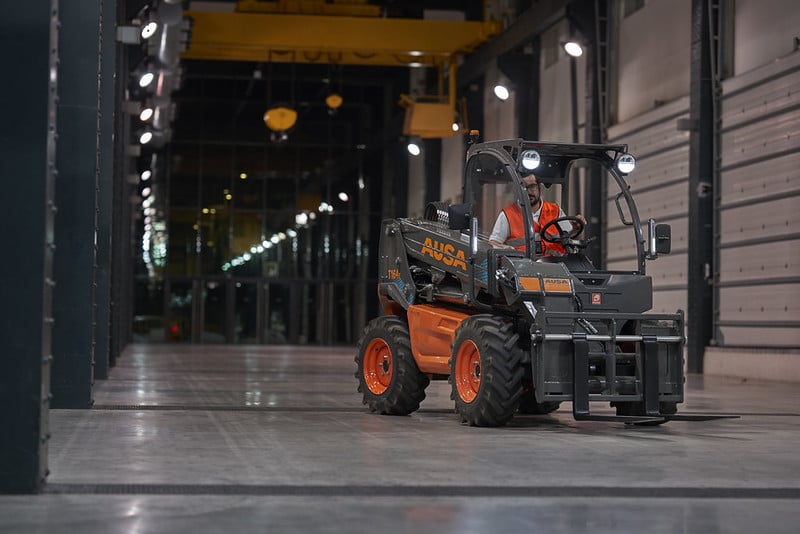

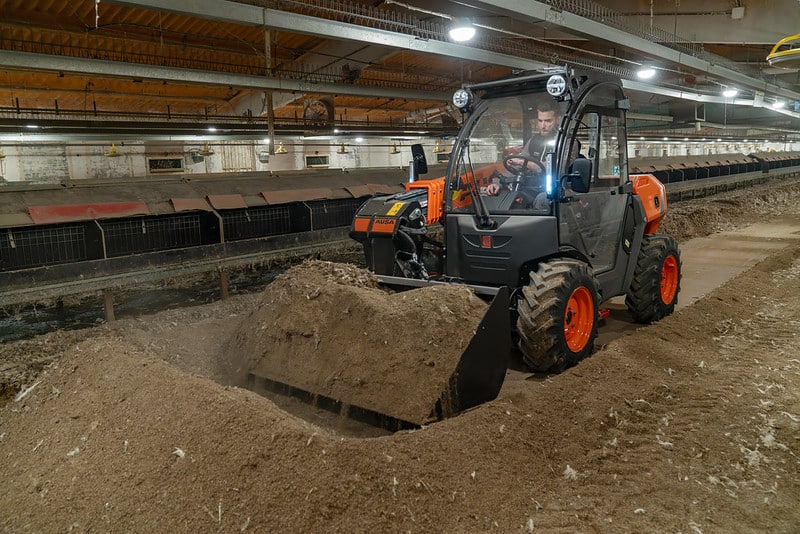

An ideal vehicle for working in emission-free spaces, such as greenhouses, municipal works carried out at night, indoors, etc.

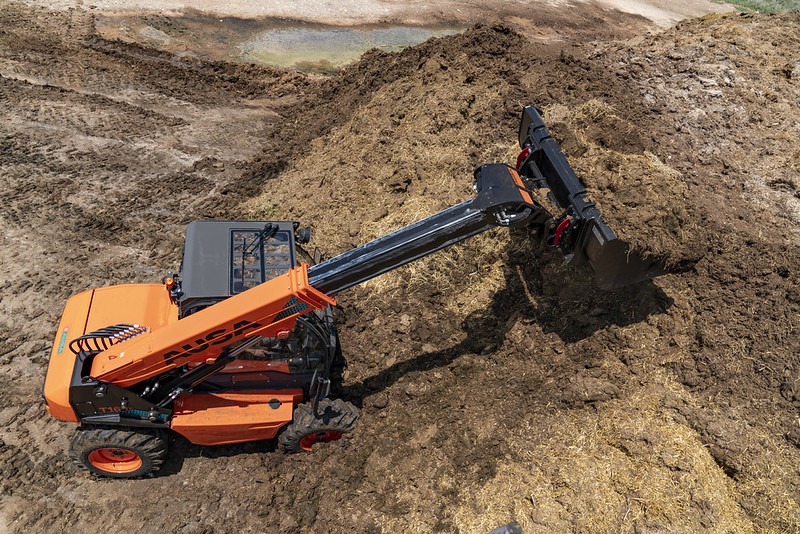

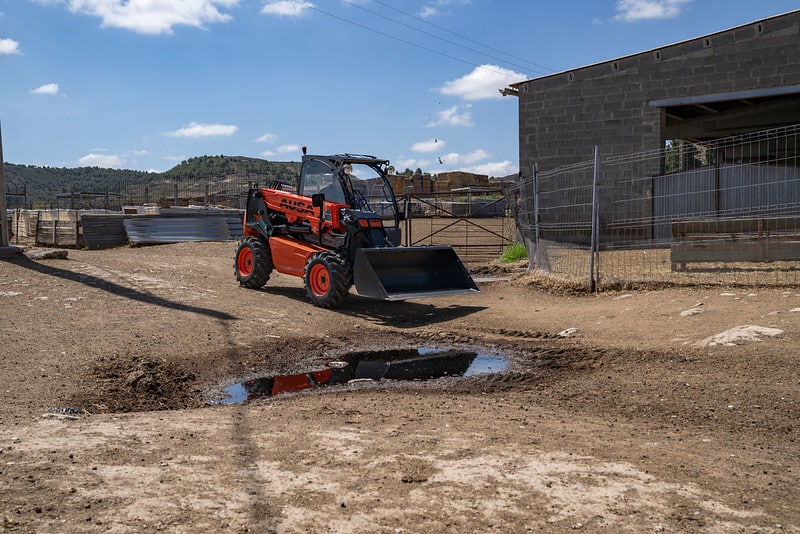

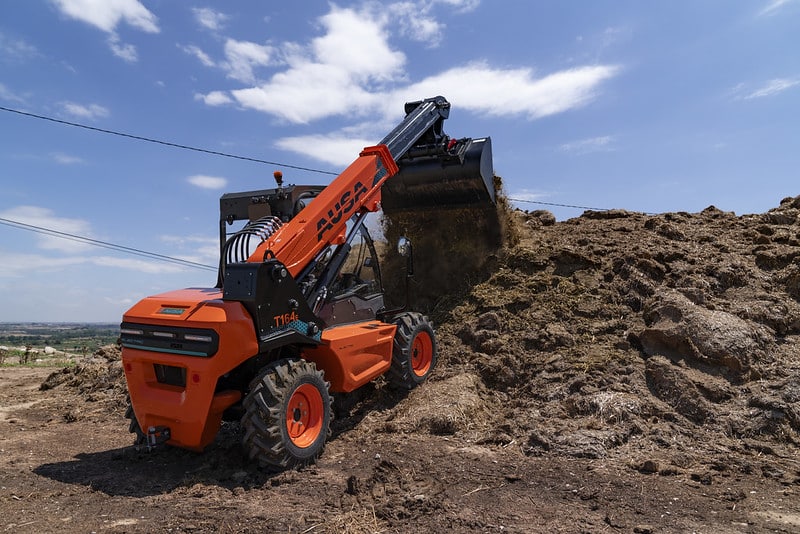

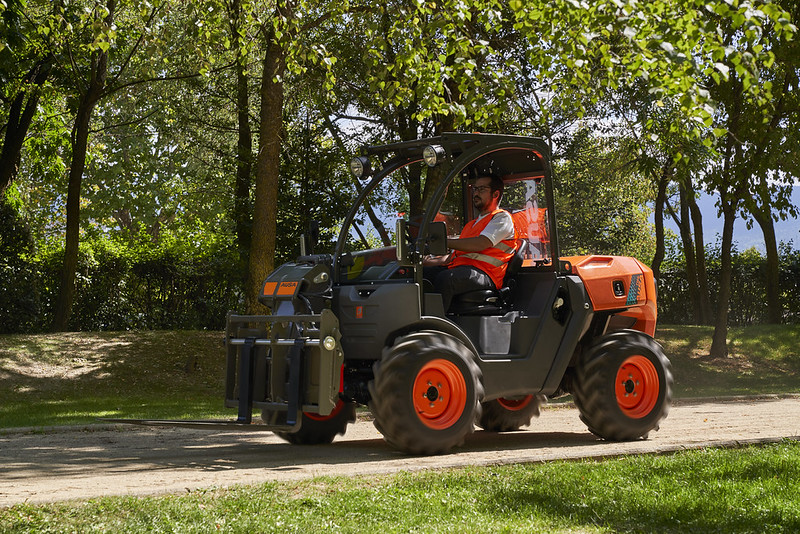

With a power of 18.6 kW and excellent off-road capability, it can work on difficult terrain and gradients of up to 32%.

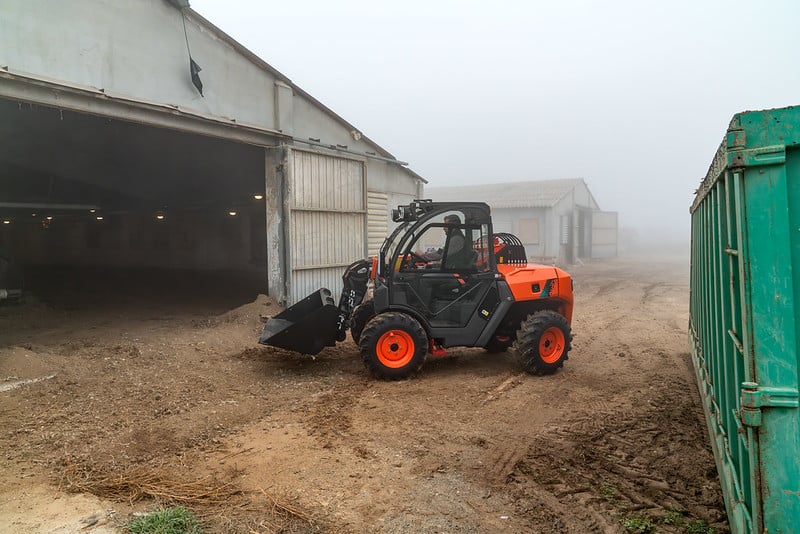

All-terrain
Cost-effectiveness
360º visibility
Day and night
Electric
Silent
More Images & Videos
Technical Information
General
| Load capacity | 1600 kg |
| Load capacity at maximum height | 1600 kg |
| Empty weight | 3370 kg |
| Transmission | Electric |

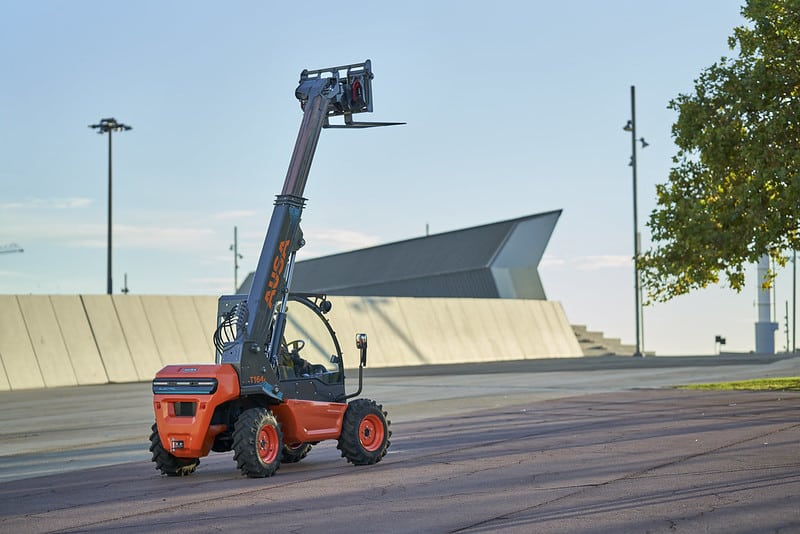

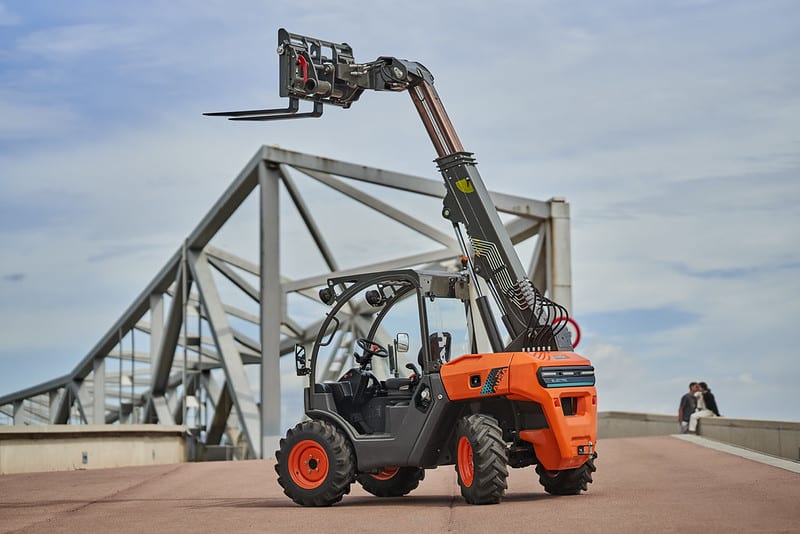

| Maximum lift | 4000 mm |
| Maximum lift under maximum load | 3400 mm |
| Maximum reach | 1740 mm |
| Maximum load at maximum reach | 600 kg |
Battery
| Battery type | Lithium-Ion Battery (NCM) |
| Gross capacity | 15.5 kWh |
| System voltage | 48 V |
| Range
May vary according to weather conditions and use. For temperatures below 0ºC, it is recommended to include the Additional battery for longer range (+3.1 kWh)
|
One intense shift |
Charge
| Charger | Integrated |
| Charging time 20‑80%
May vary according to weather conditions and the type and power of the charging point
|
3:15 h (230 V) |
| Charging time 20‑80% (fast charger)
May vary according to weather conditions and the type and power of the charging point
|
1 h (400 V) |
| Charging cable plug type | 110 V (yellow); 230 V (blue); 400 V (red) |
Engine
| Peak power | 21.2 kW |
| Nominal power | 8.6 kW |
| Torque | 134 |
| Emissions | Zero emission |
| Noise level (LwA) | – |
Driving
| Max. speed | 15 km/h |
| Maximum gradient | 38 % |
| External turning radius | 3440 mm |
| Traction | 4×4 FullGrip |
| Tyres | 10/75-15.3 |
Hydraulic system
| Flow rate | 29 l/min |
| Working pressure | 210 bar |
Tank capacity
| Hydraulic system | 33 l |
Brakes
| Service | Hydraulic |
| Parking | Negative |
Equipment
Driving Position
Open ROPS/FOPS cab
Safety
Seat belt with fasten sensor, Seat with operator’s presence sensor, LED rotating beacon, White noise acoustic warning for reverse gear, Emergency stop, Hill Holder – hill-start assist, Negative brake, Overload locking system with 60-second deactivation push-button, Load level indicator
Lighting & Driving
Rear-view mirror
Comfort

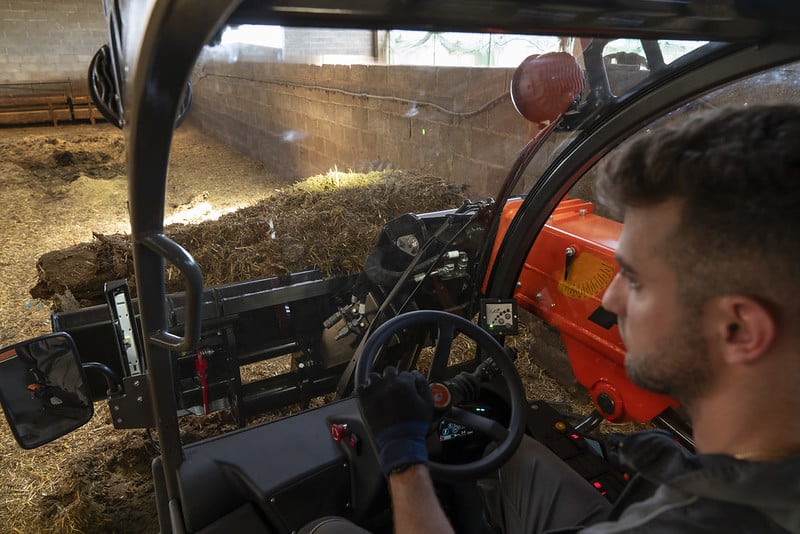

Adjustable ergonomic seat, All-in-one joystick
Advanced equipment
Electric transmission, Digital display, Advanced support, Second-generation FullGrip® (4WD)
Accessories
Waterproof document holder, Air filter with cyclone pre-filter, 4th auxiliary hydraulic line
Implements
Two-hand control for locking and unlocking attachments
Forks
1,000 mm forks, 1,050 mm fork carriage
Couplers
Universal mechanical coupler
