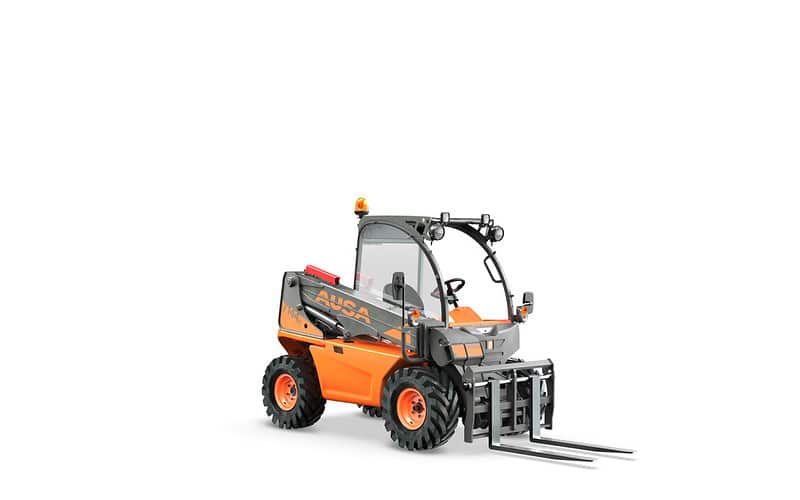

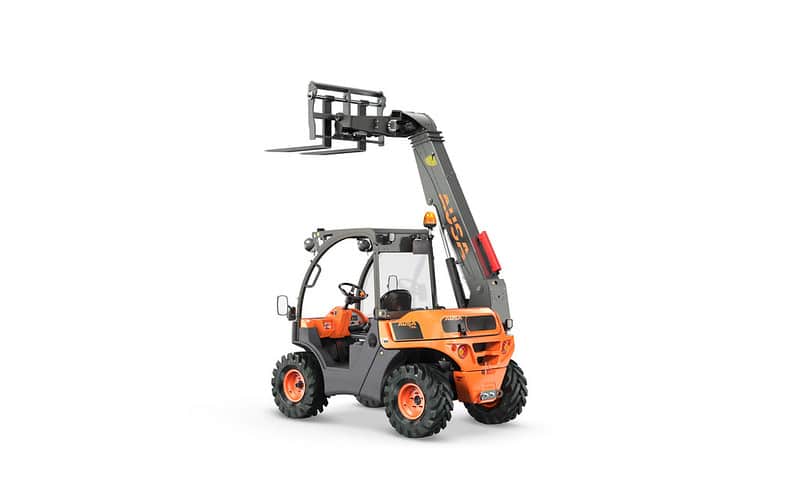

T144H

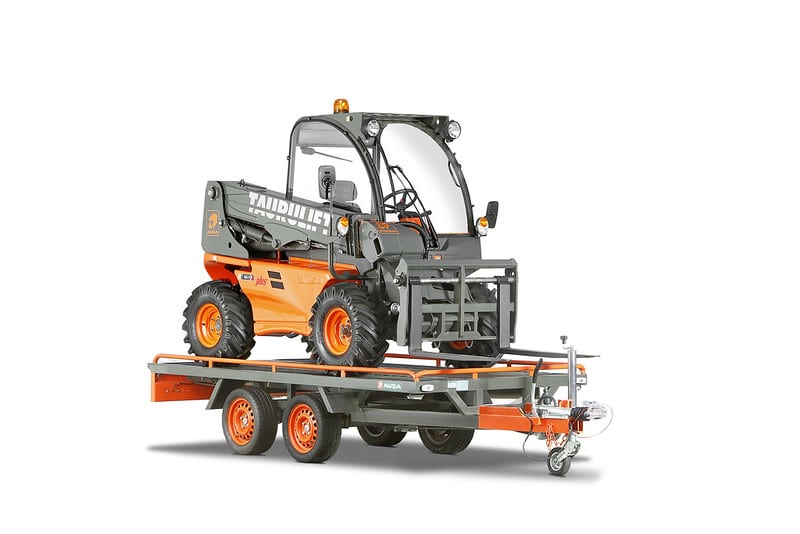

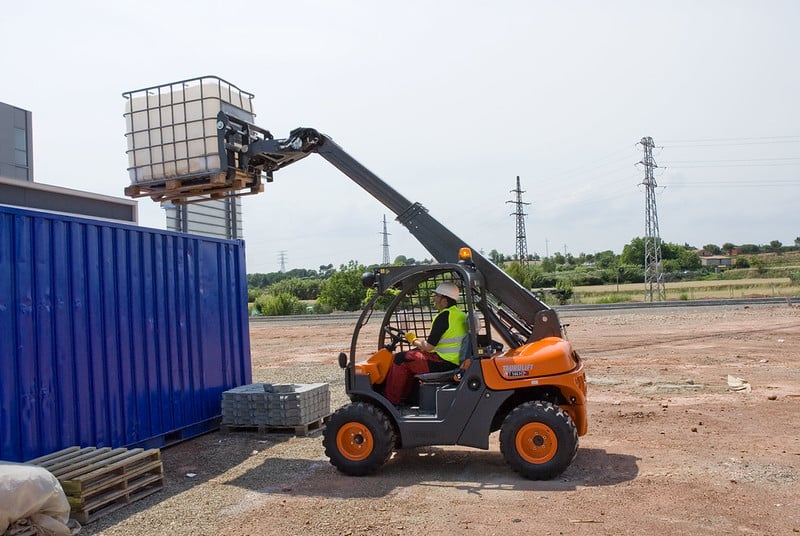

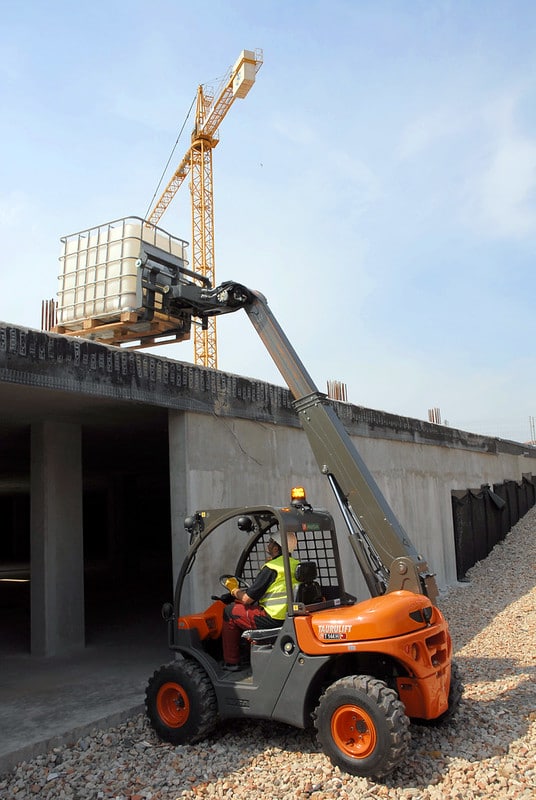

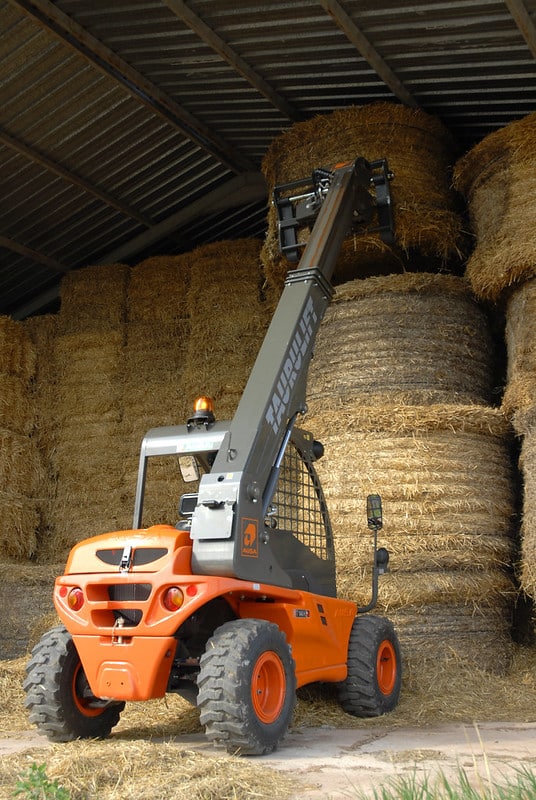

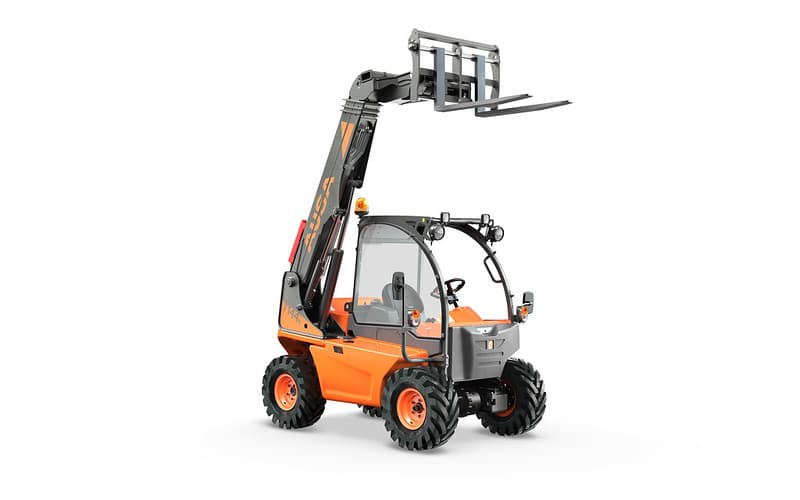

The ultra compact telehandler that allows you to tackle the difficult projects with ease. Capable of lifting loads of up to 1,350 kg (3,000 lb) and with a total lifting height of 4 metres (13 feet), thanks to its small size and a weight of only 2,400 kg (5,300 lb), it is the only telehandler in its class that can be placed on a traditional trailer, making it easier to transport and reducing operating costs.

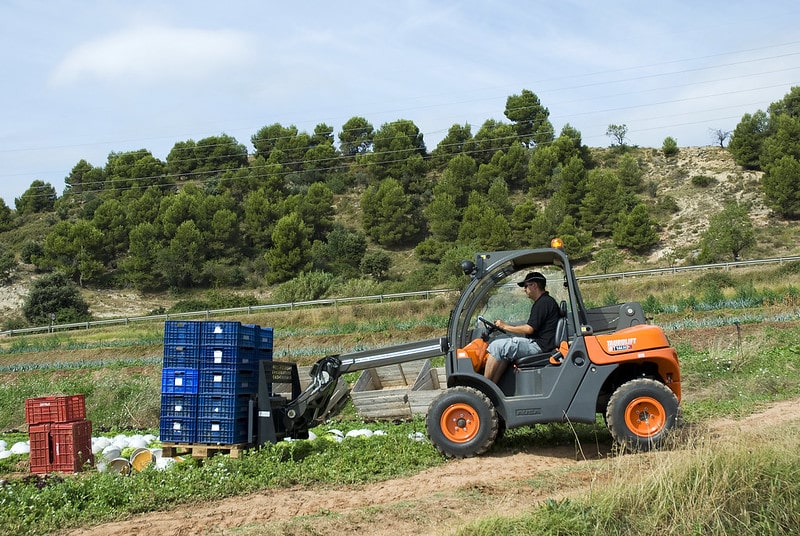

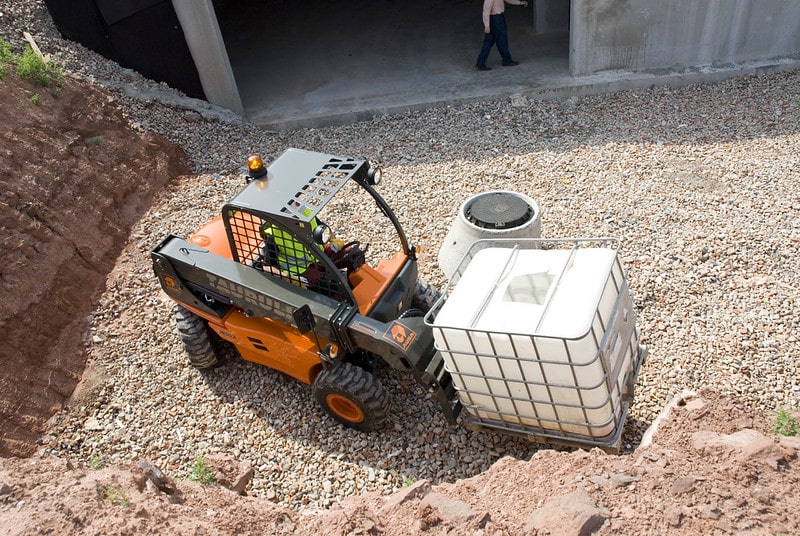

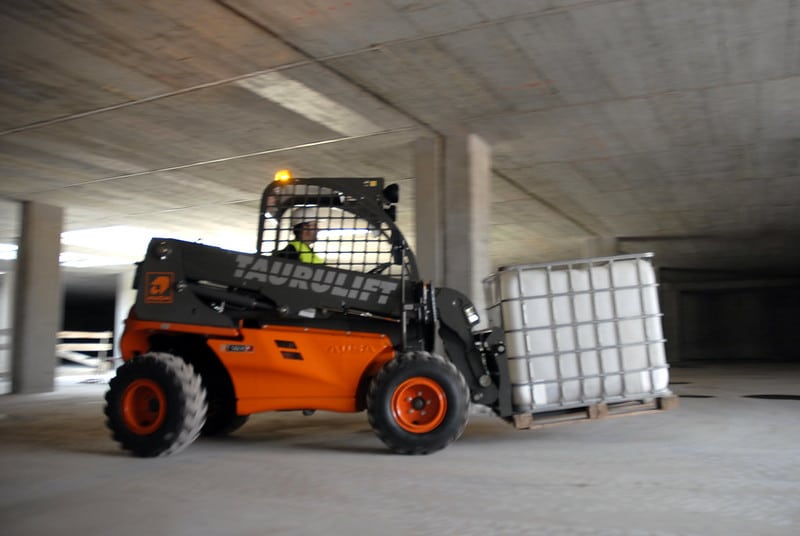

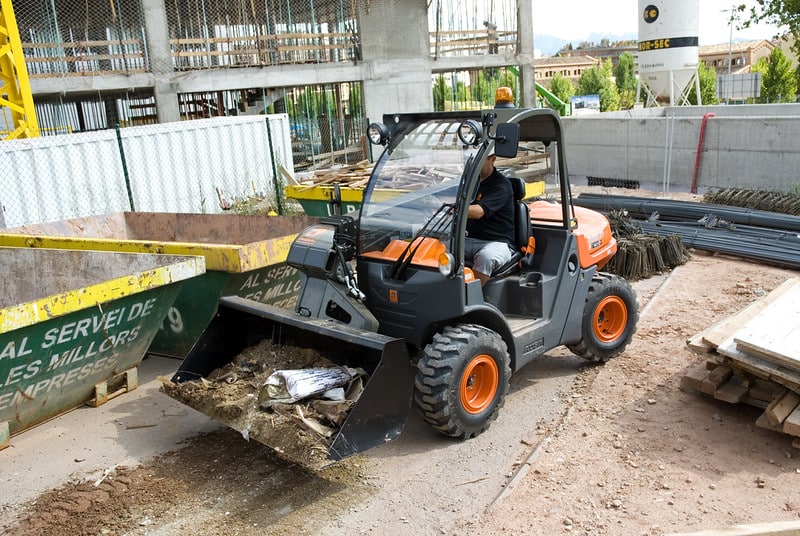

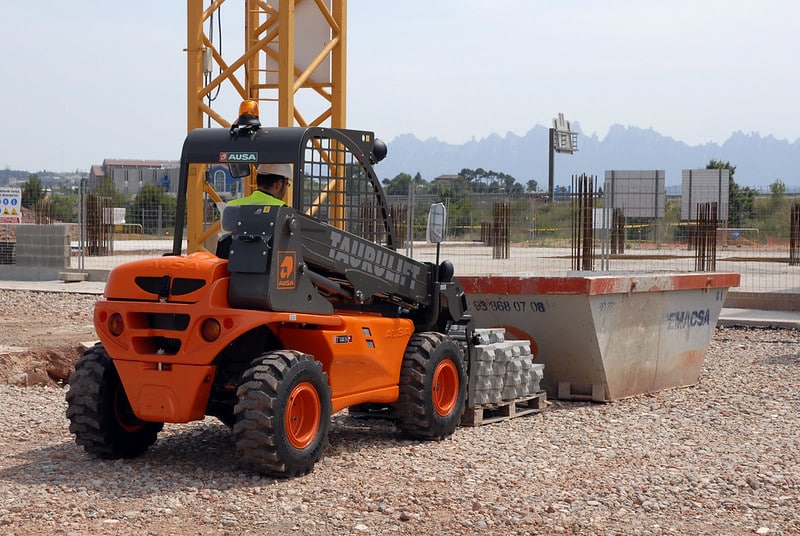

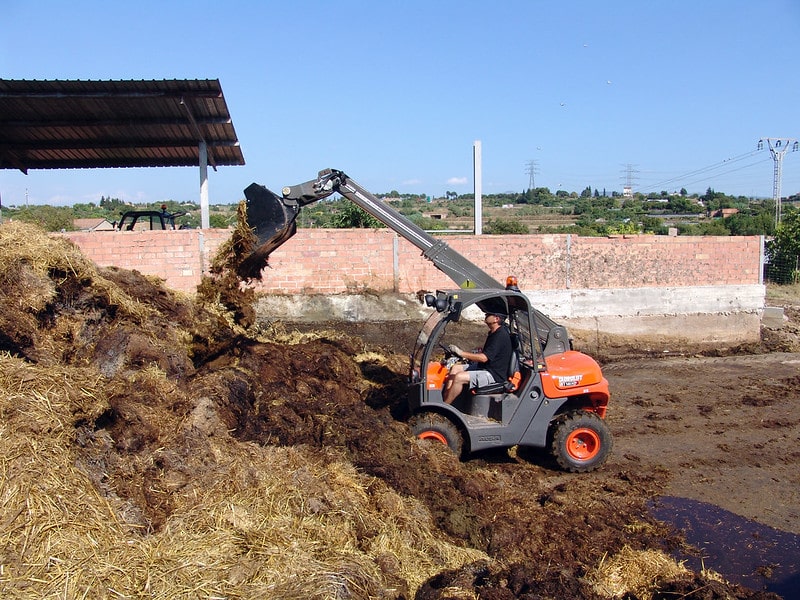

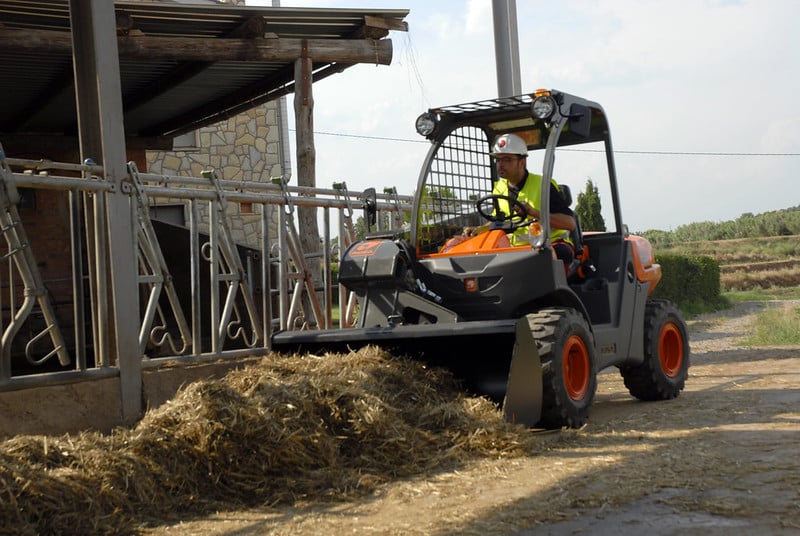

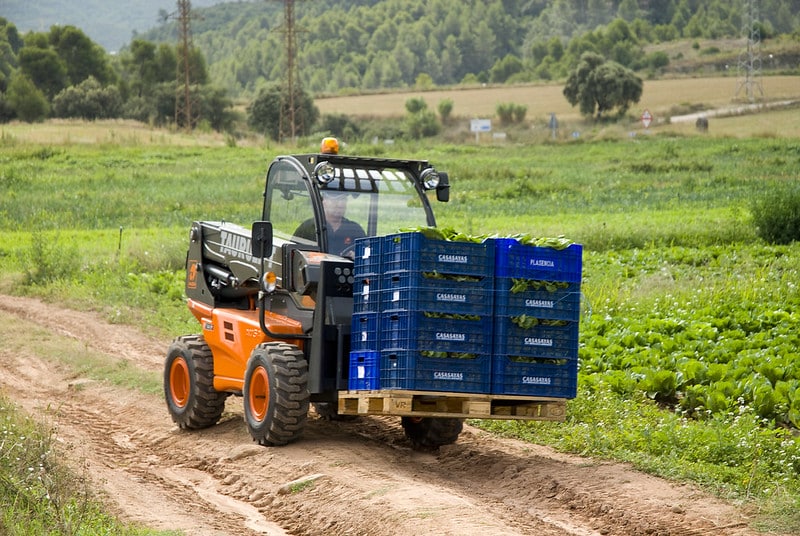

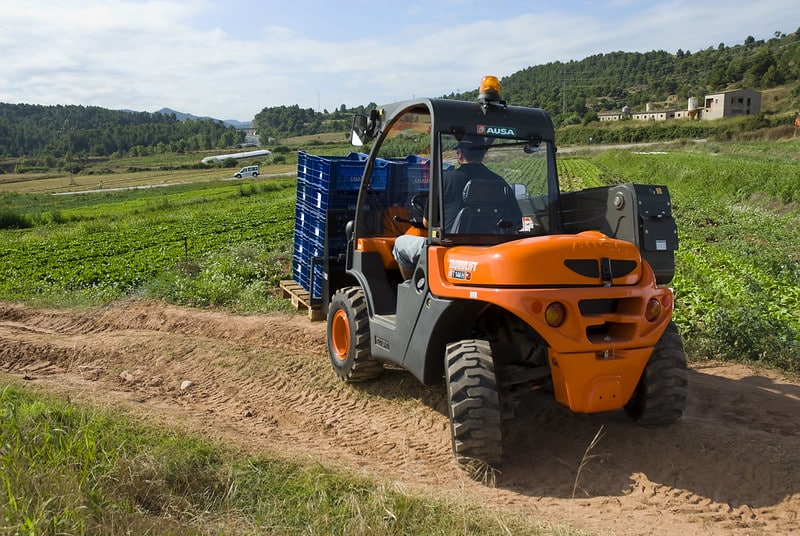

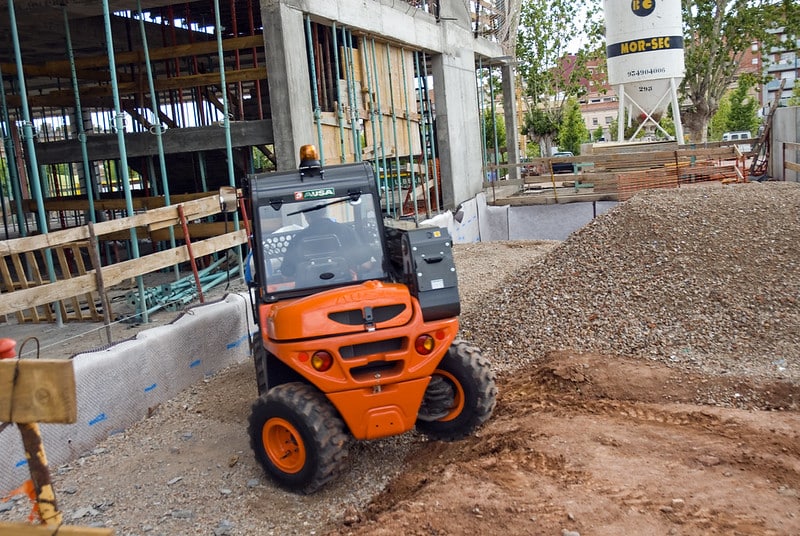

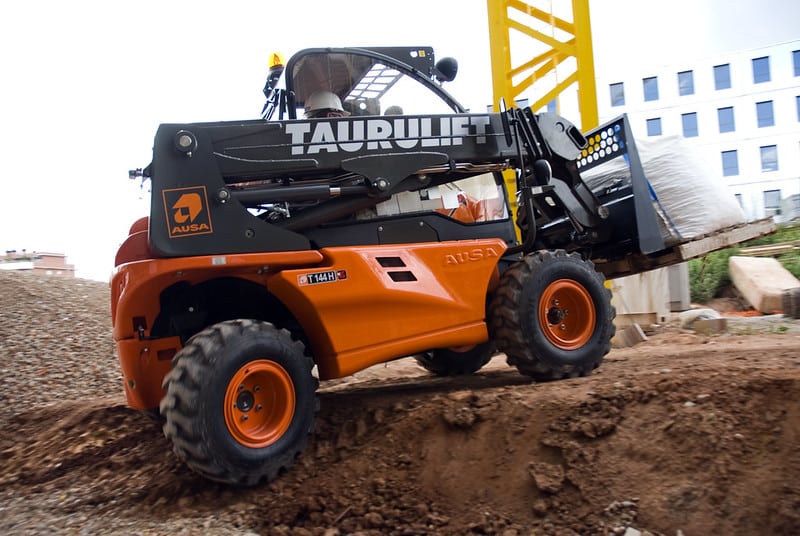

The T144H telehandler is the best solution for handling and transporting materials in small spaces, especially on steep limited access terrain, thanks to its maneuverability. With its hydraulic functions and quick connect couplings for accessories and implements, you will be able to increase its possibilities and applications exponentially.

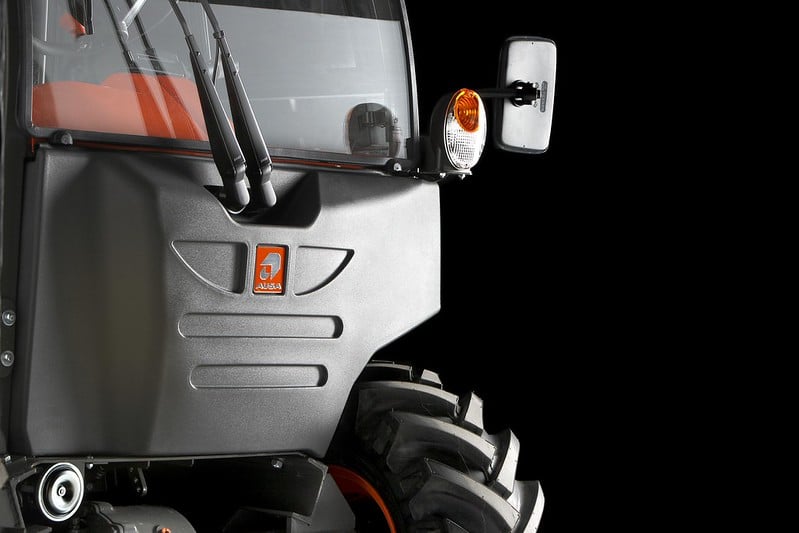

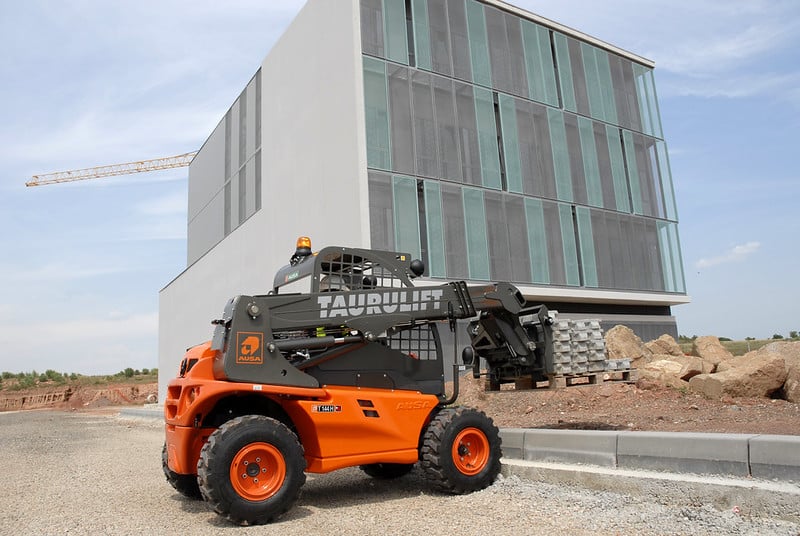

Thanks to the exceptionally designed cab that gives the operator a spacious and functional cab. The design of the cab and the placement of the boom give the operator a 360° view, making the work environment safe for all involved.

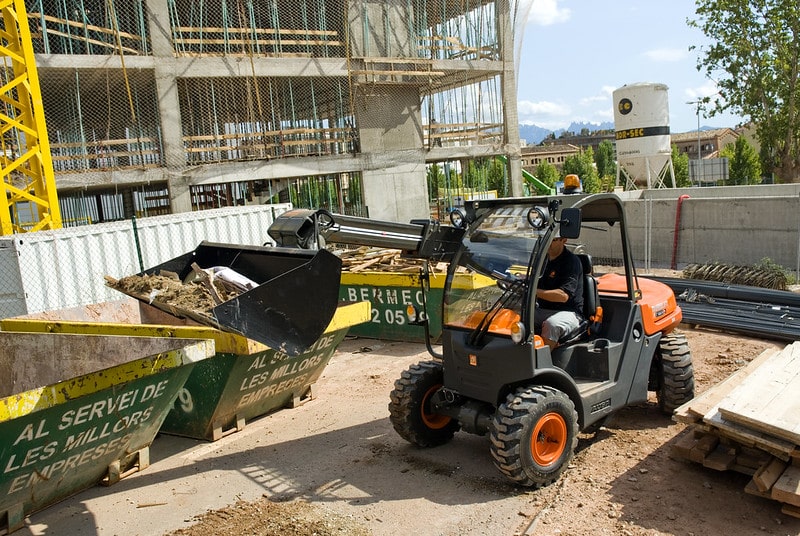

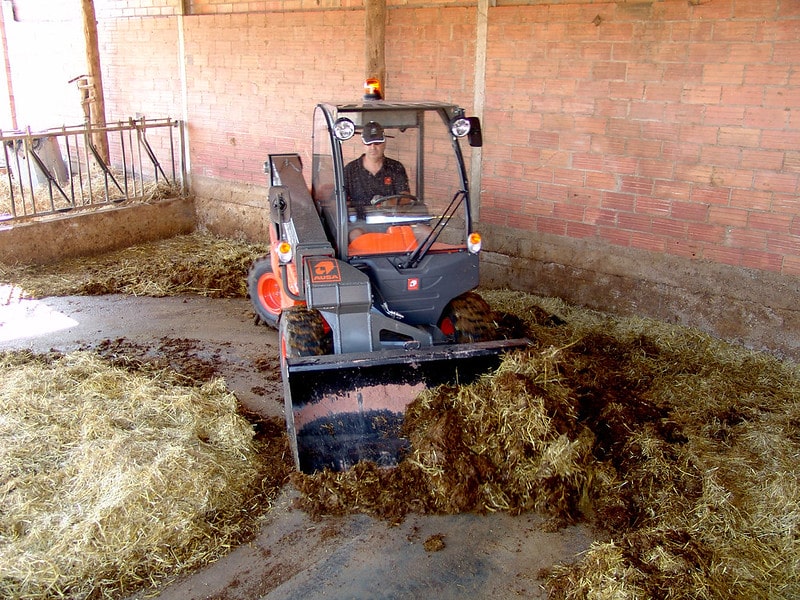

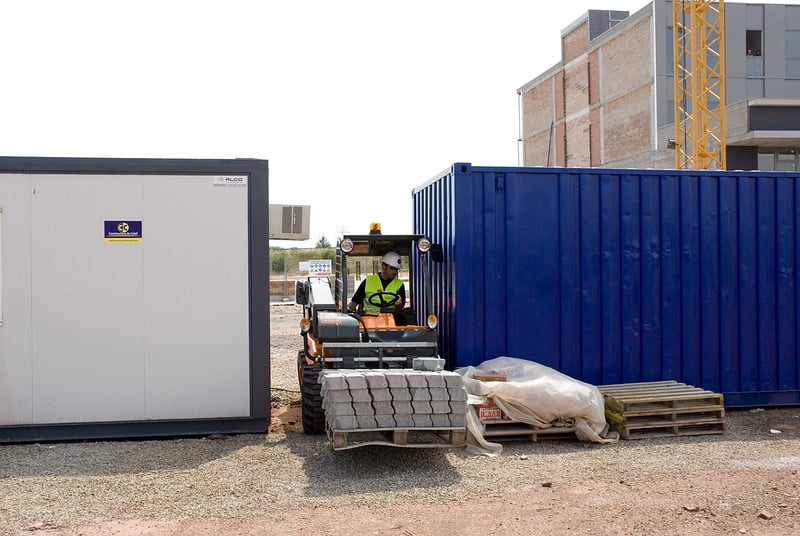

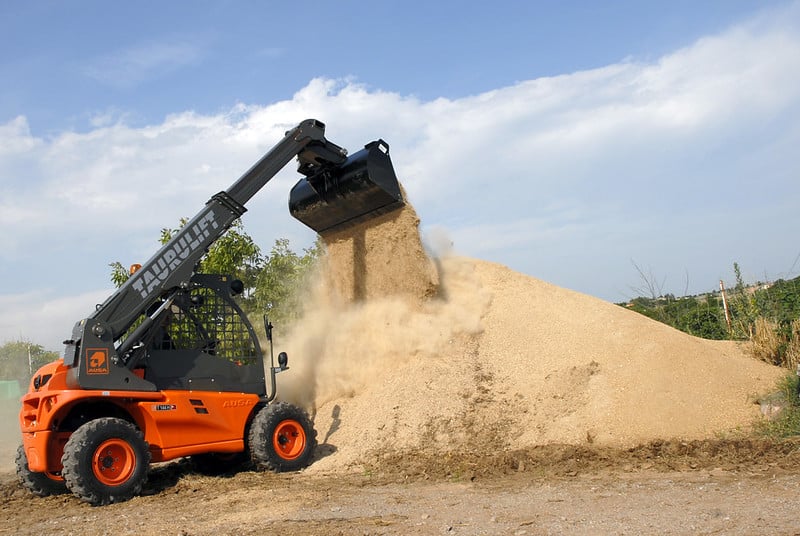

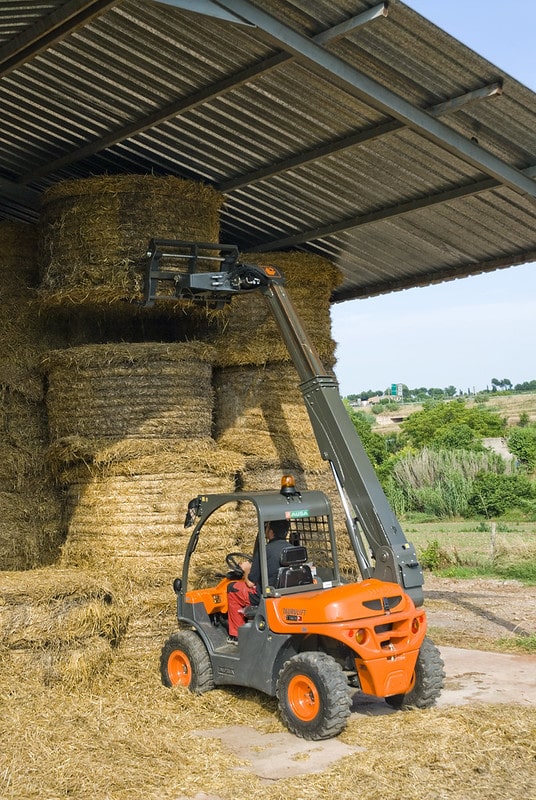

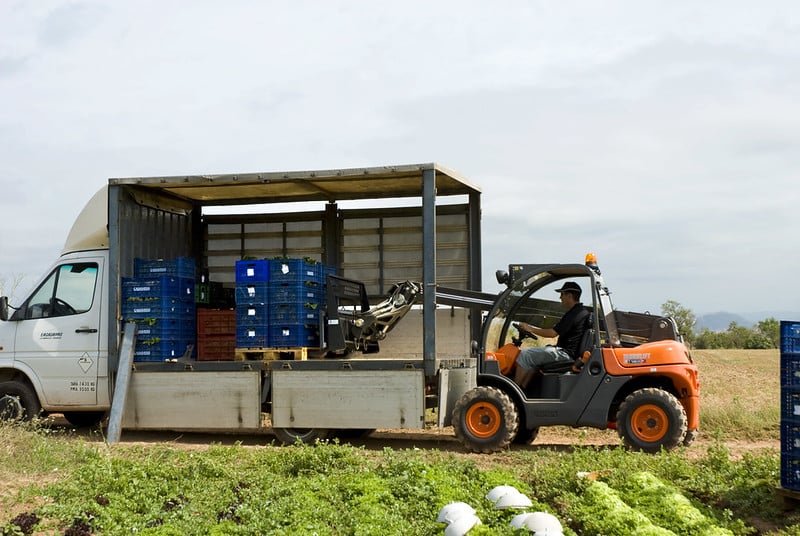

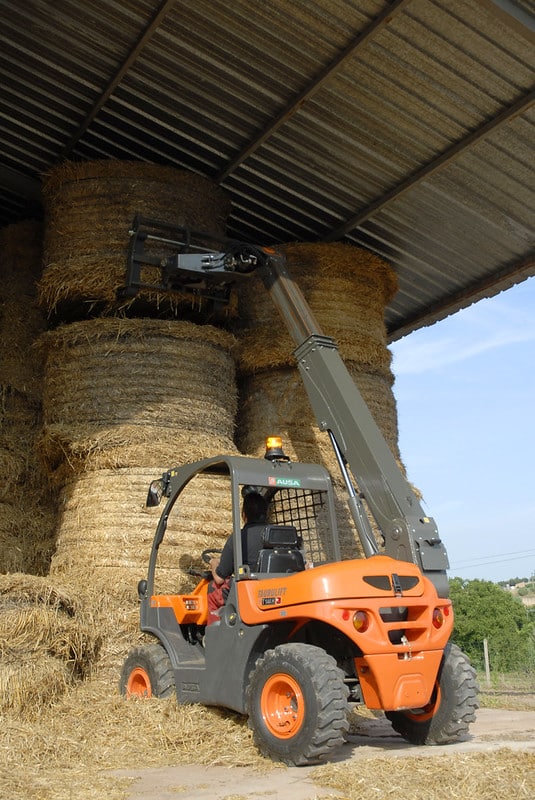

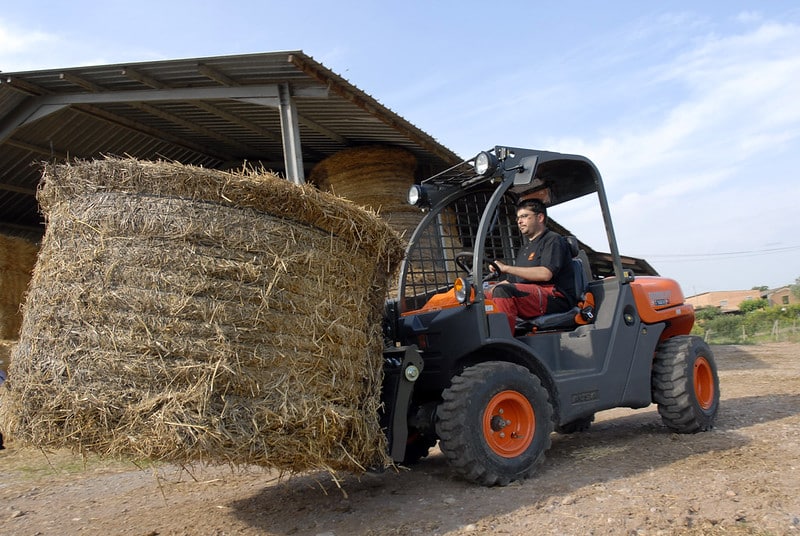

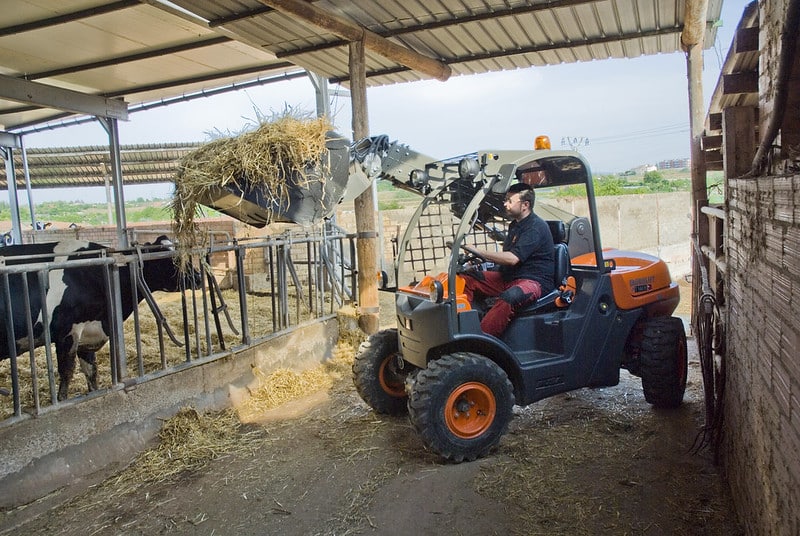

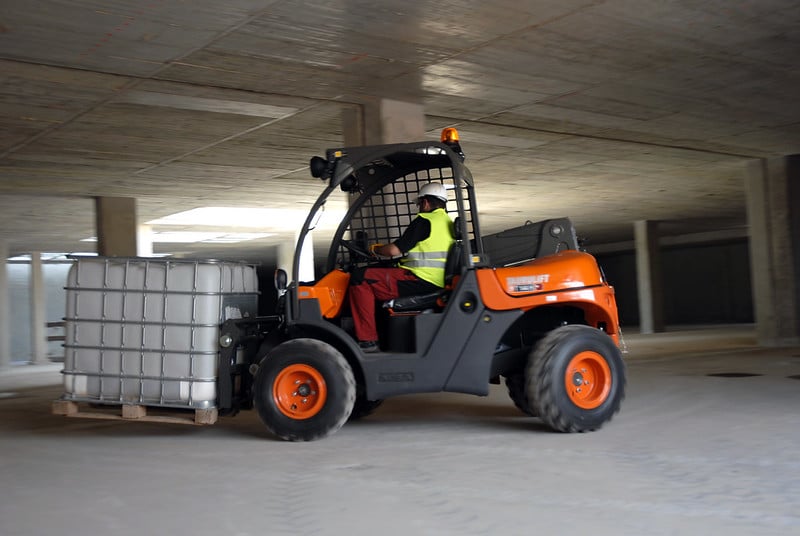

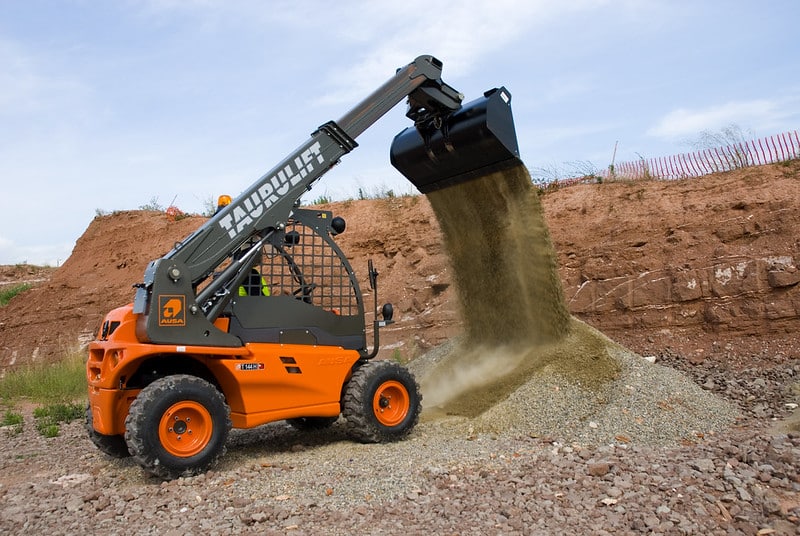

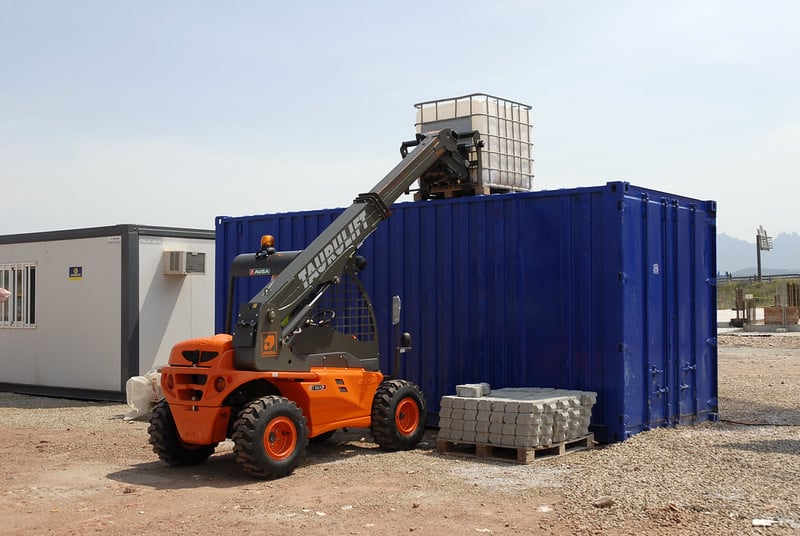

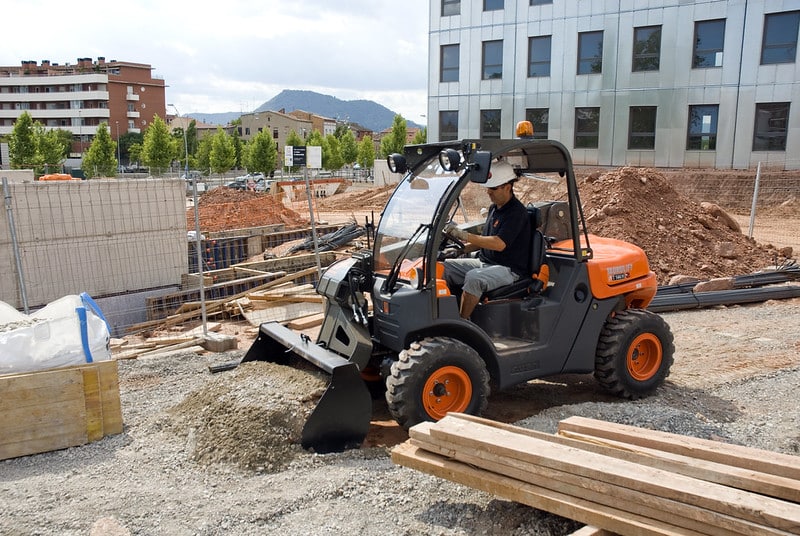

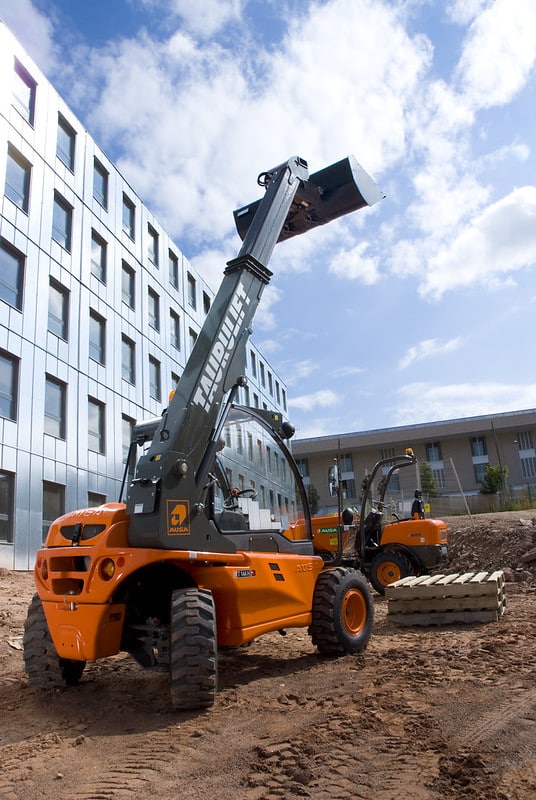

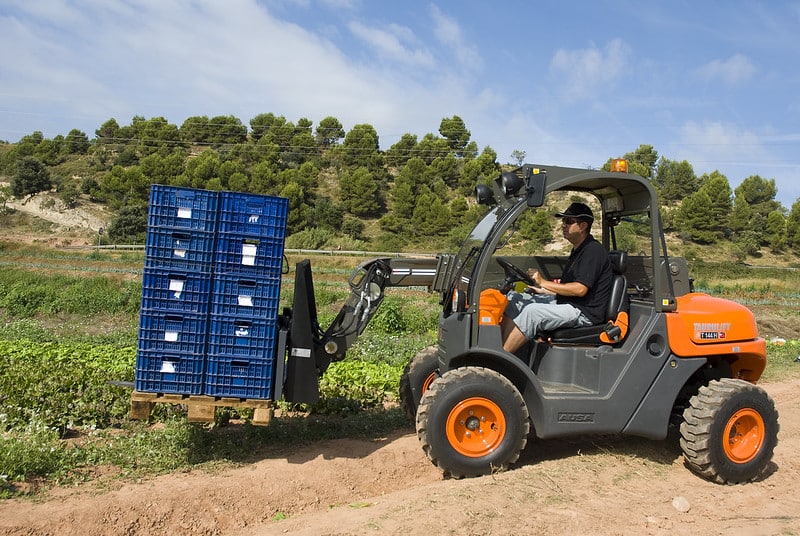

More Images & Videos
Technical Information
General
| Load capacity | 1350 kg |
| Load capacity at maximum height | 770 kg |
| Empty weight | 2527 kg |
| Transmission | Hydrostatic |
| Maximum lift | 4000 mm |
| Maximum lift under maximum load | 3400 mm |
| Maximum reach | 1682 mm |
| Maximum load at maximum reach | 580 kg |
Engine
| Brand | KUBOTA |
| Model | V1505-E4B |
| Power | 18.5 kW |
| Torque | 92,6@1700 |
| No. of cylinders | 4 |
| Emissions | Stage V – EPA Tier 4 |
| Noise level (LwA) | 103 dB(A) |
Driving
| Max. speed | 18.3 km/h |
| Maximum gradient | 25 % |
| External turning radius | 2982 mm |
| Steering modes | Two-wheel rear steer |
| Traction | 4×4 |
| Tyres | 11.0/65×12 |
Hydraulic system
| Flow rate | 20.8 l/min |
| Working pressure | 240 bar |
Tank capacity
| Fuel | 55 l |
| Hydraulic system | 32 l |
Brakes
| Service | Hydrostatic, retention |
| Parking | Negative, internal on hydrobase |
Equipment
Driving Position
Open ROPS/FOPS cab
Safety
Seat belt with fasten sensor, Seat with operator’s presence sensor, LED rotating beacon, Acoustic warning for reverse gear, Emergency stop, Overload locking system with 60-second deactivation push-button, Load level indicator
Lighting & Driving
Rear-view mirror
Comfort
Adjustable ergonomic seat, All-in-one joystick
Advanced equipment
Hydrostatic transmission, Inching pedal
Accessories
Waterproof document holder, 4th auxiliary hydraulic line
Implements
Two-hand control for locking and unlocking attachments
Forks
1,000 mm forks, 1,050 mm fork carriage
Couplers
AUSA mechanical coupler
