Snow blower

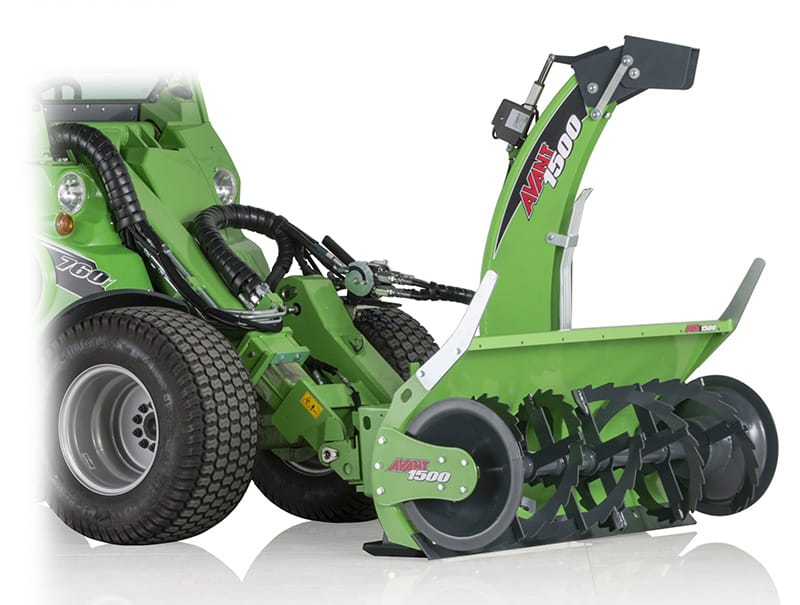

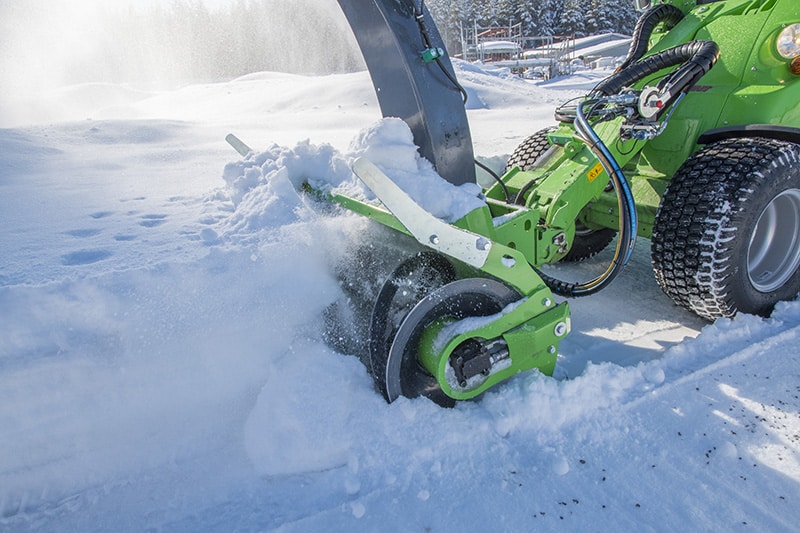

Avant snow blower is an efficient snow removal tool with advanced technology. The frame and discharge chute are designed so that there are as little as possible passive surfaces which would prevent snow movement. This open design means efficient snow blowing โ€“ the feeding auger eats the snow quickly and easily and moves it to the impeller which throws the snow out through the discharge chute. Thanks to this design the blower works well both with dry and wet snow and clears compacted snow banks also. The feeding auger is made of wear-resistant Hardox steel.

The blower is equipped with two hydraulic motors: one for the auger and one for the discharge impeller. The new type of hydraulic motor on the impeller improves the efficiency of the blower considerably. Snow discharge can be directed accurately: the
discharge chute can be rotated 270ยฐ electrically, operated from the driverโ€™s seat.

Throwing height can be adjusted manually, electric throwing height adjustment is available as an option and requires the optional Opticontrol on the loader.

Two working widths available: 1150 mm and 1500 mm.

Efficient high volume snow blower
Works well both with dry and wet snow
Equipped with two hydraulic motors: one for the auger and one for the discharge impeller
Electric 270ยฐ discharge chute rotation as standard
Exact snow discharge
Manual throwing height adjustment as standard, electric adjustment available as an option

More Images & Videos

Technical Information

Model 1150 1500
Working width 1150 mm 1500 mm
Total width 1230 mm 1580 mm
Frame height 680 mm 680 mm
Auger diameter 460 mm 460 mm
Chute rotation 270ยฐ 270ยฐ
Weight 240 kg 296 kg
Product no. A434731 A428062



The optional Opticontrol is recommended on the loader. If the snow blower is equipped with the electric throwing height adjustment, the switch pack must be mounted.

Options

Option Product no.
Electric throwing height adjustment A430172

Compatible Models

very-compatible icon220 - model 1150
very-compatible icon225 - model 1150
very-compatible icon225LPG - model 1150
incompatible icon313S - model 1150
compatible icon320S - model 1150
very-compatible icon420 & 423 - model 1150
very-compatible icon520 - model 1150
very-compatible icon523 - model 1150
very-compatible icon525LPG - model 1150
very-compatible icon528 - model 1150
very-compatible icon530 - model 1150
very-compatible iconR20 - model 1150
very-compatible iconR28 - model 1150
very-compatible iconR35 - model 1150
very-compatible iconR35 (stage V) - model 1150
very-compatible icon630 - model 1150
very-compatible icon635 - model 1150
very-compatible icon635 (stage V) - model 1150
very-compatible icon640 - model 1150
very-compatible icon640 (stage V) - model 1150
compatible icon735 - model 1150
compatible icon745 - model 1150
compatible icon750 - model 1150
compatible icon755i - model 1150
compatible icon760i - model 1150
compatible icon850 - model 1150
compatible icon860i - model 1150
compatible icone513 - model 1150
compatible icone527 - model 1150
incompatible icon220 - model 1500
incompatible icon225 - model 1500
incompatible icon225LPG - model 1500
incompatible icon313S - model 1500
incompatible icon320S - model 1500
incompatible icon420 & 423 - model 1500
incompatible icon520 - model 1500
incompatible icon523 - model 1500
incompatible icon525LPG - model 1500
incompatible icon528 - model 1500
incompatible icon530 - model 1500
incompatible iconR20 - model 1500
incompatible iconR28 - model 1500
very-compatible iconR35 - model 1500
compatible iconR35 (stage V) - model 1500
compatible icon630 - model 1500
very-compatible icon635 - model 1500
compatible icon635 (stage V) - model 1500
very-compatible icon640 - model 1500
compatible icon640 (stage V)
compatible icon735 - model 1500
very-compatible icon745 - model 1500
very-compatible icon750 - model 1500
very-compatible icon755i - model 1500
very-compatible icon760i - model 1500
very-compatible icon850 - model 1500
very-compatible icon860i - model 1500
incompatible icone513 - model 1500
incompatible icone527 - model 1500
