Slurry mixer

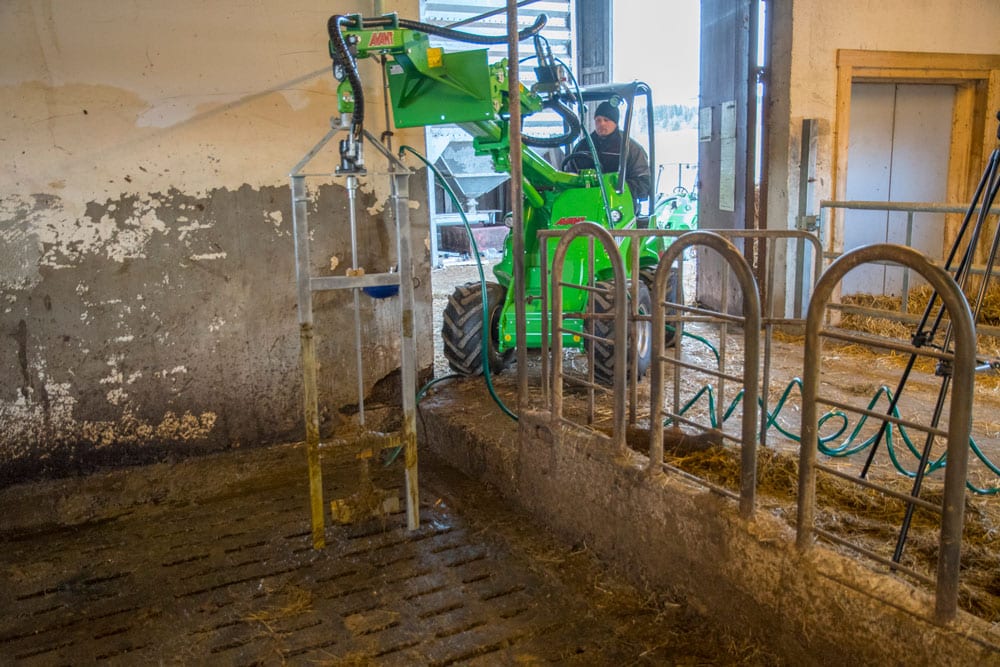

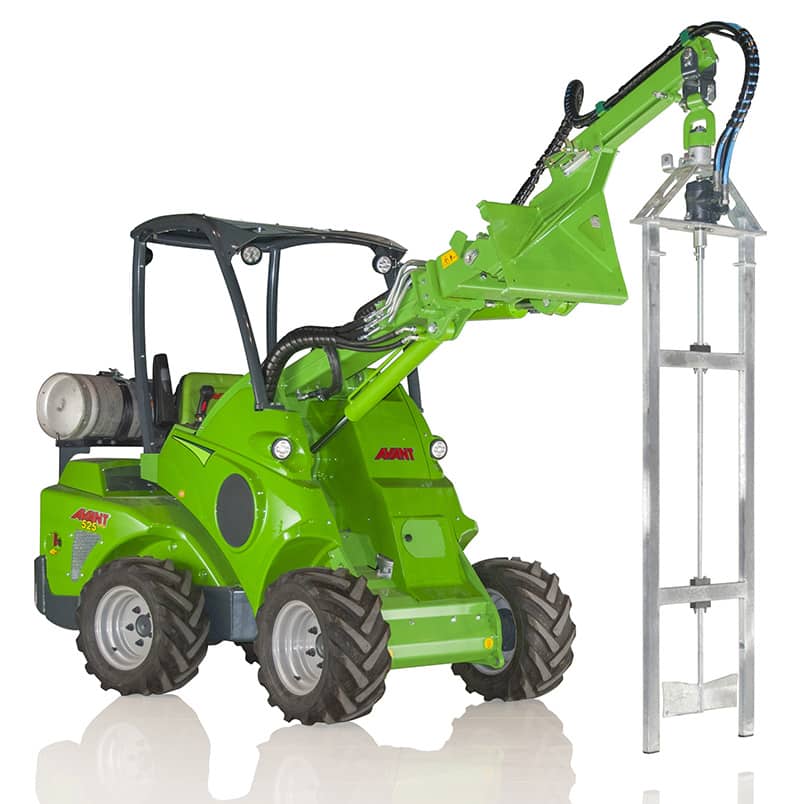

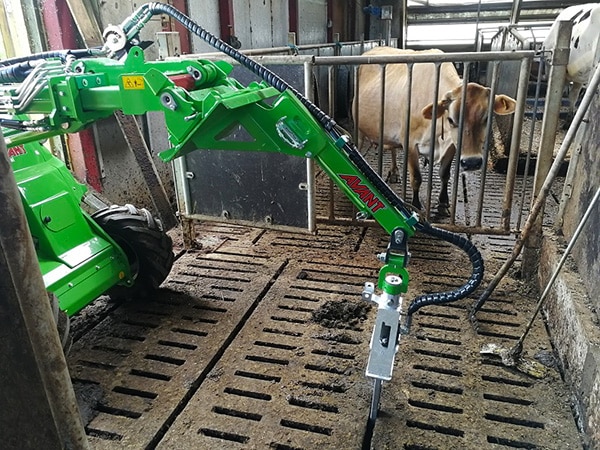

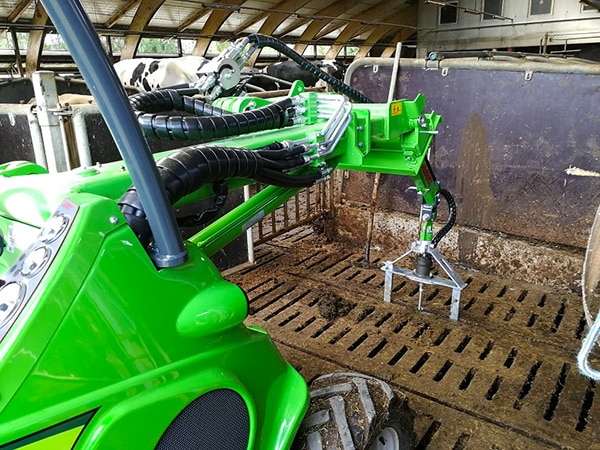

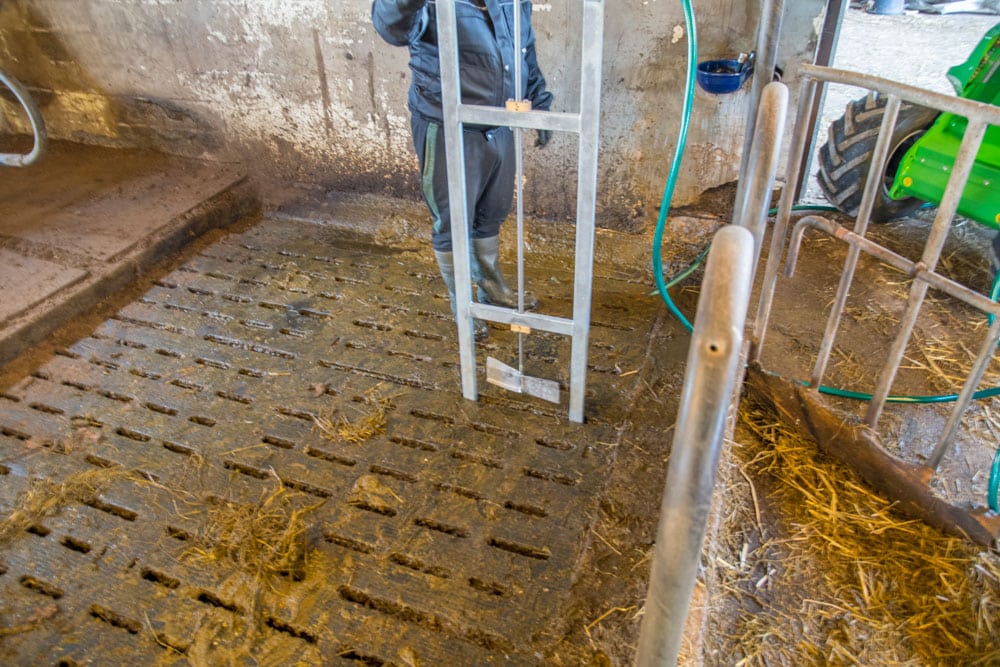

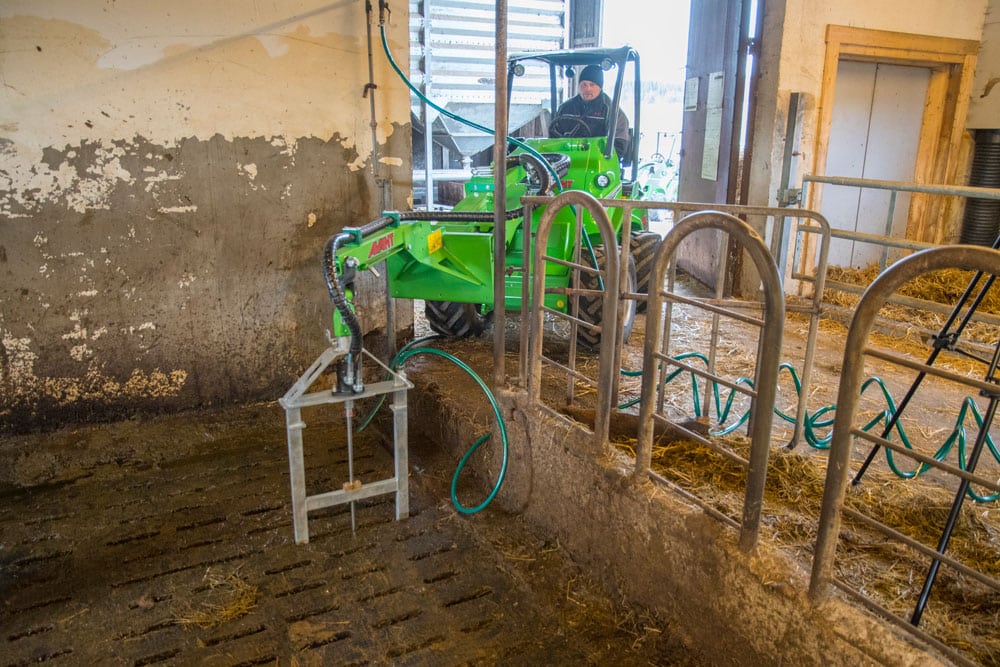

Slurry mixer is a special attachment for cattle farms: in cattle buildings with slatted floors, where the animal waste falls through the slats directly to the storage tank below the floor. The slurry that forms in the tank needs to be mixed from time to time in order that it stays liquid and moves towards the bigger slurry container which is usually located outside the building.

The unit is equipped with a propeller which mixes the slurry, powered by a hydraulic motor. The mixer is 25 mm thick and 490 mm wide so that it fits through/between the floor slats into the storage tank. Working depth is max. 1,5 m. There is also a bolt at the upper end of the mixing shaft which shows when the mixer can be liftedย up throughย the slat: when the bolt is crosswise in relation to the loader. The mixer is alsoย equipped with a coupling for water hose at the upper end of the frame tube. Water is conductedย insideย theย tube downย to the mixing propeller.

Special attachment for mixing of slurry in cattle buildings with slatted floors
Equipped with a propeller, powered by a hydraulic motor, which mixes the slurry
Fits through/between the floor slats into the storage tank below โ€“ no need to remove the heavy concrete slats
Galvanized steel frame, mixing shaft and propeller made of acid-resisting steel
Coupling for water hose on the frame tube

More Images & Videos

Technical Information

Mixing frame thickness x width 25 mm x 490 mm
Working depth max. 1500 mm
Total width 550 mm
Length 920 mm
Height 2155 mm
Weight 75 kg
Product no. A37389

Options

Compatible Models

incompatible icon220
incompatible icon225
incompatible icon225LPG
very-compatible icon313S
very-compatible icon320S
very-compatible icon420 & 423
very-compatible icon520
very-compatible icon528
very-compatible icon525LPG
very-compatible icon528
very-compatible icon530
very-compatible iconR20
very-compatible iconR28
very-compatible iconR835
very-compatible icon630
very-compatible icon635
very-compatible icon640
very-compatible icon735
very-compatible icon745
very-compatible icon750
very-compatible icon755i
very-compatible icon760i
very-compatible icon850
very-compatible icon860i
very-compatible icone513
very-compatible icone527

More Attachments

avant_kallistusadapteri1

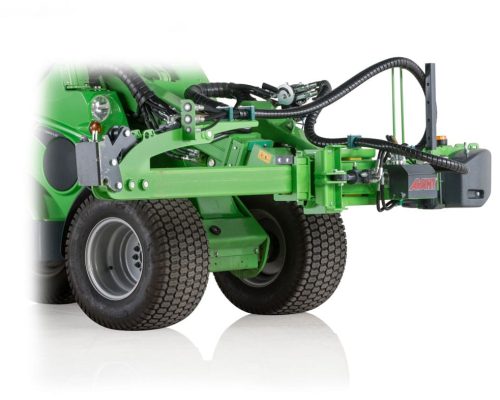

A424552-Hydraulic-side-arm-S30
