Silage fork

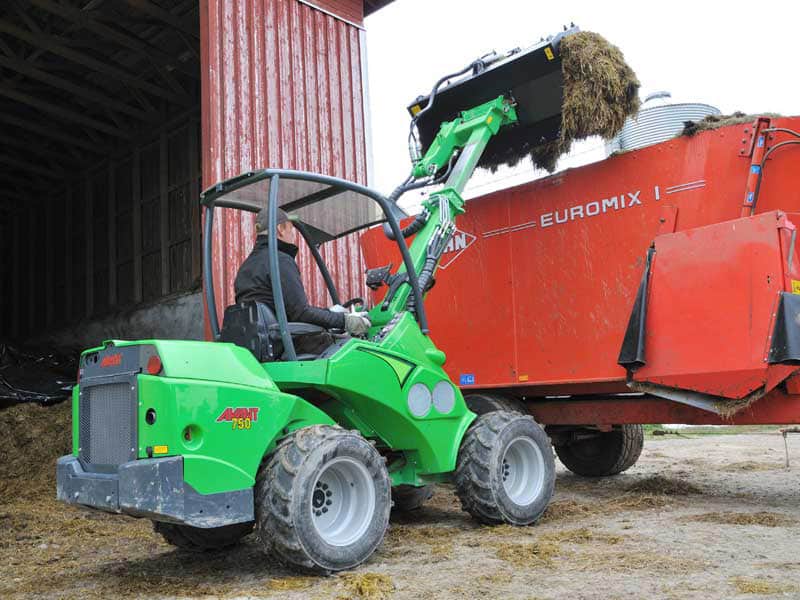

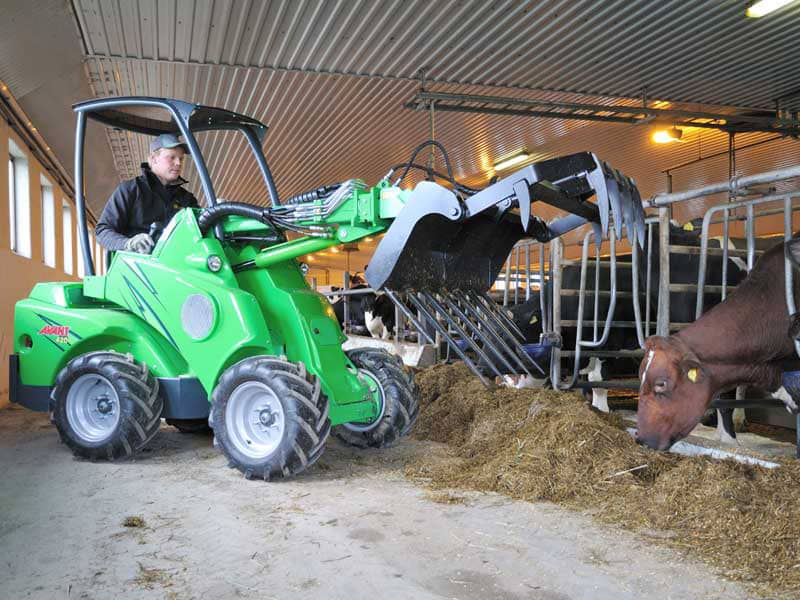

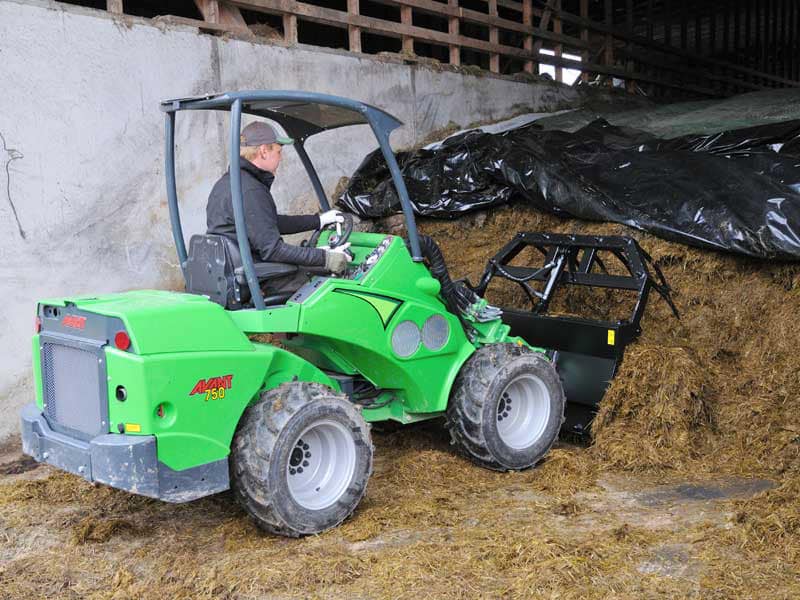

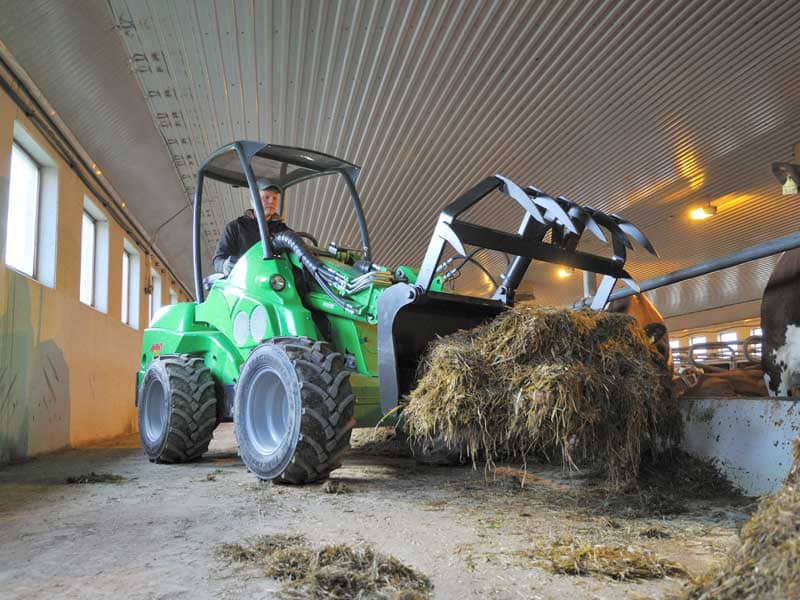

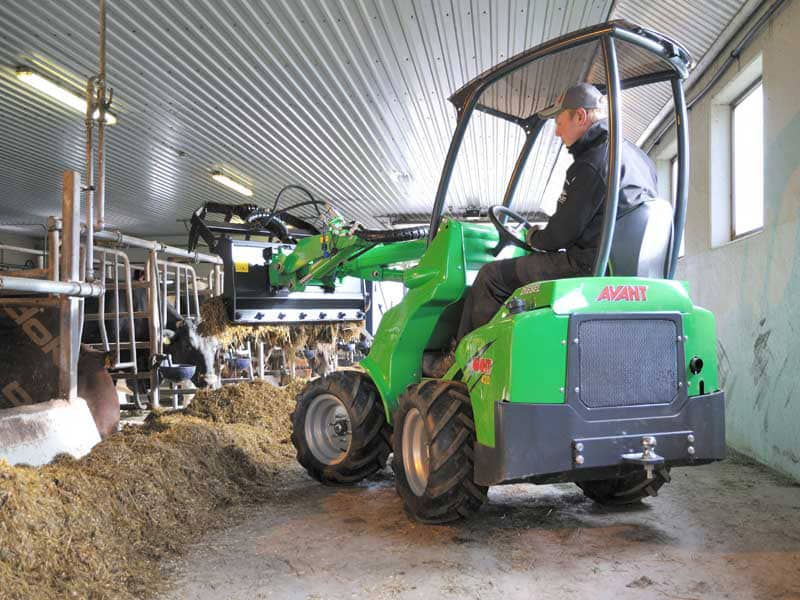

A robust silage fork equipped with a powerful hydraulic cylinder can be fitted on all Avant loader models. The strong blade type pins of the grapple penetrate into all types of feed. The fork has replaceable lower tines made of reinforced steel. The grapple goesย up to vertical position and this, together with the powerful cylinderย enables easy grabbing e.g. on a round bale.

Compact model, which is well suited for silage distributing in small and confined places
The front edges on the forks are rounded, which offers a smaller turning diameter
Mounting plate which increases tipping angle by 17 degrees is available as an option

More Images & Videos

Technical Information

Width Weight Product no
800 mm 120 kg A428328
900 mm 126 kg A36299
1050 mm 138 kg A36313
1300 mm 160 kg A36319

Options

Mounting plateย which increases tipping angle by 17 degreesย A36337
(only for special applications, risk of puncturing the front tyres)

Compatible Models

compatible icon220
compatible icon225
compatible icon225LPG
very-compatible icon313S
very-compatible icon320S
very-compatible icon420 & 423
very-compatible icon520
very-compatible icon523
very-compatible icon525LPG
very-compatible icon528
very-compatible icon530
very-compatible iconR20
very-compatible iconR28
very-compatible iconR35
very-compatible icon630
very-compatible icon635
very-compatible icon640
compatible icon735
compatible icon745
compatible icon750
compatible icon755i
compatible icon760i
compatible icon850
compatible icon860i
very-compatible icone513
very-compatible icone527
