Side shift adapters

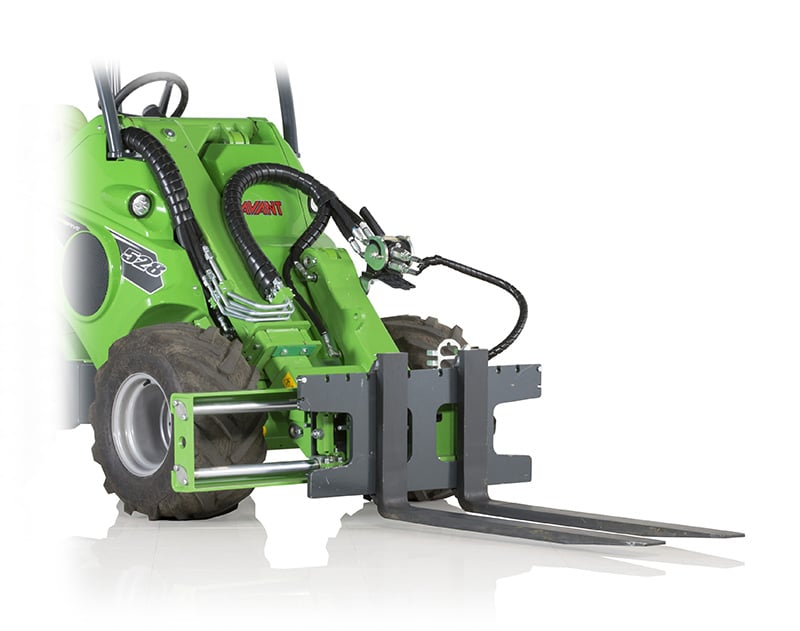

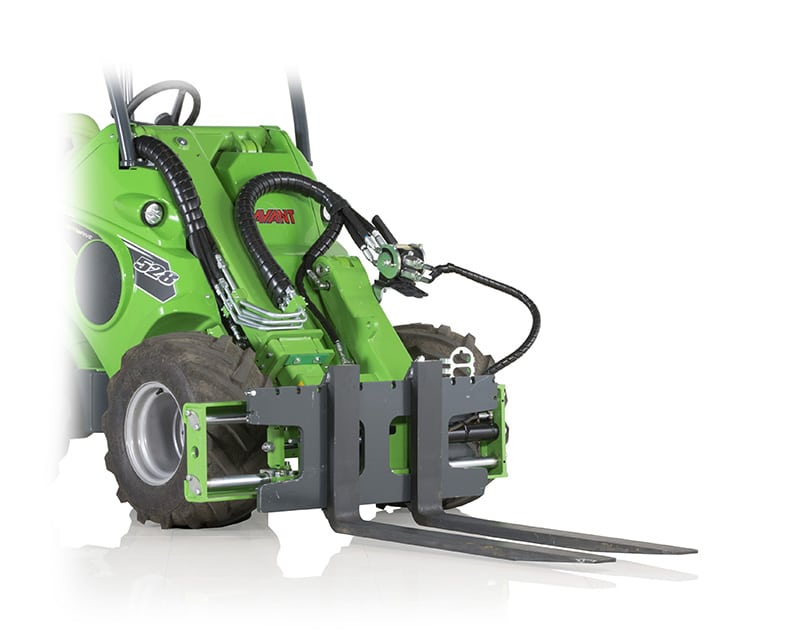

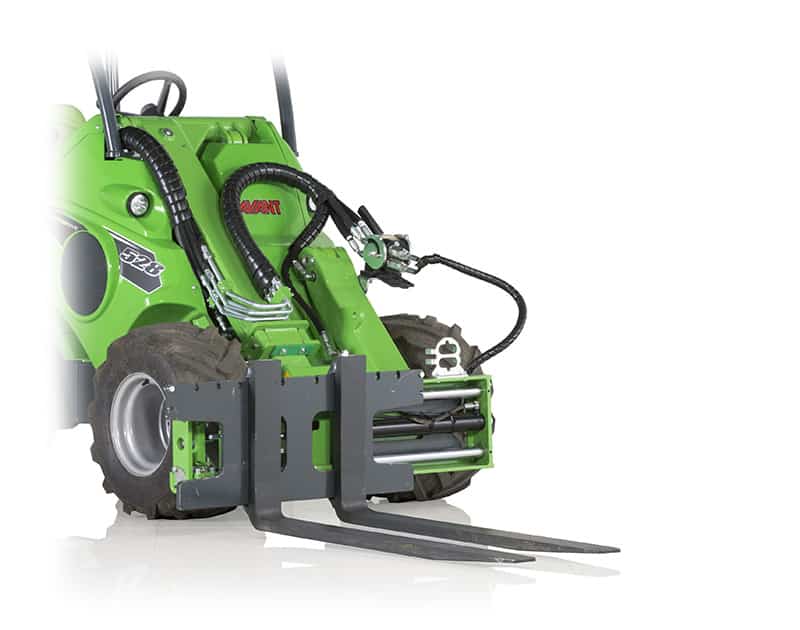

Hydraulic side shift adapter

The hydraulic side shift adapter offers easy, stepless side shift of attachment, operated from the driverโ€™s seat. The solid and robust design features strong sliding guides which can also be lubricated. The quick attach plate on the adapter can be mounted in three different positions: on the left or on the right or in the middle of the adapter. This gives three different side shift options: 500 mm side shift to the right or to the left, or 250 mm side shift in both directions.

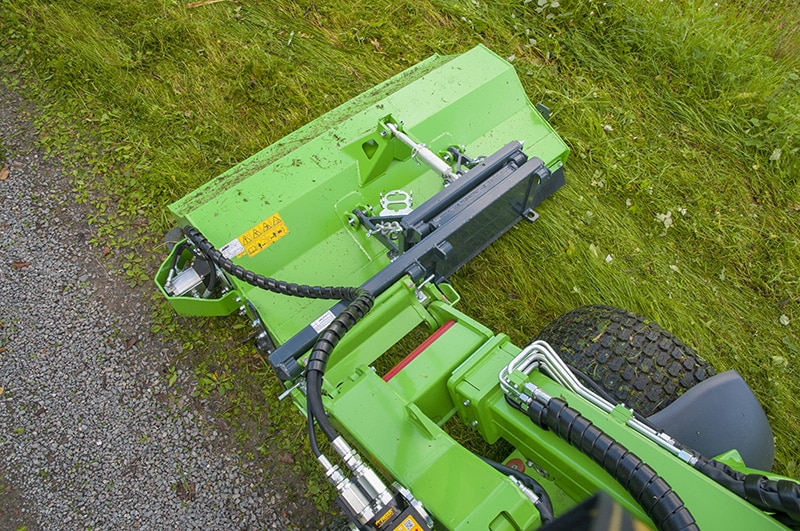

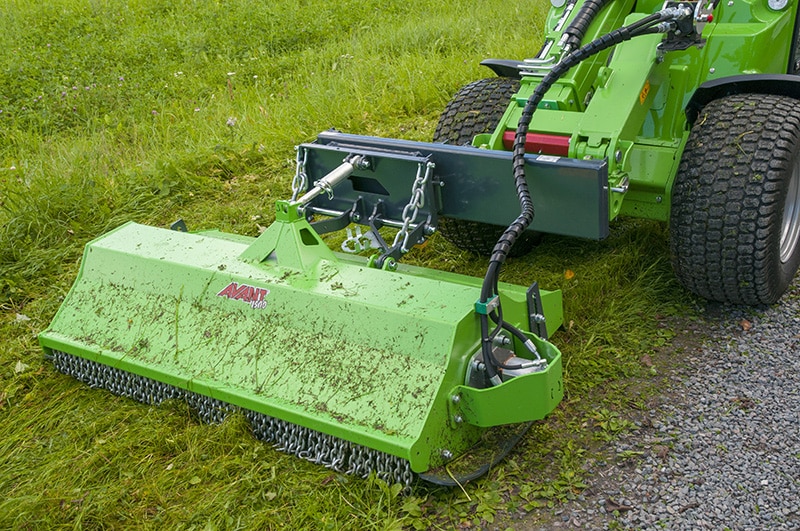

If a hydraulic attachment โ€“ 4 in 1 bucket, flail mower, cold planer, etc. โ€“ is mounted on the side shift adapter, the loader must be equipped with the optional second auxiliary hydraulics outlet in the front, so that the attachment hoses are mounted on the multi-connector and the side shift adapter hoses on the optional second outlet.

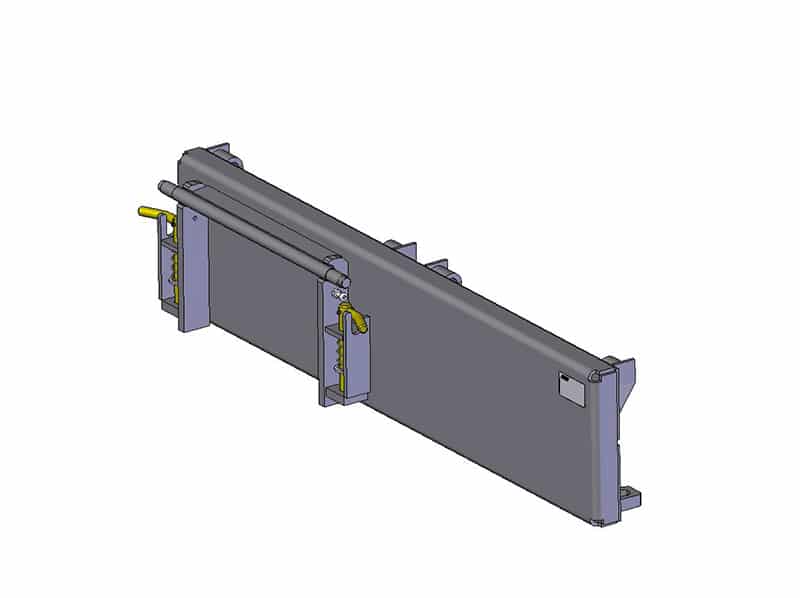

Side shift adapter

Side shift adapter is a rigid adapter plate which mounts on the loaderโ€™s attachmentย couplingย plate. Itย isย equippedย withย twoย quickย attachย brackets, sideย byย side,ย forย mountingย onย theย loaderโ€™s attachment couplingย plate. Quickย attachย pinsย forย theย attachmentย areย onย theย opposite side of the adapter. This means that the attachment can be mounted on the adapter in two different positions:

– with ย side ย shift: ย the ย attachment ย is ย 600 ย mm ย to ย the ย side ย from ย the ย centerline of the loaderโ€™s attachment coupling plate

– without side shift: theย attachmentย isย mountedย onย the bracketsย which are against the loaderโ€™s attachment coupling plate

Max. load 1000 kg
Easy, stepless hydraulic side shift of the attachment operated from the driverโ€™s seat
Side shift max. 500 mm to the right or the left, or 250 mm in both directions, depending on the mounting of the adapterโ€™s attachment plate
Moves attachment 600 mm to the side from centerline
Two models available: 600 mm side shift to the right or to the left

More Images & Videos

Technical Information

Hydraulic side shift adapter

TECHNICAL INFORMATION

Width 1270 mm
Height 434 mm
Length 218 mm
Weight 115 kg
Product no. A37235



Side shift adapter

Side shift adapter 600 mm, right 600 mm, left
Width 1150 mm 1150 mm
Height 265 mm 265 mm
Length 157 mm 157 mm
Weight 45 kg 45 kg
Product no A37097 A37166

Options

Compatible Models

very-compatible icon220 - model A37097
very-compatible icon225 - model A37097
very-compatible icon225LPG - model A37097
very-compatible icon313S - model A37097
very-compatible icon320S - model A37097
very-compatible icon420 & 423 - model A37097
very-compatible icon520 - model A37097
very-compatible icon523 - model A37097
very-compatible icon525LPG - model A37097
very-compatible icon528 - model A37097
very-compatible icon530 - model A37097
very-compatible iconR20 - model A37097
very-compatible iconR28 - model A37097
very-compatible iconR35 - model A37097
very-compatible icon630 - model A37097
very-compatible icon635 - model A37097
very-compatible icon640 - model A37097
very-compatible icon735 - model A37097
very-compatible icon745 - model A37097
very-compatible icon750 - model A37097
very-compatible icon755i - model A37097
very-compatible icon760i - model A37097
very-compatible icon850 - model A37097
very-compatible icon860i - model A37097
very-compatible icone513 - model A37097
very-compatible icone527 - model A37097
very-compatible icon220 - model A37166
very-compatible icon225 - model A37166
very-compatible icon225LPG - model A37166
very-compatible icon313S - model A37166
very-compatible icon320S - model A37166
very-compatible icon420 & 423 - model A37166
very-compatible icon520 - model A37166
very-compatible icon523 - model A37166
very-compatible icon525LPG - model A37166
very-compatible icon528 - model A37166
very-compatible icon530 - model A37166
very-compatible iconR20 - model A37166
very-compatible iconR28 - model A37166
very-compatible iconR35 - model A37166
very-compatible icon630 - model A37166
very-compatible icon635 - model A37166
very-compatible icon640 - model A37166
very-compatible icon735 - model A37166
very-compatible icon745 - model A37166
very-compatible icon750 - model A37166
very-compatible icon755i - model A37166
very-compatible icon760i - model A37166
very-compatible icon850 - model A37166
very-compatible icon860i - model A37166
very-compatible icone513 - model A37166
very-compatible icone527 - model A37166
compatible icon220 - model A37235
compatible icon225- model A37235
compatible icon225LPG- model A37235
compatible icon313S- model A37235
compatible icon320S- model A37235
very-compatible icon420 & 423- model A37235
very-compatible icon520- model A37235
very-compatible icon523- model A37235
very-compatible icon525LPG- model A37235
very-compatible icon528- model A37235
very-compatible icon530- model A37235
very-compatible iconR20- model A37235
very-compatible iconR28- model A37235
very-compatible iconR35- model A37235
very-compatible icon630- model A37235
very-compatible icon635- model A37235
very-compatible icon640- model A37235
very-compatible icon735- model A37235
very-compatible icon745- model A37235
very-compatible icon750- model A37235
very-compatible icon755i- model A37235
very-compatible icon760i- model A37235
very-compatible icon850- model A37235
very-compatible icon860i- model A37235
very-compatible icone513- model A37235
very-compatible icone527- model A37235
