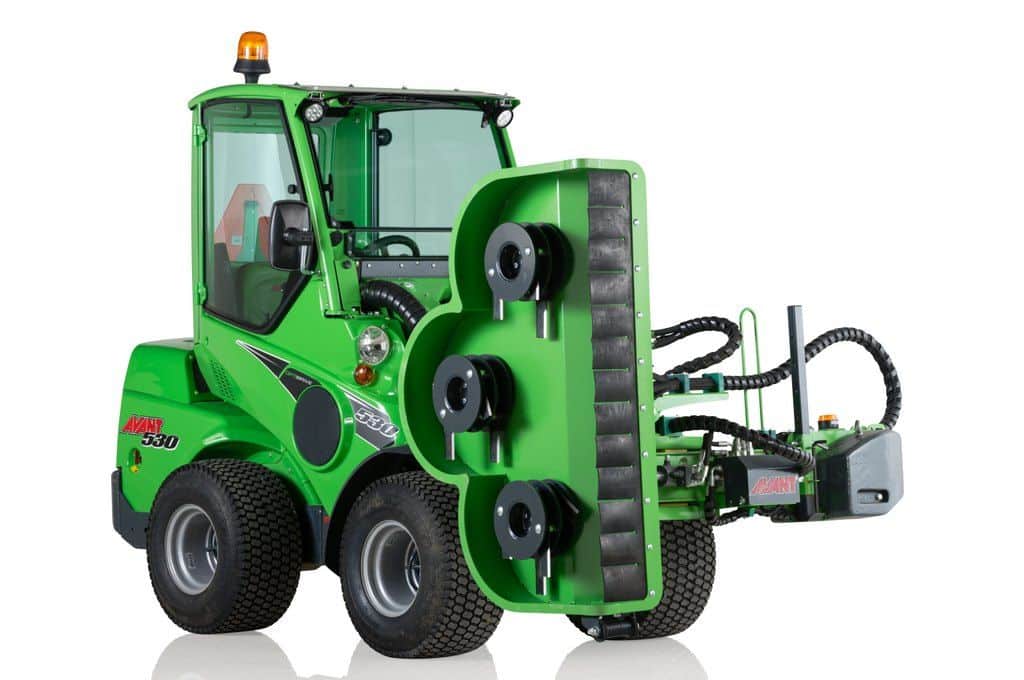

S30 Rotary hedge cutter
Rotary hedge cutter S30 is an efficient attachment for cutting of shrub, bush, hedge and similar vegetation. It is equipped with three rotors with 4 cutting blades on each rotor. The blades are mounted in two different heights 2+2 on the rotor which – together with the outside rotors rotating inwards – means that they mulch the material into small bits which don’t need to be collected after cutting.
The rotary hedge cutter can be mounted both on the A431070 mechanical side arm and on the A424552 hydraulic side arm. With Avant 600 series the optional 180 kg rear side weights A49063 are recommended on the loader for better stability.

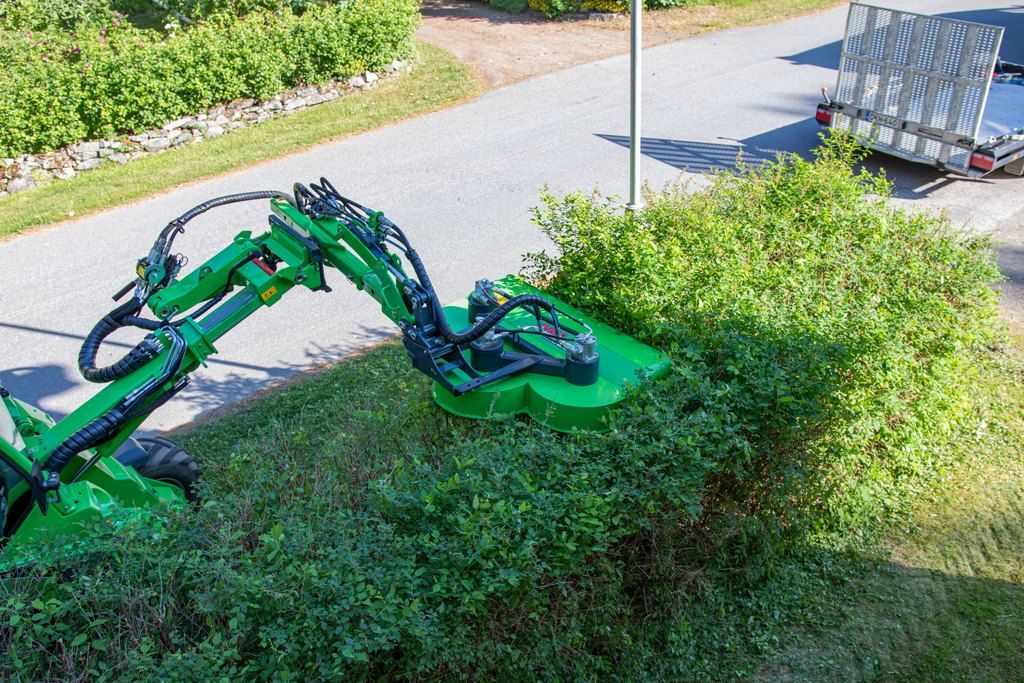

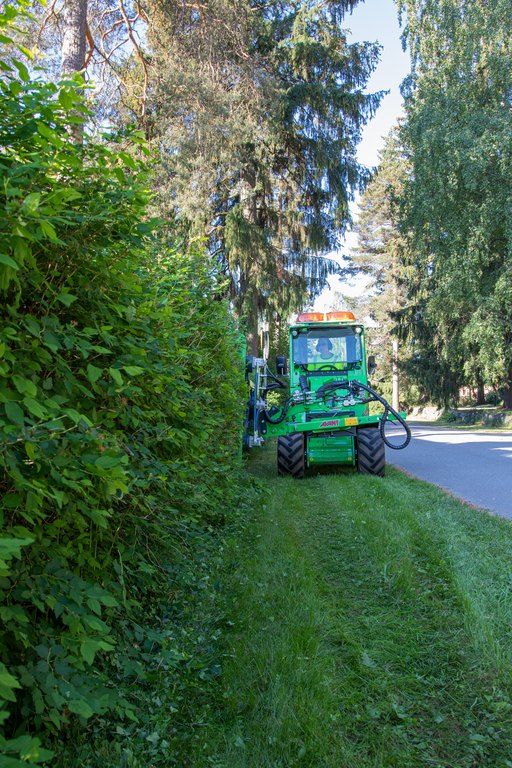

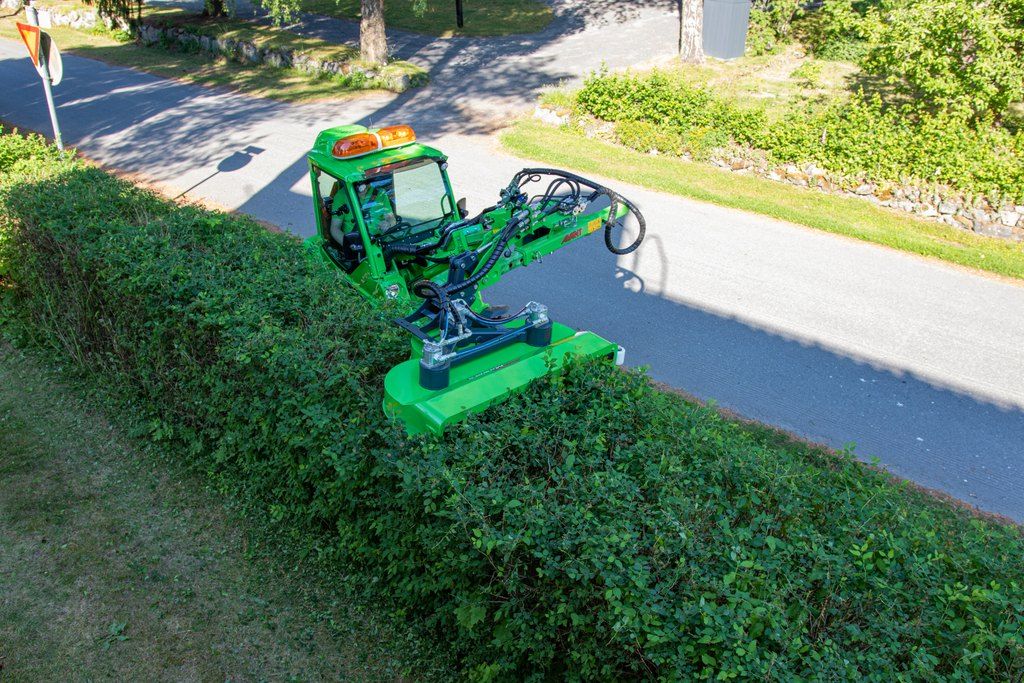

Efficient hedge cutter on S30 side arms, works both in horizontal and vertical position

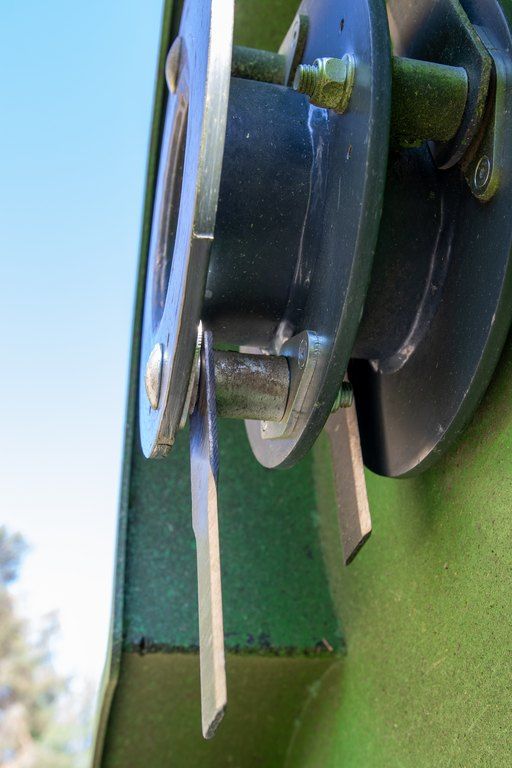

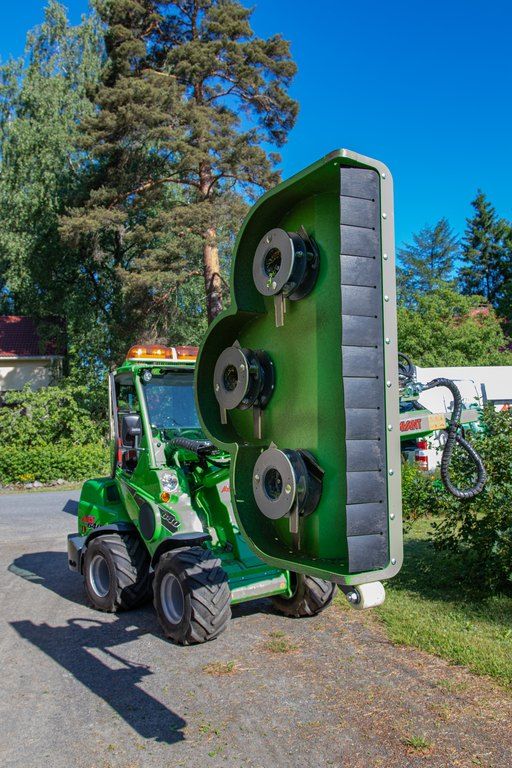

Equipped with three rotors with 4 cutting blades each
Mulches the material into small bits – cutting waste doesn’t need to be collected
Multi connector on hydraulic hoses available as an option, for mounting on the S30 side arms (side arm must also be equipped with multi connector)
More Images & Videos
Technical Information
| Working width | 1300 mm |
| Total width | 1470 mm |
| Cutting height | 25 – 100 mm |
| Blades | 12 pcs (4 pcs/rotor) |
| Length | 1025 mm |
| Height | 385 mm |
| Weight | 200 kg |
| Product no. | A435550 |
The optional Opticontrol® is required on the loader.
Options
A443003 Multi connector (3 connectors) + holder
Compatible Models
- Very compatible
- Compatible
- Incompatible
220225225LPG313S320S420 & 423520523525LPG528530R20R28
R35630635640735745750755i760i850860ie513e527
