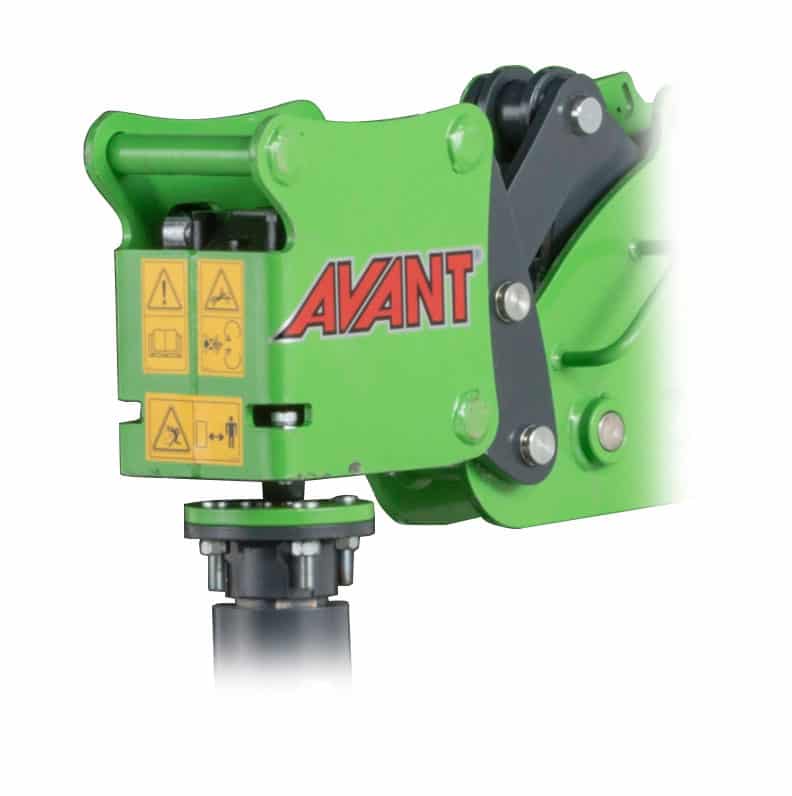

S30 Multi-function drive unit

The multi-function drive unit equipped with the S30 quick attach bracket is intendedย mainly for rotating different types of brushesย โ€“ XL weed brush, XL wire rope brush, and carousel broom. It can be mounted in a horizontal or vertical position on the side arms with S30 quick-attach system (both mechanical and hydraulic arm), but not on the attachment coupling plate of the loader. The S30 drive unit has the same 57 mm square shaft for attachments as theย A37190 Multi-function drive unitย but is equipped with lower torque and higher speed hydraulic motor and, therefore, worksย better with brushes. On the other hand, it doesnโ€™t have enough power to rotate auger drills or screw cone log splitter.

Multi connector on hydraulic hoses available as an option, for mounting on the S30 side arms (side arm must also be equipped with multi connector).

Drive unit which mounts on S30 side arms
Possible to mount in a horizontal or vertical position
Equipped with high-speed hydraulic motor, intended for rotating different types of brushes
Same 57 mm square shaft for attachments as on the A37190 Multi-function drive unit

More Images & Videos

Technical Information

Torque 950 Nm @ 200 bar
Rotating speed 95 rpm @ 30 l/min
Weight 30 kg
Product no. A429926



WORKS WITH

A37317 CAROUSEL BROOM

  • – Same ร˜ 1000 mm replaceable brush as on A2971 Carousel broom
  • – Weight 67 kg

A433646 CAROUSEL BROOM, STEEL

  • – ร˜ 1000 mm brush with steel bristles
  • – Weight 67 kg

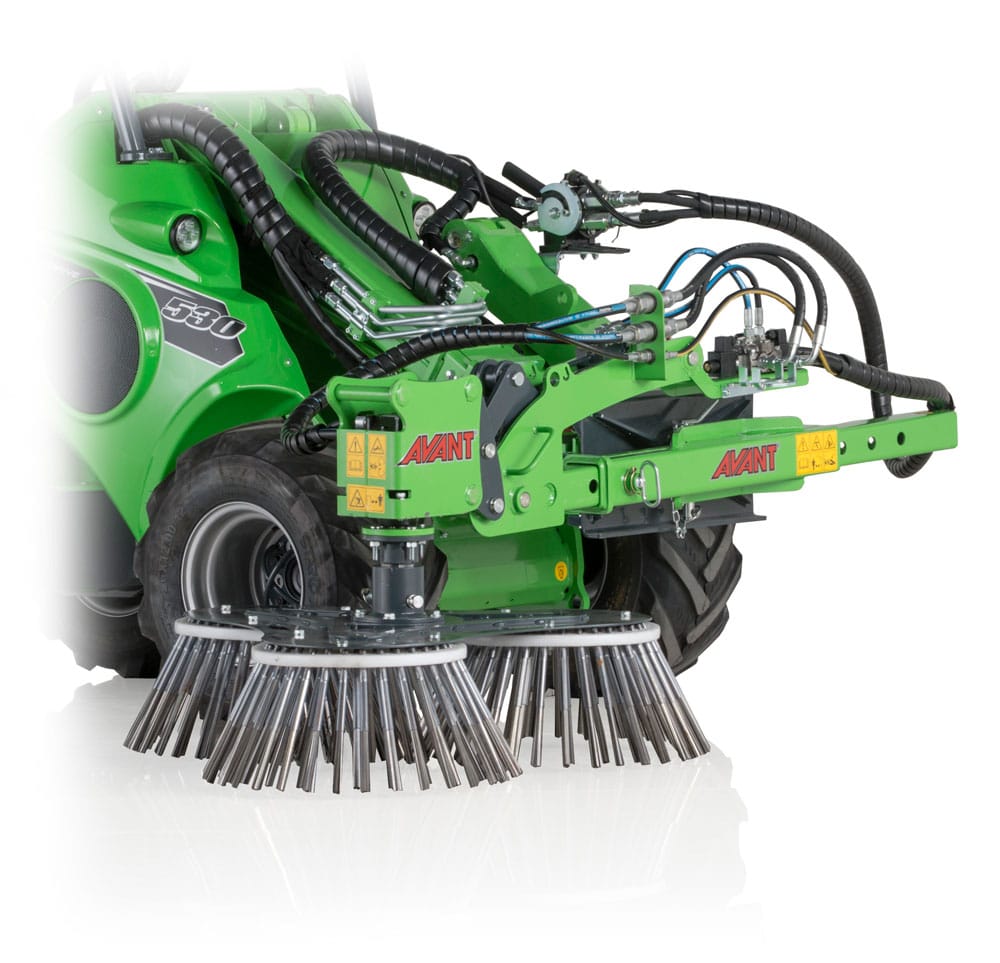

A429932 XL WEED BRUSH

  • – Efficient weed remover, can be mounted both on the normal and on the S30 drive unit
  • – Consists of 3 pcs ร˜ 600 mm steel brushes mounted together
  • – Max. diameter 1240 mm
  • Height 375 mm
  • – Weight 64 kg

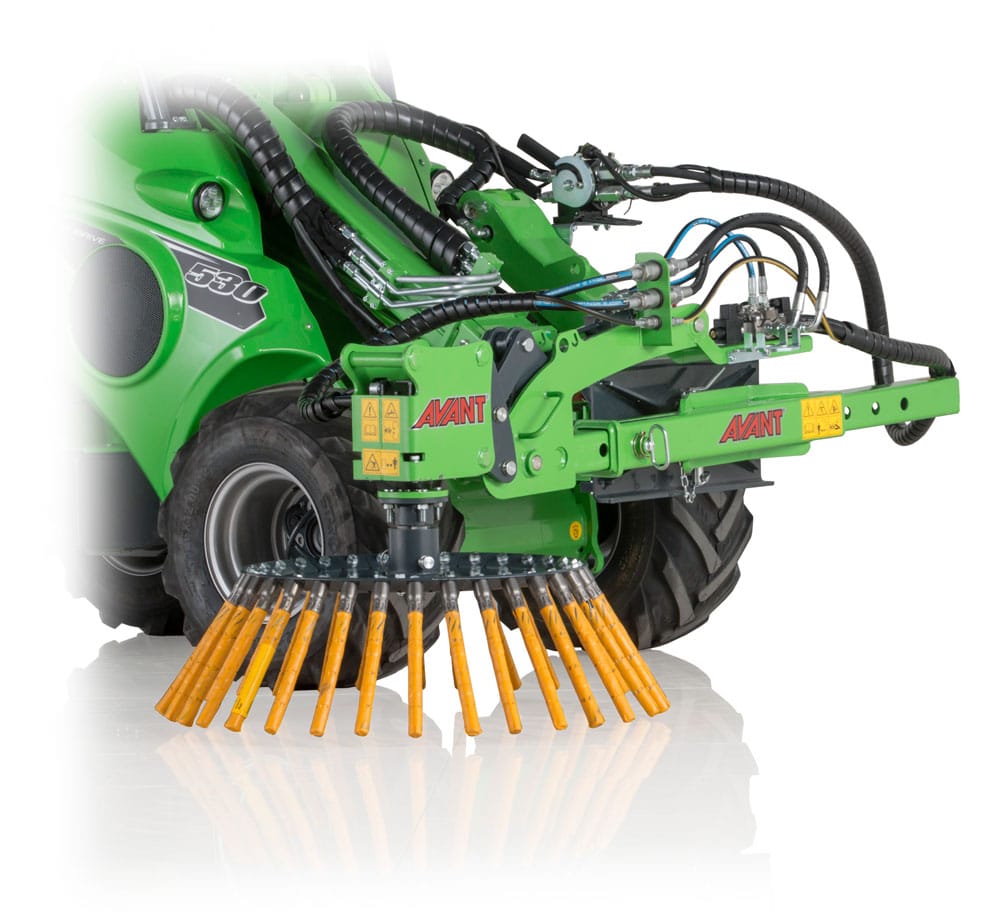

A431157 XL WIRE ROPE BRUSH

  • – Brush with 32 pcs heavy duty wire rope bundles, can be mounted both on the normal and on the S30 drive unit
  • – Max. diameter 990 mm
  • – Height 370 mm
  • – Weight 36 kg

Options

A443003 Multi connector (3 connectors) + holder

Compatible Models

incompatible icon220
incompatible icon225
incompatible icon225LPG
incompatible icon313S
incompatible icon320S
very-compatible icon420 & 423
very-compatible icon520
very-compatible icon523
very-compatible icon525LPG
very-compatible icon528
very-compatible icon530
very-compatible iconR20
very-compatible iconR28
very-compatible iconR35
very-compatible icon630
very-compatible icon635
very-compatible icon640
very-compatible icon735
very-compatible icon745
very-compatible icon750
very-compatible icon755i
very-compatible icon760i
very-compatible icon850
very-compatible icon860i
compatible icone513
compatible icone527
