S30 Cutting bar

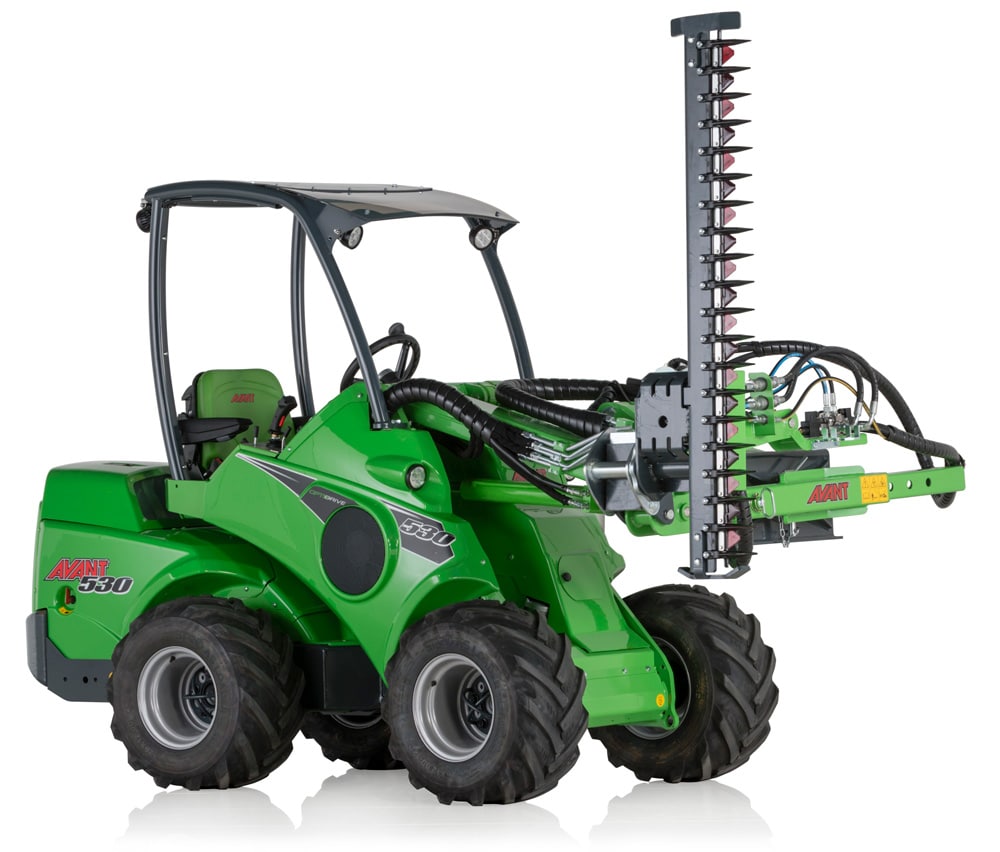

There are two models of cutting bars that mount on the sidearms with the S30 quick-attach system (both on the mechanical & hydraulic sidearm). They cannot be mounted on the attachment coupling plate of the loader.

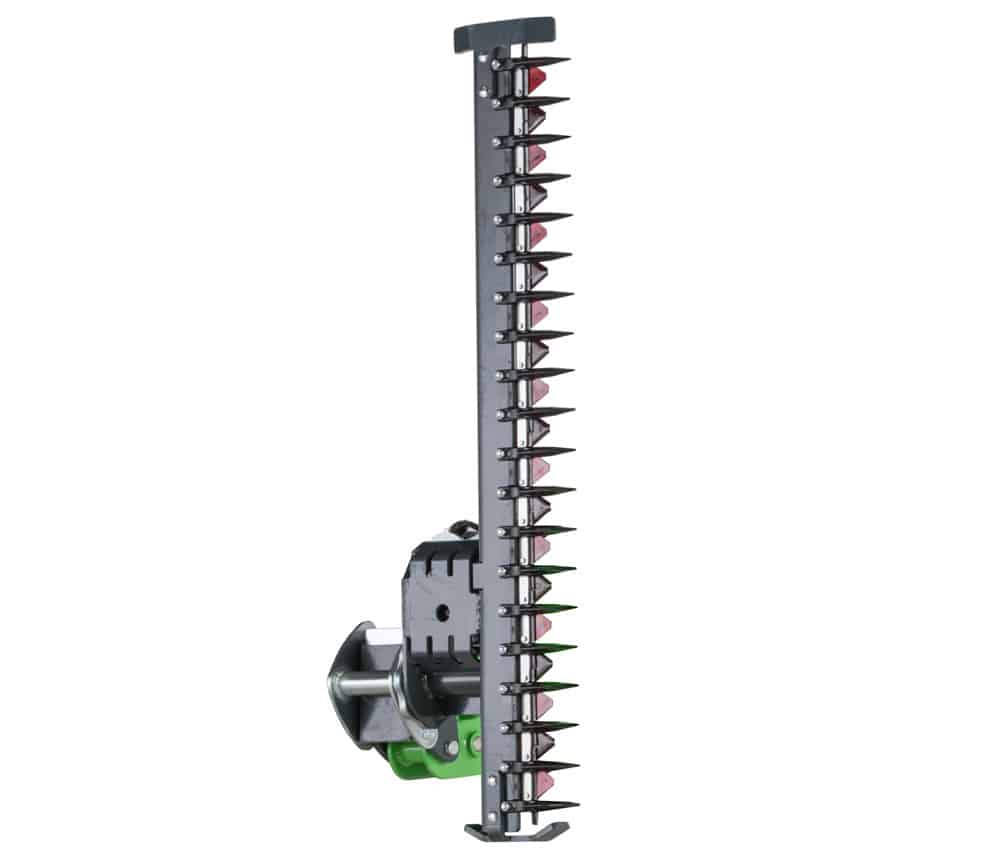

The A430938 cutting bar is equipped with the same cutting blades and blade guides as the A35676 cutting bar. The frame and actuator mechanism are however stronger, which means the A430938 bar is optimized for hedge cutting and doesnโ€™t work too well with hay because of the higher frame. There are wear plates at each end of the cutting bar, useful when working on paved and asphalt surfaces for instance.

Theย A434613ย cuttingย barย with doubleย knives is a more precise hedge cutter and makes a cleaner cut thanks to the double knife design which cuts the branches by sawing them.

The mounting bracket of the cutting bars is pivoted and locked with a bolt, and can be turned manually in different positions. This gives the possibility to for instance cut the hedge horizontally, vertically and in different angles.The cutting bars are also equipped with a pressure relief valve which protects the unit if it hits an obstacle.

Efficient and quick hedge cutter also for higher hedges
Cutting both horizontally and vertically thanks to pivoting mounting bracket
Two models
Multi connector on hydraulic hoses available as an option, for mounting on the S30 side arms (side arm must also be equipped with multi connector)

More Images & Videos

Technical Information

A430938 A434613
Working width 1500 mm 1500 mm
Total width 1600 mm 1790 mm
Weight 90 kg 58 kg
Product no. A430938 A434613



The optional Opticontrolยฎ is required on the loader.

Options

A443003 Multi connector (3 connectors) + holder

Compatible Models

incompatible icon220
incompatible icon225
incompatible icon225LPG
incompatible icon313S
incompatible icon320S
very-compatible icon420 & 423
very-compatible icon520
very-compatible icon523
very-compatible icon525LPG
very-compatible icon528
very-compatible icon530
very-compatible iconR20
very-compatible iconR28
very-compatible iconR35
very-compatible icon630
very-compatible icon635
very-compatible icon640
very-compatible icon735
very-compatible icon745
very-compatible icon750
very-compatible icon755i
very-compatible icon760i
very-compatible icon850
very-compatible icon860i
very-compatible icone513
very-compatible icone527
