Rotary hoe series 2

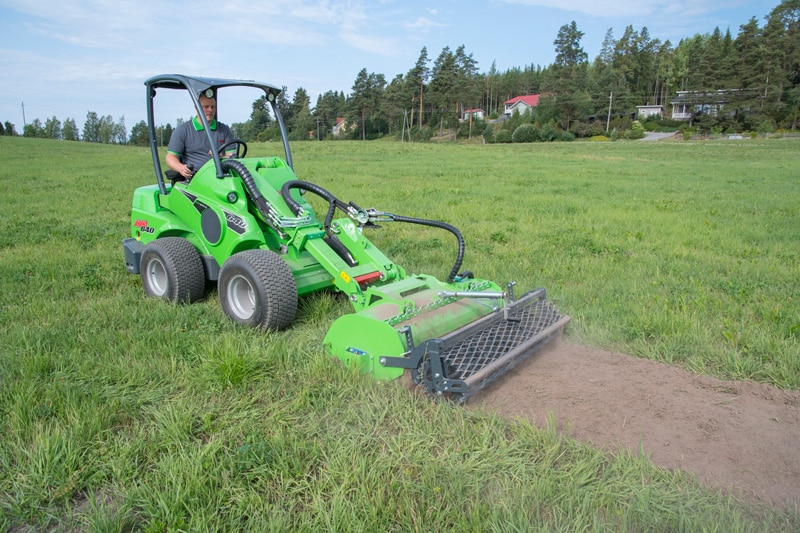

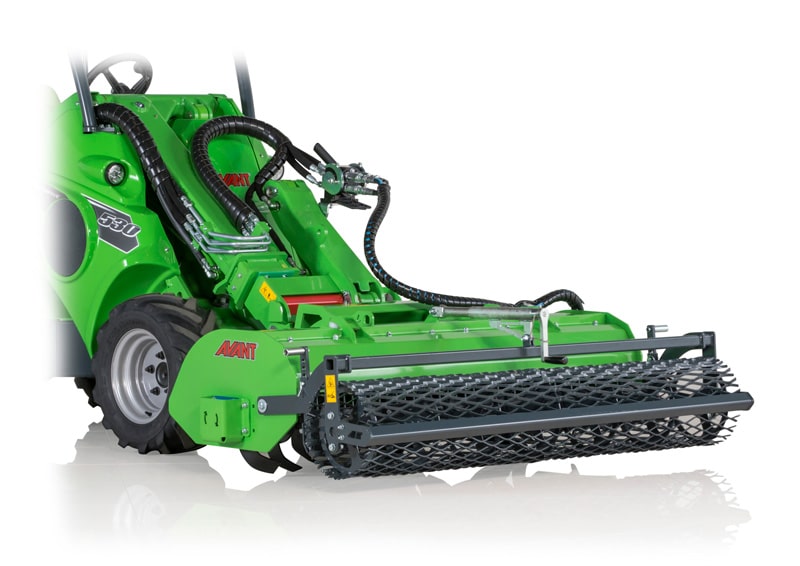

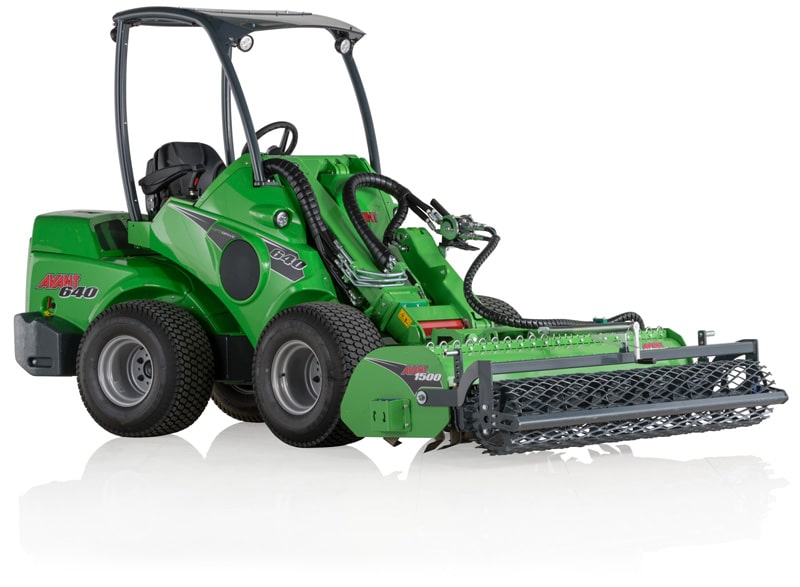

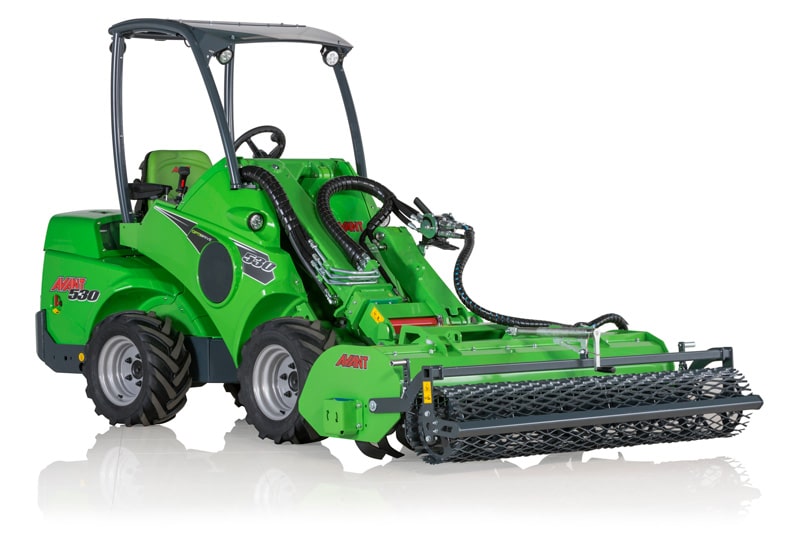

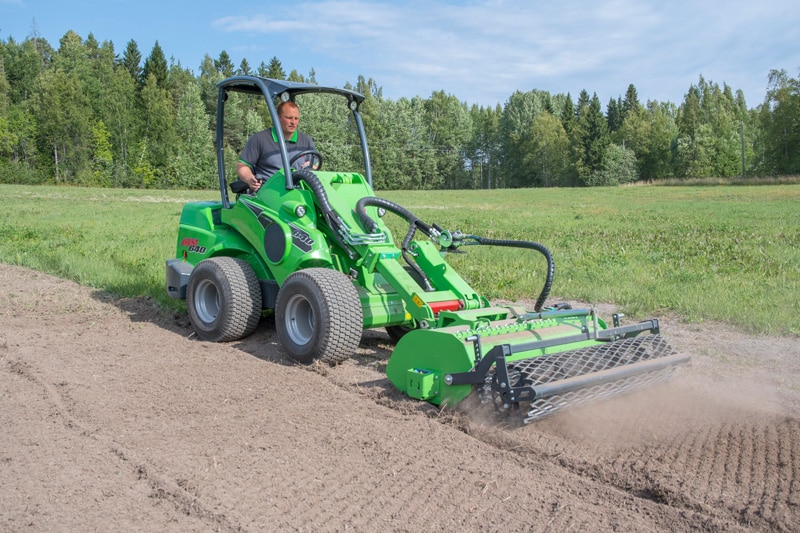

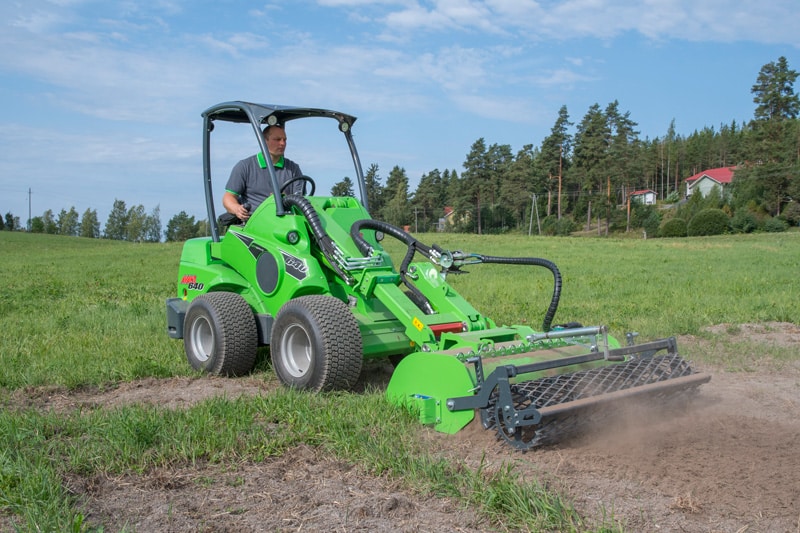

The rotary hoe is the right attachment for cultivating the soil, finishing seedbeds and rotovating.

It features a direct drive with the hydraulic motor mounted directly on the milling shaft. The curved blades guarantee efficient milling of the soil. A vertical grading rake with strong tines in front of the blades traps stones and debris, effectively allowing them to be buried in the soil. This gives a finished seeding bed in a single pass.ย  There is also an adjustable soil scraper blade between the milling shaft and the field roller. The working depth up to 150 mm isย steplessly adjustableย with the rear field roller.

Efficient rotary hoe for soil cultivating
Direct drive with a hydraulic motor mounted directly on the milling shaft

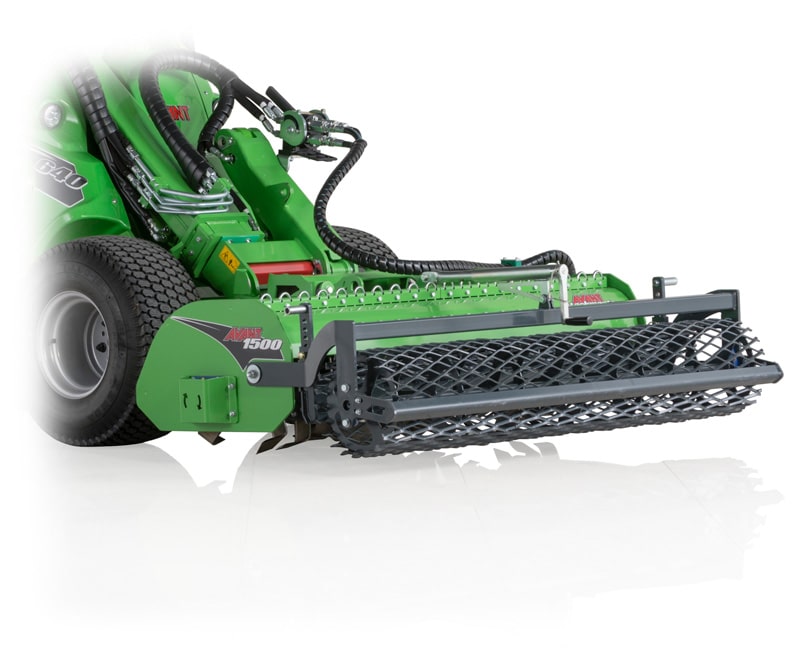

Vertical grading rake with strong tines in front of the blades which traps stones and debris
Working depth adjustable without steps with the rear field roller
Adjustable soil scraper blade between the milling shaft and the field roller

More Images & Videos

Technical Information

1200 1350 1500
Working width 1200 mm 1350 mm 1500 mm
Roller width 1400 mm 1550 mm 1700 mm
Total width 1530 mm 1705 mm 1830 mm
Length 1140 mm 1140 mm 1140 mm
Height 550 mm 550 mm 550 mm
Working depth 0-150 mm 0-150 mm 0-150 mm
Weight 250 kg 275 kg 285 kg
Product no. A425119 A443490 A37430

Options

Compatible Models

very-compatible icon220 - model 1200
very-compatible icon225 - model 1200
very-compatible icon225LPG - model 1200
incompatible icon313S - model 1200
incompatible icon320S - model 1200
very-compatible icon420 & 423 - model 1200
very-compatible icon520 - model 1200
very-compatible icon523 - model 1200
very-compatible icon525LPG - model 1200
very-compatible icon528 - model 1200
very-compatible icon530 - model 1200
very-compatible iconR20 - model 1200
very-compatible iconR28 - model 1200
compatible iconR35 - model 1200
compatible iconR35 (stage V) - model 1200
compatible icon630 - model 1200
compatible icon635 - model 1200
compatible icon635 (stage V) - model 1200
compatible icon640 - model 1200
compatible icon640 (stage V) - model 1200
compatible icon735 - model 1200
compatible icon745 - model 1200
compatible icon750 - model 1200
compatible icon755i - model 1200
compatible icon760i - model 1200
compatible icon850 - model 1200
compatible icon860i - model 1200
compatible icone513 - model 1200
compatible icone527 - model 1200
incompatible icon220 - model 1350
incompatible icon225 - model 1350
incompatible icon225LPG - model 1350
incompatible icon313S - model 1350
incompatible icon320S - model 1350
incompatible icon420 & 423 - model 1350
incompatible icon520 - model 1350
incompatible icon523 - model 1350
compatible icon525LPG - model 1350
compatible icon528 - model 1350
compatible icon530 - model 1350
incompatible iconR20 - model 1350
compatible iconR28 - model 1350
very-compatible iconR35 - model 1350
very-compatible iconR35 (stage V) - model 1350
very-compatible icon630 - model 1350
very-compatible icon635 - model 1350
very-compatible icon635 (stage V) - model 1350
very-compatible icon640 - model 1350
very-compatible icon640 (stage V) - model 1350
very-compatible icon735 - model 1350
very-compatible icon745 - model 1350
compatible icon750 - model 1350
very-compatible icon755i - model 1350
compatible icon760i - model 1350
compatible icon850 - model 1350
compatible icon860i - model 1350
incompatible icone513 - model 1350
incompatible icone527 - model 1350
incompatible icon220 - model 1500
incompatible icon225 - model 1500
incompatible icon225LPG - model 1500
incompatible icon313S - model 1500
incompatible icon320S - model 1500
incompatible icon420 & 423 - model 1500
incompatible icon520 - model 1500
incompatible icon523 - model 1500
incompatible icon525LPG - model 1500
incompatible icon528 - model 1500
incompatible icon530 - model 1500
incompatible iconR20 - model 1500
incompatible iconR28 - model 1500
very-compatible iconR35 - model 1500
compatible iconR35 (stage V) - model 1500
compatible icon630 - model 1500
very-compatible icon635 - model 1500
compatible icon635 (stage V) - model 1500
very-compatible icon640 - model 1500
compatible icon640 (stage V) - model 1500
compatible icon735 - model 1500
very-compatible icon745 - model 1500
very-compatible icon750 - model 1500
very-compatible icon755i - model 1500
very-compatible icon760i - model 1500
very-compatible icon850 - model 1500
very-compatible icon860i - model 1500
incompatible icone513 - model 1500
incompatible icone527 - model 1500
