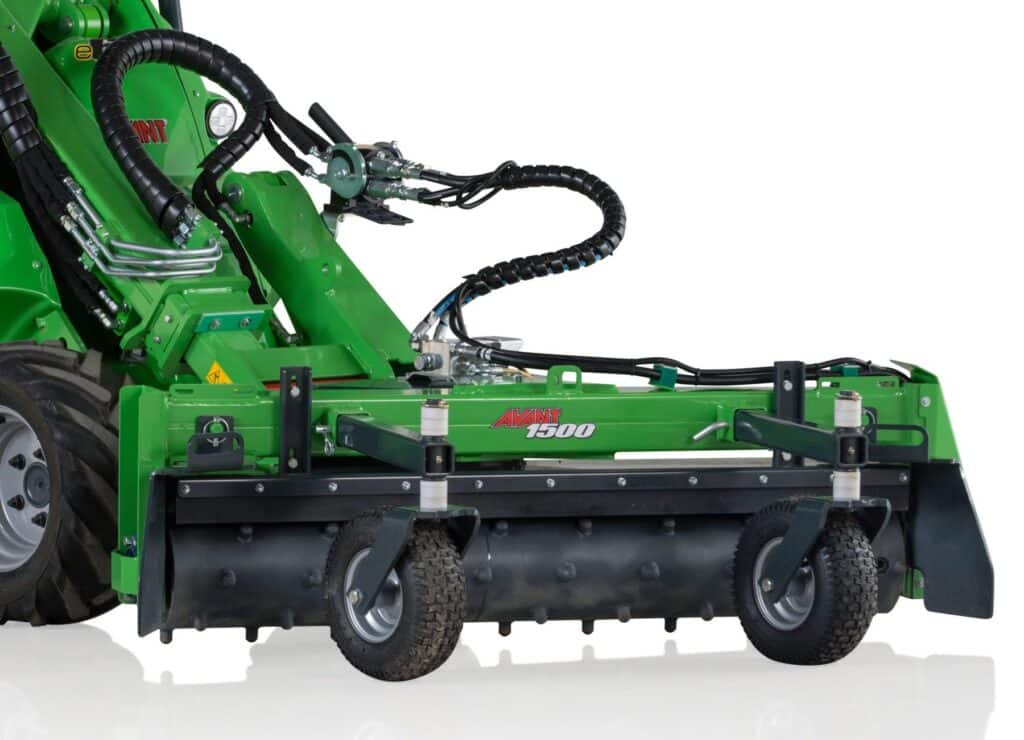

Power rake

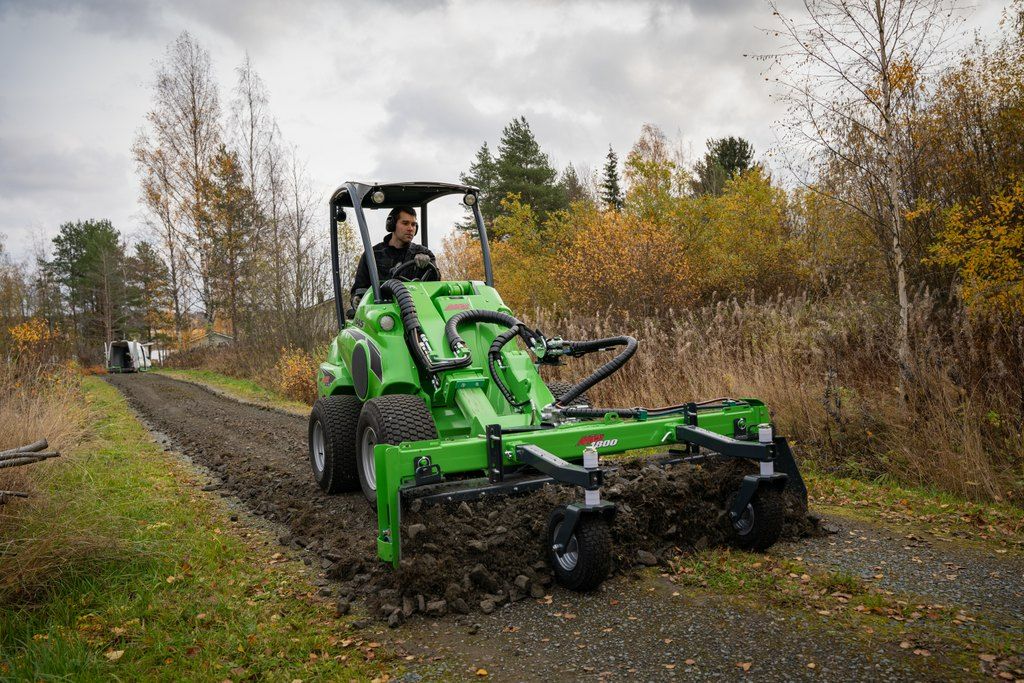

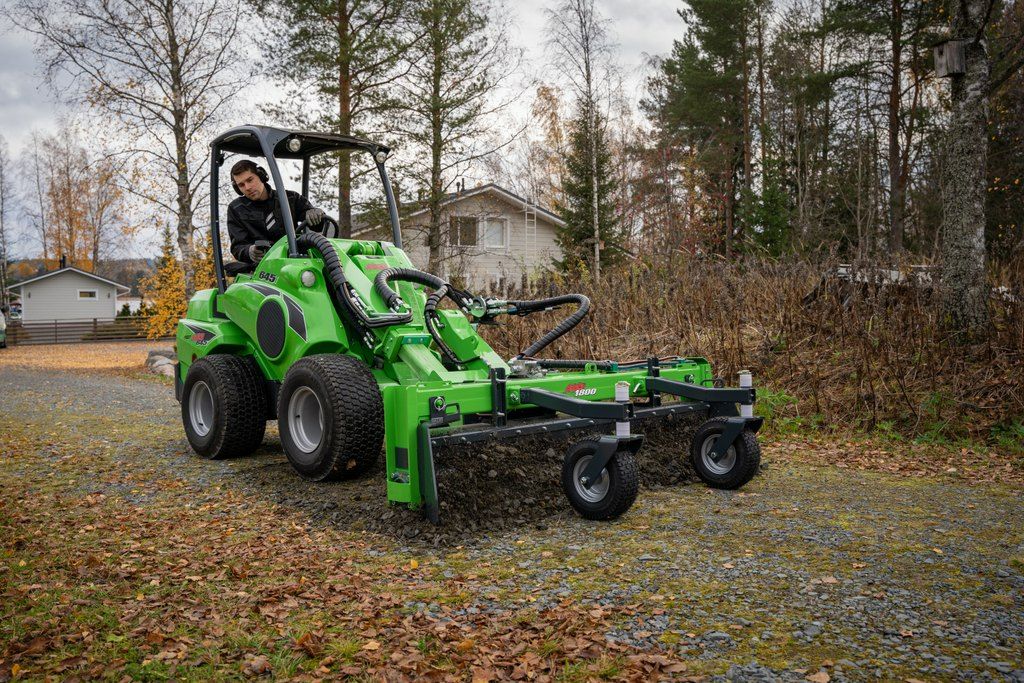

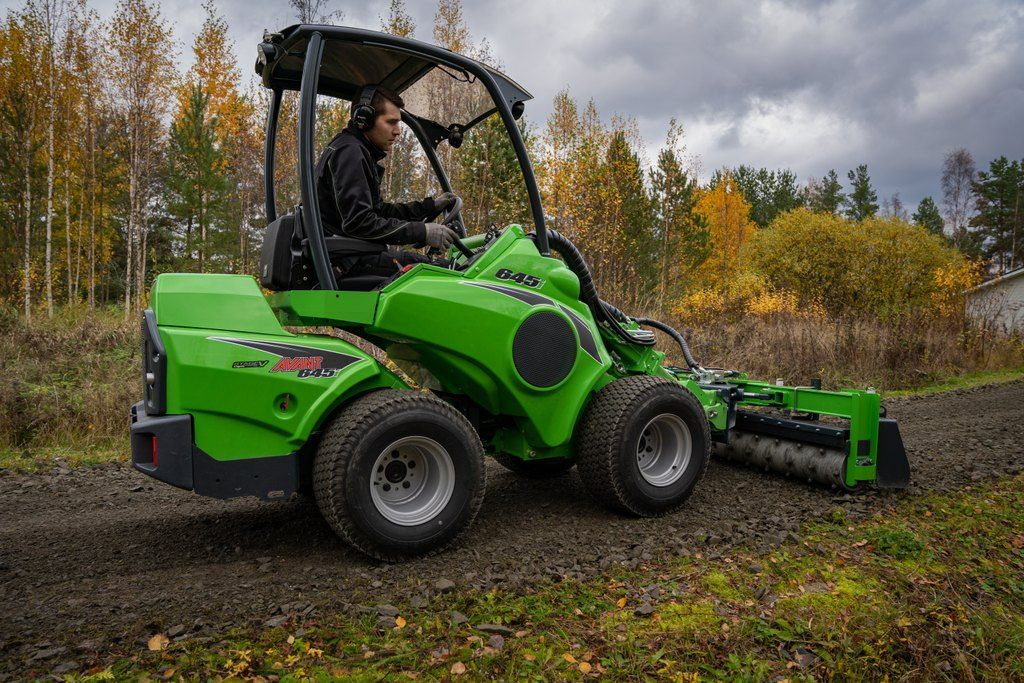

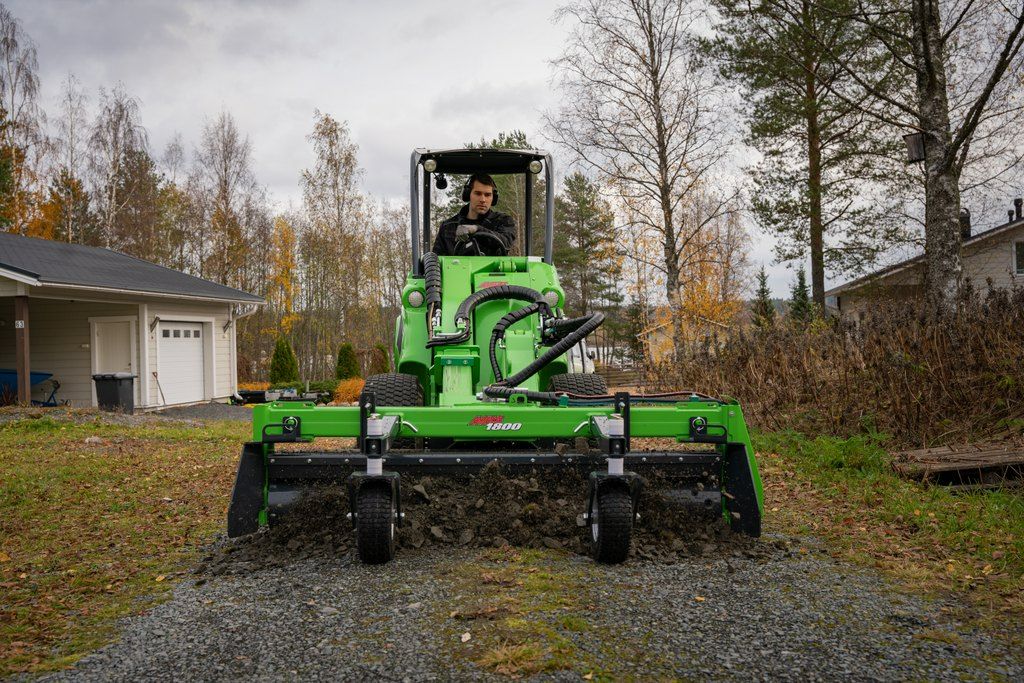

The power rake is a versatile attachment for soil grading, leveling, raking, and removing of debris. It can be used, for instance, for preparing seedbeds, cutting grades, grading dirt and gravel roads, and cleaning up and grading different types of sites.
Power rake mills the soil to max. 65 mm depth. The shaft is equipped with steel teeth. Driving direction is forwards and the shaft rotates against the driving direction. The removable side plates make soil moving and directioning even more efficient. The rake is equipped with two adjustable support wheels and it can be turned to max. +/- 30 degrees angle.
Two models available: with manual or hydraulic turning.
Versatile attachment for preparing seedbeds, grading dirt and gravel roads, cleaning up building lots and sites, etc.
Easy removal and piling up of rocks and other debris by driving forward
Available with manual or hydraulic turning, +/- 30 degrees
More Images & Videos
Technical Information
| Model | 1500 | 1800 |
| Working width | 1480 mm | 1780 mm |
| Total width | 1773 mm | 2074 mm |
| Working depth | max. 65 mm | max.65 mm |
| Turning angle | +/- 30ยฐ | +/- 30ยฐ |
| Length | 1210 mm | 1210 mm |
| Height | 670 mm | 670 mm |
| Weight | 315 kg | 327 kg |
| Product no. manual turning | A449836 | – |
| Product no. hydraulic turning | A449672 | A445931 |
Options
Compatible Models
- Very compatible
- Compatible
- Incompatible
220225225LPG313S320S420 & 423
520523525LPG528530R20R28
R35630635640735745750755i760i850860ie513e527
