Multi function drive unit

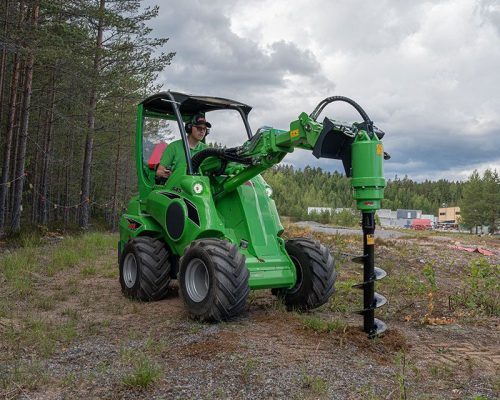

The multi function drive unit canย be fitted with auger drills and screwย pileย adapterย as always; in addition there are several other attachments available: concrete mixing drum, screwย cone log splitter,ย screeningย drum, cable/hoseย reel, carousel broom, rotary hoe, XL weed brush and XL wire rope brush.
There is also a 90 degree angle adapter available as an option, on which the drive unit can be mounted. It turns the the drive unit 90ยฐ to the left or right. This means that for instance the carousel broom sweeps on the left/right side of the loader, and the cable/hose reel is crosswise to the loader and windsย theย cable longitudinallyย (inย parallel to the loader).
More Images & Videos
Technical Information
Width | 550 mm |
Height | 560 mm |
Length | 405 mm |
Weight | 85 kg |
Product no. | A37190 |

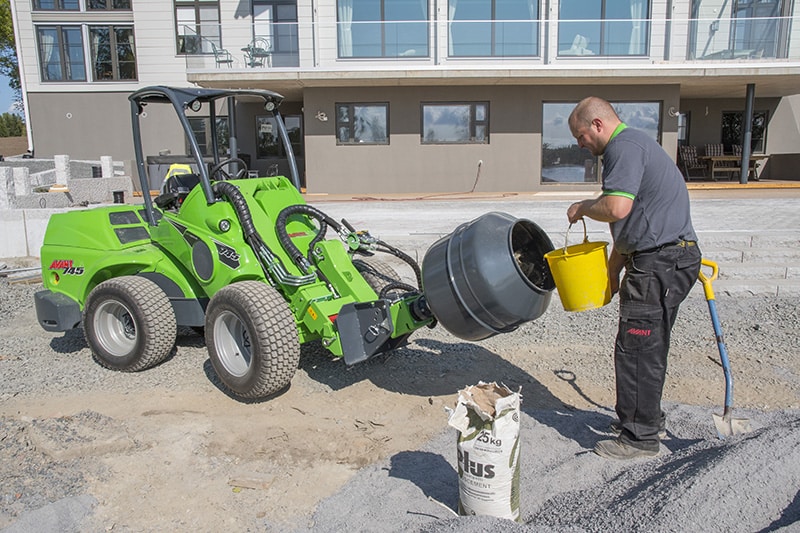

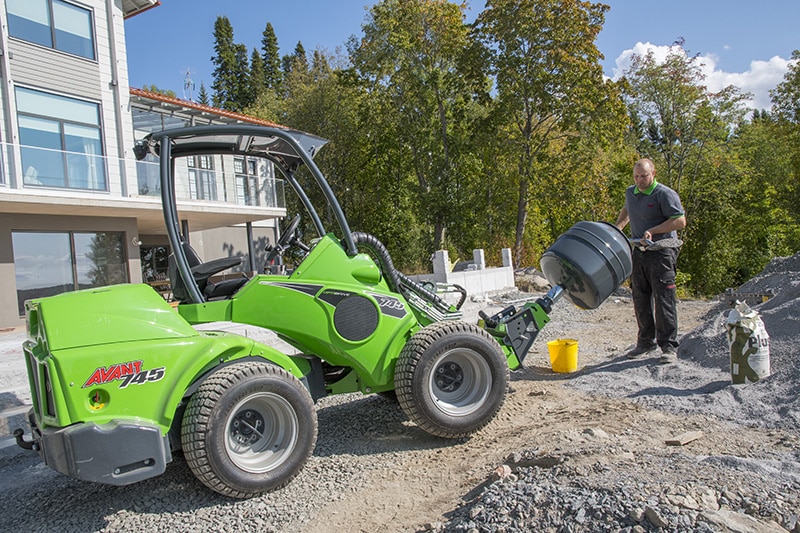

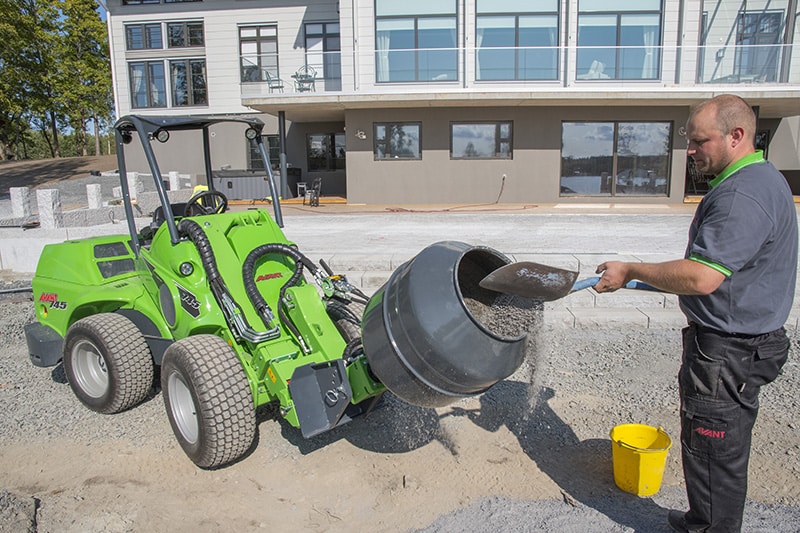

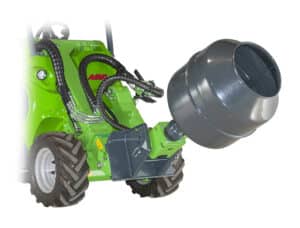

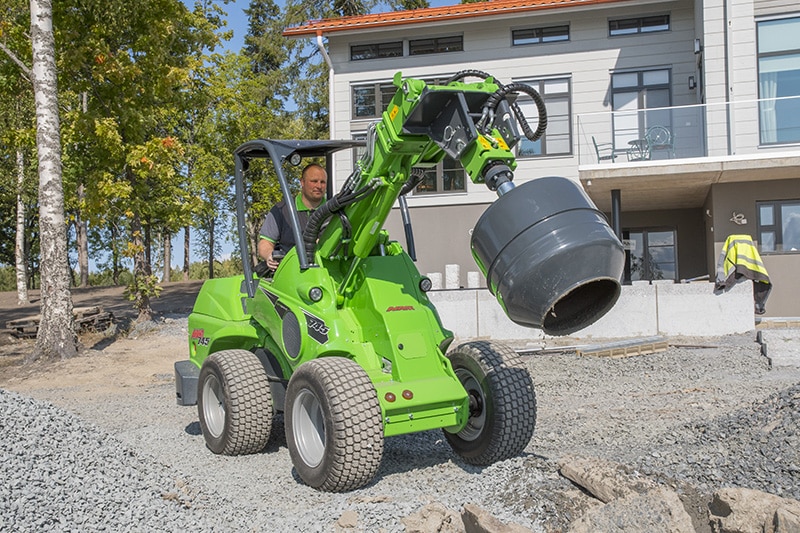

A37395ย Concrete mixing drum
Volume | 140 l water, |
90 l ready concrete | |
Length | 760 mm |
Width | 600 mm |
Weight | 50 kg |

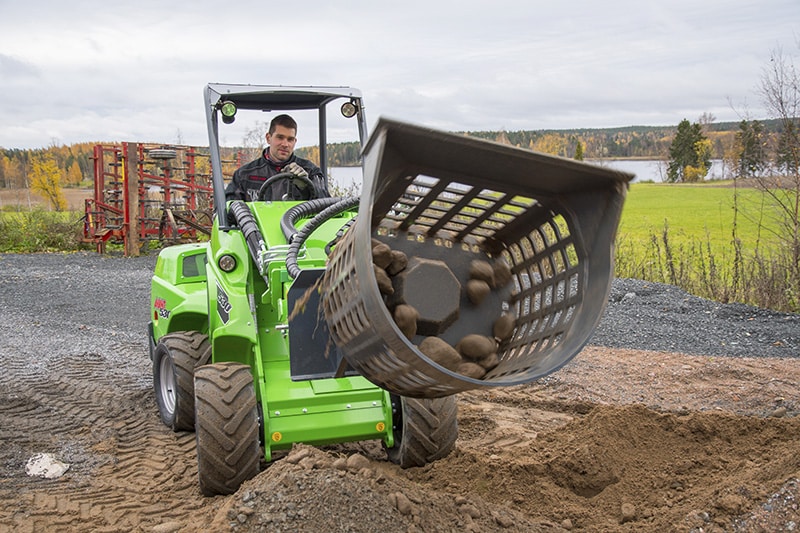

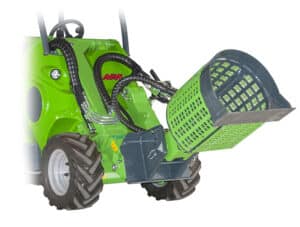

- – Intended for screening of soil, gravel and sand
- – Screening sieve with 50×50 mm holes โ included also a separate 22×22 mm sieve, which is bolted on the drum when finer screening is required
Volume | 90 l |
Length | 605 mm |
Width | 500 mm |
Height | 461 mm |
Weight | 75 kg |

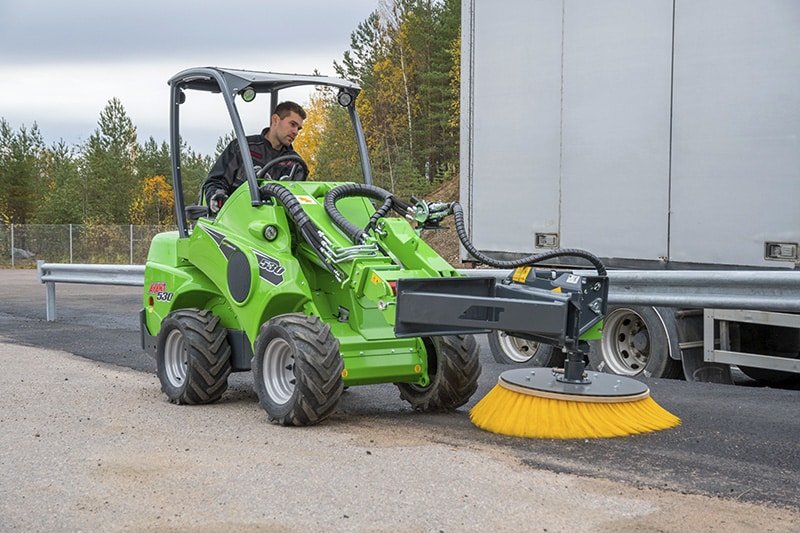

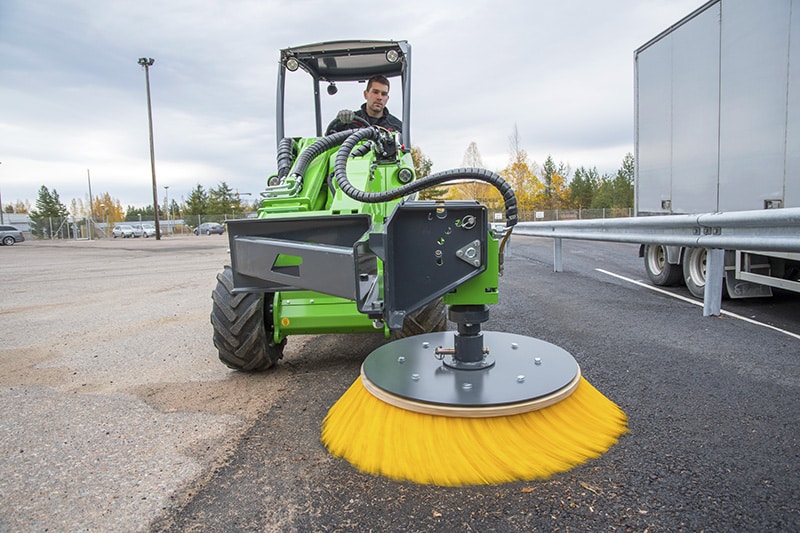

A37317ย Carousel broom
- –ย Same ร 1000 mm replaceable brush as on A2971 Carousel broom, part no. A32698
- –ย Weight 67 kg
- – Can also be mounted on the A37323 Angle adapter 90ยฐ > sweeps on the left side of the loader

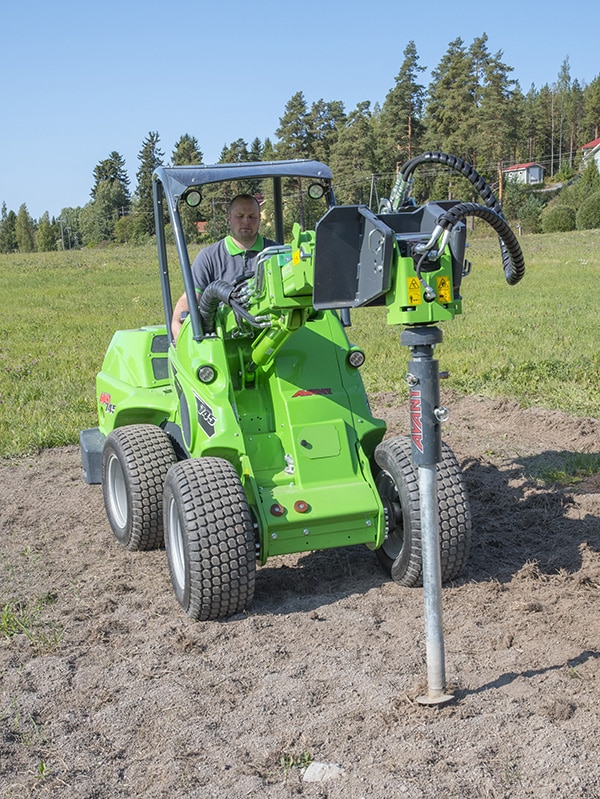

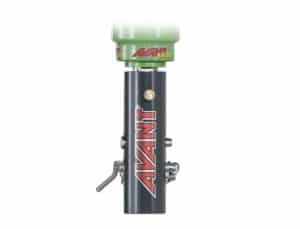

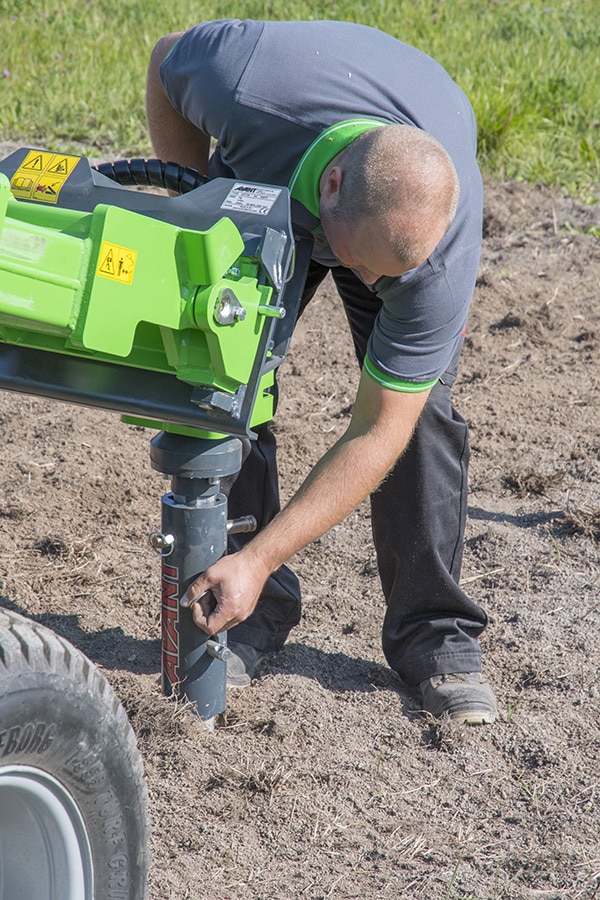

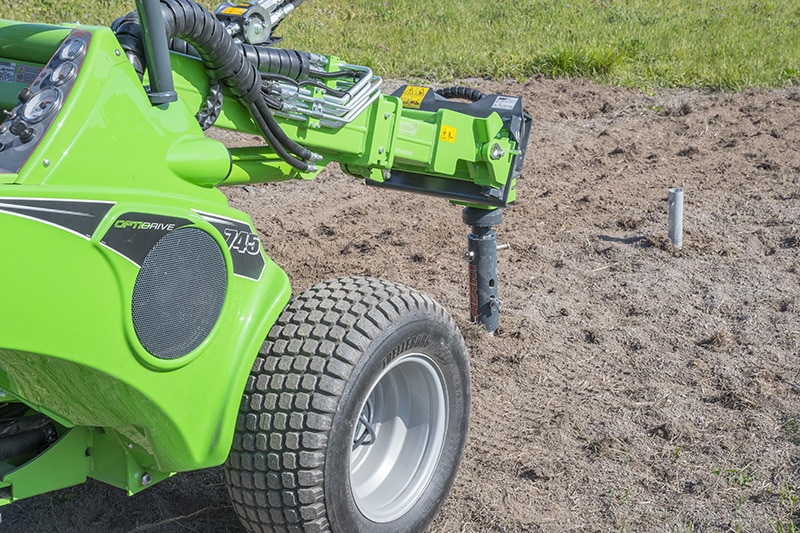

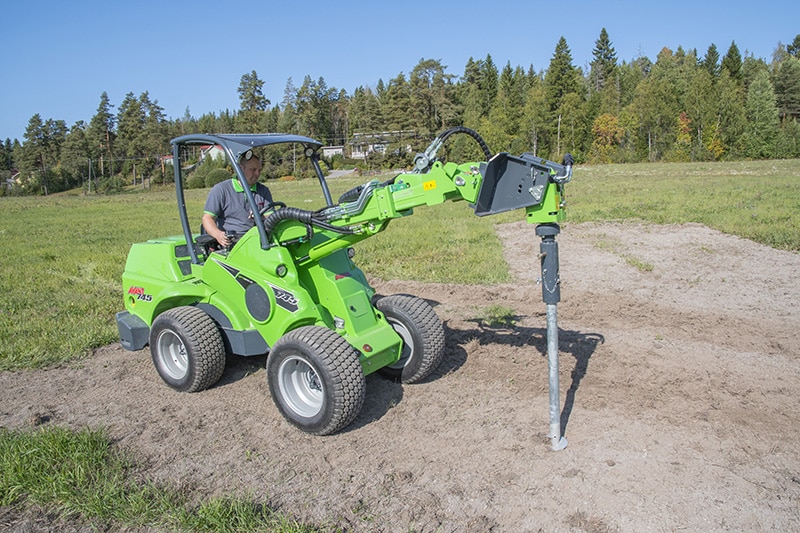

A418530 Screw pile adapter
- –ย Easy way of making screw pile foundations, saves a lot of manual work
- –ย Mounts on any Avant auger drive unit
- –ย Fits on ร 60 mm screw piles

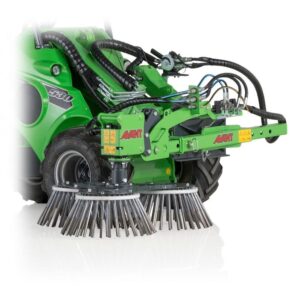

A429932 XL Weed brush
- –ย Efficient weed remover
- –ย Consists of 3 pcsย ร 600 mm steel brushes mounted together
- –ย Max. diameter 1240 mm
- – Height 375 mm
- – Weight 64 kg

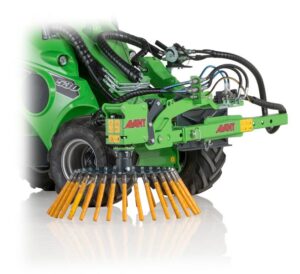

A431157 XL wire rope brush
- – Brush with 32 pcs heavy duty wire rope bundles
- – Max. diameter 990 mm
- – Height 370 mm
- – Weight 36 kg

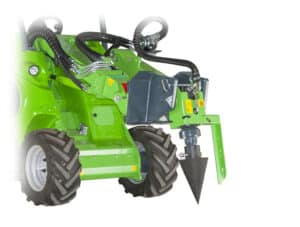

A37500 Screw cone log splitter
- – Log splitter with a conical splitting screw
- – Splitting screw equipped with a replaceable tip
- – Also equipped with a log holder bar which prevents the log from rotating during splitting
- – Weight 30 kg

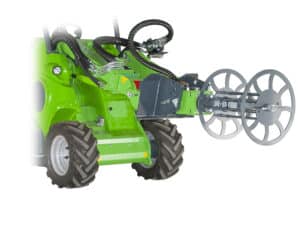

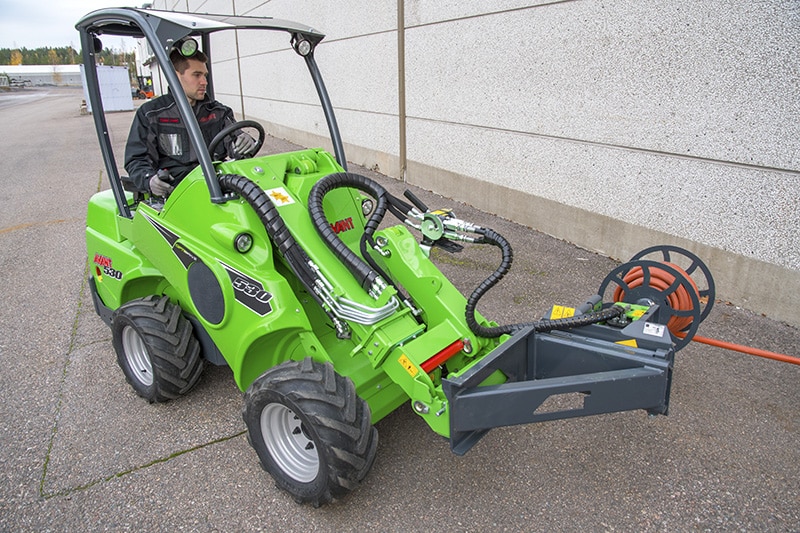

A37311ย Cable/hose reel
Inside width | 400 mm |
Total width | 558 mm |
Reel diameter | 190 mm |
End plate diameter | 500 mm |
Weight | 25 kg |
Can also be mounted on the A37323 Angle adapter 90ยฐ => winds the cable in parallel to the loader

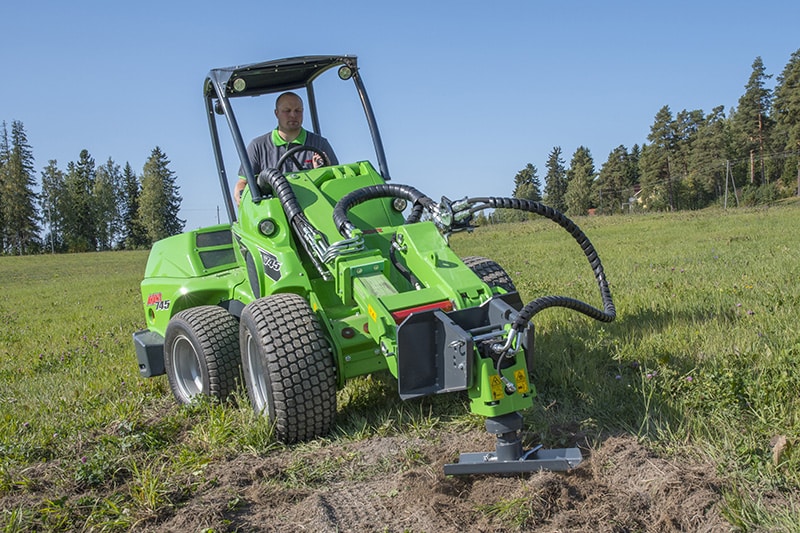

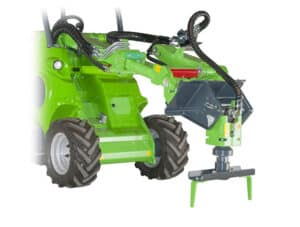

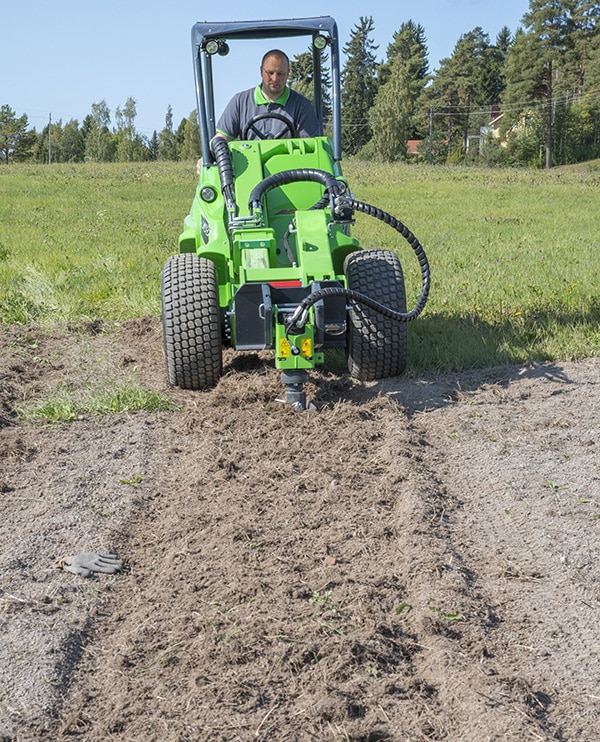

A37491ย Rotary hoe
- – For small scale soil cultivating
- – Equipped with two knife type blades
Cultivating depth | max. 160 mm |
Length | 531 mm |
Width | 156 mm |
Height | 283 mm |
Weight | 15 kg |

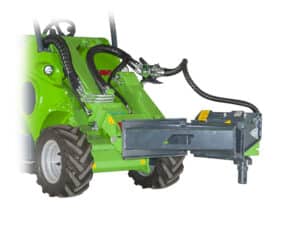

A37323 Angle adapter 90ยฐ
- Turns the drive unit 90ยฐ to the right or to the left beside the loader
Length | 630 mm |
Width | 651 mm |
Height | 300 mm |
Weight | 41 kg |
A433646 Carousel broom, steel
- – ร 1000 mm brush with steel bristles
- – Weight 67 kg
