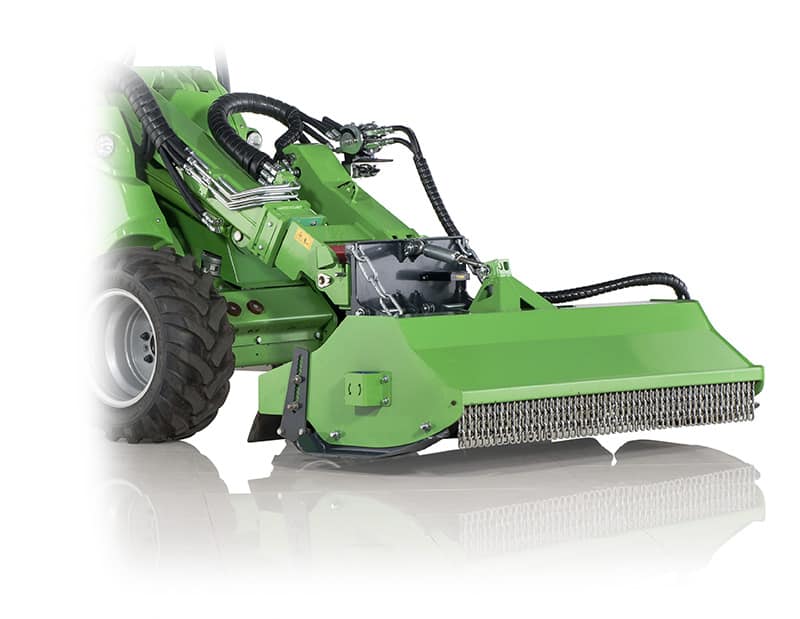

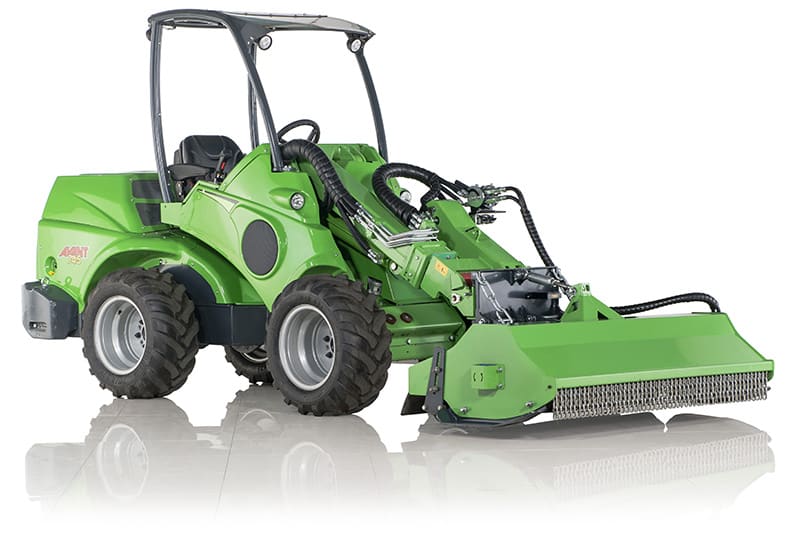

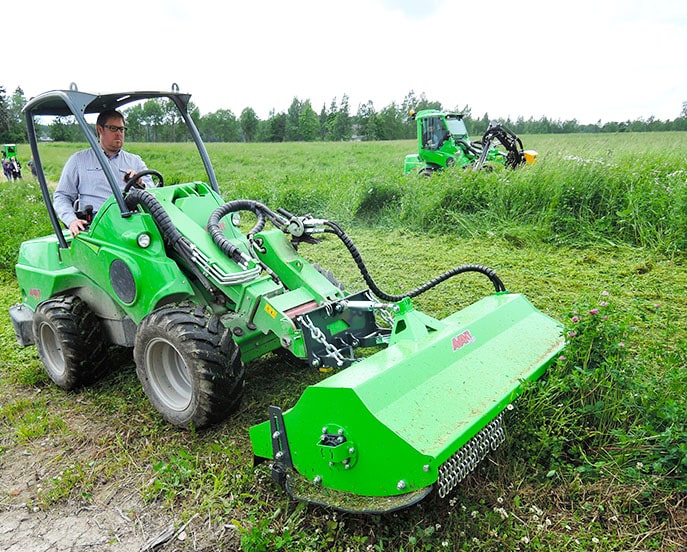

Flail mower
Flail mower is a drum-type cutter, intended for cutting of long grass, scrub, bush and similar vegetation. It will cut up to 20 mm thick tree branches with ease.

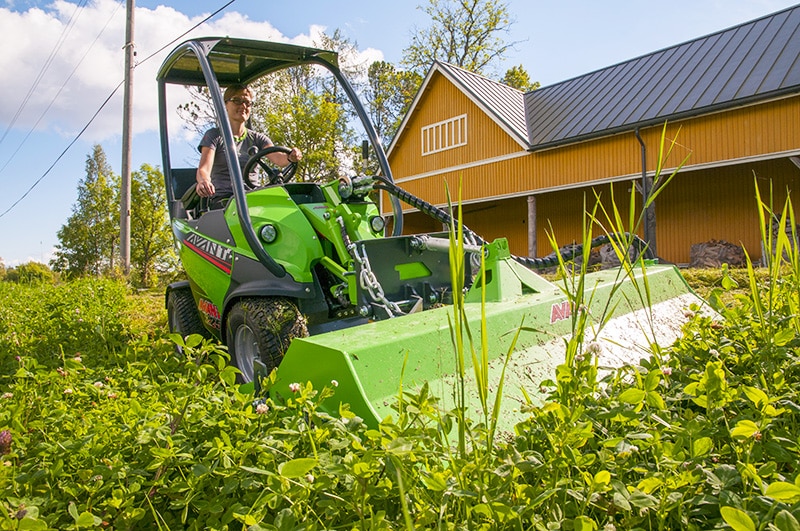

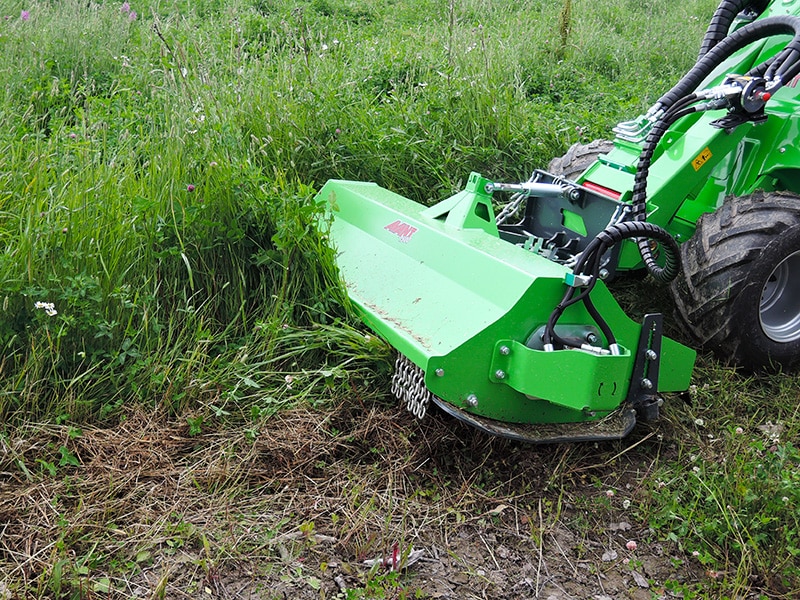

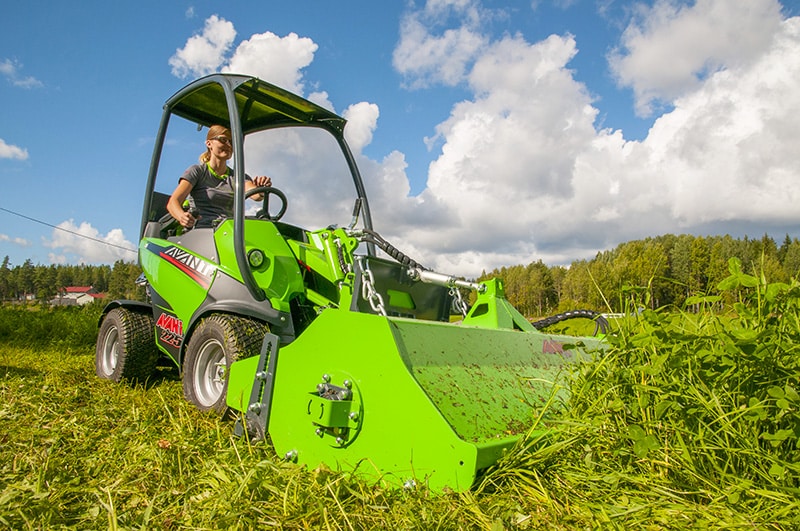

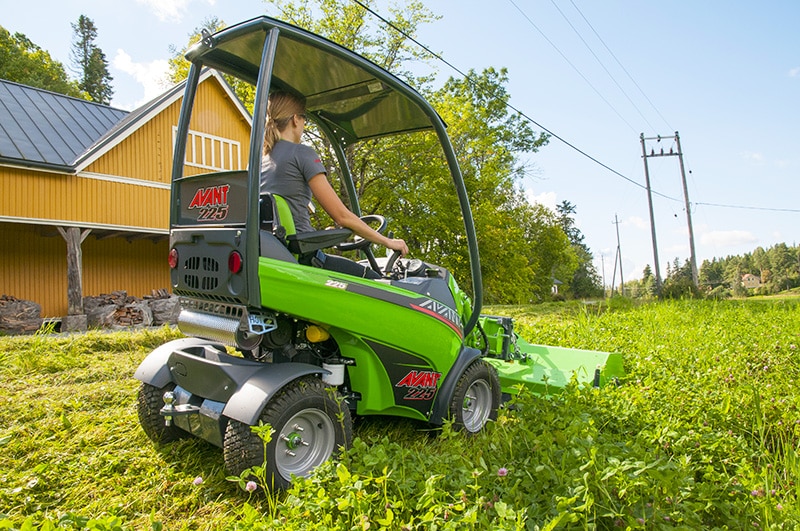

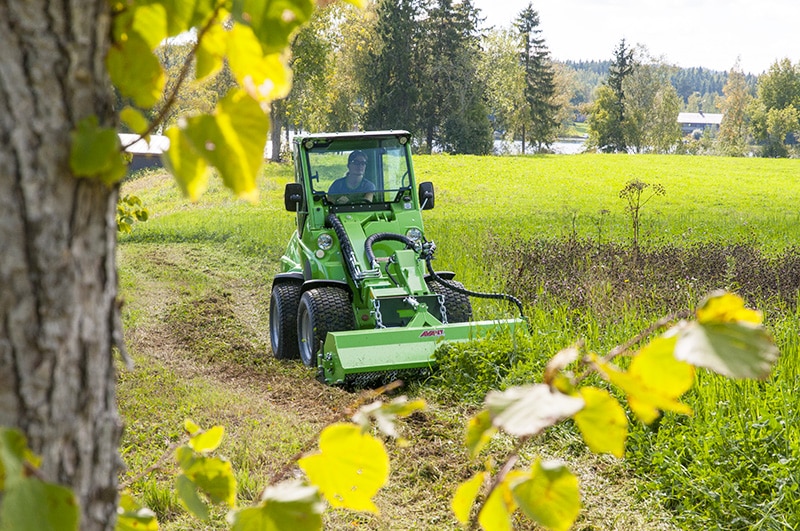

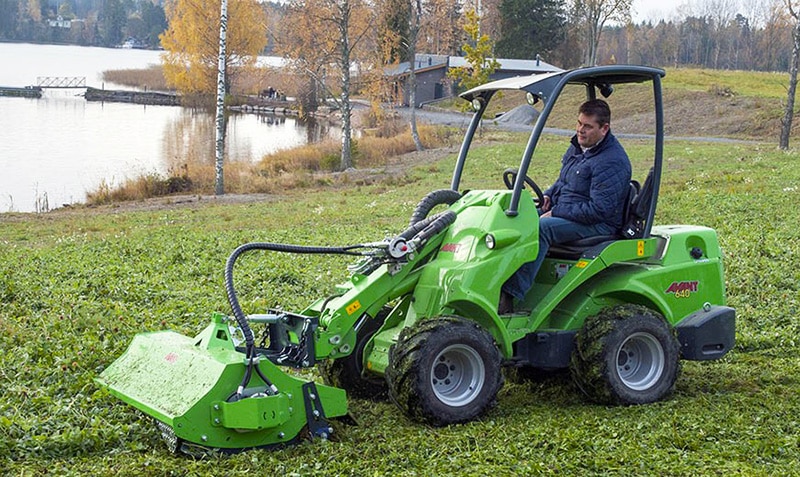

Flail mower is the optimal cutting device for places where you need a lot of cutting power and a rougher cut will do. The most common applications for flail mower are places with taller vegetation like meadows, road banks, yard areas, etc.
Cutting deck design improves cutting result and requires less power from the engine and hydraulics
Flails are mounted in spiral on the shaft which makes cutting more efficient
Direct drive: hydraulic motor mounted directly on the shaft
Floating system allows free vertical movement, and the floating can be set so that the mower can tilt freely forward and backward as well
Big roller in the rear – better stability and less resistance when mowing
More Images & Videos
Technical Information
| Model | 1200 | 1350 | 1500 |
| Cutting width | 1200 mm | 1350 mm | 1500 mm |
| Total width | 1580 mm | 1730 mm | 1880 mm |
| Cutting height | 25-100 mm | 25-100 mm | 25-100 mm |
| Std. flails type/pcs | hammer 16 pcs | hammer 18 pcs | hammer 20 pcs |
| Weight | 240 kg | 260 kg | 270 kg |
| Product no | A36730 | A441550 | A36015 |
Options
A419931 Y-flails, pair (16 pcs / 1200 mm mower, 18 pcs / 1350 mm mower, 20 pcs / 1500 mm mower)
A420305 L-flails, pair (16 pcs / 1200 mm mower, 18 pcs / 1350 mm mower, 20 pcs / 1500 mm mower)
Compatible Models
- Very compatible
- Compatible
- Incompatible
220 - model 1200225 - model 1200225LPG - model 1200
313S - model 1200320S - model 1200420 & 423 - model 1200520 - model 1200523 - model 1200525LPG - model 1200528 - model 1200530 - model 1200R20 - model 1200R28 - model 1200
R35 - model 1200R35 (stage V) - model 1200630 - model 1200635 - model 1200635 (stage V) - model 1200640 - model 1200640 (stage V) - model 1200735 - model 1200745 - model 1200750 - model 1200755i - model 1200760i - model 1200850- model 1200860i - model 1200850 - model 1200e513 - model 1200e527 - model 1200220 - model 1350225 - model 1350225LPG - model 1350313S - model 1350320S - model 1350420 & 423 - model 1350520 - model 1350523 - model 1350525LPG - model 1350528 - model 1350530 - model 1350R20 - model 1350R28 - model 1350R35 - model 1350R35 (stage V) - model 1350630 - model 1350635 - model 1350635 (stage V) - model 1350640 - model 1350640 (stage V) - model 1350735 - model 1350745 - model 1350750 - model 1350755i - model 1350760i - model 1350850 - model 1350860i - model 1350e513 - model 1350e527 - model 1350220 - model 1500225 - model 1500225LPG - model 1500313S - model 1500320S - model 1500420 & 423 - model 1500520 - model 1500523 - model 1500525LPG - model 1500528 - model 1500530 - model 1500R20 - model 1500R28 - model 1500R35 - model 1500R35 (stage V) - model 1500630 - model 1500635 - model 1500635 (stage V) - model 1500640 - model 1500640 (stage V) - model 1500735 - model 1500745 - model 1500750 - model 1500755i - model 1500760i - model 1500850- model 1500860i - model 1500e513 - model 1500e527 - model 1500
