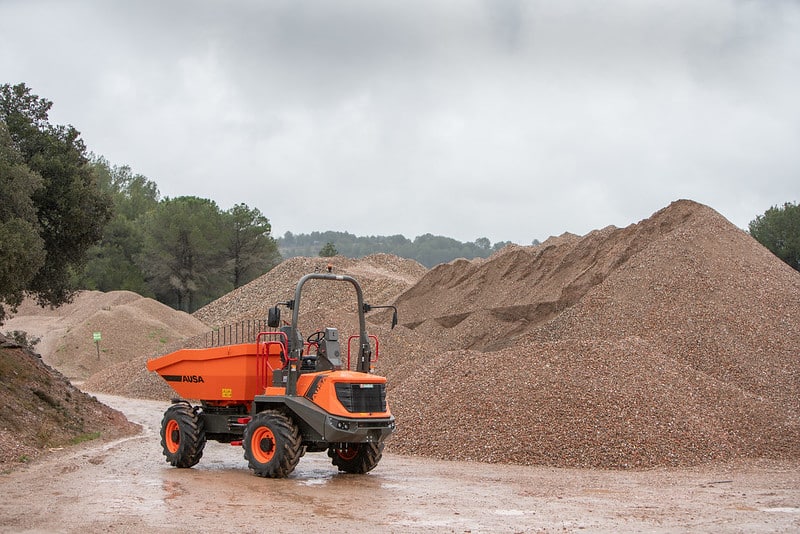

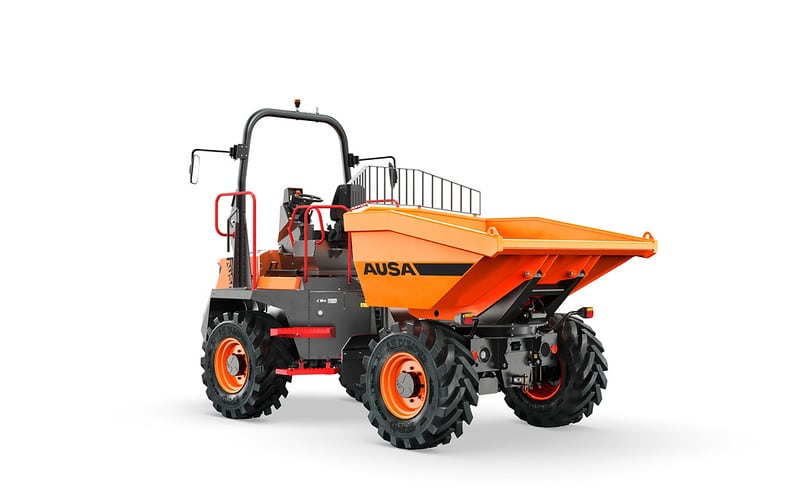

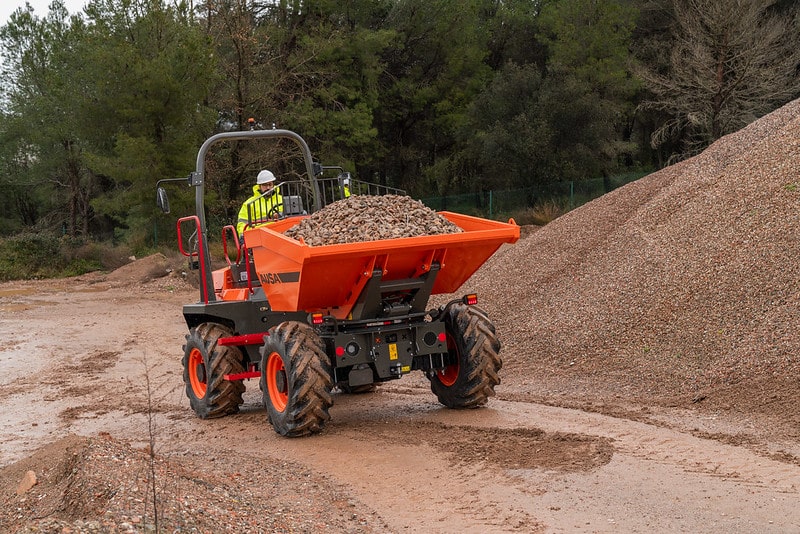

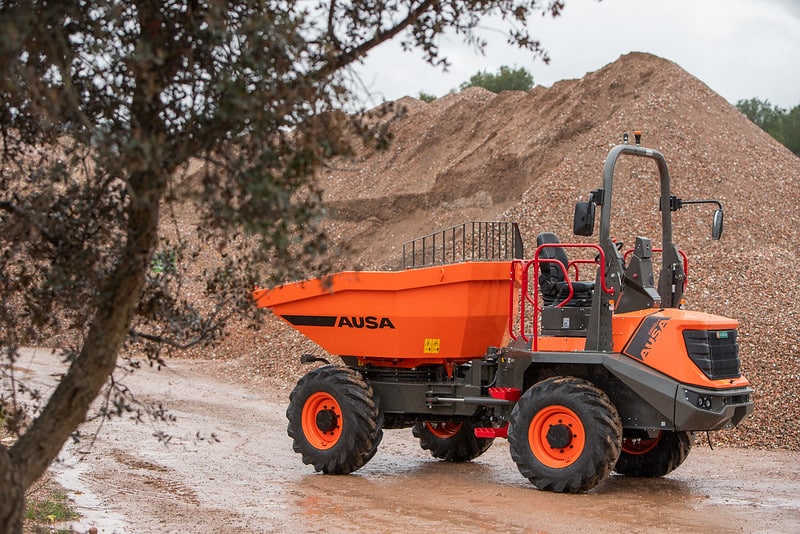

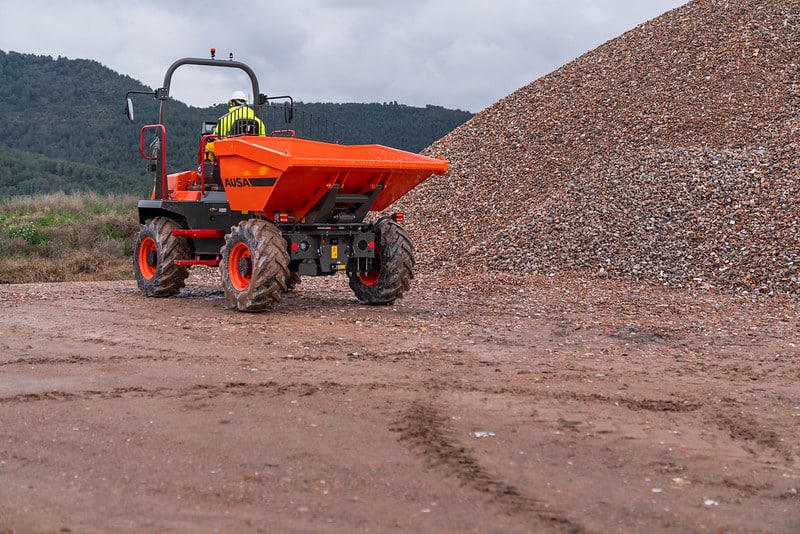

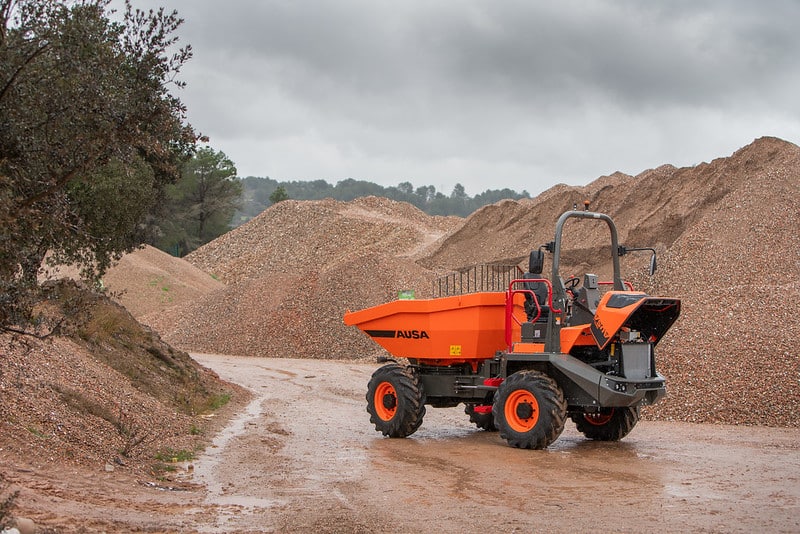

DR602AHG

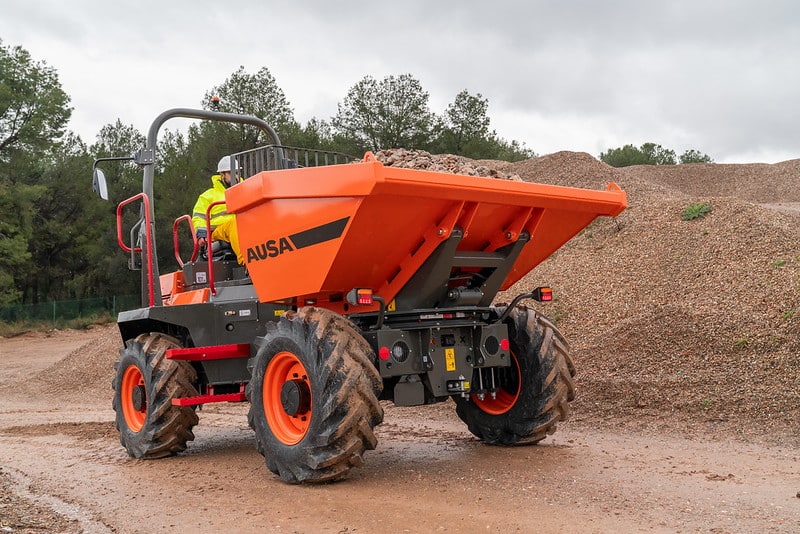

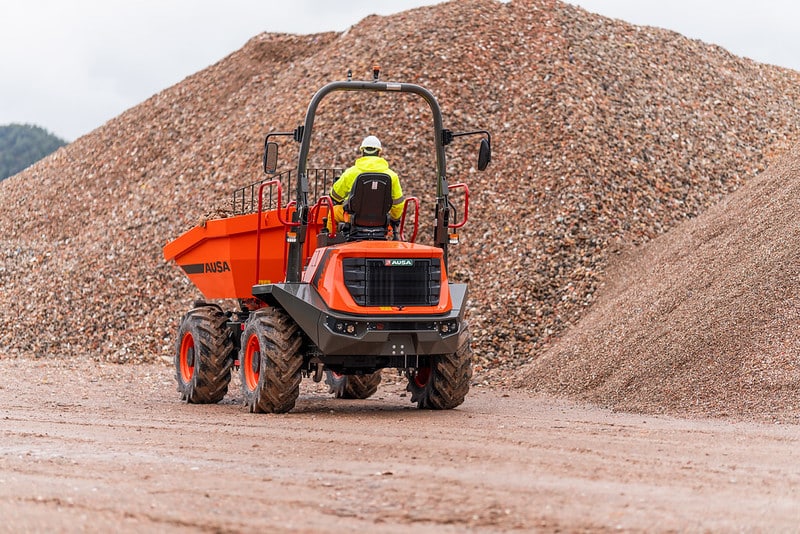

With a 6,000-kg (13,200-lb) load capacity and a swivel skip, its standout feature is the reversible driving position. The operator can rotate the seat, steering wheel, and controls 180ยบ, ensuring optimal visibility by always facing forward. This configuration enhances safety in earthmoving tasks and minimizes the need for maneuvers, contributing to greater operational efficiency.

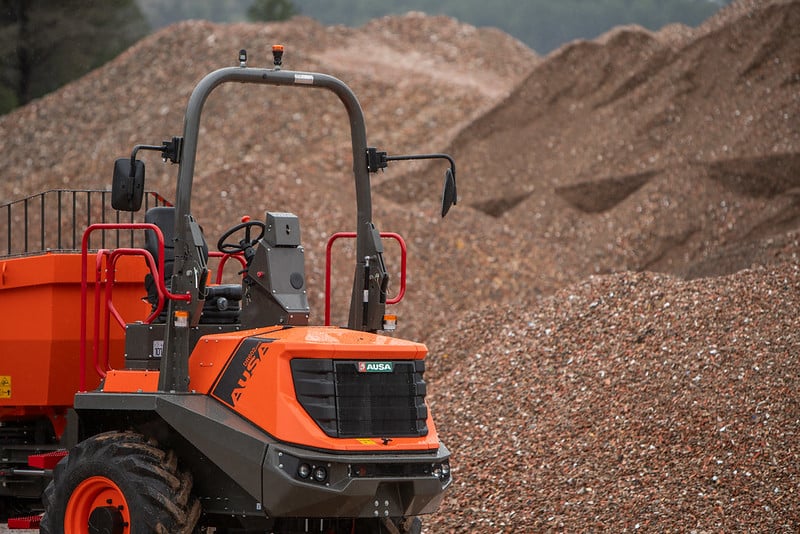

The DR602AHG features a large hood, improving accessibility to the engine and maintenance components. Key elements such as air, liquid, and fuel filters, the radiator, and fluid tanks have been strategically positioned to reduce downtime and simplify servicing tasks.
Cost-effectiveness
All-terrain
Easy to maneuver
High performance
Tractive force
Onboard diagnostics
More Images & Videos
Technical Information
General
| Unloading system | Swivel tip |
| Load capacity | 6000 kg |
| Chassis | Articulated |
| Water skip capacity | 1665 l |
| Level skip capacity | 2455 l |
| Heaped skip capacity | 3154 l |
| Empty weight | 4223 kg |
| Transmission | Hydrostatic |
| Reversibility | Reversible |
Engine
| Brand | Deutz |
| Model | TD2.9 L4 |
| Power | 55.4 kW |
| Torque | 320@1600 |
| No. of cylinders | 4 |
| Emissions | Stage V |
| Noise level (LwA) | 101 dB(A) |
Driving
| Max. speed | 25 km/h |
| Maximum gradient | 49 % |
| External turning radius | 5900 mm |
| Traction | 4×4 |
| Tyres | 405/70-20 |
Hydraulic system
| Hydraulic circuit | – |
| Flow rate | 50 l/min |
| Working pressure | 180 bar |
Tank capacity
| Fuel | 60 l |
| Hydraulic system | 56 l |
Brakes
| Service | Hydraulic |
| Parking | Negative |
Equipment
Driving Position
Rear folding ROPS protective structure
Safety
Seat belt with fasten sensor, Seat with operator’s presence sensor, LED rotating beacon, Acoustic warning for reverse gear, Emergency stop, Anti-vandal security system, Hill Holder – hill-start assist, Negative brake, Full visibility camera on the skip side, Protective grille on the skip
Lighting & Driving
Rear-view mirror, Second rear-view mirror
Comfort
Adjustable ergonomic seat, All-in-one joystick
Advanced equipment
ECO Mode system, Digital display, Hydrostatic transmission with electronic control, Limited-slip differential on both axles
Accessories
Front mudguards
