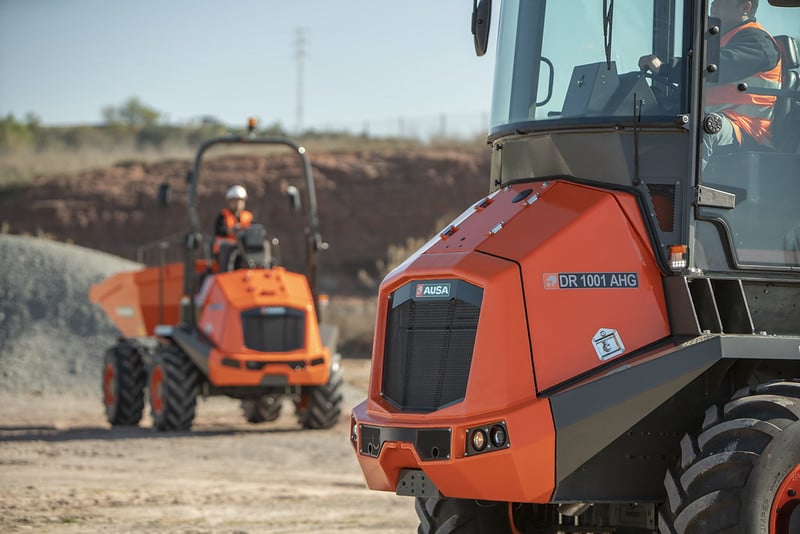

DR1001AHG

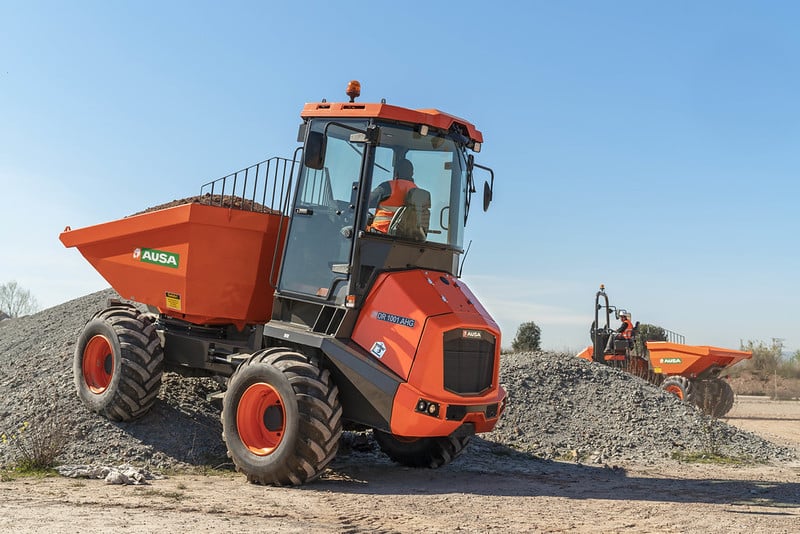

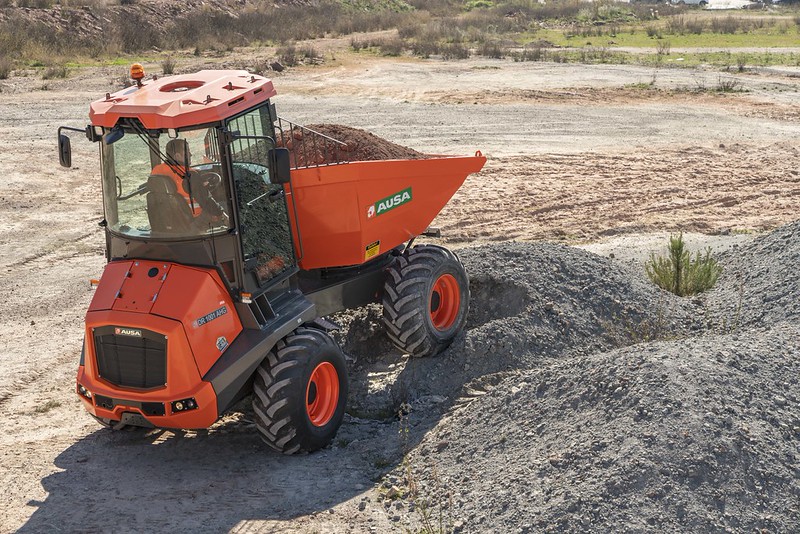

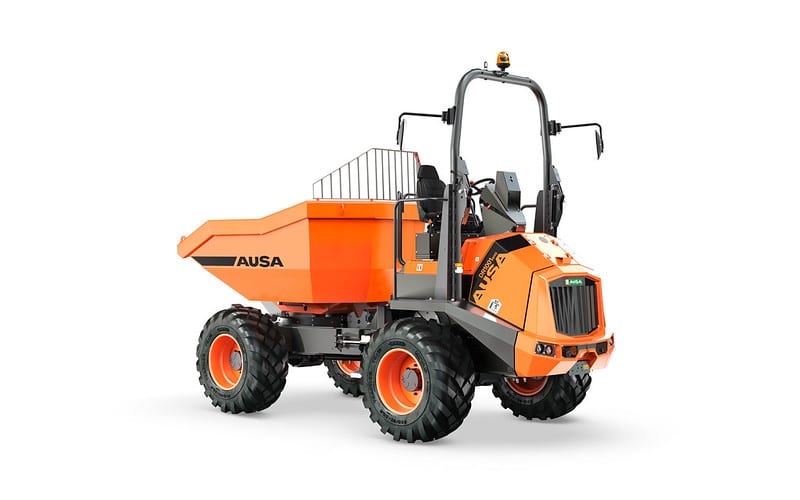

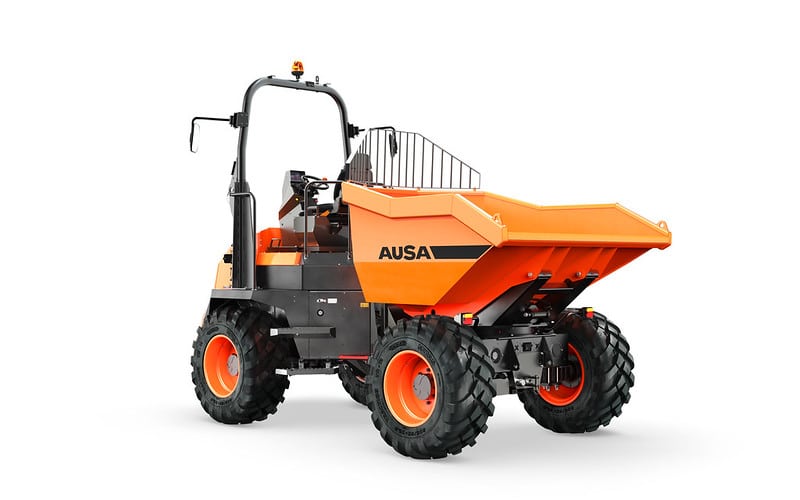

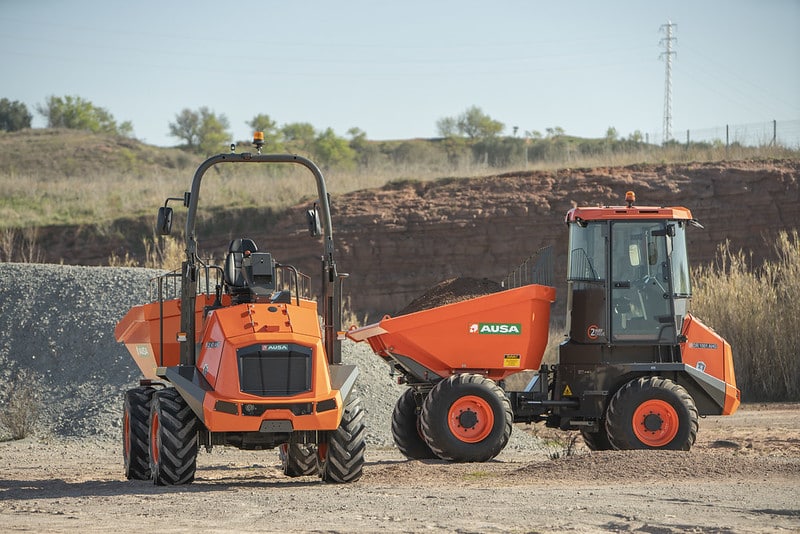

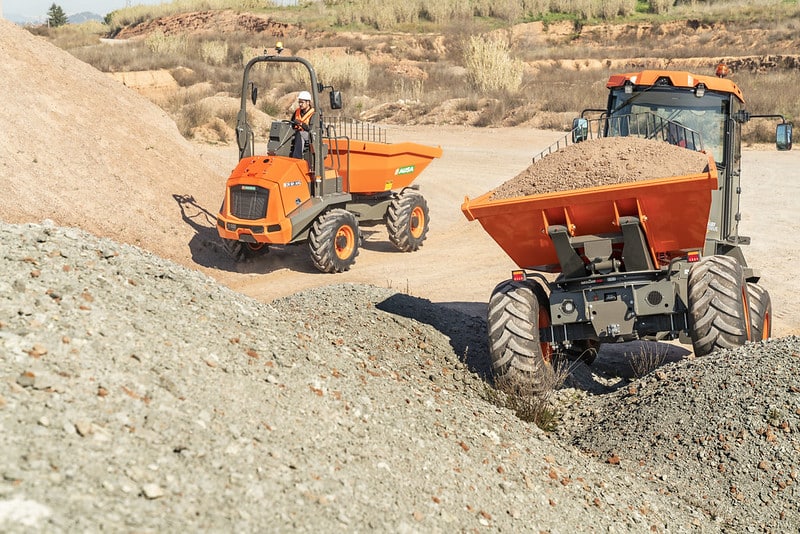

The DR1001AHG reversible dumper has a 10,000 kg (22,000 lb) payload and comfortable hydrostatic transmission. Thanks to the innovative reversible design, the seat can rotate 180 degrees and all components are instantly adjusted to suit the driver’s new position: steering wheel, joystick, pedals, safety cameras, etc. The driver can also comfortably and safely get on and off both sides of the dumper, so speed and flexibility are significantly increased.
In terms of technology, various systems have been included to make it a more efficient dumper: it has the ECO Mode function, where the engine speed is automatically controlled to ensure lower fuel consumption and CO2 emissions.
It is fitted with the Hill Holder system, a start-assist and safety system that engages the dumper’s brake when you take your foot off the accelerator at zero speed. This significantly increases safety, especially when operating on slopes.
It can also be equipped with Smart Stop: a plug-in system that automatically shuts down the engine when it is not in use and the optimal time and safety requirements are met.
More Images & Videos
Technical Information
General

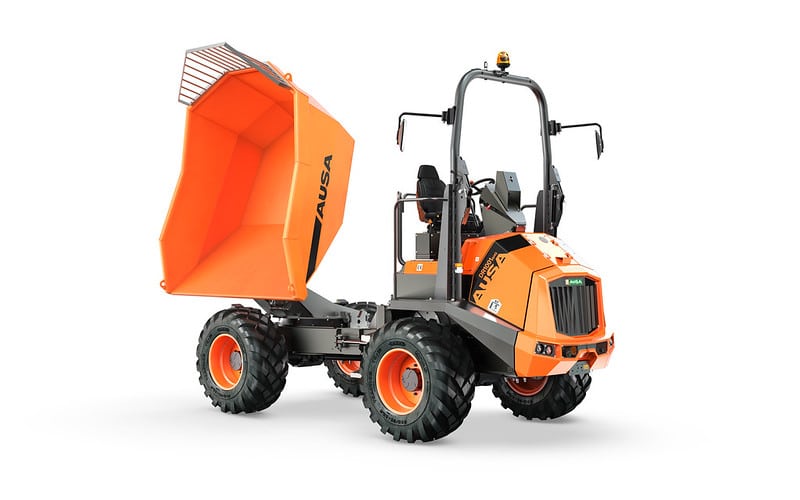

| Unloading system | Swivel tip |
| Load capacity | 10000 kg |
| Chassis | Articulated |
| Water skip capacity | 1850 l |
| Level skip capacity | 3300 l |
| Heaped skip capacity | 3900 l |
| Empty weight | 5050 kg |
| Transmission | Hydrostatic |
| Reversibility | Reversible |
Engine
| Brand | Deutz |
| Model | TCD3.6 L4 HT |
| Power | 55.4 kW |
| Torque | 405@1300 |
| No. of cylinders | 4 |
| Emissions | Stage V |
| Noise level (LwA) | 101 dB(A) |
Driving
| Max. speed | 22 km/h |
| Maximum gradient | 45 % |
| External turning radius | 6287 mm |
| Traction | 4×4 |
| Tyres | 500/60-22.5 |
Hydraulic system
| Hydraulic circuit | Two gears pump |
| Flow rate | 50 l/min |
| Working pressure | 180 bar |
Tank capacity
| Fuel | 69 l |
| Hydraulic system | 60 l |
Brakes
| Service | Hydraulic, sealed, multi-disc |
| Parking | Negative |
Equipment
Driving Position

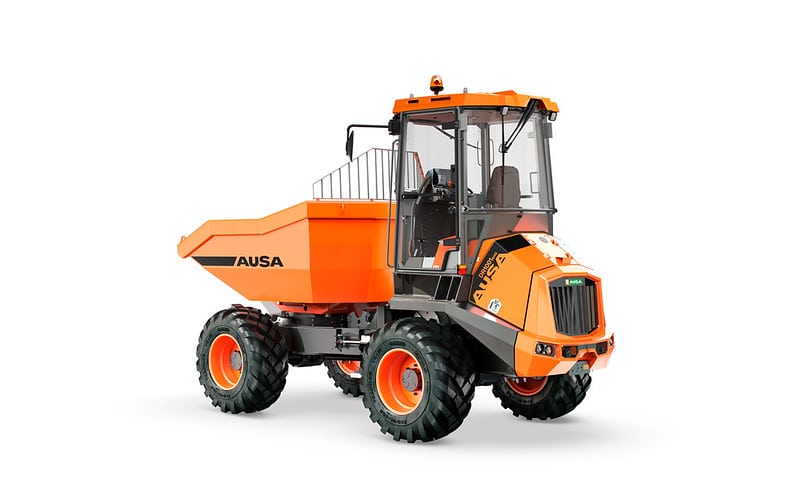

Closed ROPS/FOPS cab with heating
Safety
Seat belt with fasten sensor, Seat with operator’s presence sensor, LED rotating beacon, Acoustic warning for reverse gear, Emergency stop, Anti-vandal security system, Hill Holder – hill-start assist, Negative brake, Full visibility camera on the skip side, Protective grille on the skip
Lighting & Driving
Rear-view mirror, Second rear-view mirror
Comfort
Adjustable ergonomic seat, All-in-one joystick
Advanced equipment
ECO Mode system, Digital display, Hydrostatic transmission with electronic control, Limited-slip differential on both axles
Accessories
Front mudguards
