Dozer blade 1400

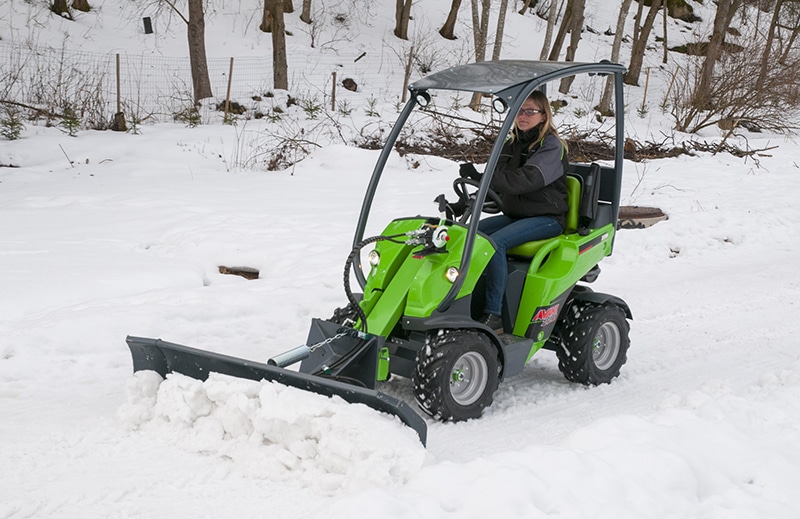

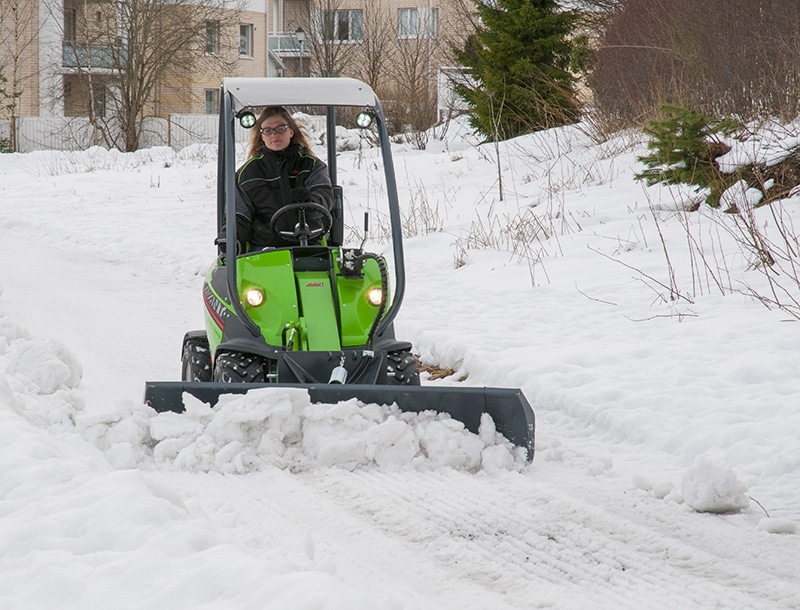

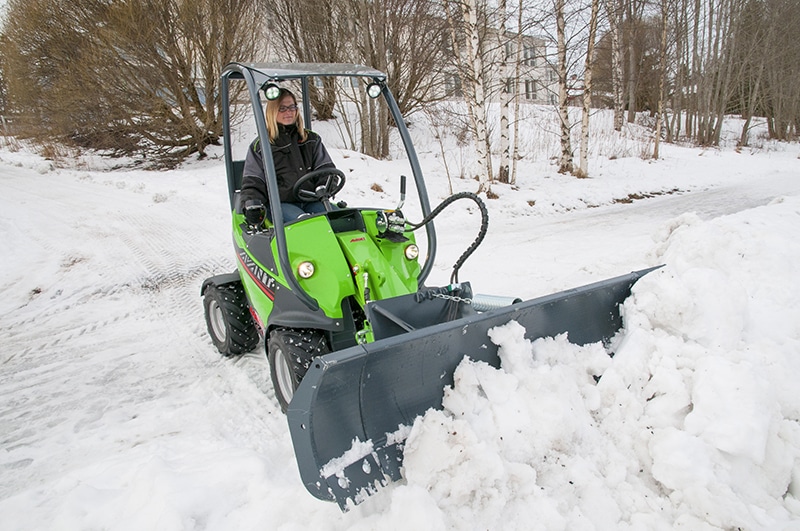

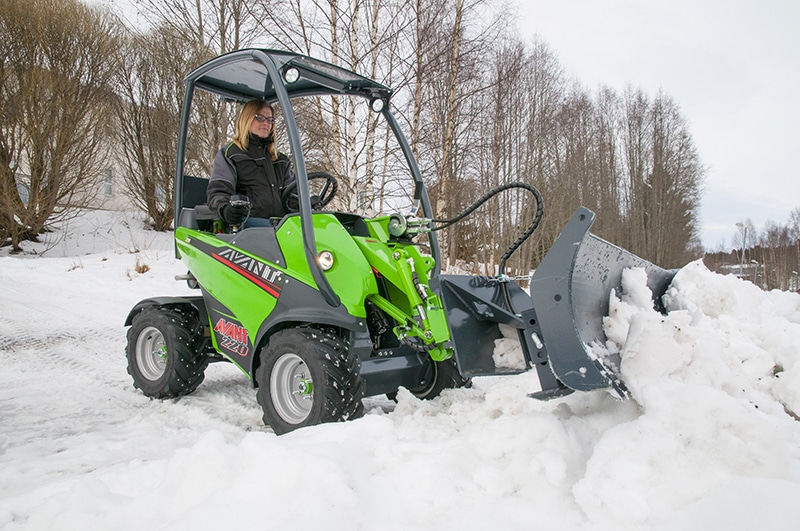

Equipped with hydraulic blade turning, Avant dozer blade is the ideal tool for snow removal, earthmoving and similar jobs where the materials must be dozed away quickly.
Thanks to the more curved blade than on the previous model the new dozer blade 1400 moves material more effficiently to the side. Blade height is the same as before, as well as the extensions and cutting edges. Hydraulic slewing and spring release are standard features also. The new spring release system is equipped with a single spring.
Economical dozer blade, well suited for snow removal
Spring release mechanism for improved safety
Two solid skid shoes as standard - reduce blade wear and improve maneuverability
Ice cutting edge and rubber edge available as an option
More Images & Videos
Technical Information
| Blade width | 1400 mm |
| Slewing angle | ± 30 degrees |
| Weight | 125 kg |
| Blade height | 380 mm |
| Product no. | A36649 |
Options
| Rubber edge 1400 mm | A32383 |
| Ice cutting edge 1400 mm | A32315 |
| Extensions 2 x 180 mm *) | A36651 |
| Rubber edge 180 mm | A48870 |
| on extension | |
| Ice cutting edge 180 mm | A413823 |
| on extension | |
| Stopper plates, kit **) | A443915 |
*) Can be mounted straight or in collecting position
**) Locking of blade’s spring release
Compatible Models
- Very compatible
- Compatible
- Incompatible
220225225LPG313S320S420 & 423
520523525LPG528530R20R28R35630635640
