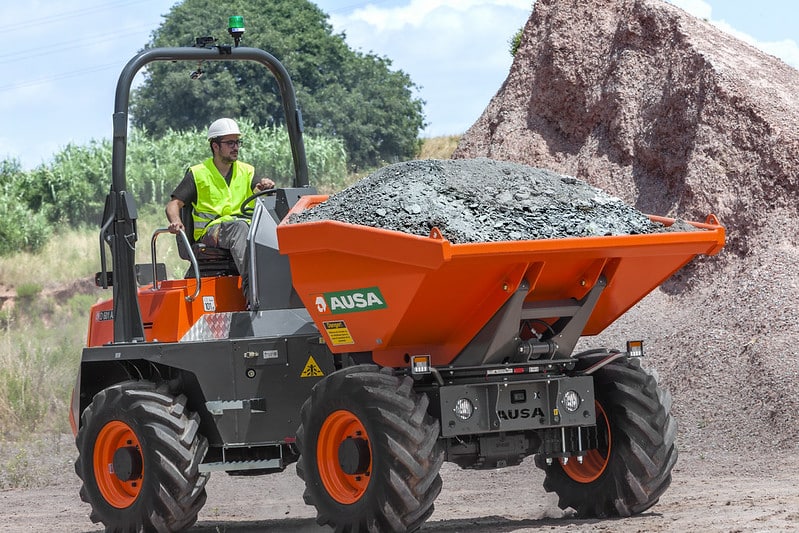

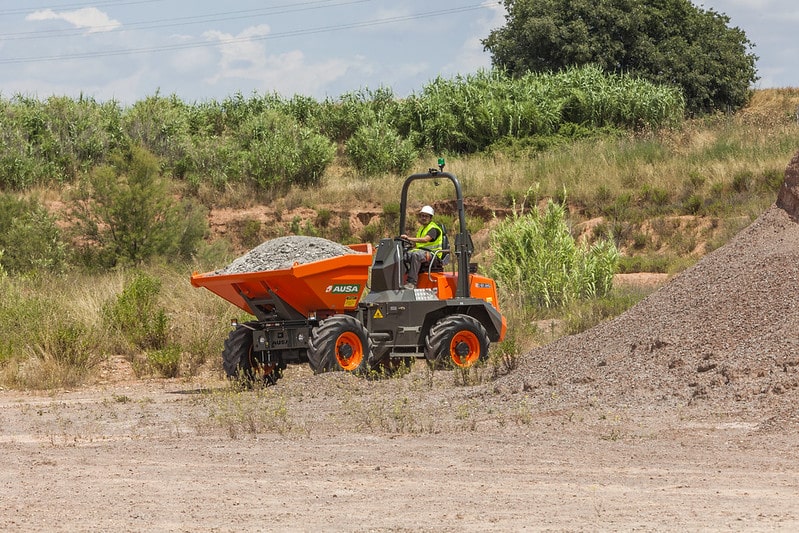

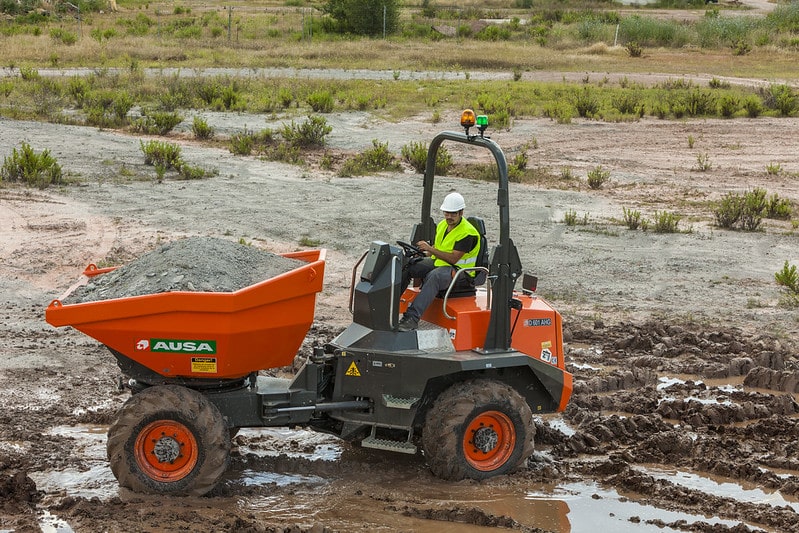

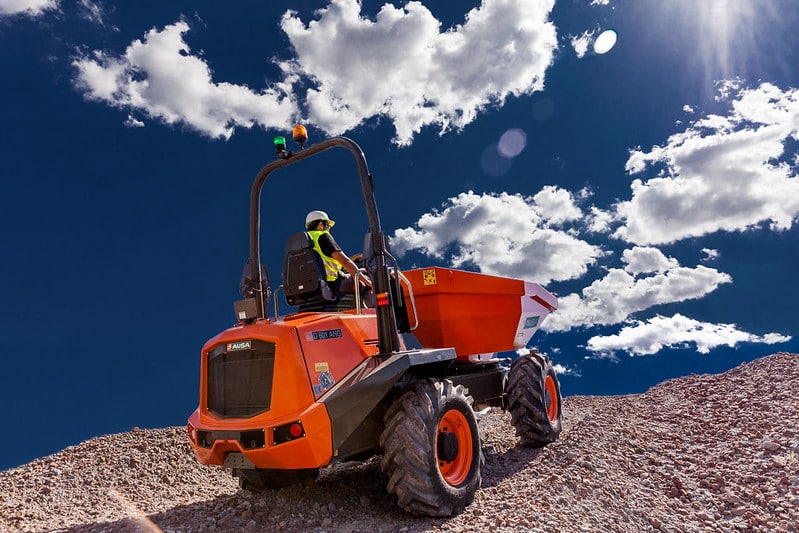

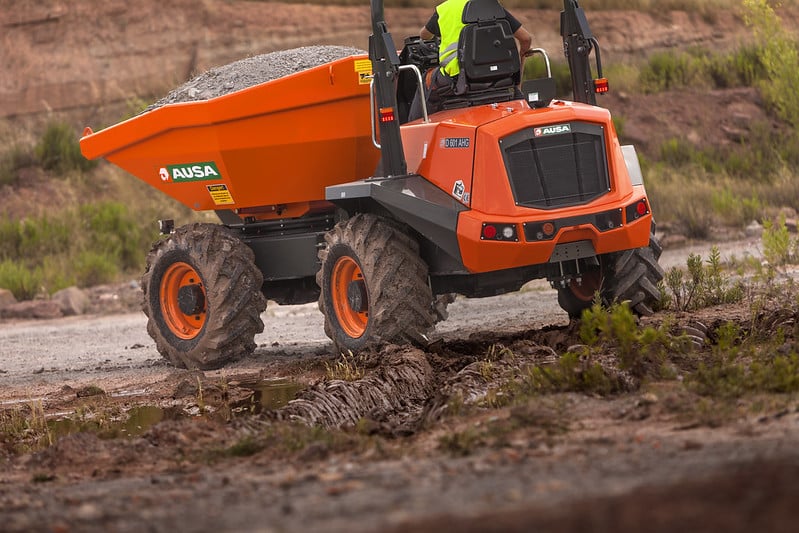

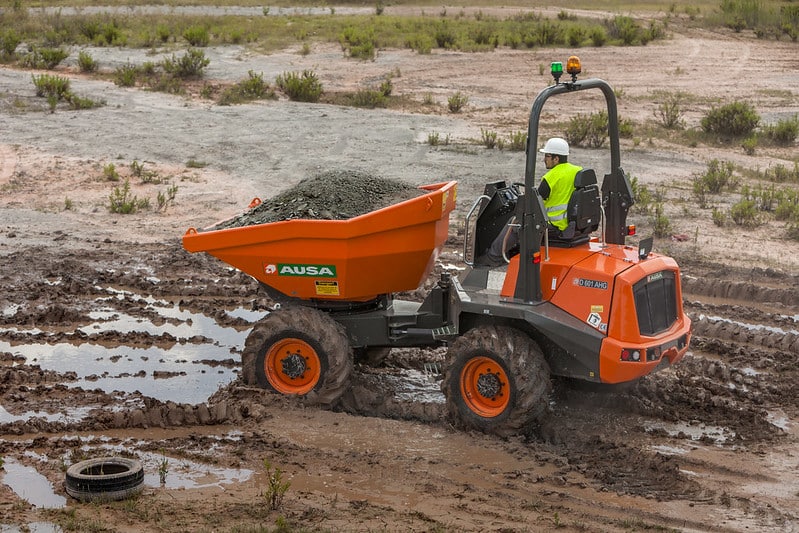

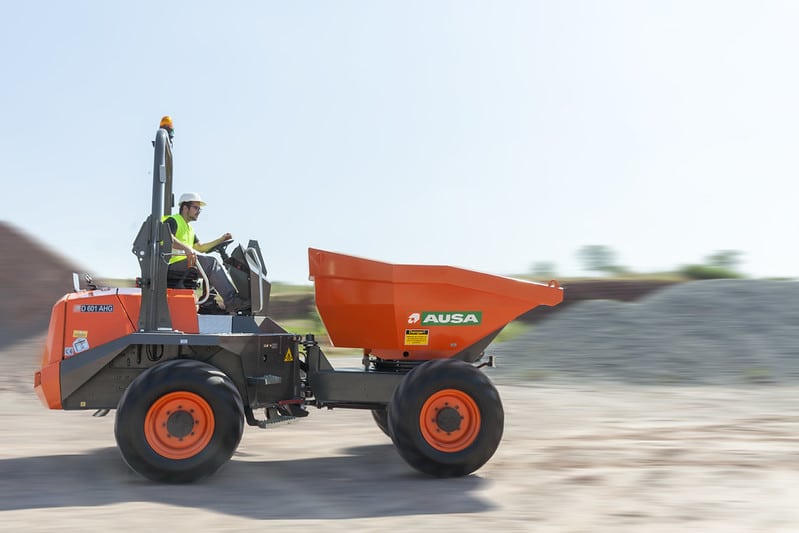

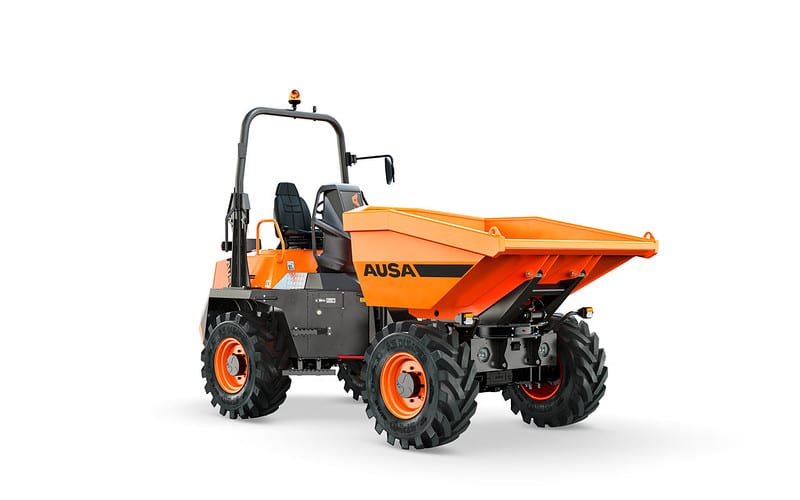

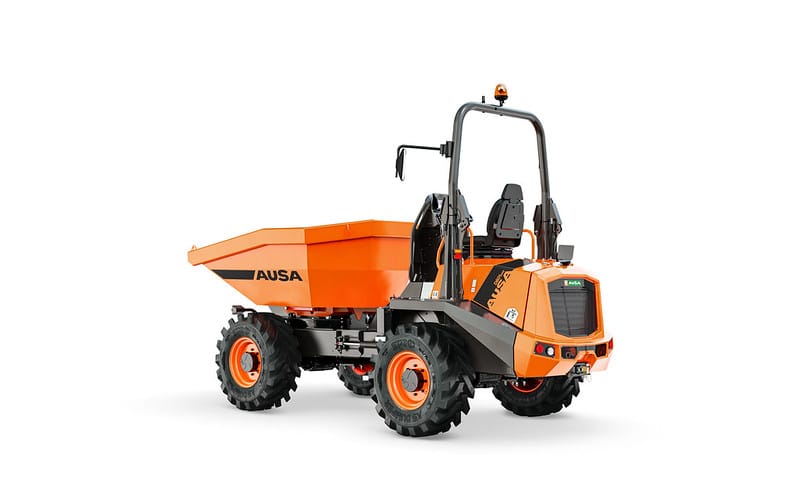

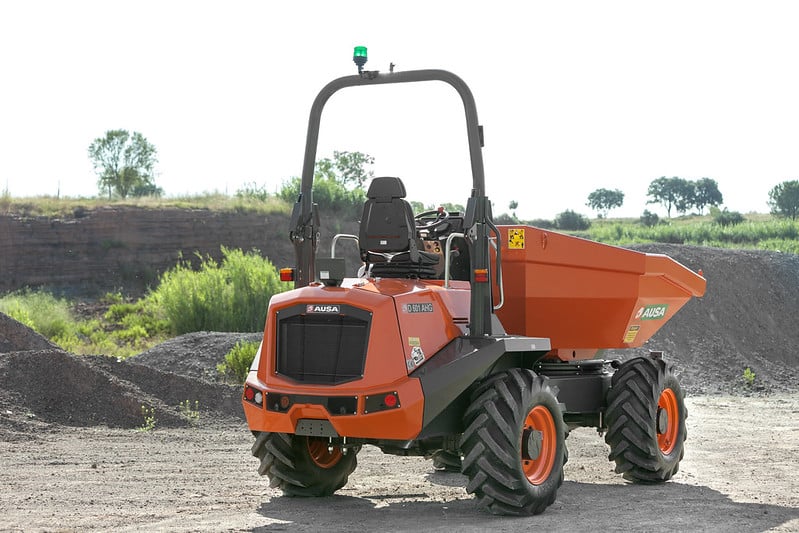

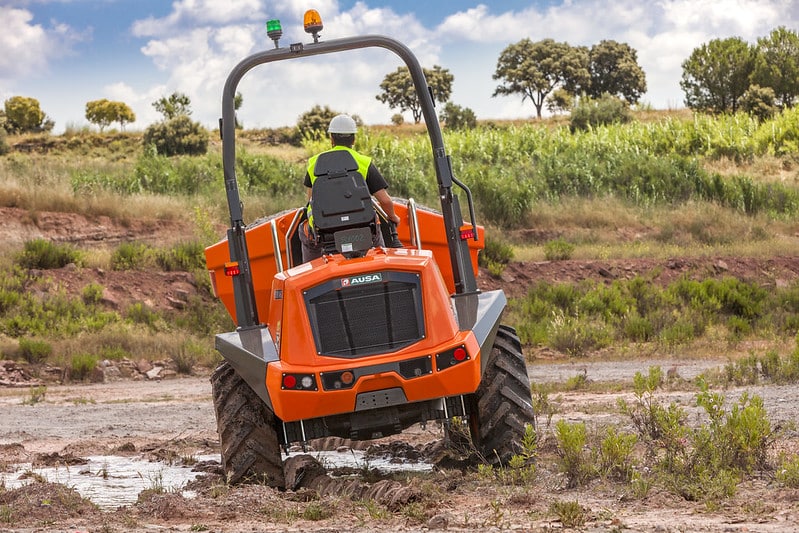

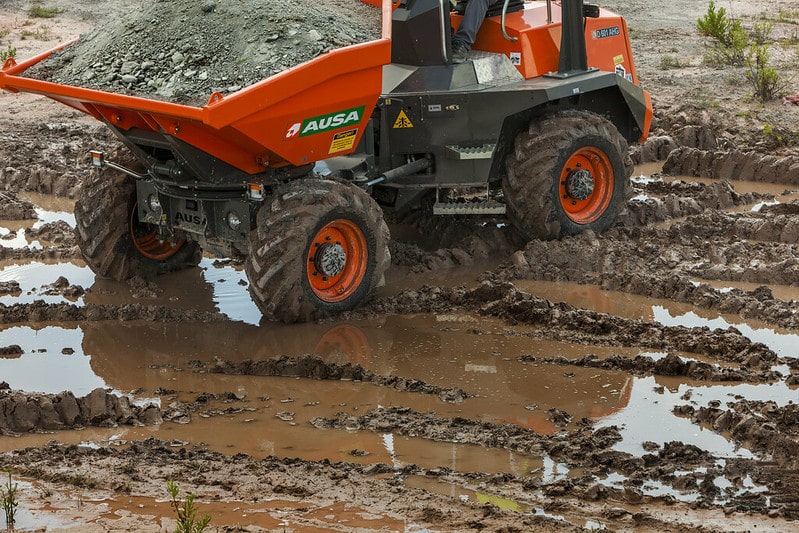

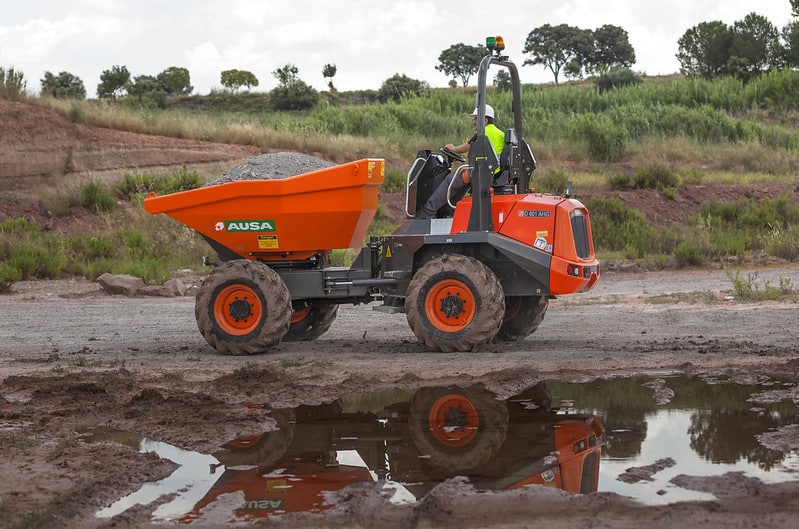

D601AHG+

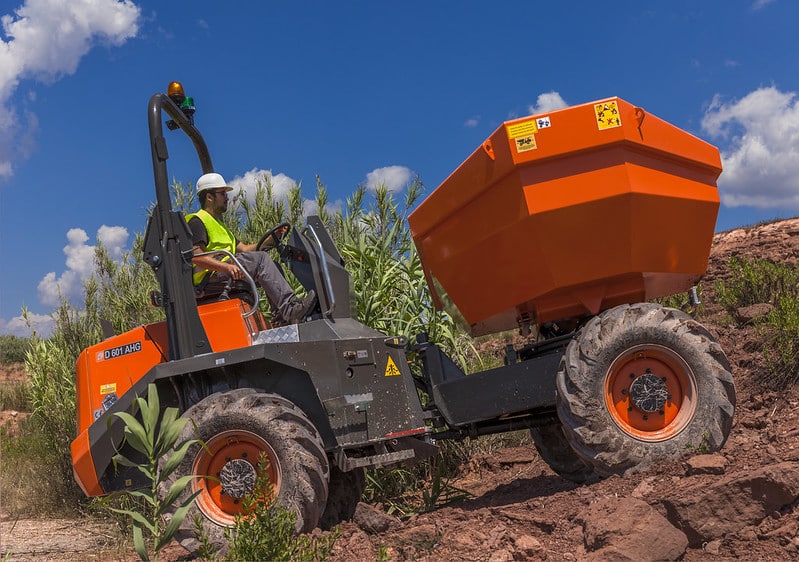

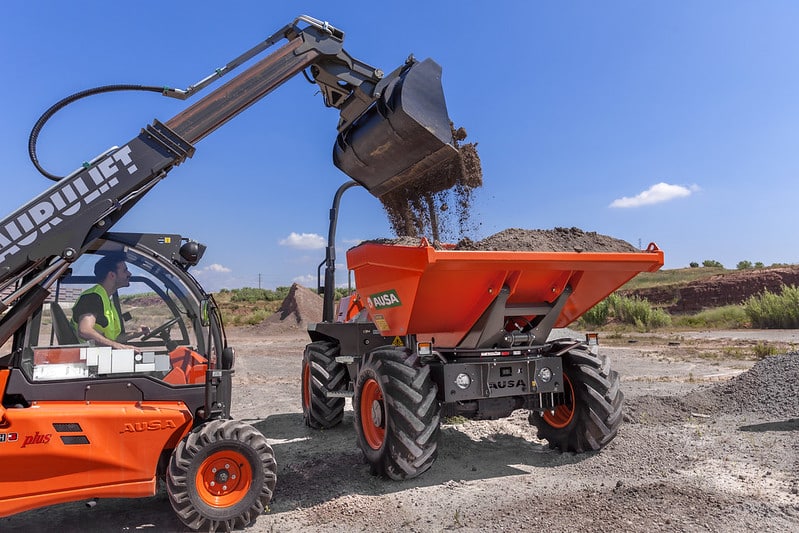

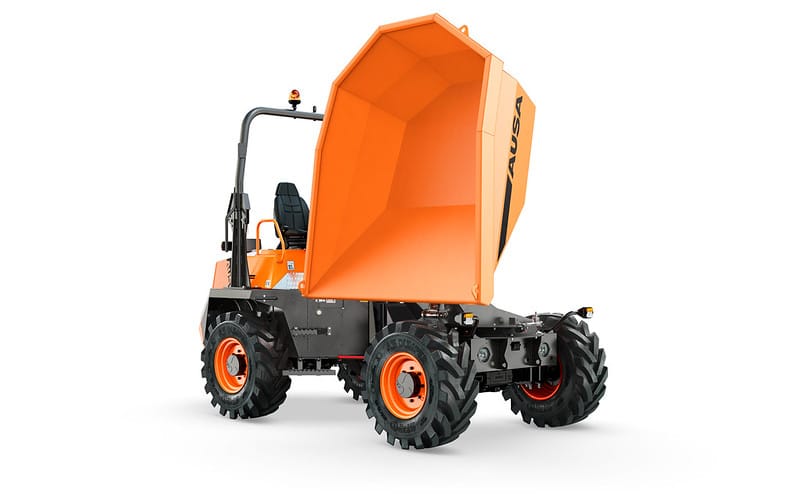

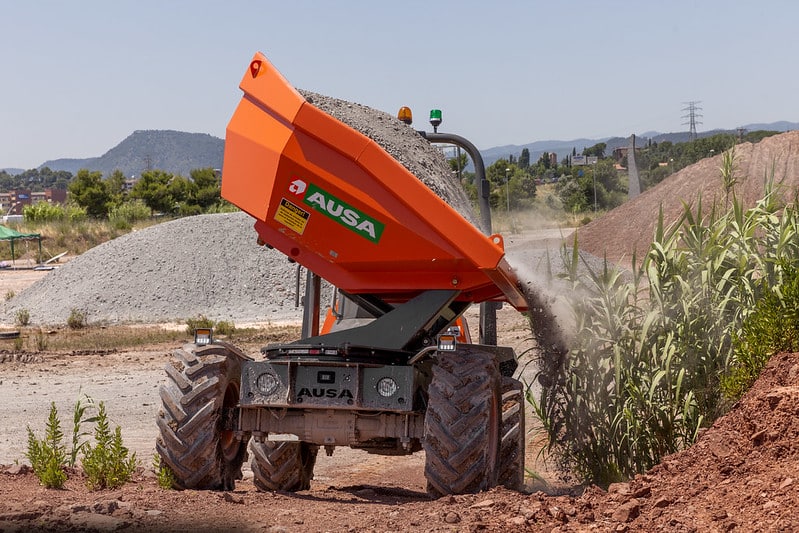

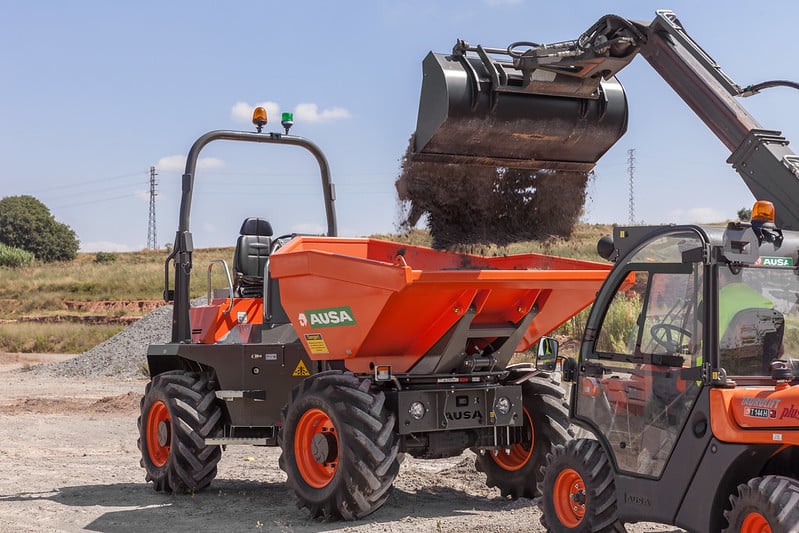

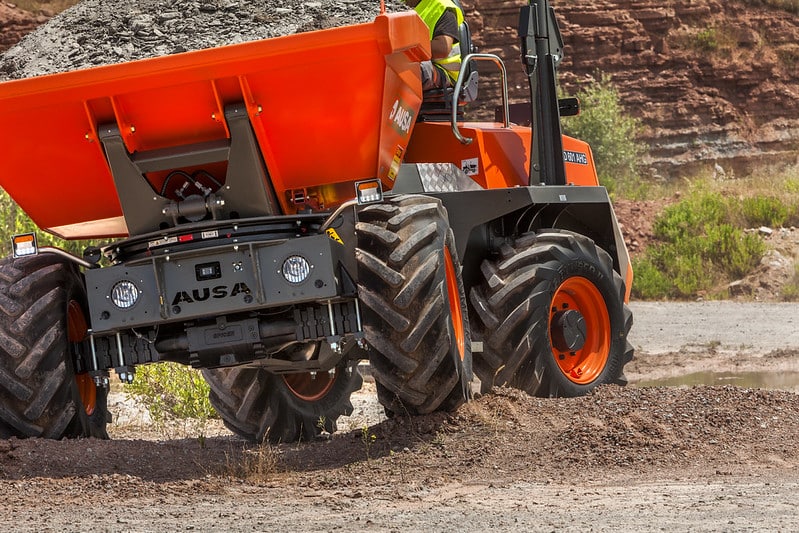

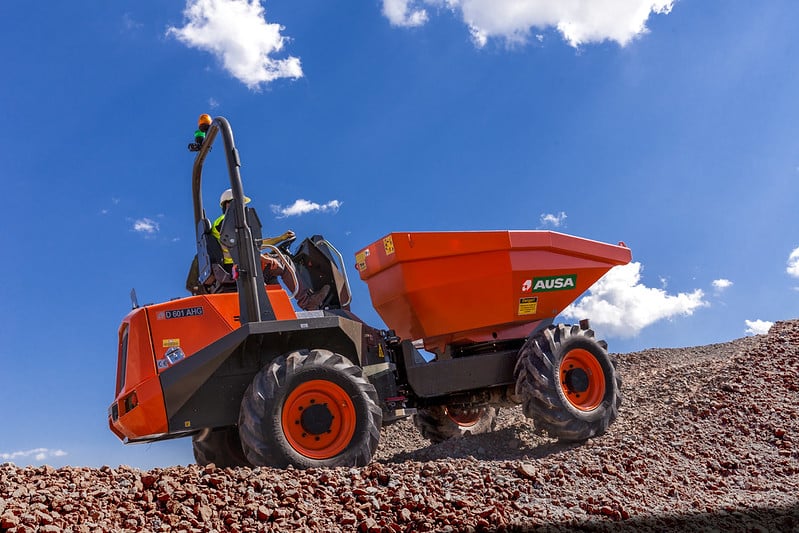

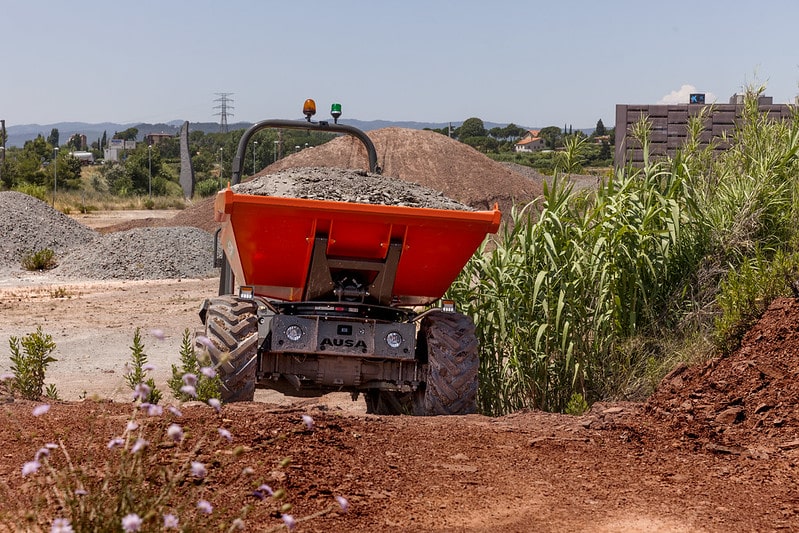

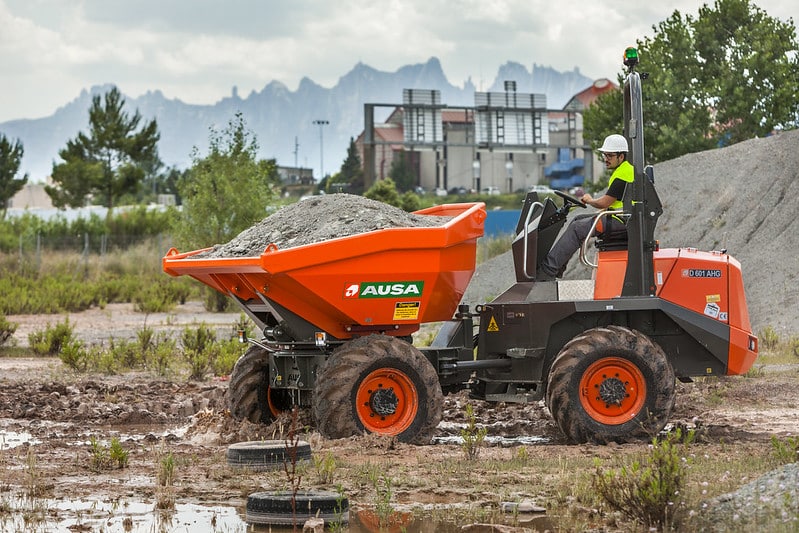

Cost-effective, safe and high-tech. It has a 180-degree swing skip and 6-tonne (13,200 lb) payload and hydrostatic transmission for maximum comfort and safety.
With the D601AHG dumper, you will have an efficient and environmentally-friendly dumper. Equipped with the ECO Mode system as standard, which automatically regulates the machine’s RPM at low speeds, and the optional Smart Stop feature, which switches off the engine when it is not in use, you will significantly improve fuel consumption, maintaining low CO2 emissions.

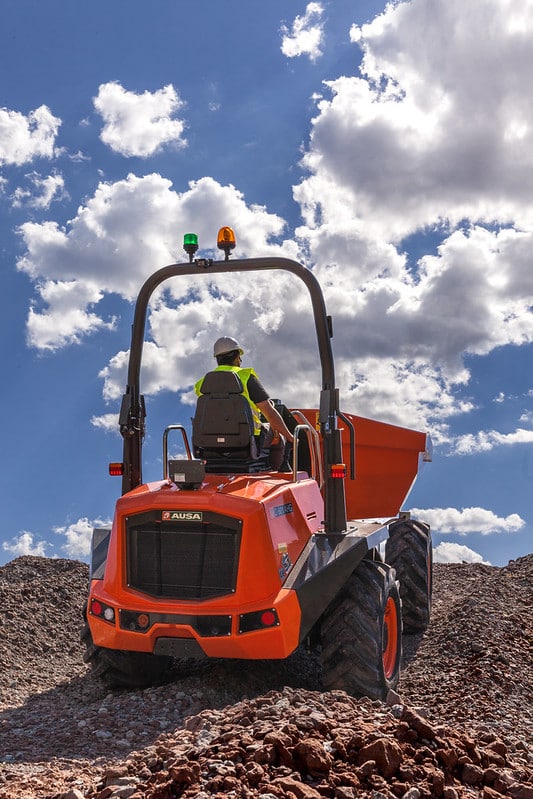

You will also have an exceptionally safe system. It features a new Hill Holder system, which automatically engages the brake when you take your foot off the accelerator at speeds close to zero. Imagine how easy it will be to manoeuvre on any slope!

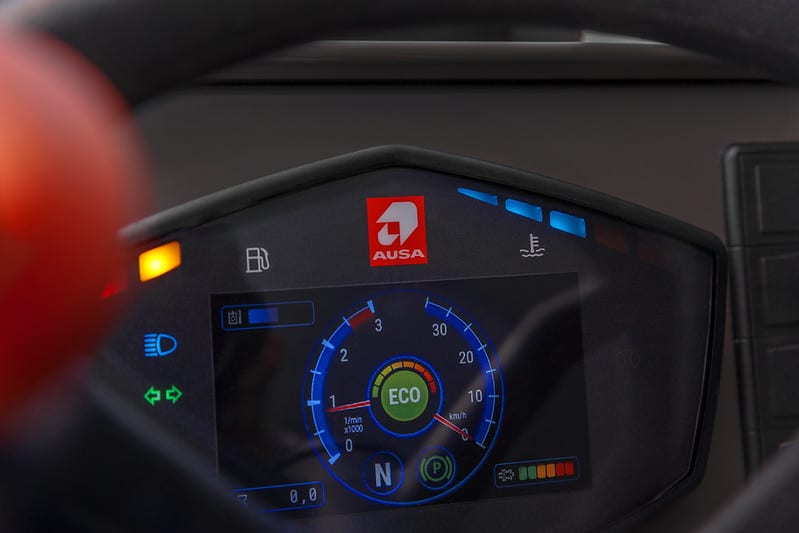

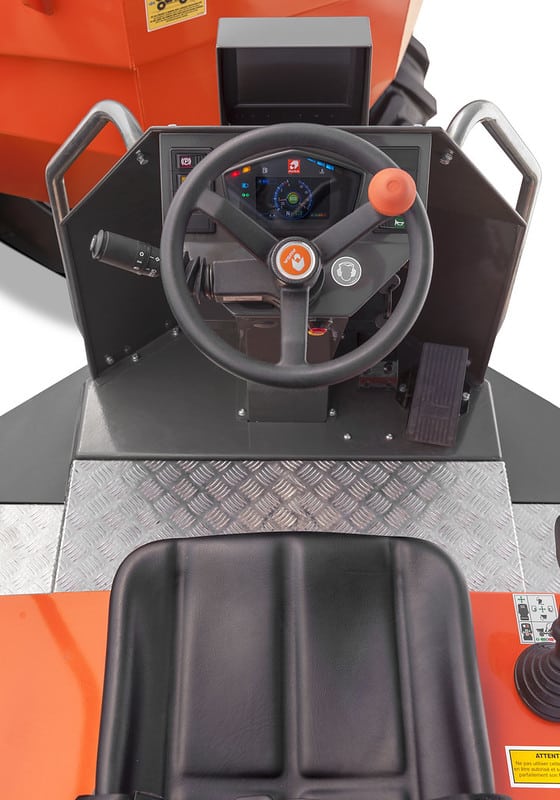

Additionally, a digital display is built into the driver’s console, where you will find all of the real-time information about the machine, such as the speed, RPM, fluid levels and alarms.
More Images & Videos
Technical Information
General
| Unloading system | Swivel tip |
| Load capacity | 6000 kg |
| Chassis | Articulated |
| Water skip capacity | 1665 l |
| Level skip capacity | 2455 l |
| Heaped skip capacity | 3154 l |
| Empty weight | 4285 kg |
| Transmission | Hydrostatic |
| Reversibility | Non-reversible |

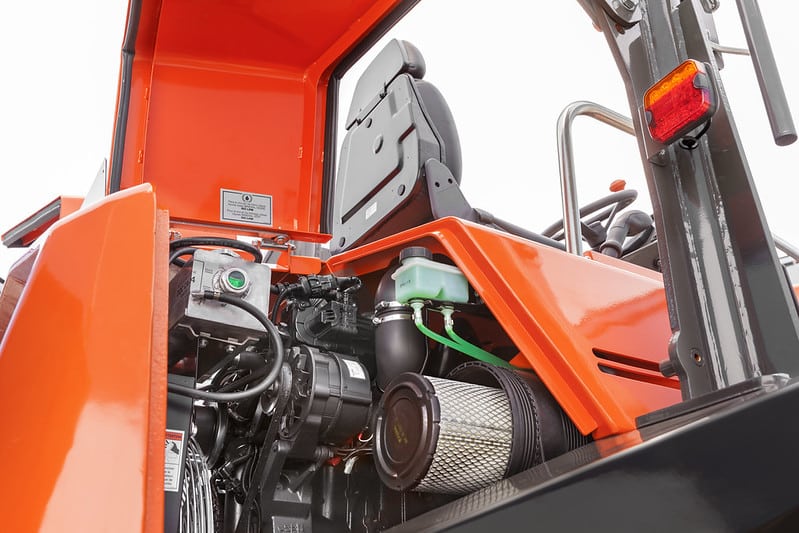

Engine
| Brand | DEUTZ |
| Model | TD3.6 L4 |
| Power | 55.4 kW |
| Torque | 330@1600 |
| No. of cylinders | 4 |
| Emissions | Stage V |
| Noise level (LwA) | 101 dB(A) |
Driving
| Max. speed | 25 km/h |
| Maximum gradient | 45 % |
| External turning radius | 5900 mm |

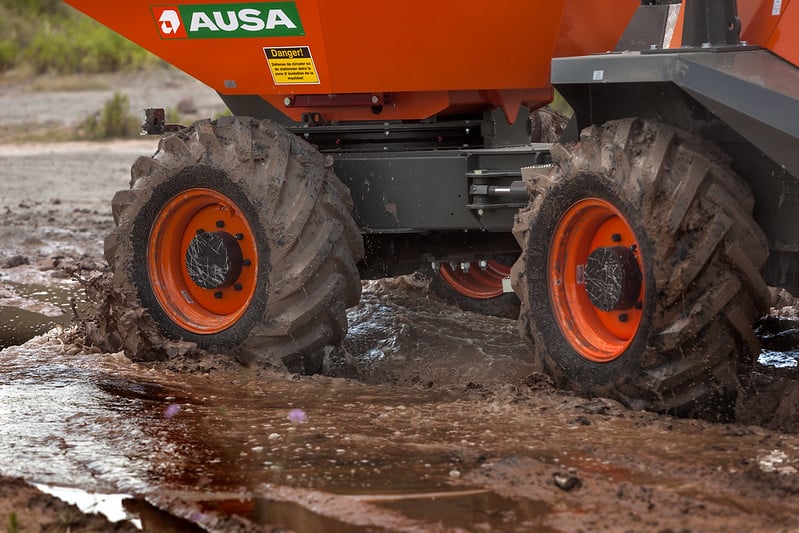

| Traction | 4×4 |
| Tyres | 405/70-20 |
Hydraulic system
| Hydraulic circuit | Two gears pump |
| Flow rate | 50 l/min |
| Working pressure | 180 bar |
Tank capacity
| Fuel | 69 l |
| Hydraulic system | 60 l |
Brakes
| Service | Hydraulic, sealed, multi-disc |
| Parking | Negative, sealed, multi-disc |
Equipment
Driving Position
Rear folding ROPS protective structure
Safety
Seat belt with fasten sensor, Seat with operator’s presence sensor, LED rotating beacon, Acoustic warning for reverse gear, Emergency stop, Anti-vandal security system, Hill Holder – hill-start assist, Negative brake, Full visibility camera on the skip side
Lighting & Driving
Rear-view mirror
Comfort

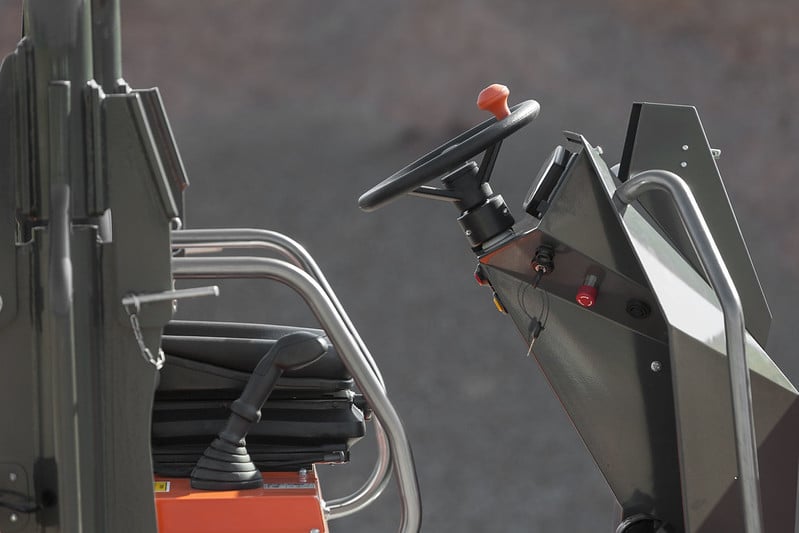

All-in-one joystick, Extra comfort seat, fully adjustable
Advanced equipment
ECO Mode system, Digital display, Hydrostatic transmission with electronic control, Limited-slip differential on both axles
