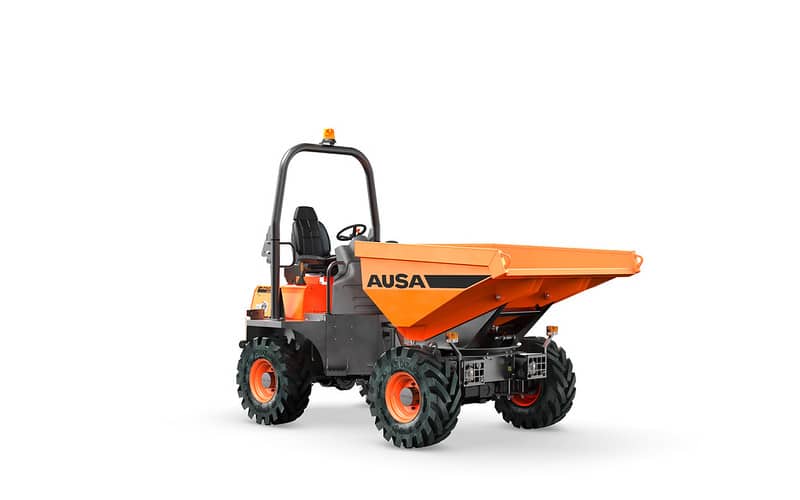

D350AHG

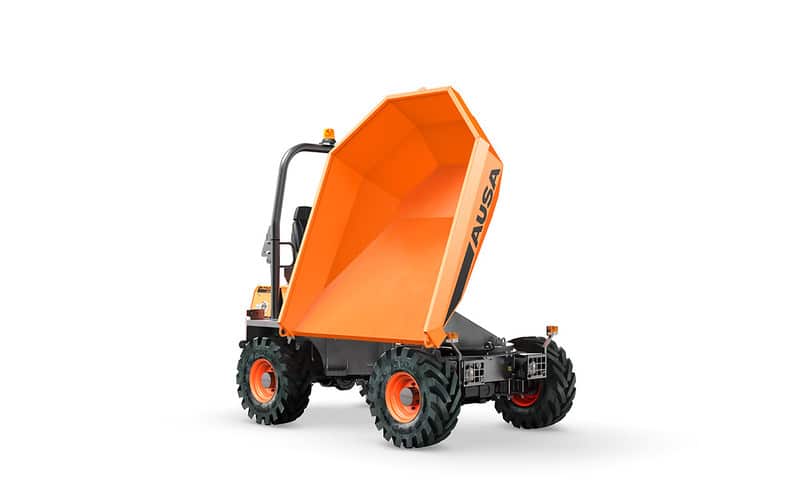

With a 3.5-tonne (7,700 lb) payload and 180-degree swing skip, the D350AHG dumper is the most balanced mid-range model, with an outstanding power to payload ratio.
Thanks to this, the D350AHG offers optimal performance in any type of work. It can also be equipped with the “Full Visibility System”, a camera and proximity sensor system that gives the driver complete control over their surroundings and ensures maximum safety.
With its hydrostatic transmission, maximum comfort and safety are assured. Thanks to the transmission brake, it prevents the machine from moving under its own weight on slopes, without you even touching the brake pedal. Also, as there is no need to change gears, the driver can focus on the movements of the machine and its load.
More Images & Videos
Technical Information
General
| Unloading system | Swivel tip |
| Load capacity | 3500 kg |
| Chassis | Articulated |
| Water skip capacity | 1020 l |
| Level skip capacity | 1790 l |
| Heaped skip capacity | 2130 l |
| Empty weight | 2831 kg |
| Transmission | Hydrostatic |
| Reversibility | Non-reversible |
Engine
| Brand | Kubota |
| Model | D1803-CR-T-E5B |
| Power | 32.8 kW |
| Torque | 150,5@1500 |
| No. of cylinders | 3 |
| Emissions | Stage V – EPA Tier 4f |
| Noise level (LwA) | 101 dB(A) |
Driving
| Max. speed | 19 km/h |
| Maximum gradient | 54 % |
| External turning radius | 4515 mm |
| Traction | 4×4 |
| Tyres | 11.5/80-15,3 |
Hydraulic system
| Hydraulic circuit | 12 cc gear pumps |
| Flow rate | 26.6 l/min |
| Working pressure | 170 bar |
Tank capacity
| Fuel | 44 l |
| Hydraulic system | 40 l |
Brakes
| Service | Hydraulic, sealed, multi-disc |
| Parking | Negative |
Equipment
Driving Position
Rear folding ROPS protective structure
Safety
Seat belt with fasten sensor, Seat with operator’s presence sensor, Acoustic warning for reverse gear, Anti-vandal security system, Negative brake, Rotating beacon
Lighting & Driving
Road lights, Rear-view mirror
Comfort
Adjustable ergonomic seat, All-in-one joystick
Advanced equipment
Hydrostatic transmission
Accessories
Water separator diesel filter
