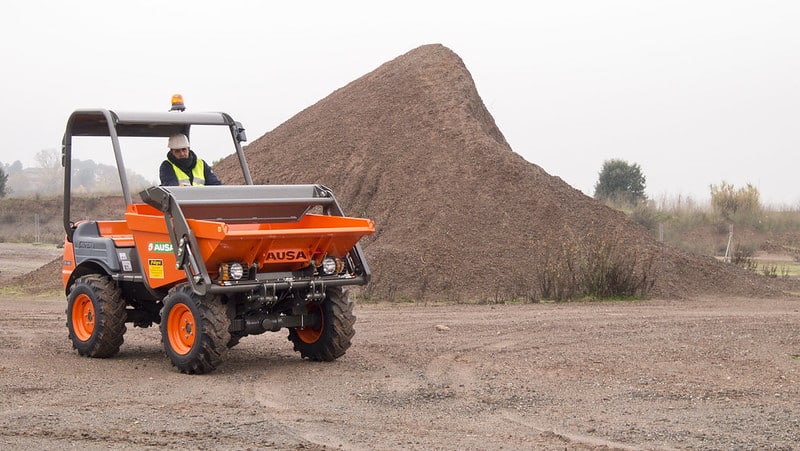

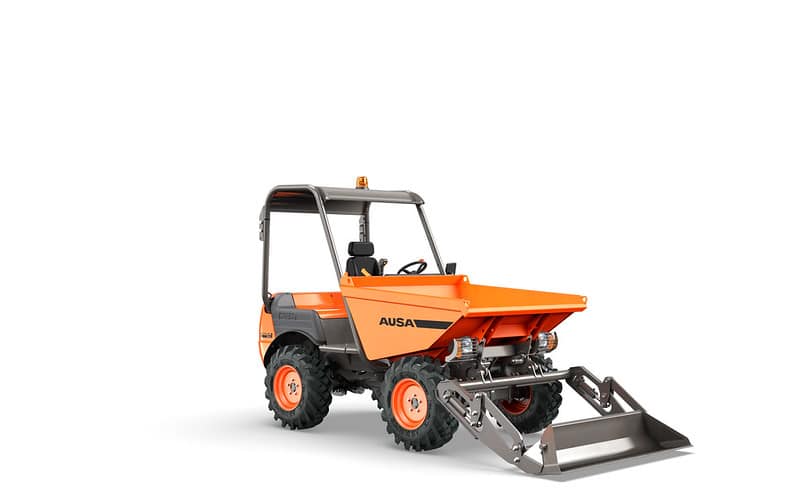

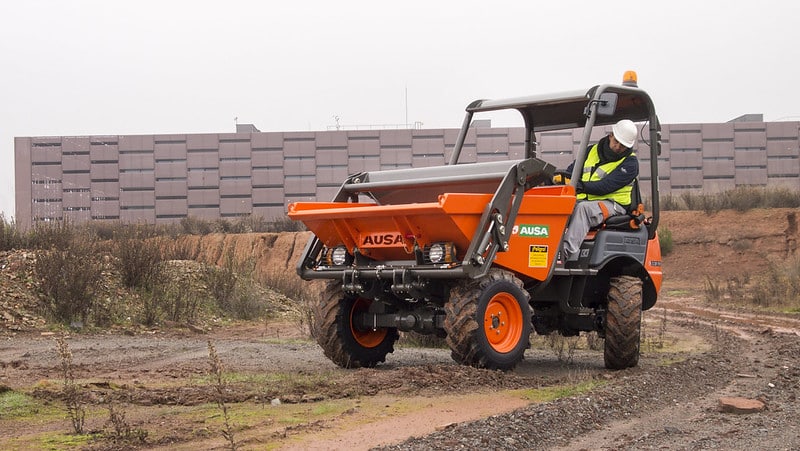

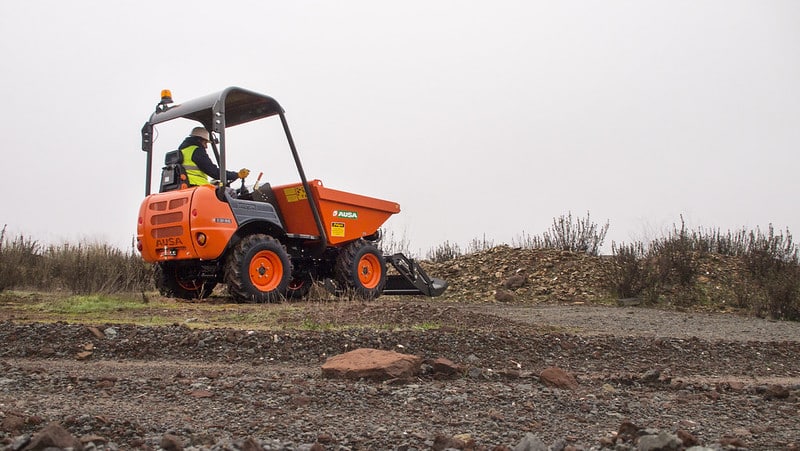

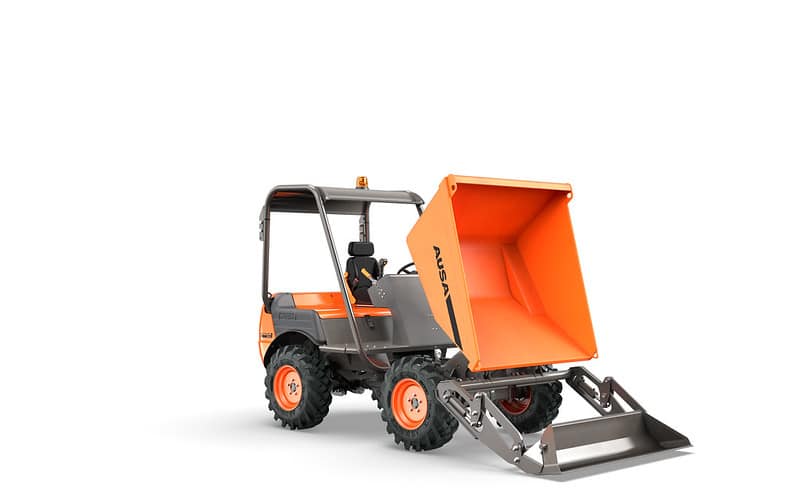

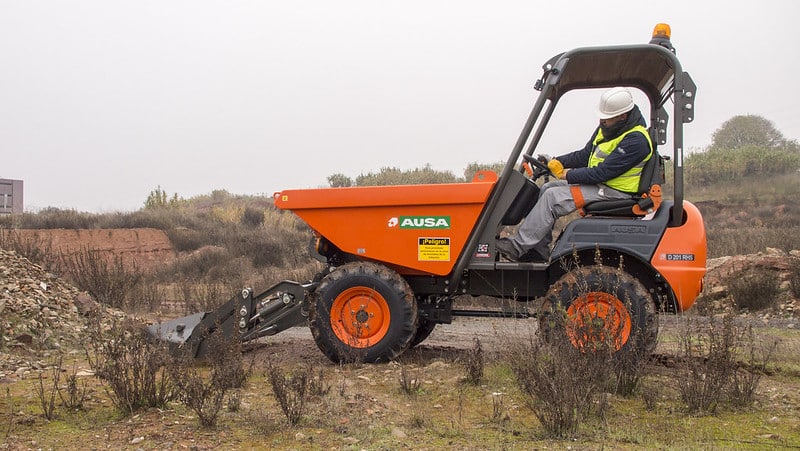

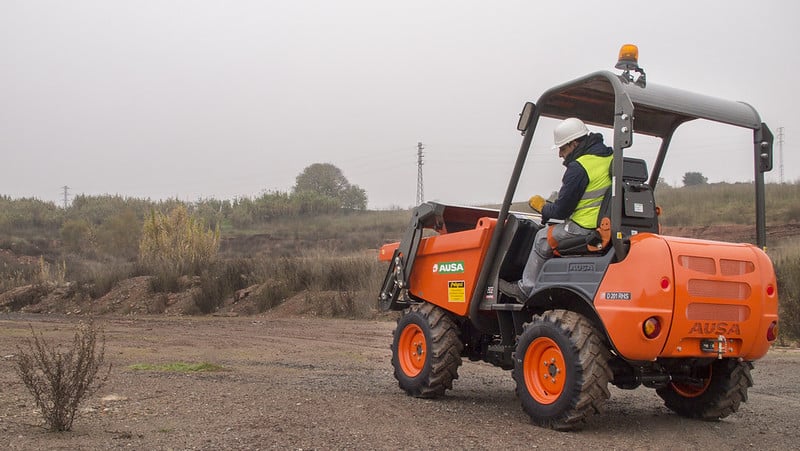

D201RHS
The most advanced compact rigid dumper. Flexible, powerful, easy to operate and inexpensive to maintain. With a 2-tonne (4,400 lb) payload and self-loading shovel, it features a permanent 4×4 Compen© drive and a joystick in the driver’s cab that controls all movements. It can also be equipped with a second seat for a passenger. Perfect for work in urban development, refurbishments or minor civil engineering projects.
With its hydrostatic transmission, maximum comfort and safety are assured. Thanks to the transmission brake, it prevents the machine from moving under its own weight on slopes, without you even touching the brake pedal.
All-terrain
Cost-effectiveness
Joystick all in one hand
Easy to use
Low maintenance costs
Strength
More Images & Videos
Technical Information
General
| Unloading system | Front tip |
| Load capacity | 2000 kg |
| Chassis | Rigid |
| Water skip capacity | 700 l |
| Level skip capacity | 960 l |
| Heaped skip capacity | 1250 l |
| Empty weight | 1900 kg |
| Transmission | Hydrostatic |
| Reversibility | Non-reversible |
Engine
| Brand | Kubota |
| Model | V1505-E4B |
| Power | 18.5 kW |
| Torque | 92,6@1700 |
| No. of cylinders | 4 |
| Emissions | Stage V – EPA Tier 4 |
| Noise level (LwA) | 101 dB(A) |
Driving
| Max. speed | 18 km/h |
| Maximum gradient | 35 % |
| External turning radius | 4190 mm |
| Traction | 4×4 Compen® |
| Tyres | 10.0/75-15.3 |
Hydraulic system
| Flow rate | 18 l/min |
| Working pressure | 180 bar |
Tank capacity
| Fuel | 40 l |
| Hydraulic system | 40 l |
Brakes
| Service | Sealed, multi-disc |
| Parking | Sealed, multi-disc |
Equipment
Driving Position
Folding ROPS protective structure
Safety
Acoustic warning for reverse gear, Anti-vandal security system, Rotating beacon, Retracting seat belt
Lighting & Driving
Power steering
Comfort
Adjustable ergonomic seat, All-in-one joystick
Advanced equipment
Hydrostatic transmission
Implements
Self-loading shovel
