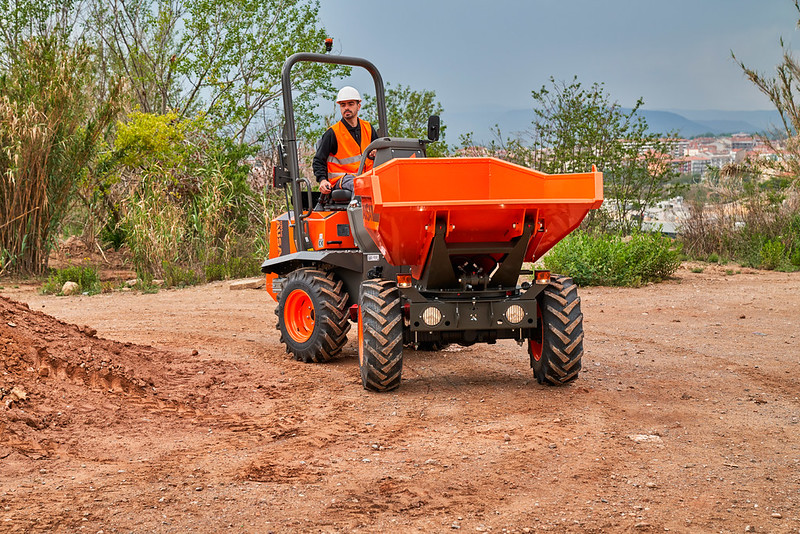

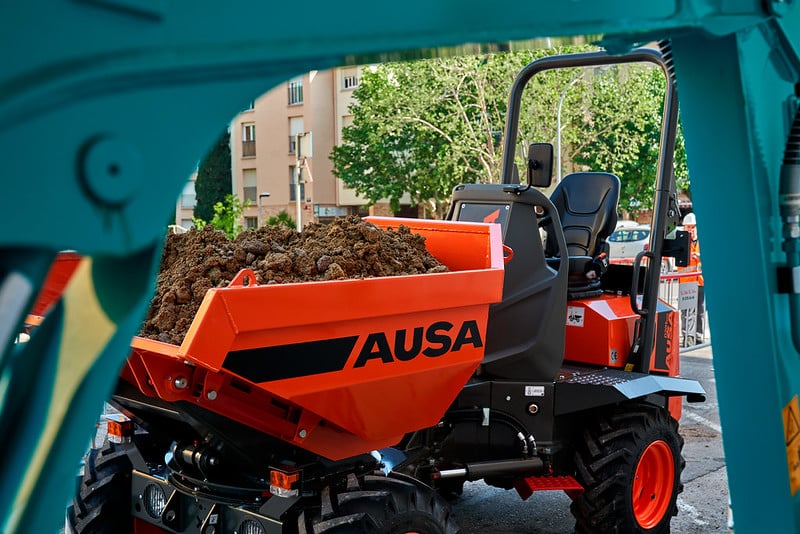

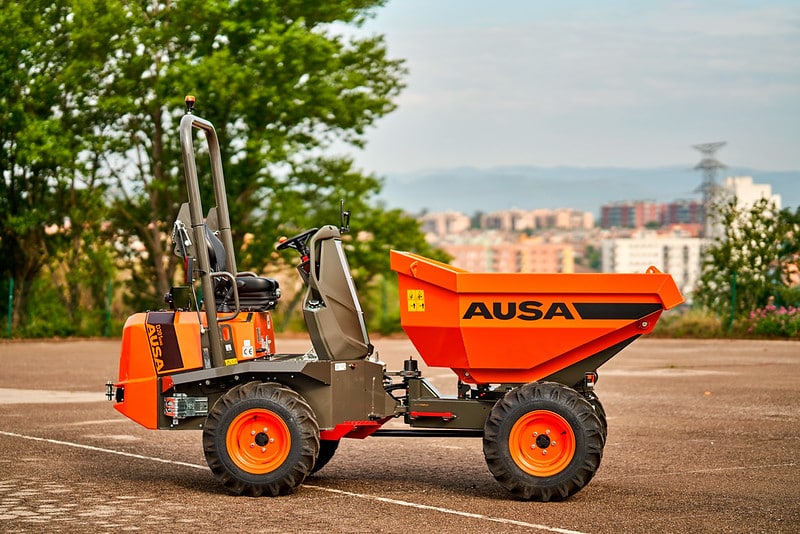

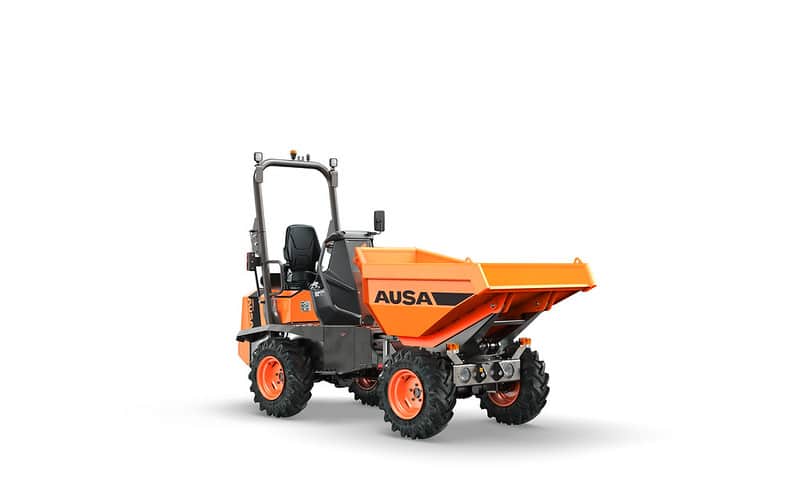

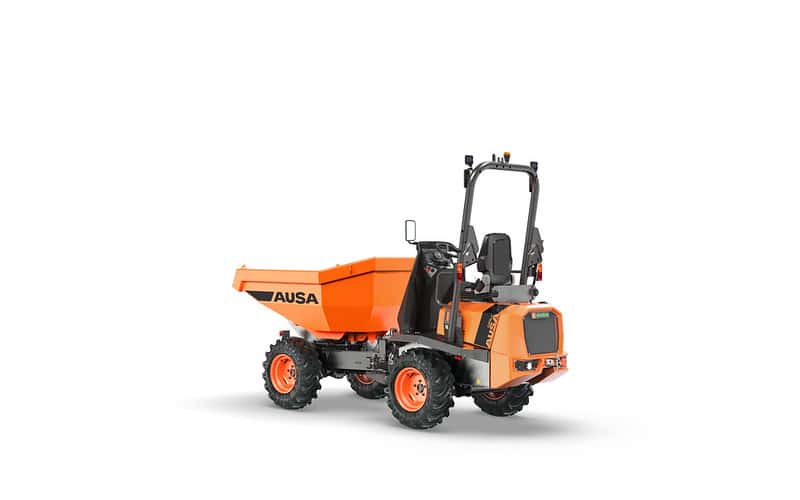

D201AHG

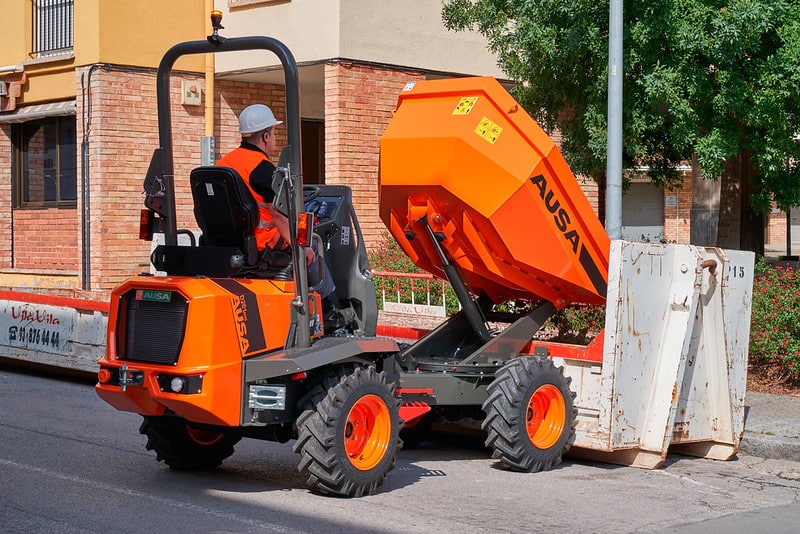

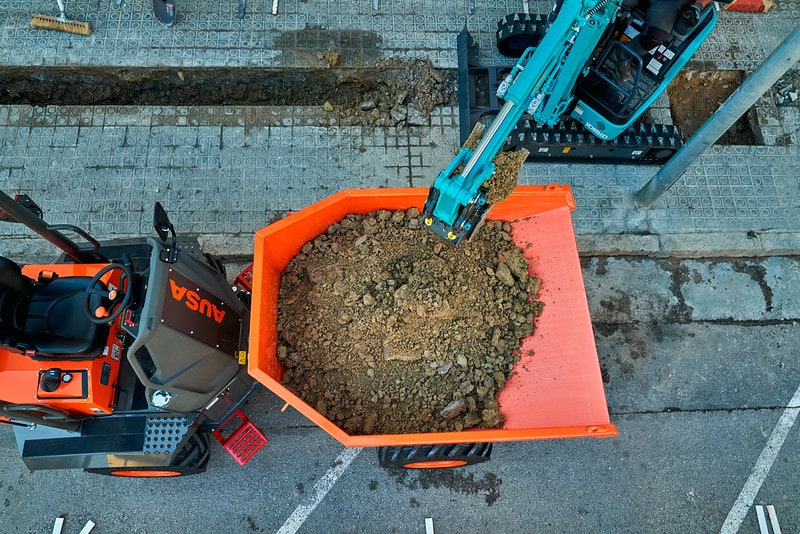

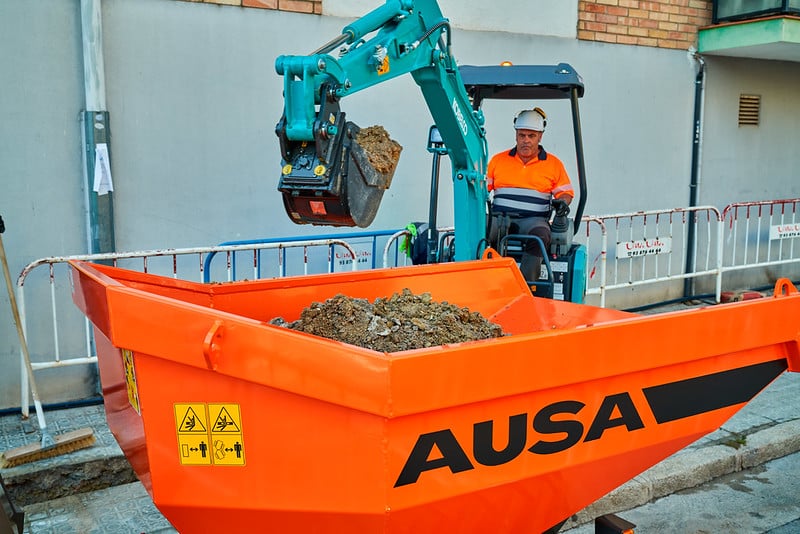

With a 2,000 kg (4,400 lb) payload and a swivel skip that can hold more than 1,300 liters (1.7 cu yd), this is the highest-capacity dumper in its class.

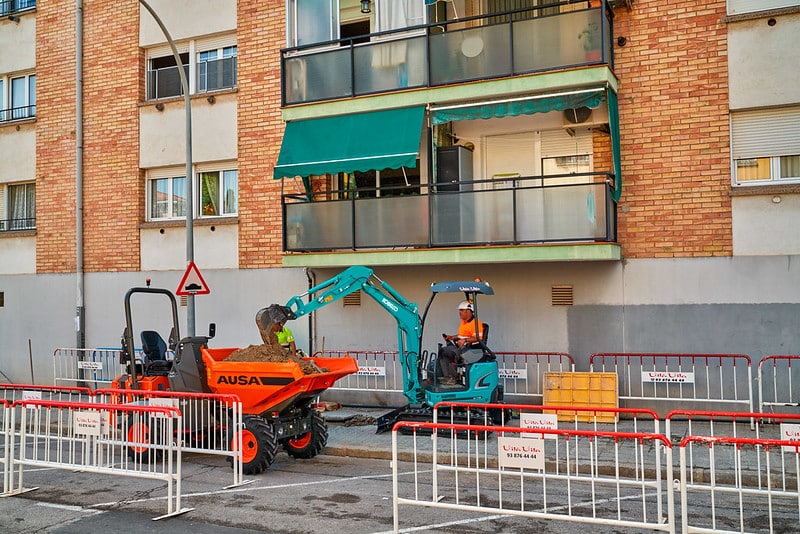

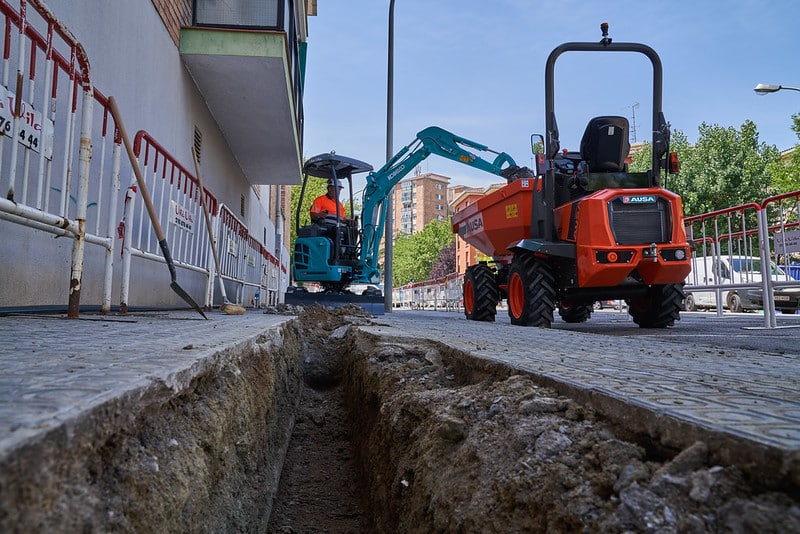

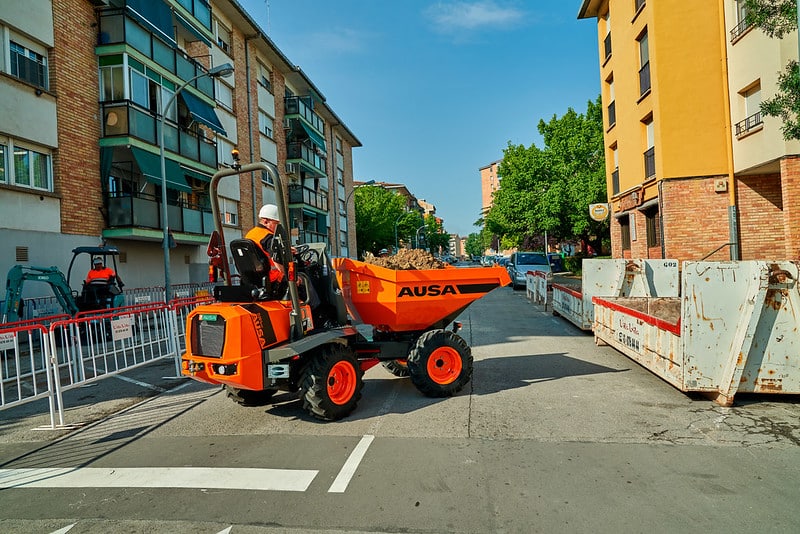

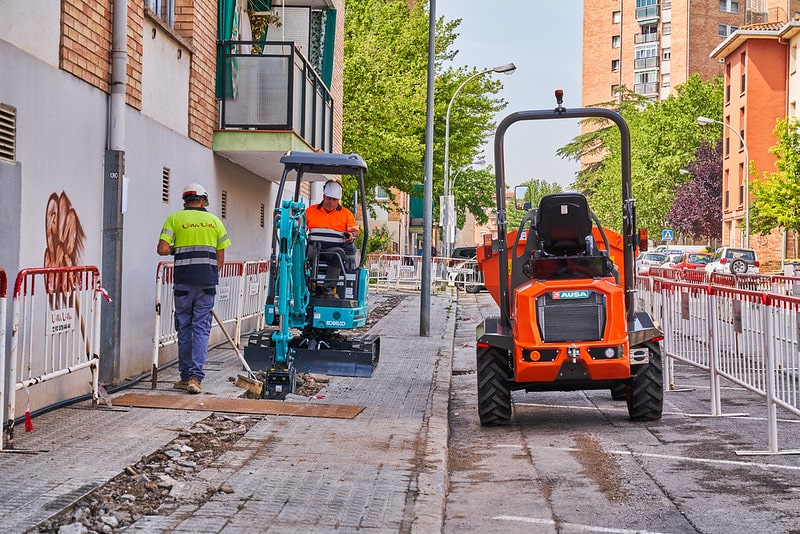

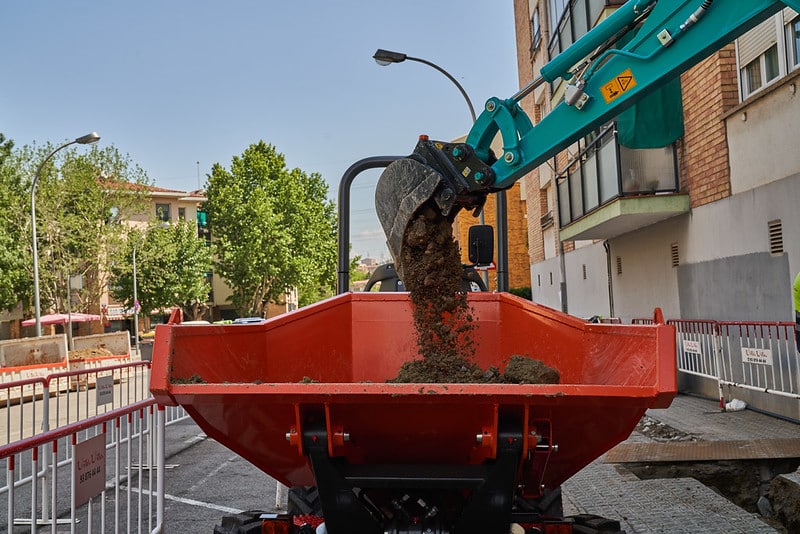

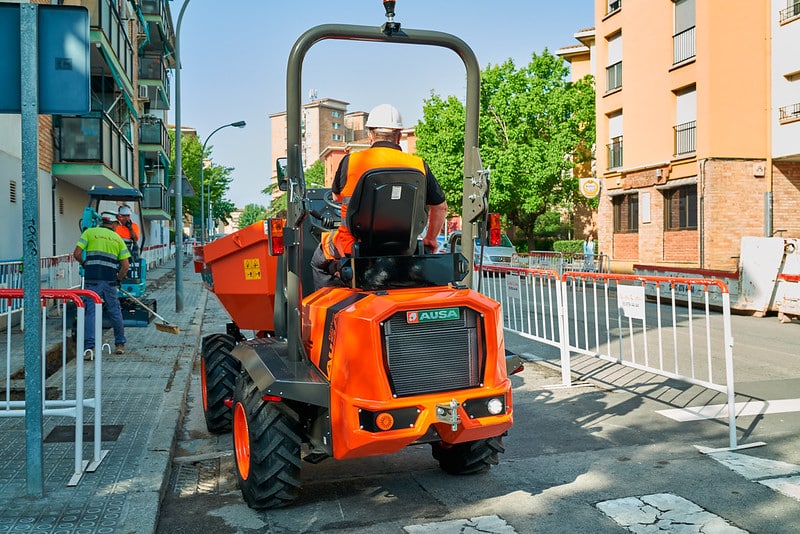

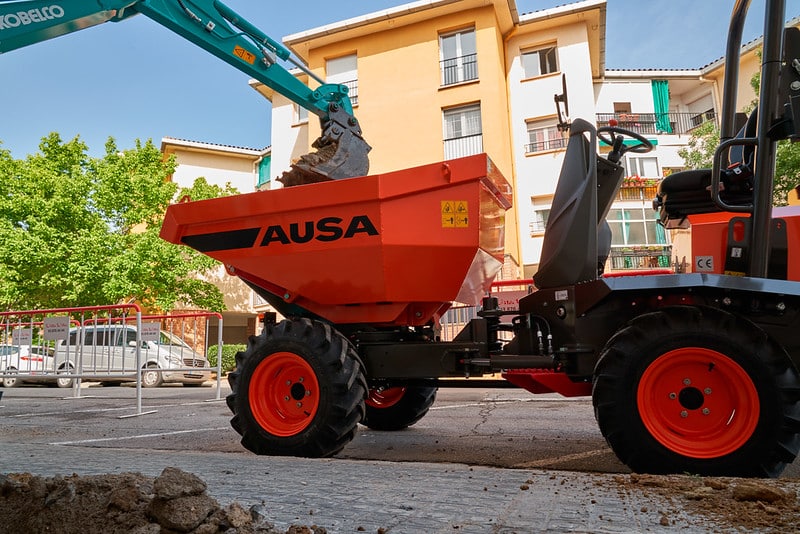

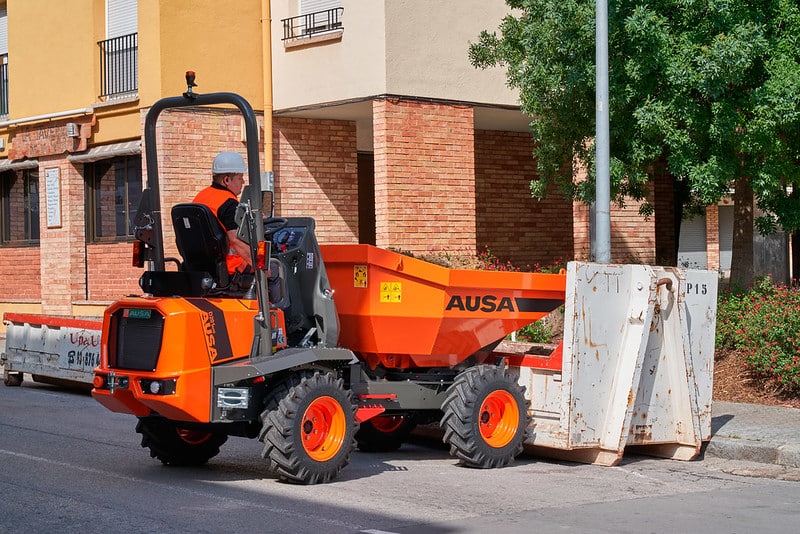

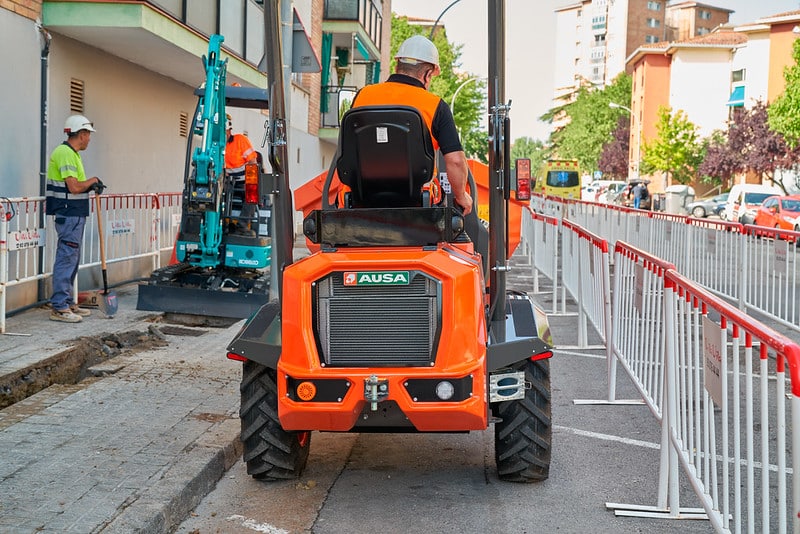

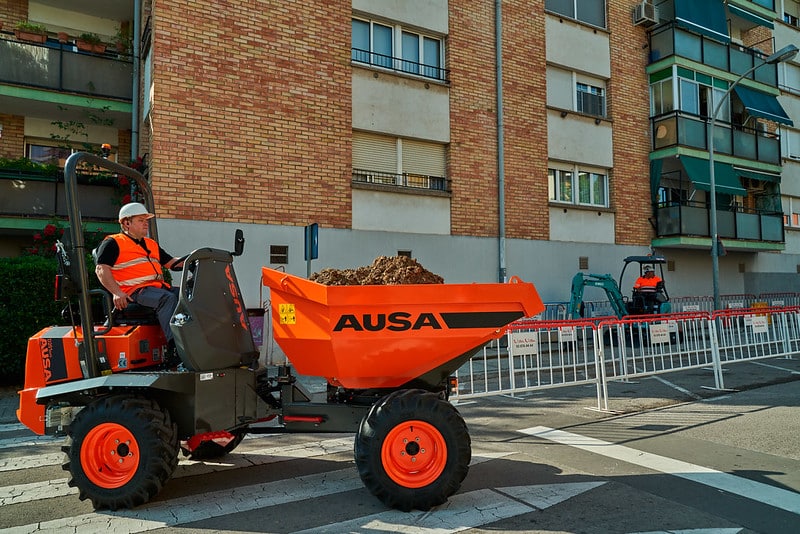

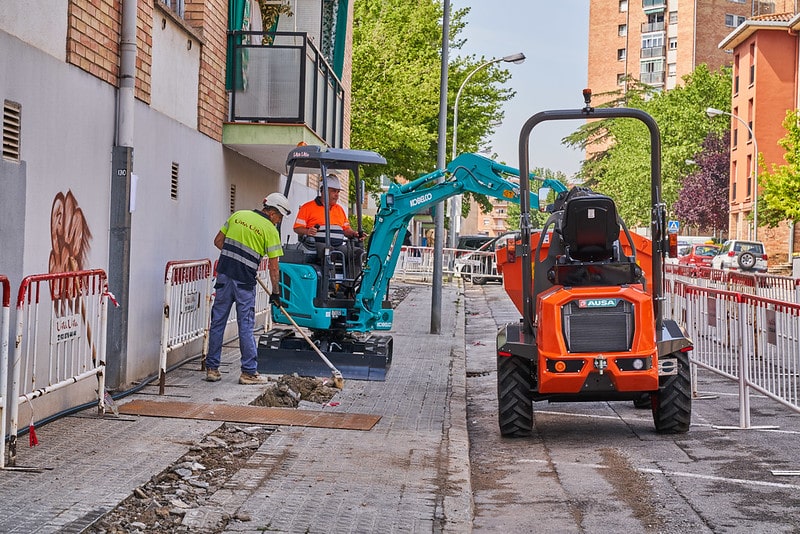

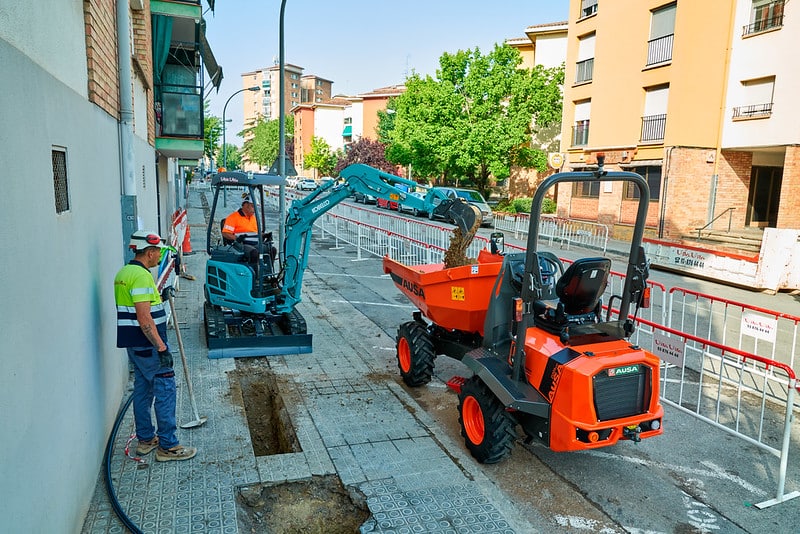

Its compact dimensions at just 1.5 meters (59 in) wide make it ideal for municipal works. The D201AHG makes transporting earth or debris on sites where there is little room for manoeuvring an agile and quick task.

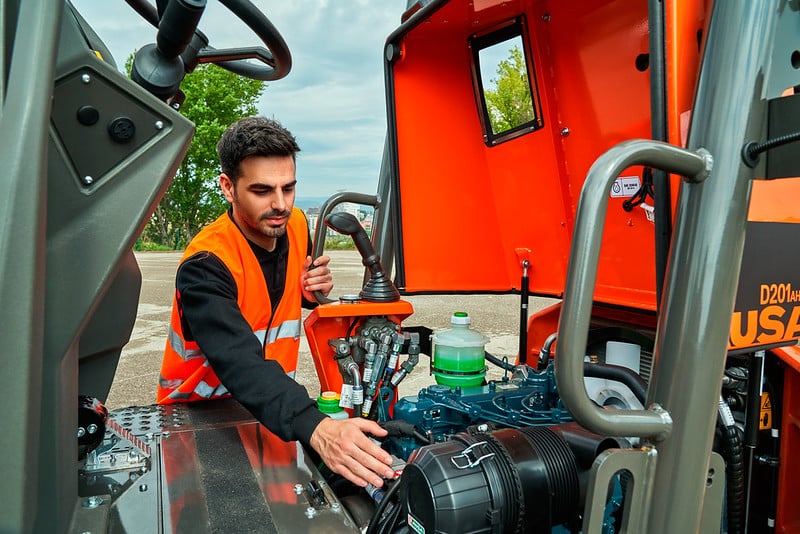

This dumper also stands out for its easy and economic maintenance. The accessibility of all its components and its reliability make it one of the most cost-effective options.
Easy to maneuver
Cost-effectiveness
Easy to use
Easy to maintain
Low maintenance costs
Strength
More Images & Videos
Technical Information
General

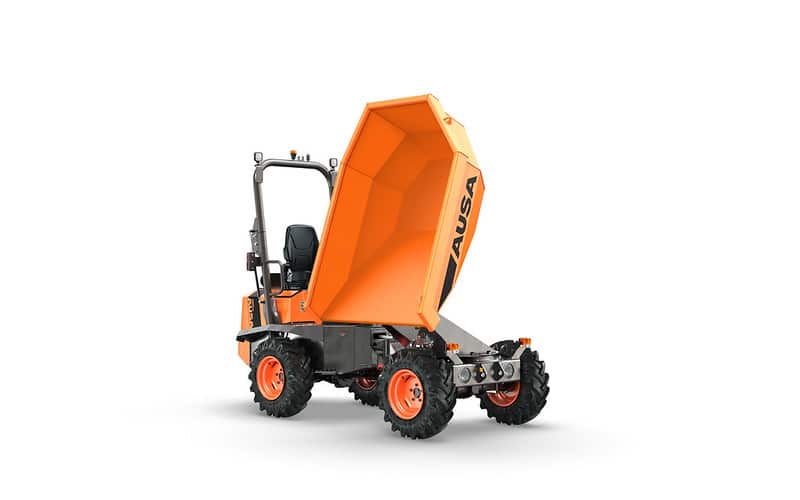

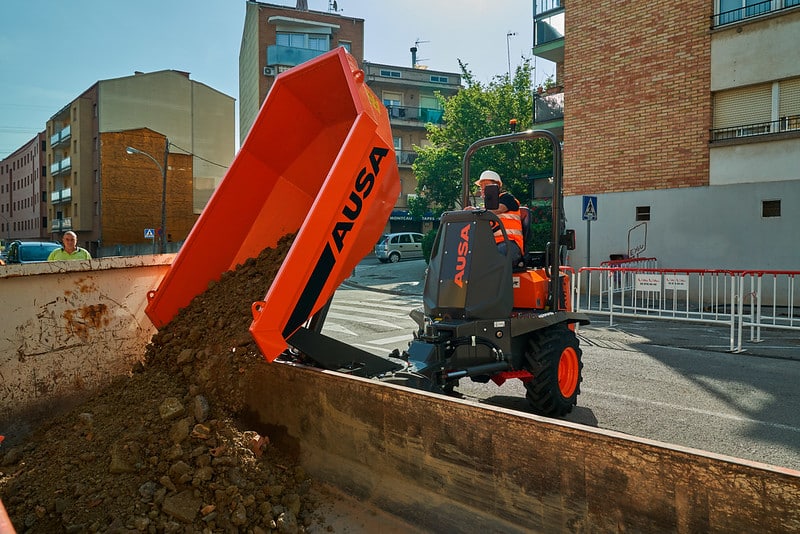

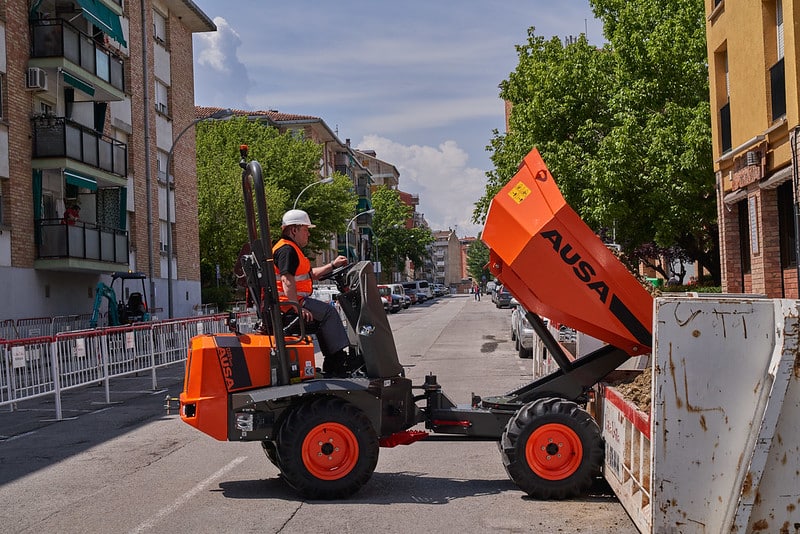

| Unloading system | Swivel tip |
| Load capacity | 2000 kg |
| Chassis | Articulated |
| Water skip capacity | 695 l |
| Level skip capacity | 1084 l |
| Heaped skip capacity | 1337 l |
| Empty weight | 2083 kg |
| Transmission | Hydrostatic |
| Reversibility | Non-reversible |
Engine
| Brand | Kubota |
| Model | V1505-E4B |
| Power | 18.5 kW |
| Torque | 92,6@1700 |
| No. of cylinders | 4 |
| Emissions | Stage V – EPA Tier 4 |
| Noise level (LwA) | 101 dB(A) |
Driving
| Max. speed | 17 km/h |
| Maximum gradient | 50 % |
| External turning radius | 3955 mm |
| Traction | 4×4 |
| Tyres | 10.0/75-15.3 |
Hydraulic system
| Hydraulic circuit | – |
| Flow rate | 25 l/min |
| Working pressure | 200 bar |
Tank capacity
| Fuel | 37.5 l |
| Hydraulic system | 37.4 l |
Brakes
| Service | Hydrostatic, retention |
| Parking | Negative |
Equipment
Driving Position

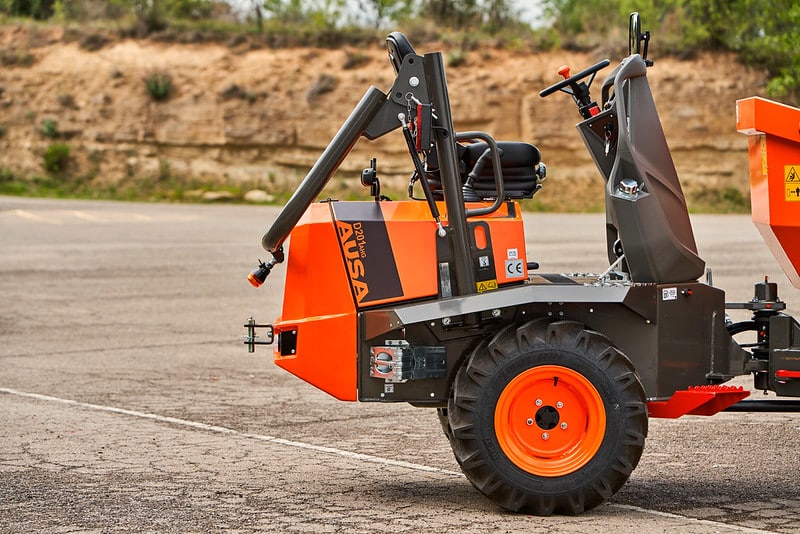

Rear folding ROPS protective structure
Safety
Seat belt with fasten sensor, Seat with operator’s presence sensor, LED rotating beacon, Acoustic warning for reverse gear, Anti-vandal security system, Negative brake
Lighting & Driving
Rear-view mirror
Comfort

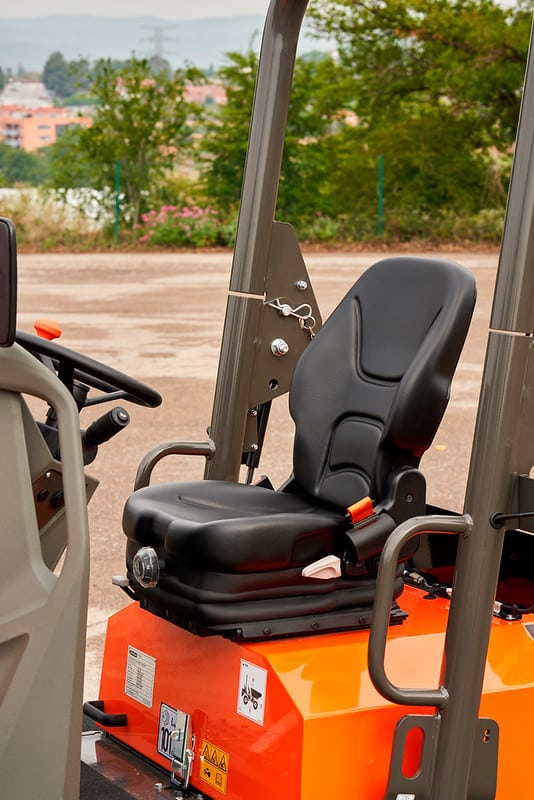

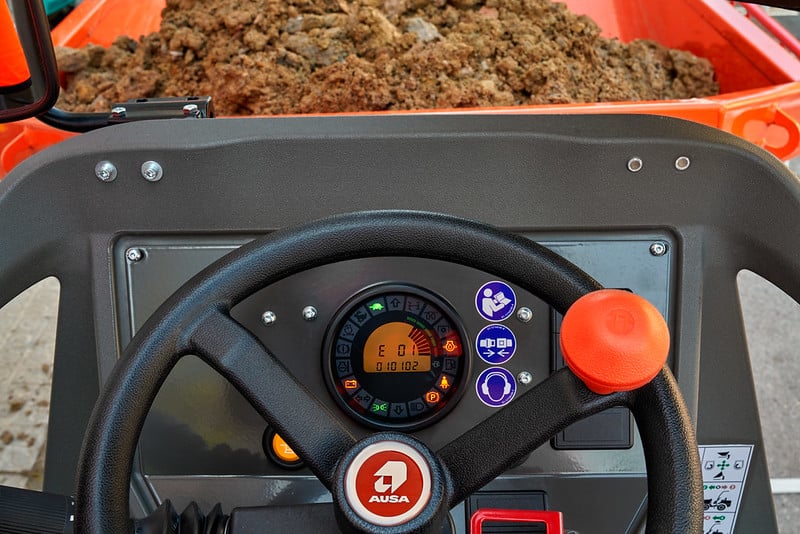

Adjustable ergonomic seat, All-in-one joystick
Advanced equipment
Hydrostatic transmission
Accessories
Metal engine cover
More Articulated Dumpers

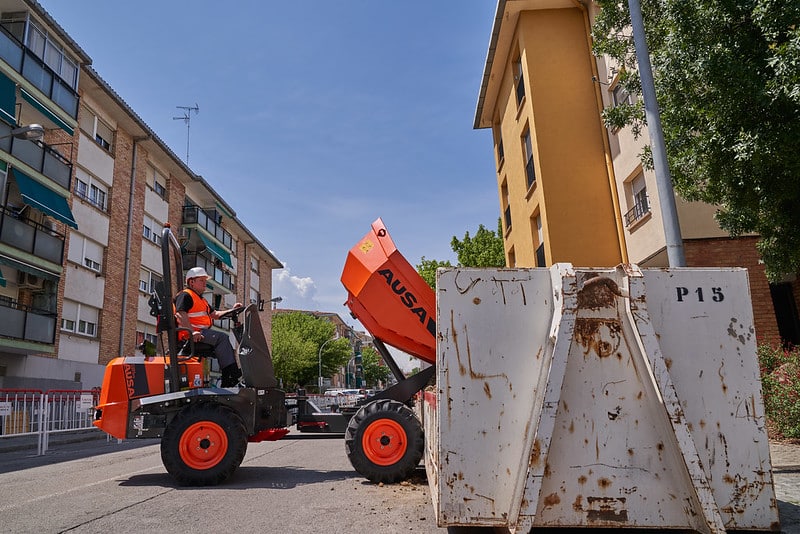

– Uploading system: Swivel tip
