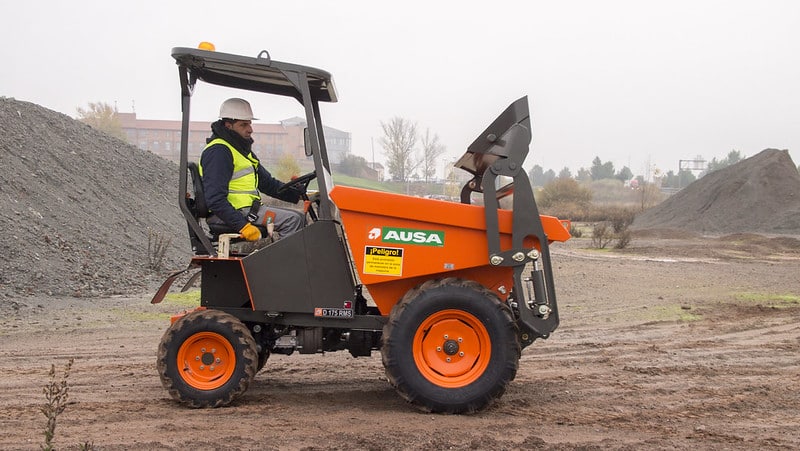

D175RMS

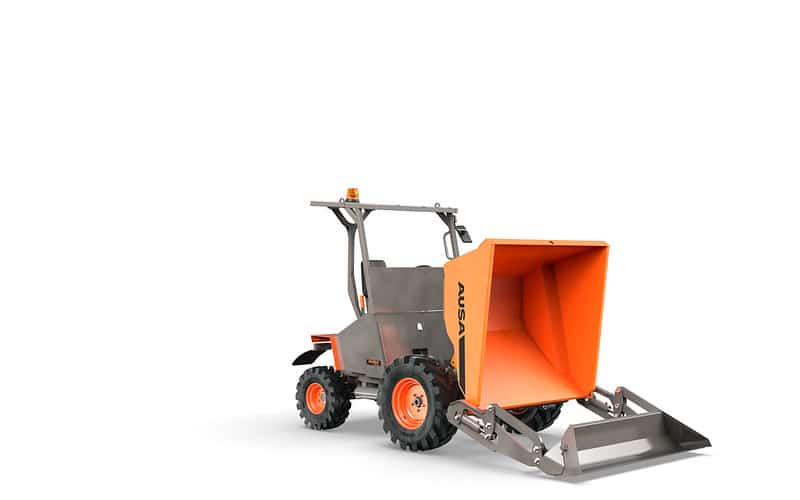

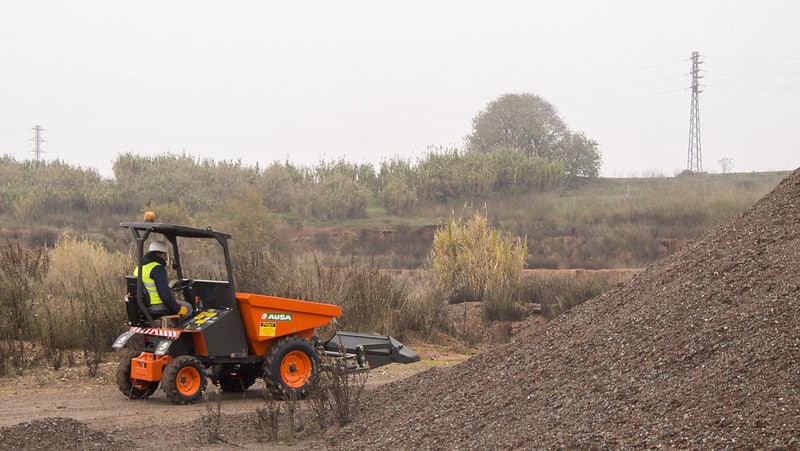

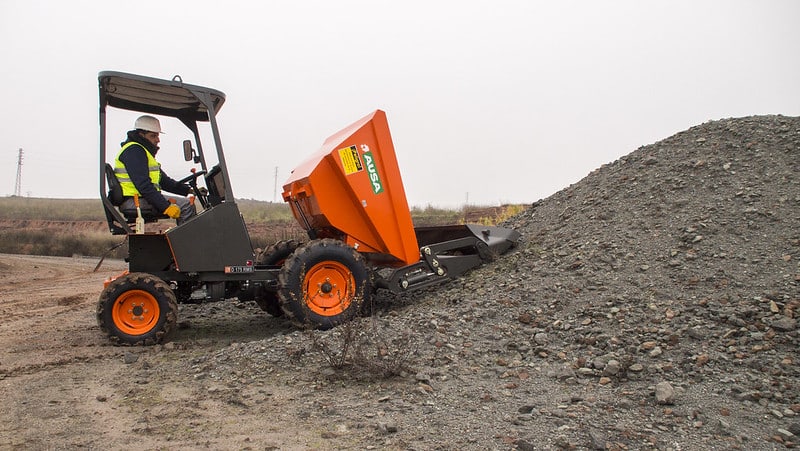

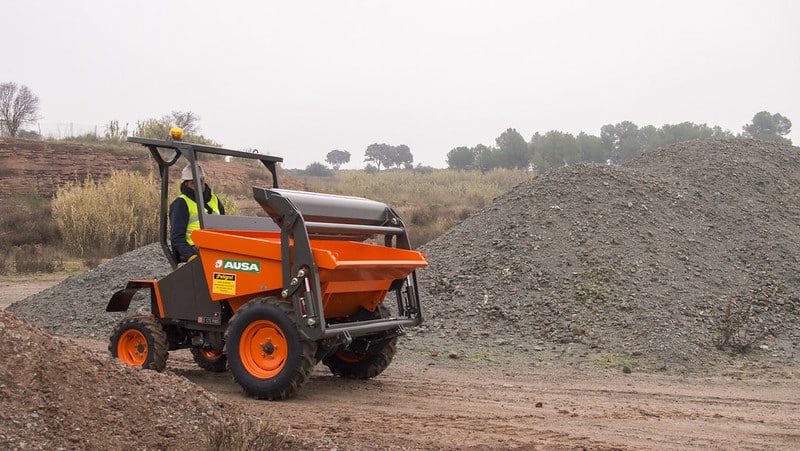

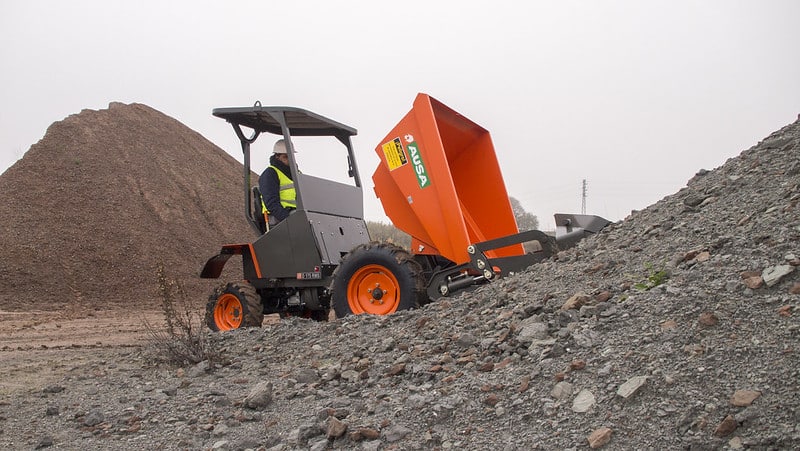

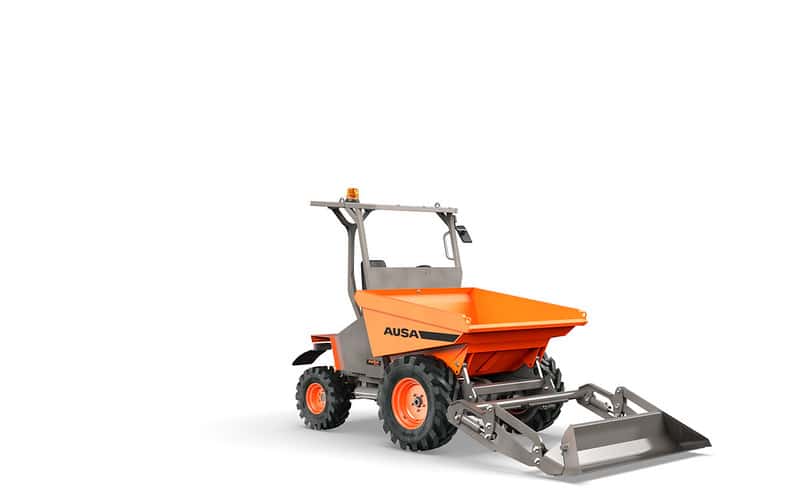

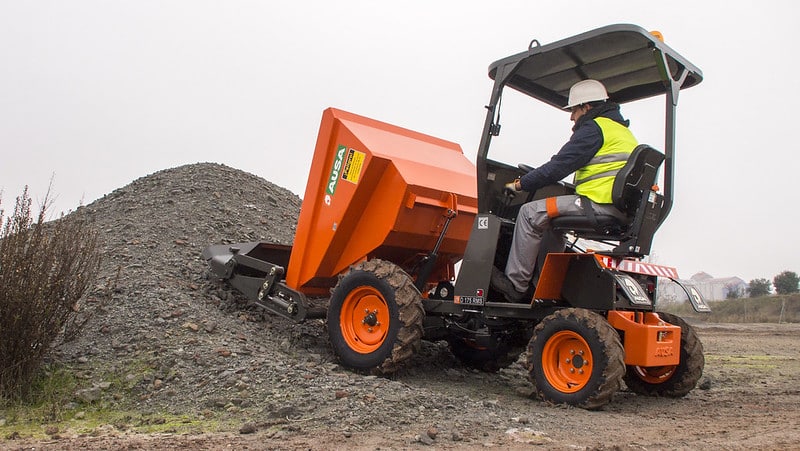

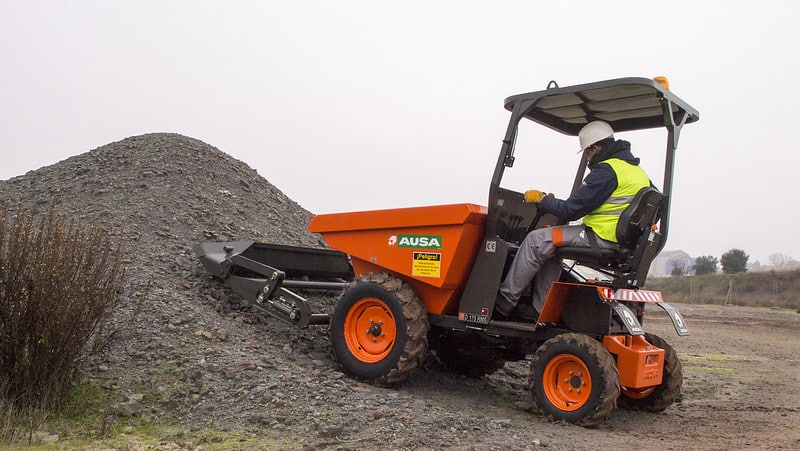

Powerful and inexpensive, the D175RMS features a self-loading shovel at the front of the machine. With a 1.75-tonne (3,850 lb) payload and front tipping, it is suitable for minor civil engineering projects and agricultural applications. Additionally, because it is highly durable and inexpensive to maintain, it is a great option.
This rigid-chassis model is available with 4×4 FullGrip© drivetrain and has outstanding maneuverability and stability on uneven terrains.
All-terrain
Cost-effectiveness
Easy to maneuver
Intensive tasks
Low maintenance costs
Strength
More Images & Videos
Technical Information
General
| Unloading system | Front tip |
| Load capacity | 1750 kg |
| Chassis | Rigid |
| Water skip capacity | 608 l |
| Level skip capacity | 868 l |
| Heaped skip capacity | 1047 l |
| Empty weight | 1230 kg |
| Transmission | Mechanical |
| Reversibility | Non-reversible |
Engine
| Brand | Kubota |
| Model | D902-E4B |
| Power | 12.1 kW |
| Torque | 54,6@1900 |
| No. of cylinders | 3 |
| Emissions | Stage V – EPA Tier 4 |
| Noise level (LwA) | 101 dB(A) |
Driving
| Max. speed | 19 km/h |
| Maximum gradient | 26 % |
| External turning radius | 3470 mm |
| Traction | 4×4 FullGrip® |
| Tyres | 7.50-16 / 145/80 R13 |
Hydraulic system
| Flow rate | 26.4 l/min |
| Working pressure | 120 bar |
Tank capacity
| Fuel | 13.5 l |
| Hydraulic system | 16.5 l |
Brakes
| Service | Drum, hydraulically actuated |
| Parking | Mechanical, on front axle |
Equipment
Safety
Acoustic warning for reverse gear, Anti-vandal security system
Lighting & Driving
Power steering
Implements
Self-loading shovel
