D151AHG

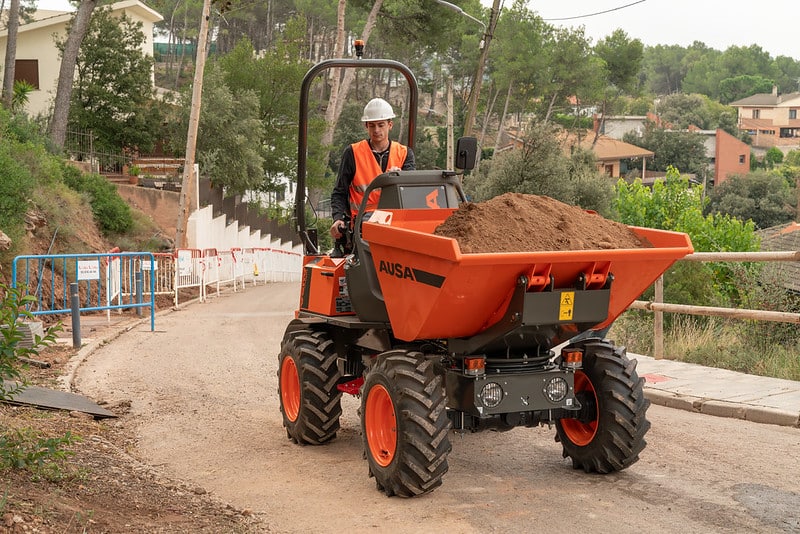

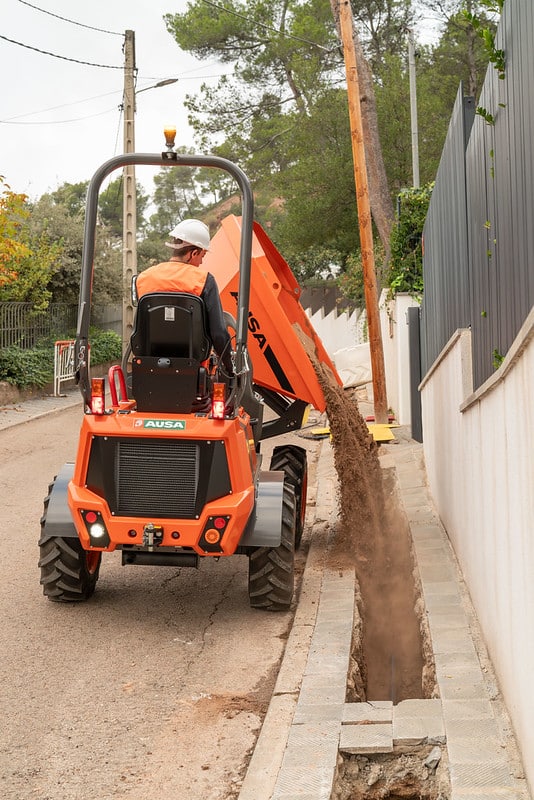

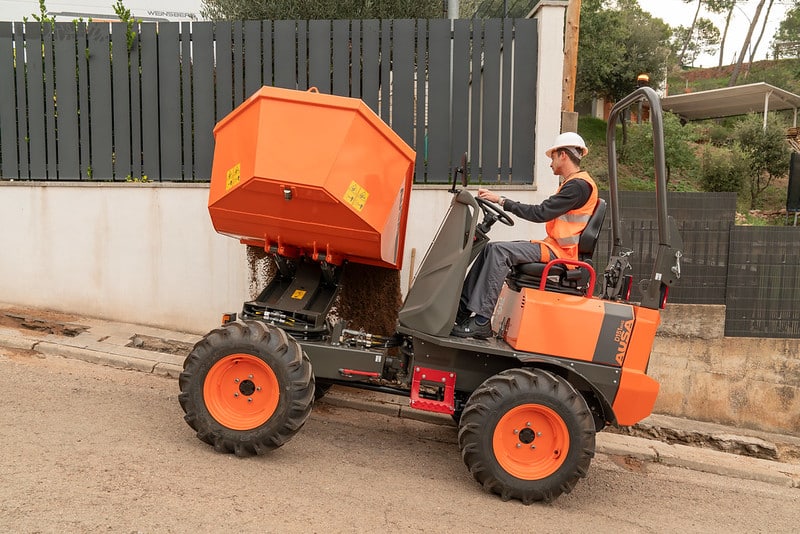

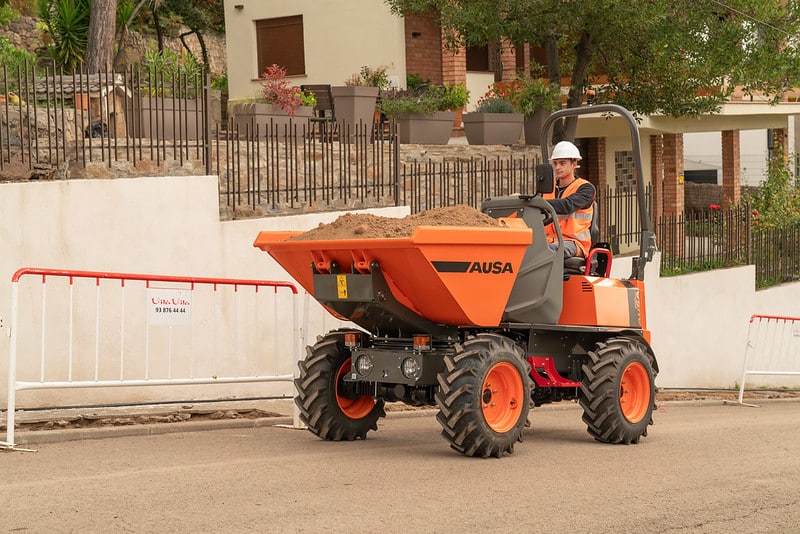

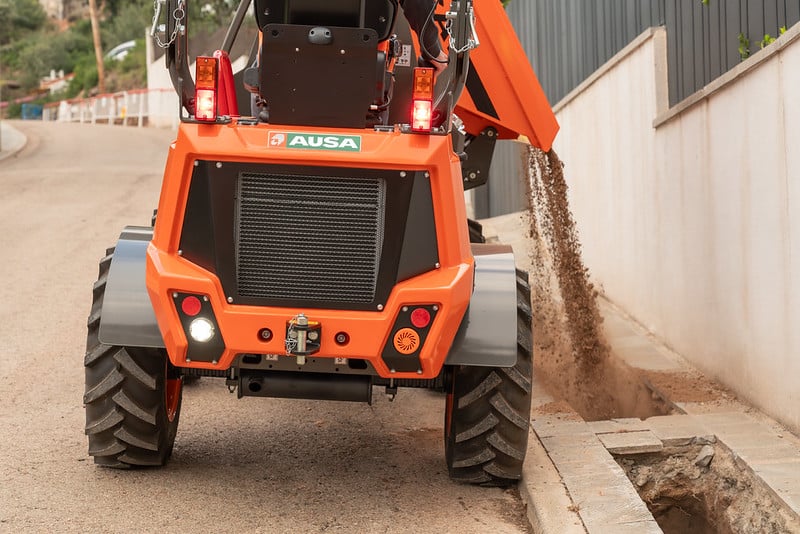

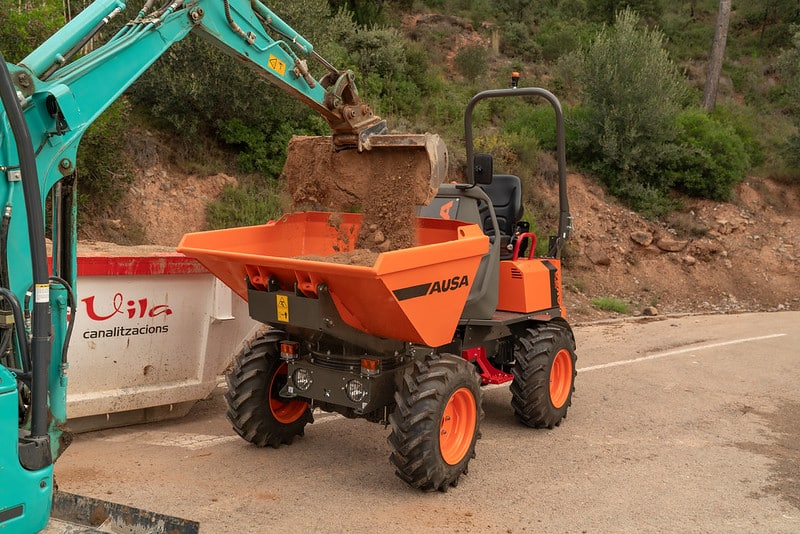

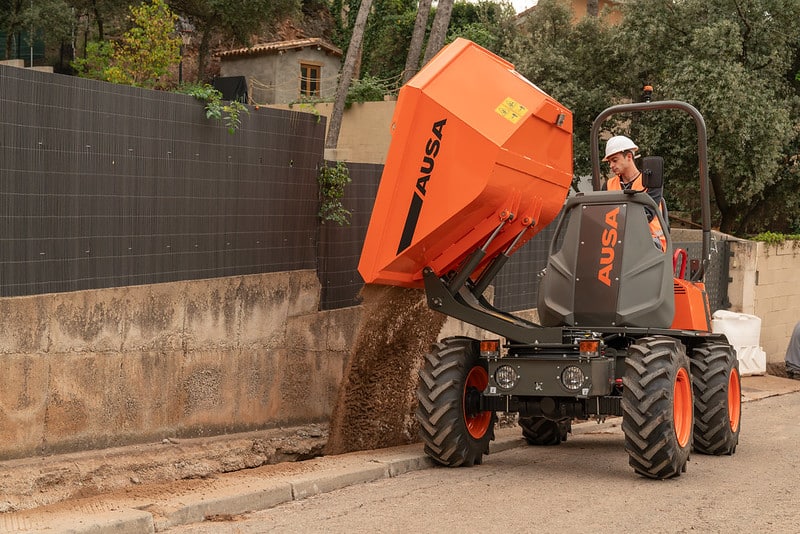

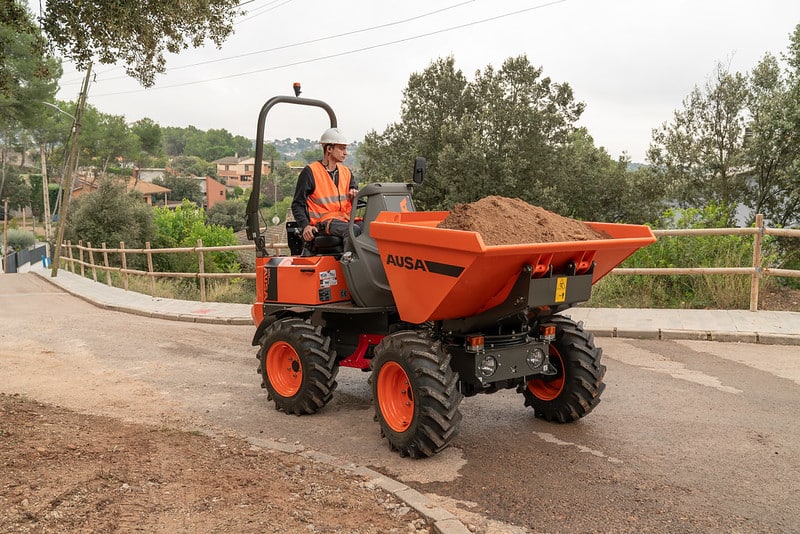

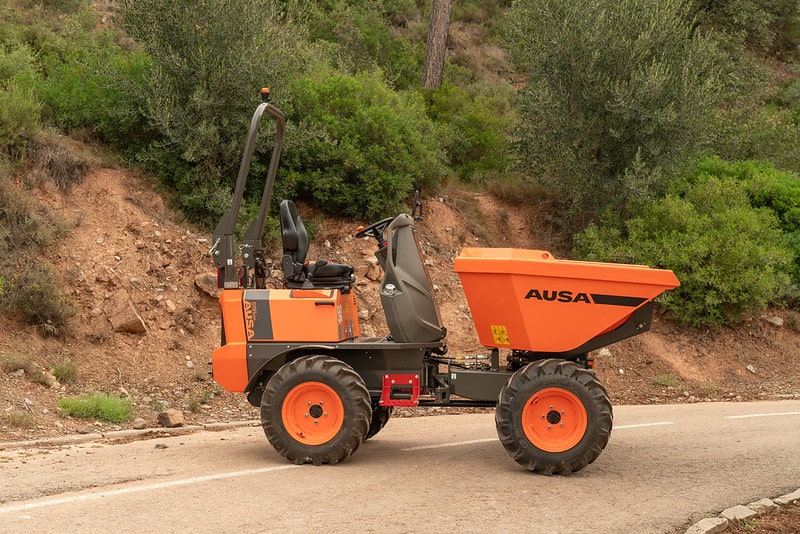

The D151AHG is a versatile dumper with a 1,500-kg (3,300 lb) payload capacity and a swivel skip, making it ideal for comfortably unloading materials into side ditches. Its compact size is perfect for small public works projects and areas with difficult access. Additionally, the permanent 4-wheel drive ensures it can handle even the toughest terrains.

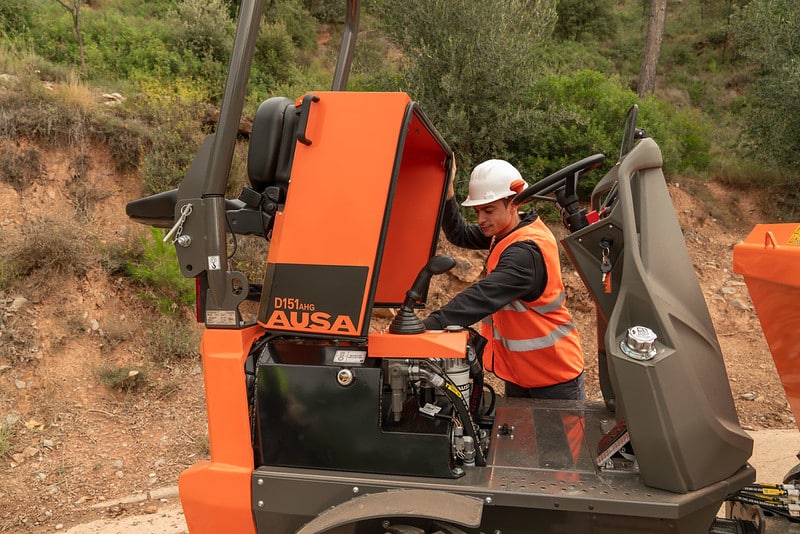

To simplify maintenance and minimize downtime, this dumper features a tilting driving position, providing excellent access to the engine and components.
Compactness
Joystick all in one hand
Easy to maneuver
Comfort
Easy to use
Tilting cab
More Images & Videos
Technical Information
General
| Unloading system | Swivel tip |
| Load capacity | 1500 kg |
| Chassis | Articulated |
| Water skip capacity | 520 l |
| Level skip capacity | 626 l |
| Heaped skip capacity | 900 l |
| Empty weight | 1545 kg |
| Transmission | Hydrostatic |
| Reversibility | Non-reversible |
Engine
| Brand | Kubota |
| Model | D1105-E4B |
| Power | 15.4 kW |
| Torque | 70,3@1600 |
| No. of cylinders | 3 |
| Emissions | Stage V – EPA Tier 4 |
| Noise level (LwA) | – |
Driving
| Max. speed | 16 km/h |
| Maximum gradient | 40 % |
| External turning radius | 3300 mm |
| Traction | 4×4 |
| Tyres | 255/75-15.3 |
Hydraulic system
| Hydraulic circuit | 8 cc gear pumps |
| Flow rate | 21 l/min |
| Working pressure | 180 bar |
Tank capacity
| Fuel | 37.5 l |
| Hydraulic system | 24.5 l |
Brakes
| Service | Hydrostatic, retention |
| Parking | Negative |
Equipment
Driving Position
Rear folding ROPS protective structure
Safety
Seat belt with fasten sensor, Seat with operator’s presence sensor, LED rotating beacon, Acoustic warning for reverse gear, Emergency stop, Anti-vandal security system, Negative brake
Lighting & Driving
Rear-view mirror
Comfort
All-in-one joystick, Extra comfort seat, fully adjustable
Advanced equipment
Hydrostatic transmission
Accessories
Metal engine cover
